Cambium Networks

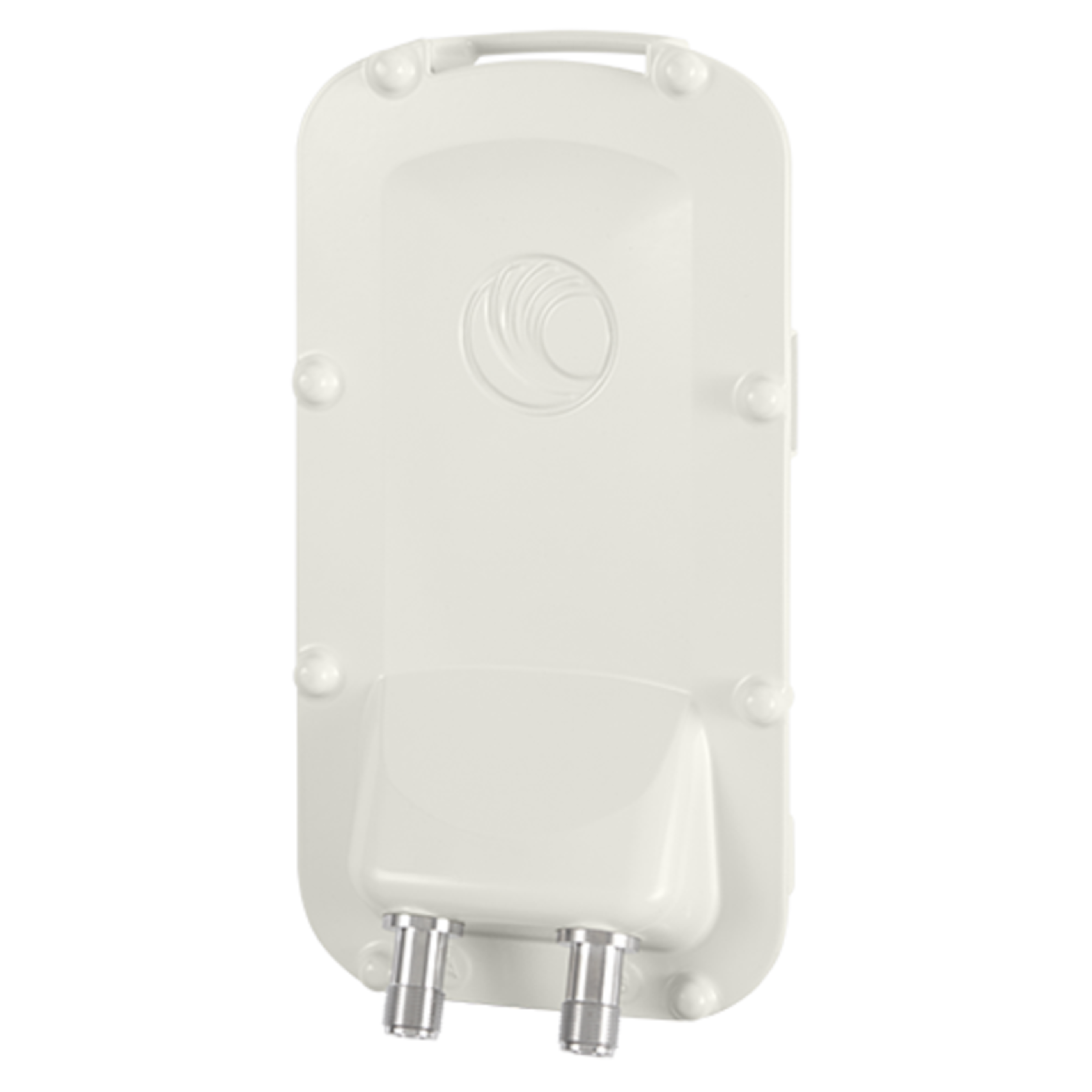

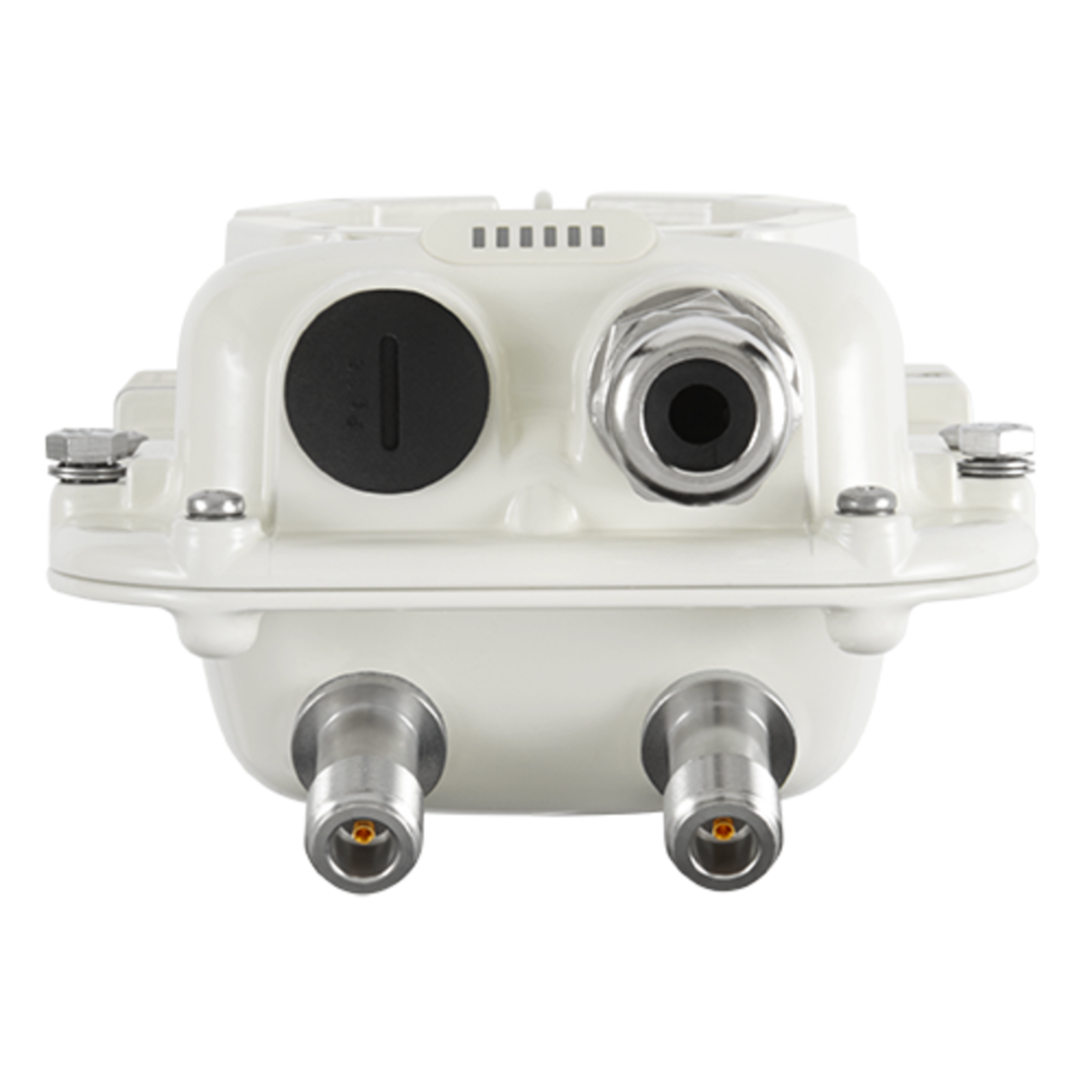

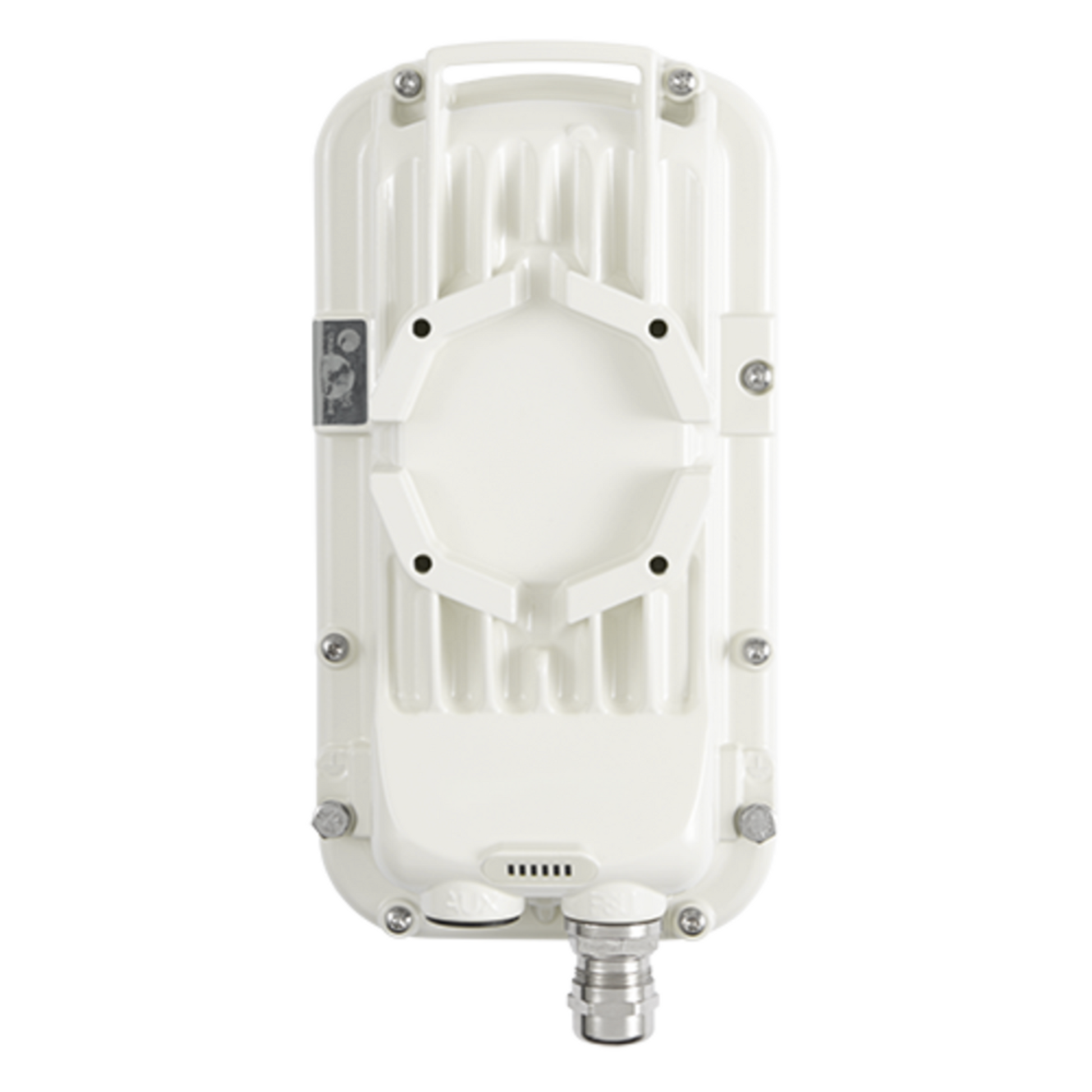

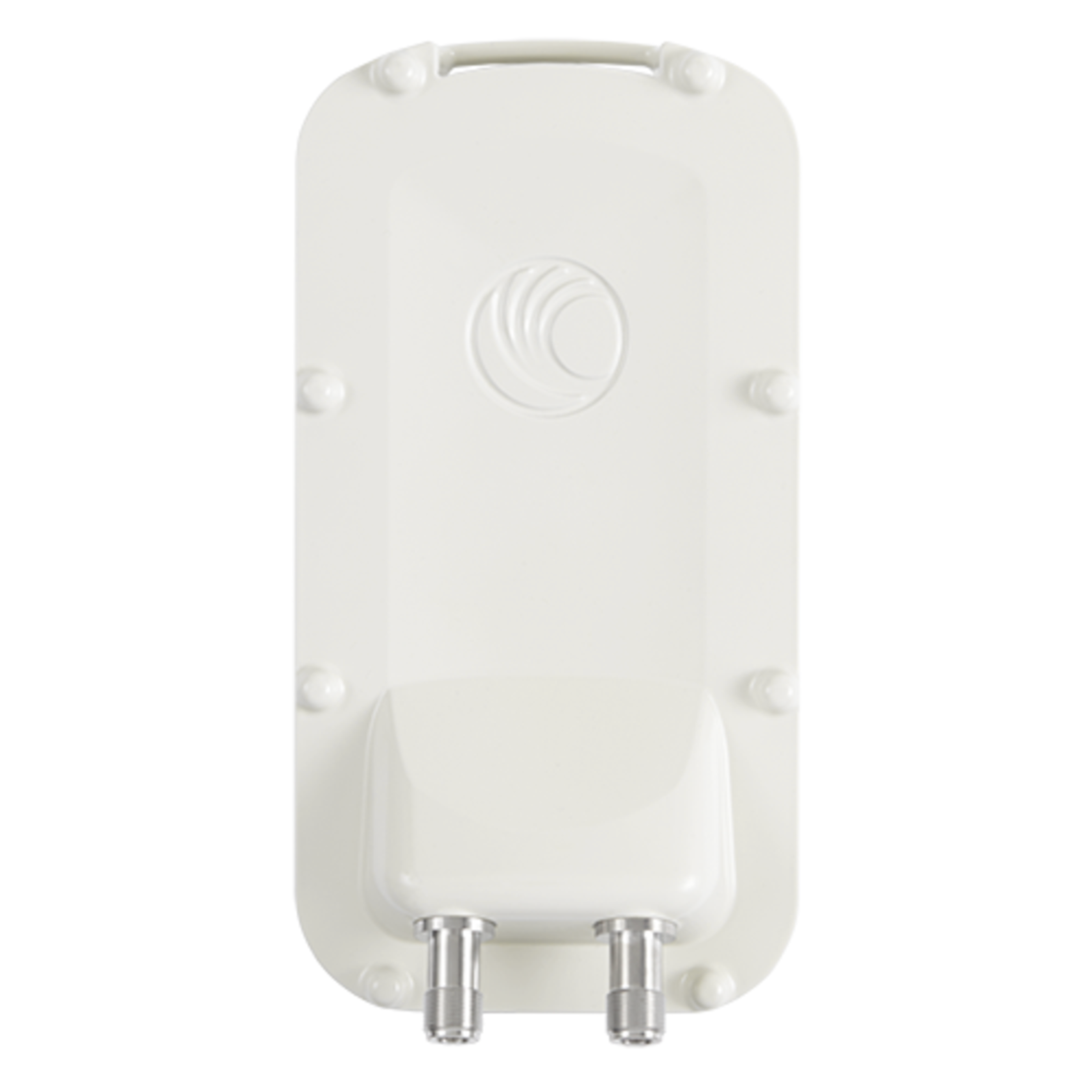

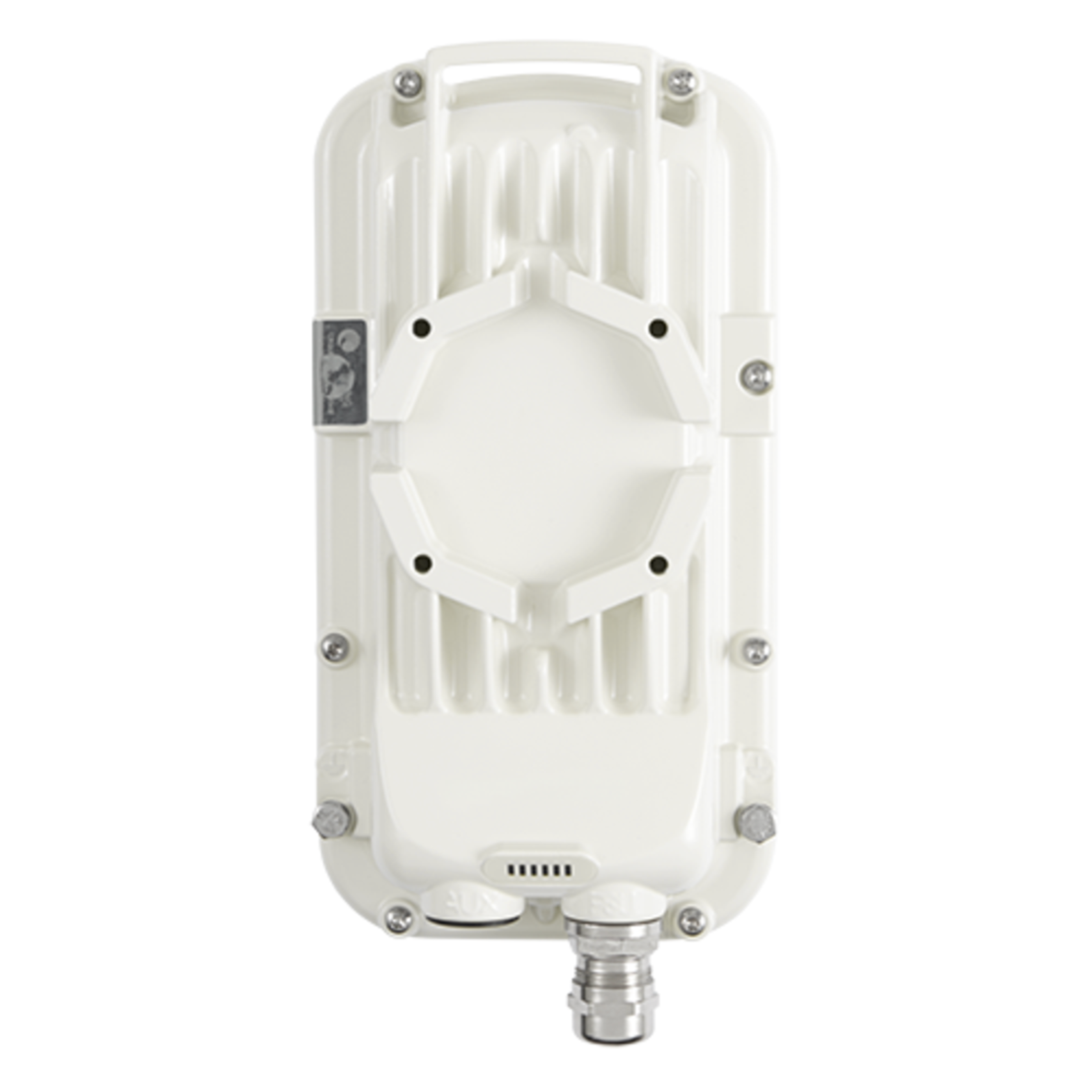

Cambium 3 GHz PMP 450i Connectorized Access Point [C030045A001A]

Only 1 left
SKU: C030045A001A
$5,098.00 CAD

Product details

  • Type Outdoor Wireless
  • Vendor Cambium Networks
  • SKU C030045A001A

Share on Social Media:

Description

Cambium Networks C030045A001A is a connectorized access point and part of the PMP 450i platform. It operates at 3 GHz, with 2x2 MiMO OFDM and interference filtering

Product Features:

  • Ultra-Wide Band: Advanced radio design improves transmit power and increased receive sensitivity, supporting the entire band.
  • Rugged Metal Enclosure: Designed to meet IP-66 and IP-67 standards to withstand harsh environments.
  • Dynamic Interference Filtering: Provides industry leading noise isolation for improved performance.
  • Updated FPGA and SoC architecture triples the processing power compared to PMP 450
  • Multi-function AUX port allows for greater flexibility for deployment by adding a camera or other PoE directly.

Product Specifications:

  • Channel Spacing: Configurable on 2.5 MHz increments, 3 GHz customizable up to 50 KHz
  • Frequency Range: 3300 to 3900 MHz
  • Channel Width: 5 / 7 / 10 / 15 / 20 / 30 MHz
  • MAC (Media Access Control) Layer: Cambium Networks proprietary
  • Physical Layer: 2x2 MiMO OFDM
  • Ethernet Interface: 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant)
  • Protocols Used: IPv4, UDP, TCP, IP, ICMP,Telnet, DNMP, HTTP, FTP
  • Network Management: HTTP, HTTPS, Telnet, FTP, SNMP v3
  • VLAN: 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
  • Subscriber Per Sector: Up to 238
  • ARQ: Yes
  • Maximum Deployment Range: Up to 40 miles (64 km)
  • Latency: 3 -5 ms, typical
  • GPS Synchronization: Yes, via Autosync (CMM4)
  • Quality of Service (Diffserve QoS)
  • Antenna Connection: 50Ω, N-Type
  • Surge Suppression (LPU fitted): EN61000-4-5: 1.2us/50us, 500 V voltage waveform
  • Mean Time Between Failure: > 40 years
  • Environmental: IP67, IP66
  • Temperature / Humidity: -40 to 60°C (-40 to 140°F), 0 to 05% non-condensing
  • Weight: Approx. 2.0 kg (4.5lbs)
  • Wind Survival: 322 km/h (200 mph)
  • Dimensions: 26.0 x 13.4 x 6.4 cm (10.3 x 5.3 x 3.3 ")
  • Power Consumption: 15 W typical, 25 W max, 55 W max with Aux port PoE out enabled
  • Input Voltage: 48 to 59 VDC, 802.3at compatible
  • Encryption: 56-bit DES, FIPS-197 128-bit AES
  • CE: EN 302 326-2 v1.2.2 / EN 302 326-3 v1.3.1
