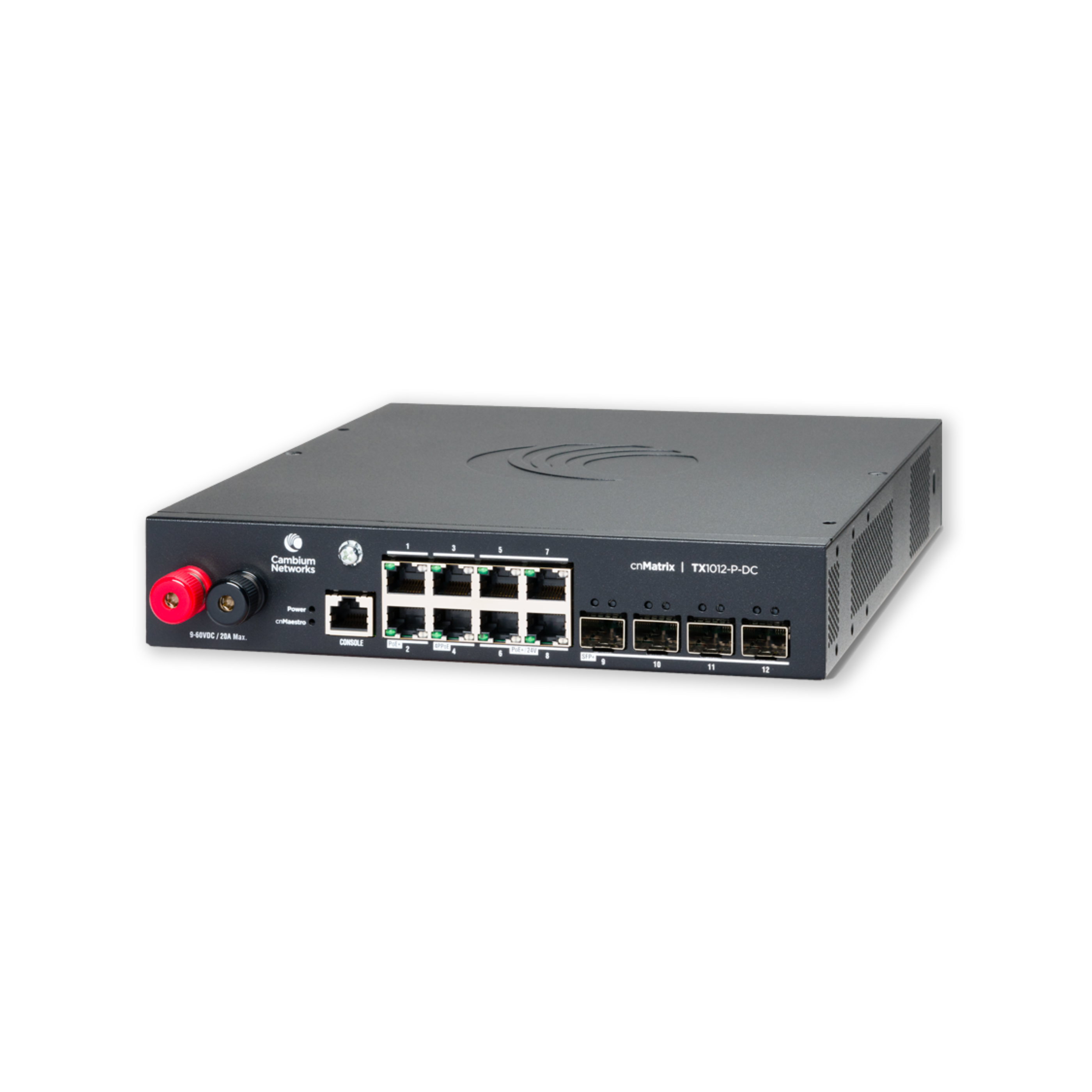

Cambium cnMatrix TX1012-P-DC PoE Switch [MXTX1012GxPA21]

Only 1 left
SKU: MXTX1012GxPA21
$1,664.00 CAD

Product details

  • Type Switches
  • Vendor Cambium Networks
  • SKU MXTX1012GxPA21

Share on Social Media:

Documentation

Description
Cambium cnMatrix TX provides Wireless ISP operators a non-blocking, fully managed, enterprise grade L2/L3 switch portfolio, flexible and intelligent PoE in a single box solution that is easy to install and manage while improving network performance.

Fully integrated switching solution purpose-built for WISPs that simplifies deployment operations while improving network performance. Integrated with the complete Cambium portfolio of connectivity solutions, managed via the cnMaestro cloud-based management system. Designed based on the specific needs of Wireless ISPs.

General Features:
  • Throughput: 96 Gbps
  • Forwarding Rate in Mpps (64 Byte Packets): 120
  • 10/100/1000 Mbps RJ45 Ports: 8
  • 10 Gbps Fiber Ports (SFP+): 4
  • PoE+ Enabled Ports 802.3af/at/bt: 8
  • Low Voltage Passive PoE (24V): 4
  • High Power 4 PPoE (up to 90W): 2
  • Serial Console: Yes
  • Policy Based Automation: Yes
Hardware Specifications:
  • Power Supply: 200W
  • PoE Power Budget: 170W @ 30-65Vin, 120W @ 9–29Vin
  • 802.3af/at/bt PoE (54V): Ports 1–8
  • 24V Passive PoE - up to 15W: Ports 5–8
  • 54V Passive PoE - up to 90W: Ports 3–4
  • 54V Passive PoE - up to 30W: Ports 1–2, 5–8
  • Rack Mountable: Yes (Optional Accessory)
  • DIN Rail Mountable: Yes (Optional Accessory)
  • Wall Mountable: Yes (Optional Accessory)
  • Temperature Ranges: -30ºC to 60ºC / Sea level
Management:
  • cnMaestro cloud management
  • XMS cloud management
  • Industry standard Command Line Interface (CLI)
  • Embedded web management (HTTP/HTTPS)
  • SSH / SSH v2
  • SNMP v1/v2/v3
  • Local/remote system logging
  • Policy Based Automation
Layer 2 Feature Set:
  • 802.1s multiple spanning tree
  • VLAN, Port, Protocol, 802.1q
  • 802.1d
  • 802.1x authentication
  • Auto MDI/MDIX
  • BPDU Guard, Root Guard
Layer 3 Feature Set:
  • Inter-VLAN Routing
  • Static ARPs
  • Static Routes
  • DHCP Relay
  • Dynamic Routing – RIPv1/v2
  • Dynamic Routing – OSPFv2
  • Route Redistribution
Quality of Service:
  • ACL mapping and marking of ToS/DSCP (COS)
  • ACL mapping marking of 802.1p
  • ACL mapping to priority queue
  • DiffServ support
  • Honoring DSCP and 802.1p (CoS)
  • Traffic shaping/metering
Traffic Management:
  • ACL-based inbound rate limiting policies
  • Broadcast, multicast and unknown unicast rate limiting
  • Inbound rate limiting per port
  • Outbound rate limiting per port/queue
Security:
  • 802.1x authentication
  • MAC authentication
  • DHCP snooping
  • RADIUS authentication/authorization
  • Radius/Tacacs/Tacacs+
  • Authentication, Authorization, and Accounting (AAA)
  • Secure shell
  • Secure copy (SCP)*
  • Local username/password
* Feature to be included in a future release.
