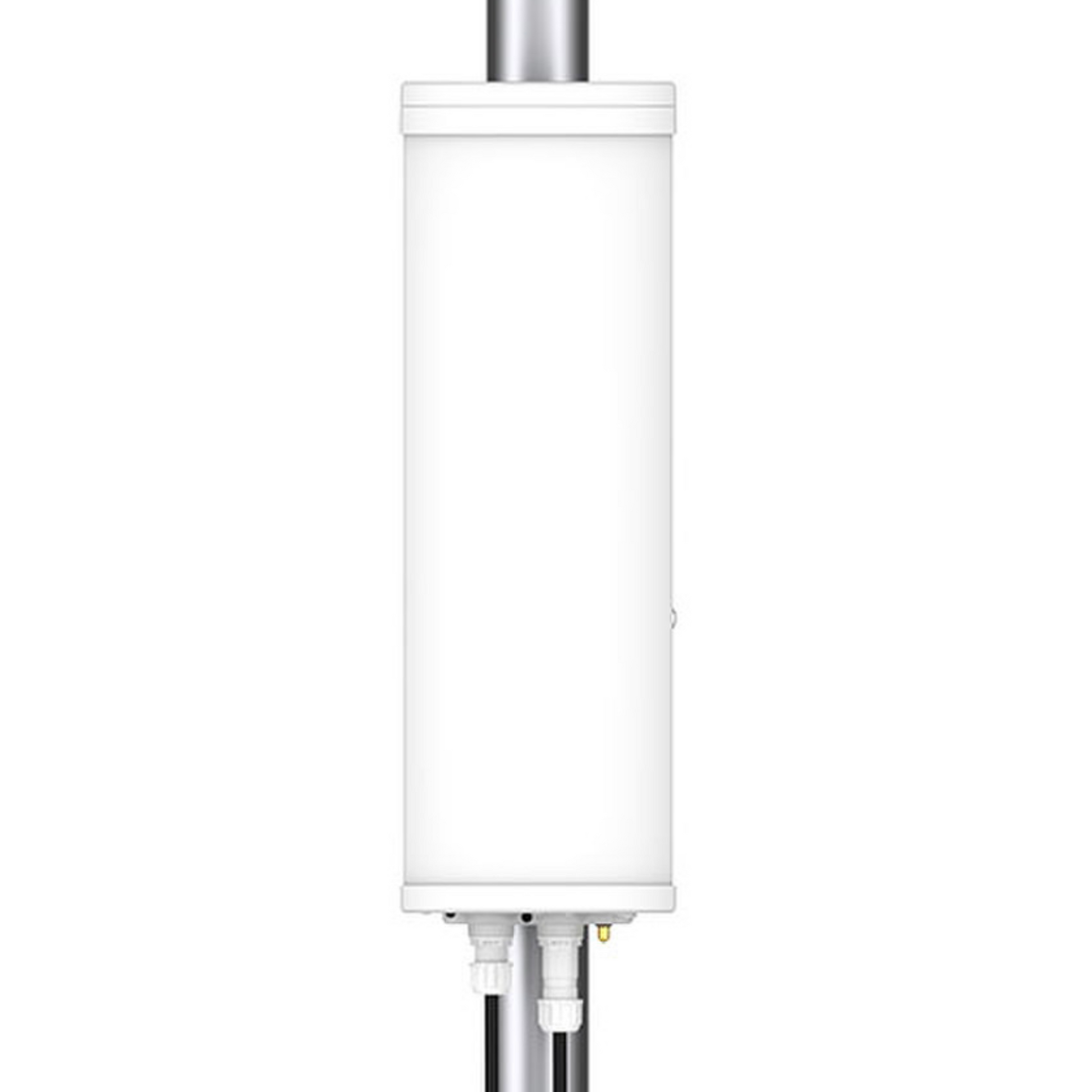

Cambium ePMP 6 GHz 4×4 Sector Antenna [C060940D301A]

In stock
SKU: C060940D301A
Regular price $663.00 CAD

Product details

  • Type Antennas
  • Vendor Cambium Networks
  • SKU C060940D301A

Documentation

High-performance sector antennas designed by Cambium Networks to maximize ePMP point-to-multipoint performance.

The 4x4 MU-MIMO 90º sector provides 18 dBi gain, 30 dB front-toback ratio and the ability to form the beams necessary for grouping SM’s for MU-MIMO performance. By forming these MU-MIMO groups, the RADIO effectively has two overlapping sectors enabling transmission to two SM’s simultaneously. This antenna is ideal for 4-sector deployments and ABAB 2-channel reuse.

Product Features:
  • Designed for ABAB channel reuse (two channels cover four sectors).
  • Excellent null fill and smooth azimuth patterns allow for broad geographical cover, including near the tower and out to the sector edges.
  • Designed for 6 GHz deployment worldwide covering 5.9 GHz to 7.125 GHz

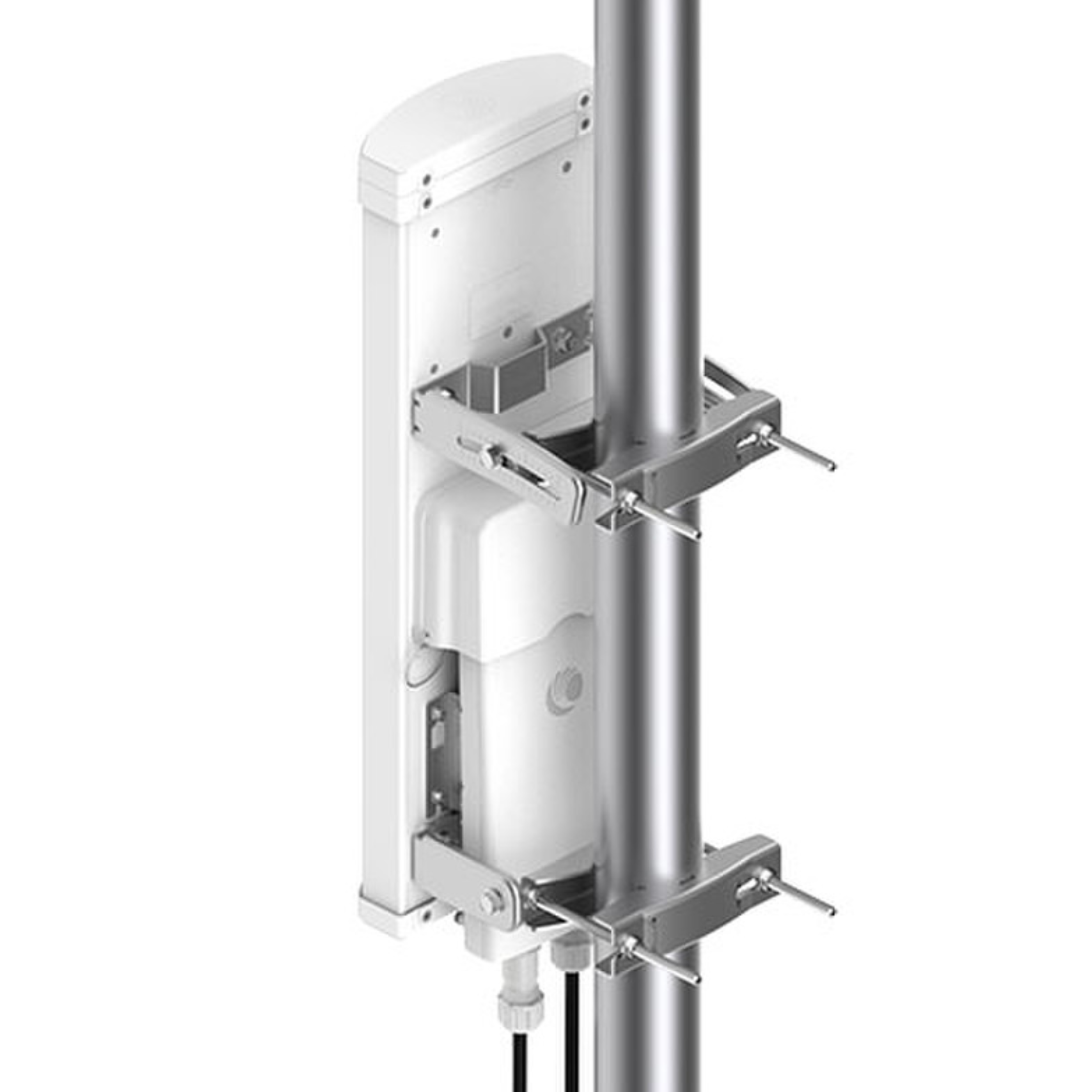

  • Small, compact designs with integrated radio mounting for reliable and safe installations.
  • LINKPlanner Support
