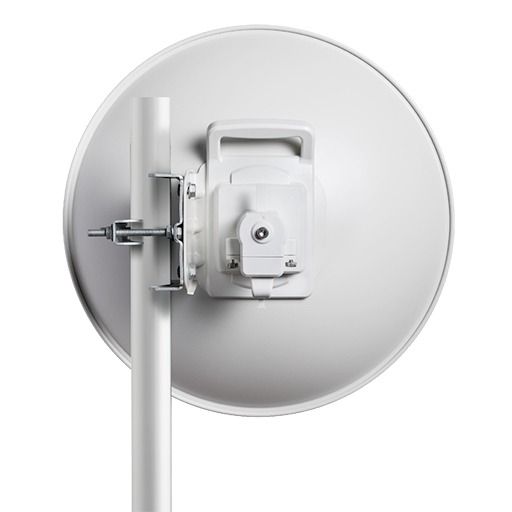

Cambium PMP 3GHz 450b Antenna Assembly (4-Pack) [N030045D001A]

The Cambium PMP 450b 5 GHz High-Gain Antenna Assembly, IP55 - 4 Pack platform increases performance with the addition of the PMP 450b Subscriber Module. This PMP 450b SM features ultra-wide band radios which support the entire band, from 4.9 to 5.925 GHz. Gigabit Ethernet Interface provides the maximum transfer rates to the device. 3.5 mm audio jack allows direct connection of headphones without any adapters. New System on a Chip (SoC) enhances Packet Processing Power more than 4x that of the 450 SM. Capable of up to 300 Mbps aggregate in a 40 MHz channel.

This product is only for the 4 pack of Antenna AssembliesProduct Features:

• Gigabit Ethernet Interface provides the maximum transfer rates to the device
• CBRS CBSD Category B device
• 3.5 mm audio jack allows direct connection of headphones for alignment without any adapters
• New System on a Chip (SoC) enhances Packet Processing Power more than 4x that of the 450 SM
• "No Encryption" models only required for countries with export control license requirements

Product Specifications:

• Channel Spacing: Configurable on 500 KHz increments
• Frequency Range: 3300 - 3900 MHz
• Channel Width: 5 MHz, 7 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz or 40 MHz
• MAC (Media Access Control) Layer: Cambium Networks proprietary
• Physical Layer: 2x2 MIMO OFDM
• Ethernet Interface: 100/1000 BaseT, full duplex, rate auto negotiated, 802.3 compliant
• Protocols Used: IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP
• Network Management: IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestro
• MTU: 1700 bytes
• VLAN: 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
• Encryption: FIPS-197 128-bit AES, 256-bit AES (Requires Optional License for attached Access Point)
• PPS: 50,000
• ARQ: Yes
• Ultimate Sensitivity: -94 dBm
• Maximum Deployment Range: Up to 64 km (40 miles) in PMP mode, up to 200 km (124 miles) in PTP mode
• Latency: 3 - 5 ms, typical
• GPS Synchronization: Yes, synchronized by Access Point or via 3.5mm port using cnPulse (for PTP mode)
• Quality of Service: Diffserve QoS
• Transit Power Range: 56 dB dynamic range (to EIRP limit by region) (1 dB step)
• Maximum Transit Power: +29 dBm (MIMO, combined polarities)
• Integrated Antenna Peak Gain: 20 dBi
• 3 dB Beamwidth- Azimuth: 12º
• 3 dB Beamwidth- Elevation: 12º
• Polarization: Dual slant, +-45
• Front-To-Back Isolation: > 30 dB
• Cross Polarization: > 15 dB
• Mean Time Between Failure: > 40 Years
• Environmental: IP55
• Temperature/ Humidity: -40°C to 60°C (-40°F to 140°F), 0-95% non-condensing
• Wind Survival: 200 kph (124 mph)
• Pole Diameter Range/ Mechanical Tilt (w/ included mount): 2.5 cm to 7.6 cm (1 in to 3 in) ± 20 degrees mechanical tilt
• Power Consumption: 12 W typical, 15 W peak
• Input Voltage: 20-32 VDC, Canopy-style PoE
• FCC ID: Z8H89FT0053
• ETSI: EN 302 326-2
