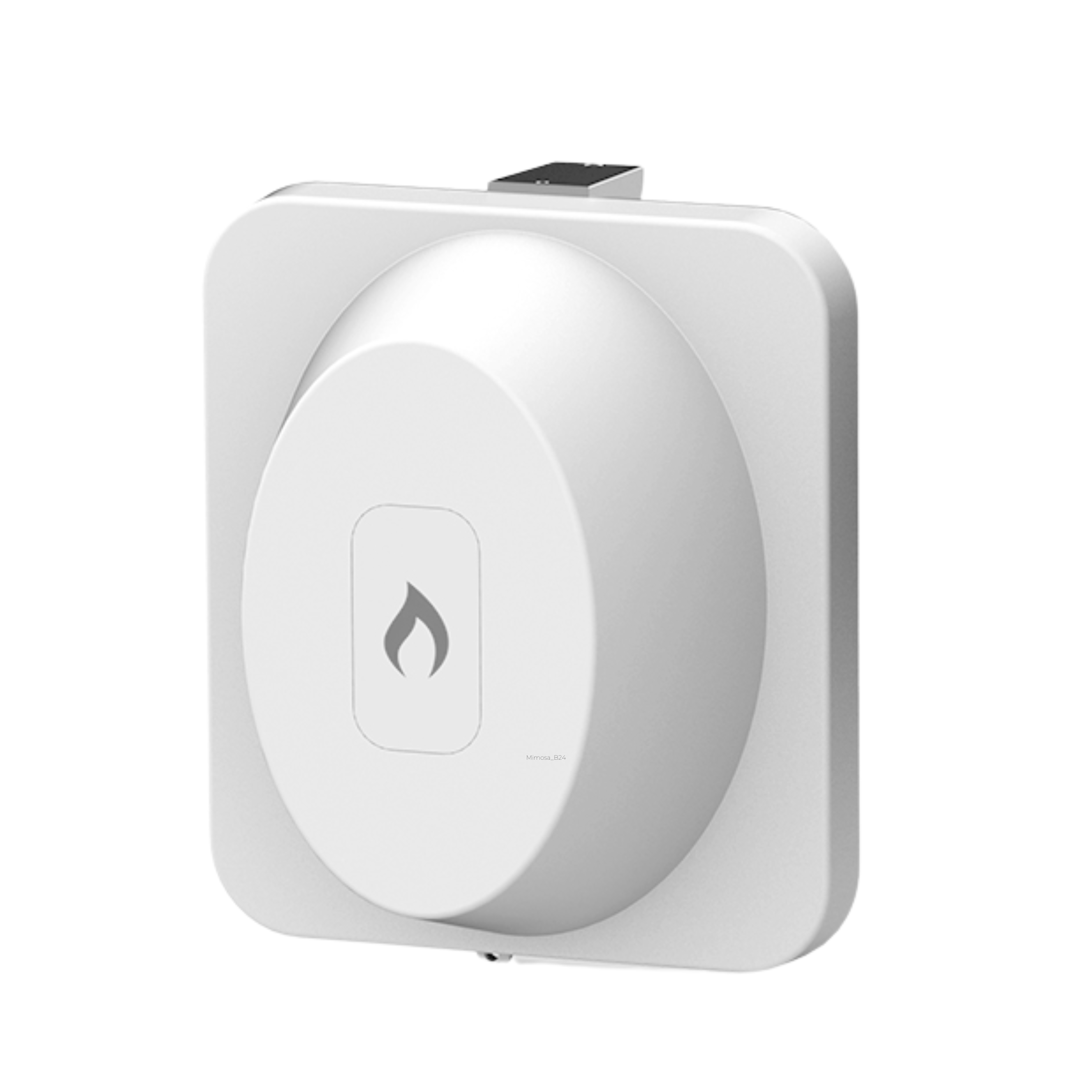

IgniteNet MetroLinq 2.5Gbps 60GHz PTP/CPE Antenna [ML2.5-60-19-US]

The IgniteNet MetroLinq 2.5 is license-free in most global markets, allowing for a fast and hassle-free deployment. It also features a backup 5GHz radio that you can use to provide integrated redundancy, without the need for any additional hardware. Operating with speeds of up to 2.5Gbps, this radio offers incredible performance.

This product does NOT include mounting hardware. You may purchase either the standard or long range mount below

Product Features

• 2.5+Gbps Aggregate throughput; dynamically allocated (60GHz)
• Management VLAN support and VLAN pass-through
• Support Service Provider and Enterprise type networks
• Stand-alone or Cloud-controlled operating modes
• Link failover/backup (60GHz + 5GHz) per client
• 128bit AES Encryption (standard; 5GHz and 60GHz)
• SNMP Monitoring with Private MIB

Product Applications

• Fixed Wireless Access (broadband)
• 3G/4G Backhaul
• Metro WiFi
• Campus Interconnection
• Hybrid Fiber/Wireless Networks

Product Specifications

• (1) 2.5 Gigabit Ethernet Port (PoE IN 24-48V)
• (1) SFP Port
• (1) Screw Terminal Block (DC Power IN 24-48V)
• (1) USB 3.0 Port
• Dual flash image support
• LEDs: Power, Ethernet, Wireless, Health/Status
• Dimensions: 190 x 190 x 120mm
• Power: 24-48V/1.5A passive Gigabit PoE or DC
• Operating Temperature: -40 to 70°C
• Storage Temperature: -40 to 70°C
• Operating Humidity: 10 to 90% non-condensing (RH)
• Regulatory Compliance: FCC/IC, CE
• RF Performance (TX):
      60GHz: 14dBm @ 2.5Gbps
      5GHz: 27dBm @ 6Mbps, 23dBm @ 866Mbps
• RF Performance (RX):
      60GHz: -74dBm @ MCS1; -60dBm @ MCS9
      5GHz: -94dBm @ MCS0; -72dBm @ MCS15
