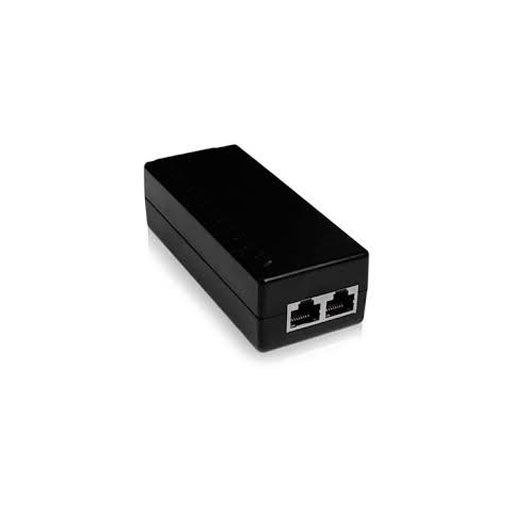

IgniteNet Replacement 24V Passive PoE Injector [ICC-POE-24-US]

IgniteNet PoE Injector is a replacement 24V Passive PoE injector for use with the IgniteNet Spark line, SkyFire line, and MetroLinq line.

This replacement Passive 24V PoE injector is for use with the following IgniteNet products:

• IgniteNet SkyFire
• IgniteNet Spark
• IgniteNet MetroLinq

Product Specifications

• Ethernet In: 1000 Mbps Active PoE
• Ethernet Out: 1000 Mbps Passive PoE
• PoE Mode Switch: PoE Out 4 Pair / 2 Pair
• Weather Rating: Indoor
• Temperature Rating: -40 to 40C
• PoE Power Rating: up to 24W
• PoE Input: 37 - 57V
• PoE Output: 24 V +/- 10%
• PoE Pinout 4 Pair Mode: + (1,2 & 4,5) - (3,6 & 7,8)
• PoE Pinout 2 Pair Mode: + (4,5) - (7,8)
• Cable Length (Out): 100m (Max)
