MikroTik CCR1036 12x Gigabit Ethernet 4xSFP Cloud Core Router [CCR1036-12G-4S]

This product has been discontinued by MikroTik. Suggested replacement is the CCR2116-12G-4S+.

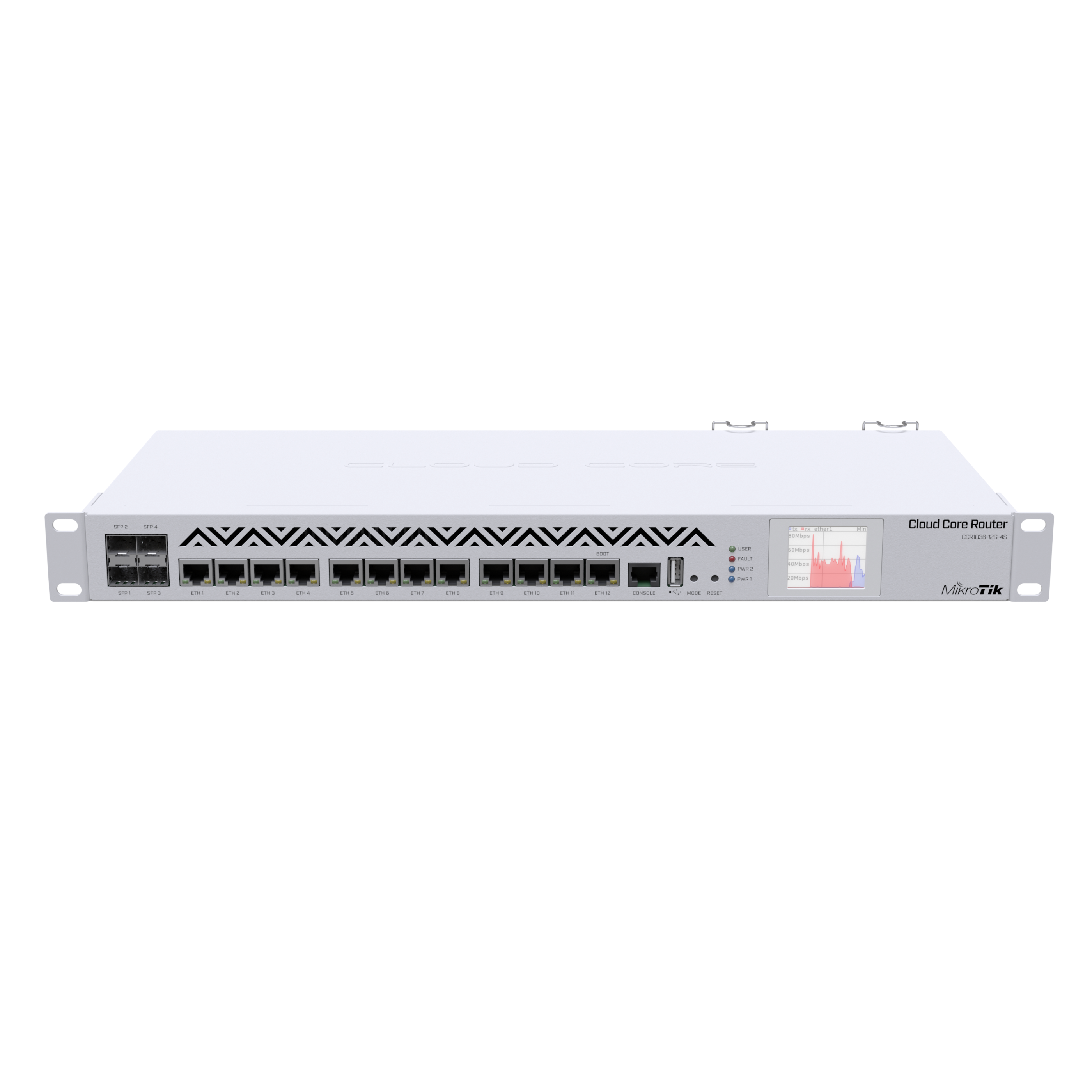

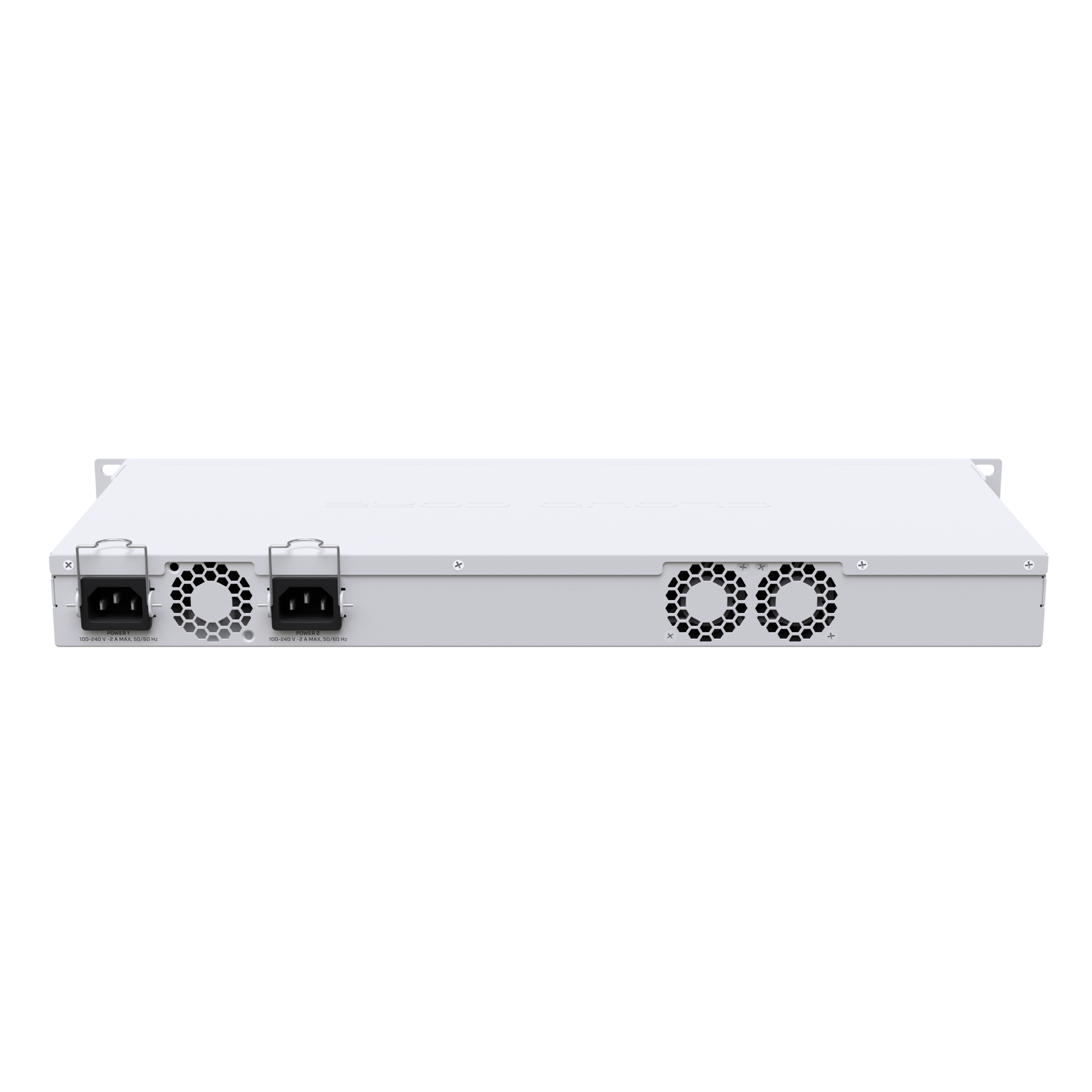

The MikroTik CCR1036-12G-4S is an industrial grade router with a cutting edge 36-core CPU. Unprecedented power and unbeatable performance. This Cloud Core Router comes in a 1U rackmount case, has (4) SFP ports, (12) Gigabit ethernet ports, a serial console cable, and a USB port. The MikroTik CCR1036-12G-4S is now being shipped with dual redundant power supplies, full size type A USB (instead of microUSB), high speed M.2 storage connector and onboard 4GB of RAM

• 36 Core networking CPU
• 12 Mbytes total on-chip cache
• 8 mpps standard forwarding
• 24 mpps fastpath forwarding
• Up to 16Gbit/s throughput
• 1U Rackmount Case
• Color touchscreen LCD display
• Ports directly connected to CPU

• CPU Speed: 1.2GHz
• SFP Ports: 4
• LAN Ports: 12
• Memory: (2) SODIMM DDR slots, 2x2GB installed
• Gigabit: Yes
• MiniPCI: 0
• USB: Full-size type A USB
• PoE: Yes
• Operating System: RouterOS v6
• RouterOS License: Level 6
• Board Dimensions: 355 x 145 x 55mm (14" x 5.7" x 2.2")
• Max. Ambient Temperature: 50° at 1.2GHz - 70° at 1GHz CPU core frequency
• Max. Power Consumption: 60W
