MikroTik LtAP mini series 2.4GHz dual-chain 1.5dBi Access Point INTL [RB912R-2nD-LTm&R11e-LTE]

The MikroTik LtAP mini LTE kit [RB912R-2nD-LTm&R11e-LTE] is a small weatherproof wireless access point with a built in cellular modem that supports 2G, 3G and 4G (LTE) connectivity on International LTE bands 1,2,3,7,8,20,38 and 40.

Connect to the LtAP mini’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The LtAP mini LTE also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging.

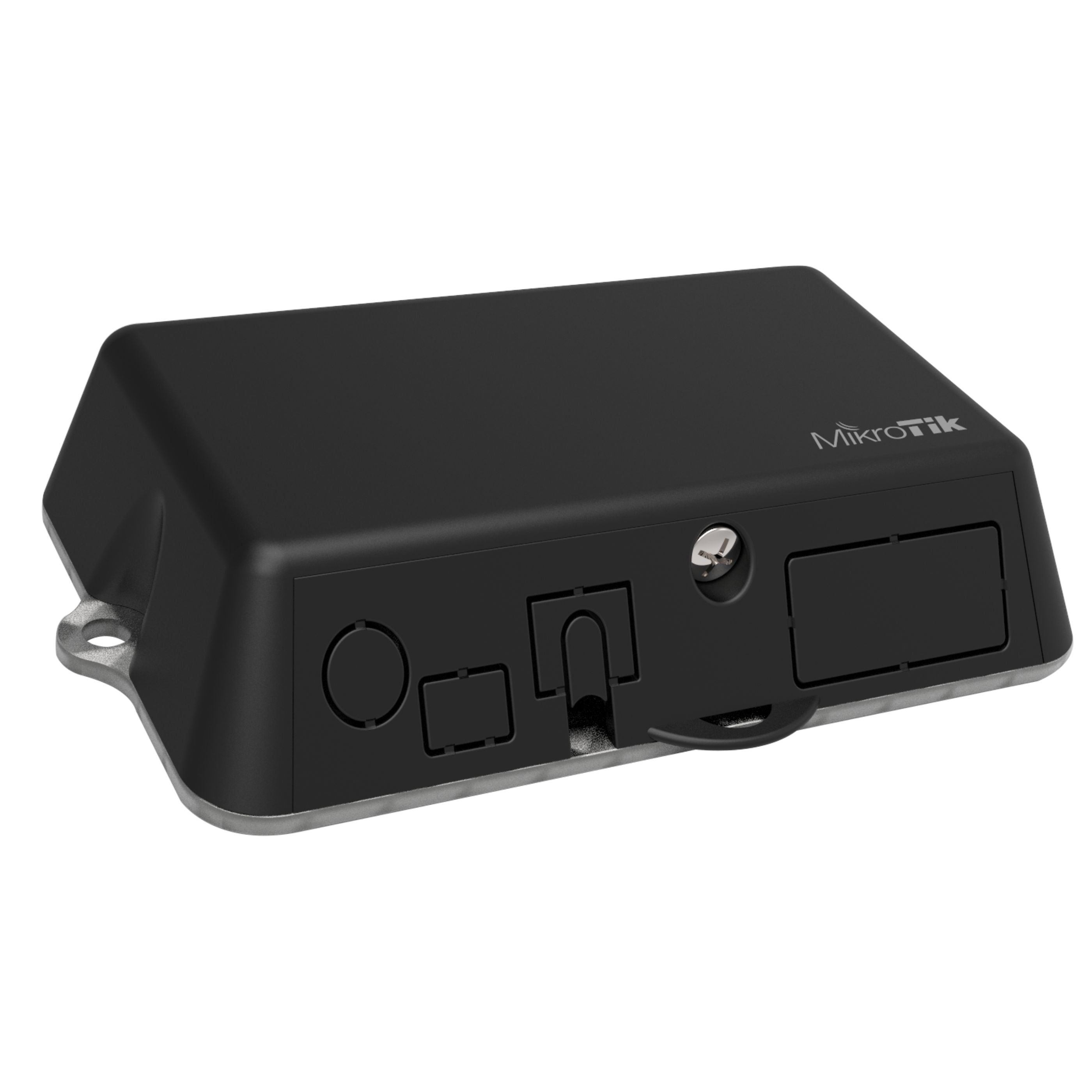

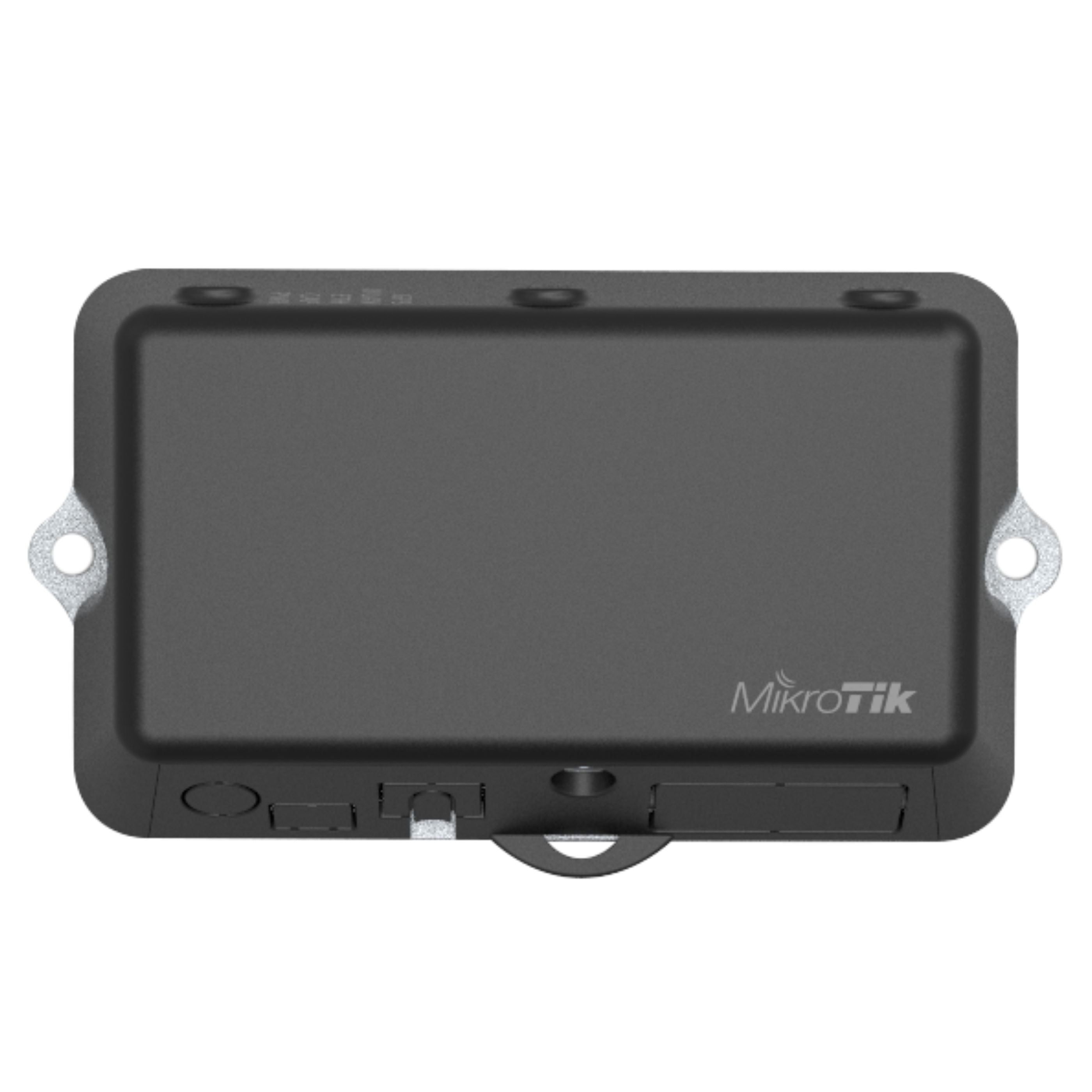

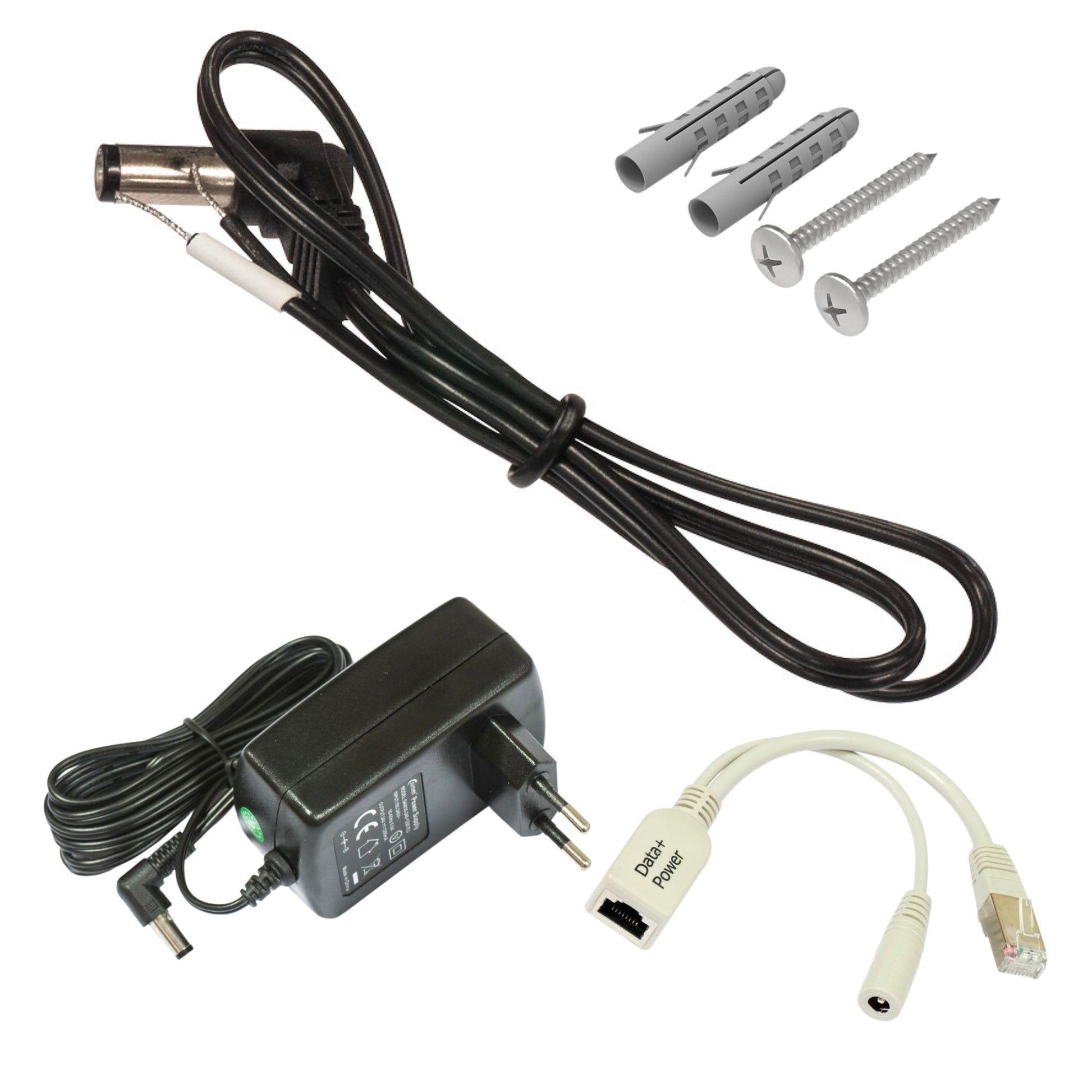

LtAP mini has a special enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. External GPS antenna is available for ordering separately (not included, product code ACGPSA).

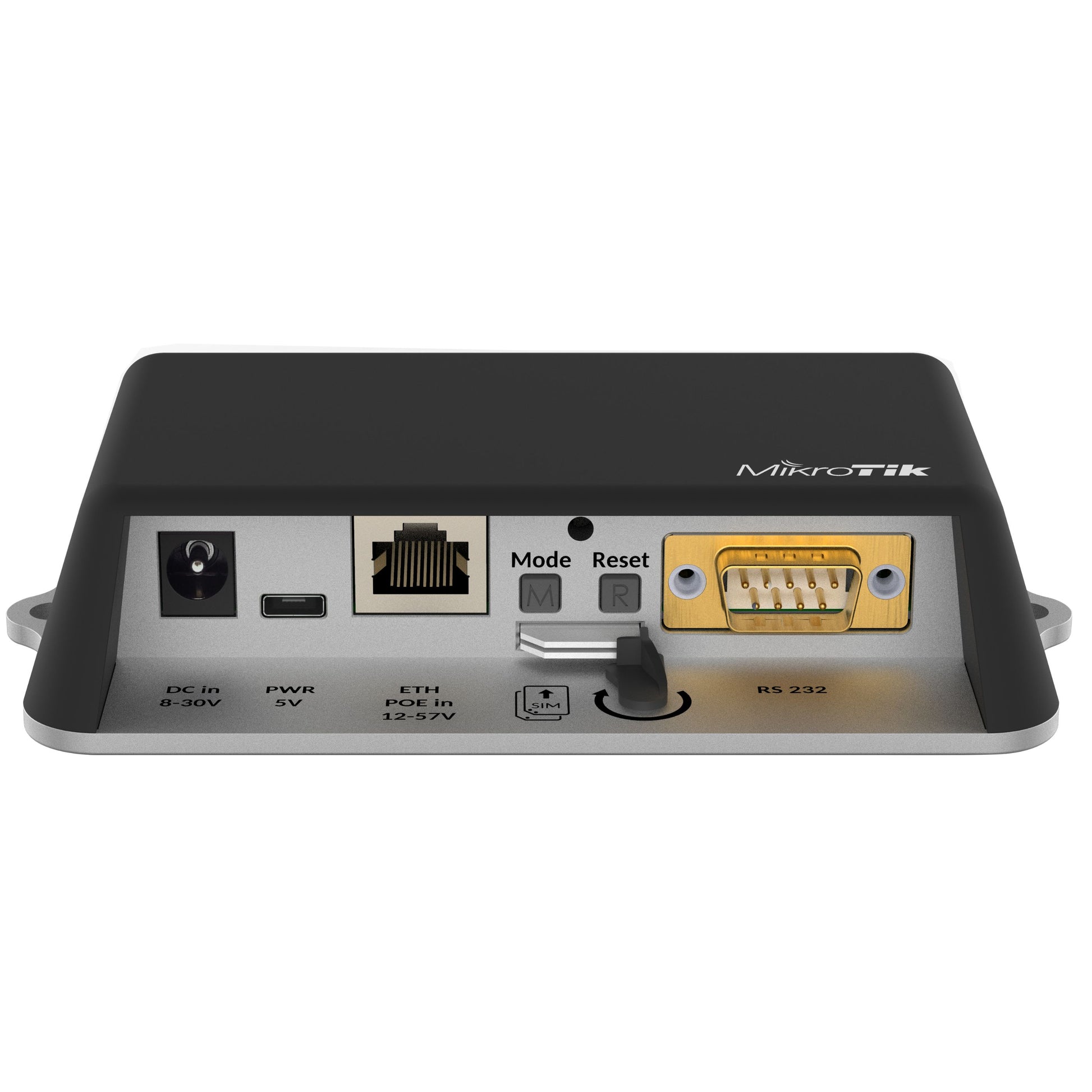

The LTE card is connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for better coverage. The unit has several powering options: 12-57 V PoE-in by Ethernet port, 8-30 V DC jack and 5 V microUSB.

Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform.

• 2.4 GHz AP in a rugged case
• miniPCIe for LTE
• Two SIM slots
• Built in GPS
• Serial port for other devices
• Perfect for cars or outdoor mobile applications

• LTE (FDD) bands: 1/2/3/7/8/20 (2100/1900/1800/2600/900/800)
• LTE (TDD) bands: 38/40 (2600/2300)
• 3G bands: 1/2/5/8 (2100/1900/800/900)
• 2G bands: 2/3/5/8 (1900/1800/800/900)
