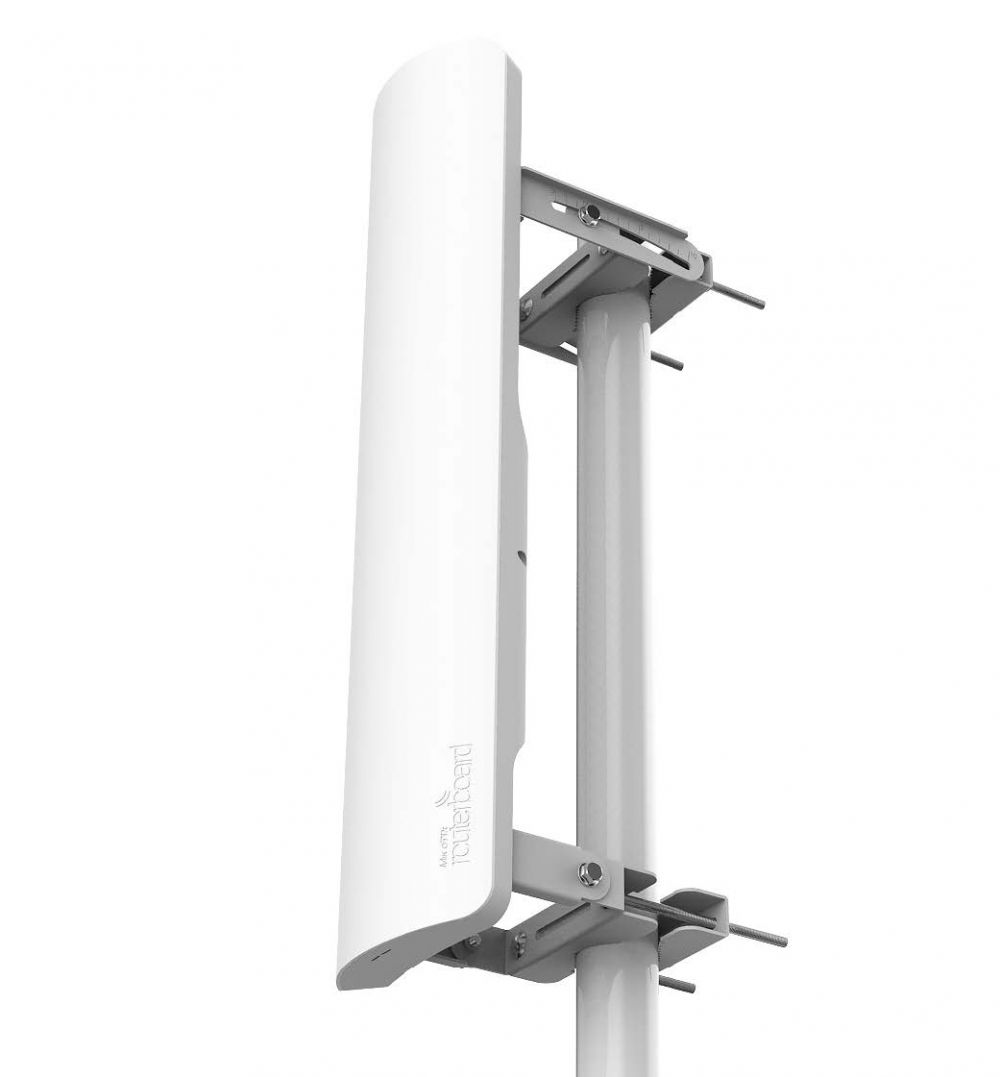

MikroTik mANT 19S Dual-Polarization 5Ghz 19dBi Antenna INTL [MTAS-5G-19D120]

The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device. The mANT is a dual-polarization antenna with two RP-SMA connectors, it comes in two sizes, the 15dBi model and the 19dBi model. Both antennas have 120 degree beamwidth. The mANT19s comes with metallic U bolt type mounts.

• Antenna Gain: 19dBi
• Frequency Range: 5.17-5.825GHz
• Polarization: Vertical and horizontal
• 3DB Beamwidth - azimuth: 120deg
• 3DB Beamwidth - elevation: 5deg
• VSWR: 1,43typ, 1.8max
• Port to port isolation: >40dB min
• Front-to-back ratio: >30dB
• Cross Polarization: >30dB
• Connector: 2 x RP-SMA
