MikroTik RouterBOARD RBM11G with Gigabit LAN and miniPCIe slot

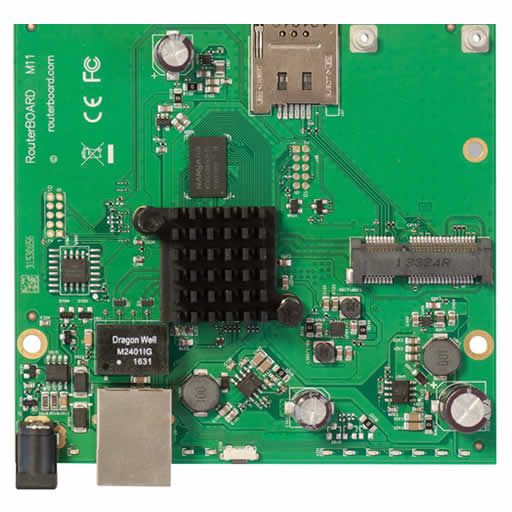

Coming in a relatively small, but largely powerful package, the M11G is a fully packaged RouterBOARD device perfect for using with your own enclosure or building a custom solution. Using the same physical configurations (a square PCB and mounting holes} as the older RB411 and RB911/RB912 lines, the brand new M11G can easily replace those two forefathers with confidence.

The powerhouse M11G comes with a new MediaTek dual core CPU running at 880MHz, a miniPCIe slot for using with a WiFi module of your choice (up to two chains supported), or with a 3G/LTE modem (SIM slot provided). The device offers two ways for it to be charged: either by PoE through it’s Gigabit Ethernet connector or by the DC power jack. To round things out, it is equipped with RouterOS L4 license (AP support).

• SIM Slot provided for 3G/LTE modem usage
• 880MHz MediaTek dual core CPU
• MiniPCIe slot for wifi module of your choice
• PoE that can be powered through gigabit Ethernet connector or DC power jack

• Fits standard CA411/711 aluminum case
• CPU: 880MHz dual core MediaTek MT7621
• RAM: 256 MB
• Storage: Flash, 16 MB
• 10/100/1000 Ethernet ports: 1
• MiniPCIe slots: 1
• SIM card slots: 1
• PoE in: yes
• Supported input voltage: 10 V - 30 V (Passive PoE and 802.3af/at with unshielded cable)
• Dimensions: 105 x 110 mm
• Operating Temp.: -40°C .. +70°C tested
• License Level: 4
• Operating System: RouterOS
• Max Power consumption: 11 W

(1) MikroTik RBM11G RouterBOARD
