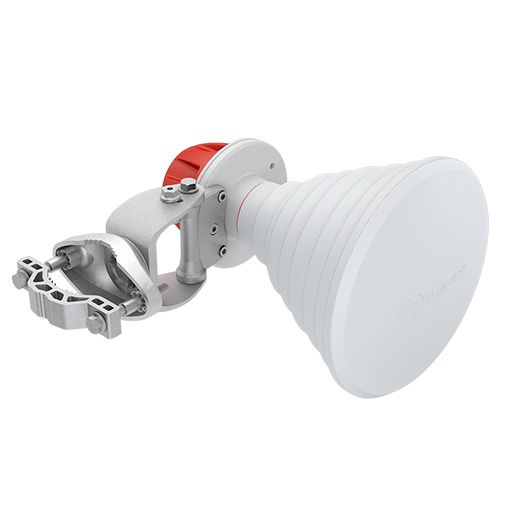

RF elements 30 Degree Carrier Class Symmetrical Horn Antenna [HG3-CC-S30]

The RF elements 30 Degree Gen2 Carrier Class Symmetrical Horn Antenna offers unique RF performance in a compact package. Scalar horn antennas have symmetrical main beam with identical beam width in Vertical and Horizontal plane. Exceptionally small side lobes ensure remarkable interference suppression. The RF elements HG3-CC-S30 Gen2 Antenna is ideal for coverage of areas with clients close to the installation site, where null zone issues exist. High density AP clusters and radio co-location is made possible due to the unique radiation pattern and compact size. The RF elements Symmetrical Horn Gen 2 Antenna features multiple improvements of RF performance and design, namely, optically lighter body and significantly improved bracket. Radome is made of more resistant material, and all of HG3-CC Gen2 antennas use only two radome sizes.

The RF elements 30 Degree Gen2 Carrier Class Symmetrical Horn Antenna is equipped with N-female connectors.

• Radio Connection: 2x N Female Bulkhead Connector
• Antenna Type: Horn
• Materials: UV Resistant Polycarbonate, Polypropylene, Aluminum, Zinc, Stainless Steel
• Environmental: IP55
• Flame Rating: UL 94 HB
• Pole Mounting Diameter: 30-80mm (RF Elements recommends as close as possible to 80mm)
• Temperature: -30°C to +55°C (-22°F to +131°F)
• Wind Survival: 160 Km/Hour
• Wind Loading: 44 N at 160 Km/Hour
• Mechanical Tilt: ±25°

• Frequency Range: 5180 - 6400 MHz
• Gain: 18.4 dBi
• Azimuth Beam Width -3dB: H 21° / V 21°
• Elevation Beam Width -3dB: H 21° / V 21°
• Azimuth Beam Width -6dB: H 30° / V 30°
• Elevation Beam Width -6dB: H 30° / V 30°
• Front-to-Back Ratio: 37 dB
• VSWR Max 5180-5850 MHz: 1.6
• VSWR Max 5850-6400 MHz: 1.9
• Beam Efficiency: 94%
• Polarization: Double Linear H + V
• Impedance: 50 Ohm

(1) Symmetrical Horn-Carrier Class Body

(1) Symmetrical Horn-Carrier Class Bracket

(2) M8 x 75mm Screw
