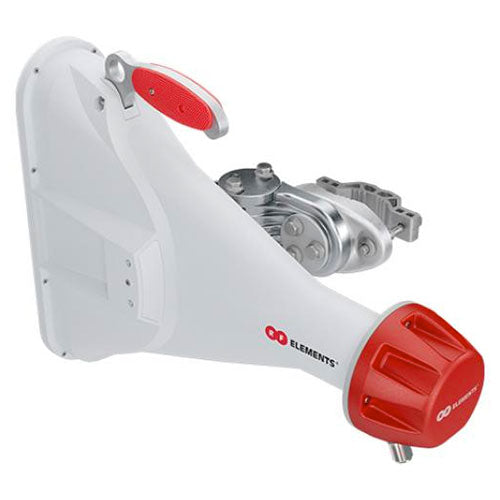

RF elements 60° Asymmetrical Beam Horn CC Antenna [HG3-CC-A60]

The RF elements 60° Carrier Class Asymmetrical Horn has radiation pattern narrow in the elevation and wide in the azimuth plane, greatly improving the coverage planning options. Increased gain and zero side lobes are suitable for rural deployments. The RF elements 60° Carrier Class Asymmetrical Horn Antenna exceeds the traditional patch array sector antenna thanks to high stability of gain and radiation pattern in the whole bandwidth of operation. Outstanding noise rejection and precision of radiation pattern favor the 60° Carrier Class Asymmetrical Horn antenna for high-density AP clusters and dense co-location sites.

Product Features:

• Radio Connection: 2x N Female Bulkhead Connector
• Antenna Type: Horn
• Materials: UV Resistant ABS Plastic, Polycarbonate, Polypropylene, Aluminum, Zinc, Stainless Steel
• Environmental: IP55
• Pole Mounting Diameter: 36-80mm (RF Elements recommends as close as possible to 80mm)
• Temperature: -35°C to +55°C (-31°F to +131°F)
• Wind Survival: 160 Km/Hour
• Wind Loading: 43 N at 160 Km/Hour
• Mechanical Adjustment: ±25° Elevation, ±20° Azimuth

• Frequency Range: 5180 - 6400 MHz
• Gain: 17 dBi
• Azimuth Beam Width -3dB: H 45° / V 42°
• Elevation Beam Width -3dB: H 17° / V 16°
• Azimuth Beam Width -6dB: H 60° / V 60°
• Elevation Beam Width -6dB: H 25° / V 25°
• Beam Efficiency: 95%
• Front-to-Back Ratio: 27 dB
• VSWR Max 5180-6000 MHz: 1.8
• Polarization: Double Linear H + V
• Impedance: 50 Ohm
