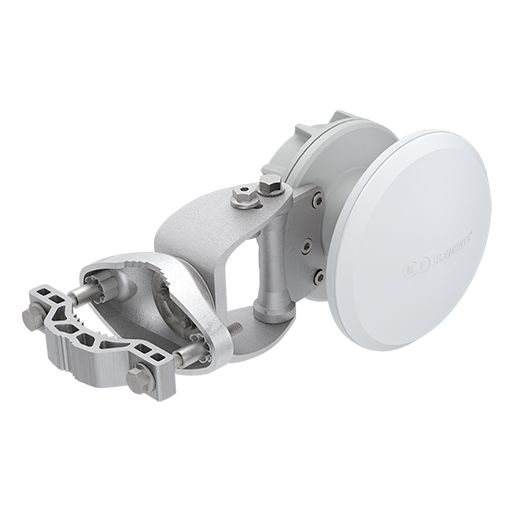

RF elements 70 Degree Symmetrical Horn Antenna with TwistPort Connector [HG3-TP-S70]

Only 3 left
SKU: HG3-TP-S70
$229.00 CAD

Product details

  • Type Antennas
  • Vendor RF Elements
  • SKU HG3-TP-S70

Share on Social Media:

Documentation

Description

TwistPort is virtually lossless and revolutionary easy to use. The 70 Degree Symmetrical Horn TwistPort Antenna Gen2 features multiple improvements on RF performance and industrial design, including optically lighter antenna body and significantly improved antenna bracket. Radome is made of more resistant material and the whole range of Gen2 antennas only uses two different radome sizes.


Product Features:
  • Antenna Connection: TwistPort- Quick Locking Waveguide Port
  • Antenna Type: Horn
  • Materials: UV Resistant ABS Plastic, Polycarbonate, Polypropylene, Aluminum, Stainless Steel
  • Environmental: IP55
  • Flame Rating: UL 94 HB
  • Pole Mounting Diameter: 30-80mm (RF Elements recommends as close as possible to 80mm)
  • Temperature: -30°C to +55°C (-22°F to +131°F)
  • Wind Survival: 160 Km/Hour
  • Wind Loading: 22 N at 160 Km/Hour
  • Mechanical Tilt: ±25°


Product Specifications:
  • Frequency Range: 5180 - 6400 MHz
  • Gain: 11.5 dBi
  • Azimuth Beam Width -3dB: H 50° / V 50°
  • Elevation Beam Width -3dB: H 50° / V 50°
  • Azimuth Beam Width -6dB: H 70° / V 70°
  • Elevation Beam Width -6dB: H 70° / V 70°
  • Beam Efficiency: 94%
  • Front-to-Back Ratio: 30 dB


Product Includes:


(1) Symmetrical Horn-TwistPort Body

(1) Symmetrical Horn-TwistPort Bracket

(2) M8 x 75mm Screw

(1) 2.9 x 16mm Lock Screw
