RF elements 90 Degree Carrier Class Symmetrical Horn Antenna [HG3-CC-S90]

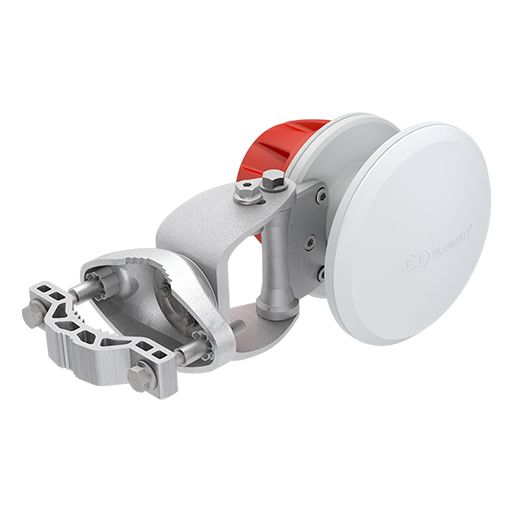

The RF elements 90 Degree Gen2 Carrier Class Symmetrical Horn Antenna offers unique RF performance in a compact package. Scalar horn antennas have symmetrical main beam with identical beam width in Vertical and Horizontal plane. Exceptionally small side lobes ensure remarkable interference suppression. The RF elements HG3-CC-S90 Gen2 Antenna is ideal for coverage of areas with clients close to the installation site, where null zone issues exist. High density AP clusters and radio co-location is made possible due to the unique radiation pattern and compact size. The RF elements Symmetrical Horn CC Antenna Gen2 features multiple improvements of RF performance and design, namely, optically lighter body and significantly improved bracket. Radome is made of more resistant material, and all of HG3-CC Gen2 antennas use only two radome sizes.

The RF elements 90 Degree Gen2 Carrier Class Symmetrical Horn Antenna is equipped with N-female connectors.

• Radio Connection: 2x N Female Bulkhead Connector
• Antenna Type: Horn
• Materials: UV Resistant Polycarbonate, Polypropylene, Aluminum, Zinc, Stainless Steel
• Environmental: IP55
• Flame Rating: UL 94 HB
• Pole Mounting Diameter: 30-80mm (RF Elements recommends as close as possible to 80mm)
• Temperature: -30°C to +55°C (-22°F to +131°F)
• Wind Survival: 160 Km/Hour
• Wind Loading: 22 N at 160 Km/Hour
• Mechanical Tilt: ±25°

• Frequency Range: 5180 - 6400 MHz
• Gain: 9.6 dBi
• Azimuth Beam Width -3dB: H 67° / V 67°
• Elevation Beam Width -3dB: H 67° / V 67°
• Azimuth Beam Width -6dB: H 90° / V 90°
• Elevation Beam Width -6dB: H 90° / V 90°
• Front-to-Back Ratio: 28 dB
• VSWR Max 5180-5850 MHz: 1.6
• VSWR Max 5850-6400 MHz: 1.9
• Beam Efficiency: 92%
• Polarization: Double Linear H + V
• Impedance: 50 Ohm

(1) Symmetrical Horn-Carrier Class Body

(1) Symmetrical Horn-Carrier Class Bracket

(2) M8 x 75mm Screw
