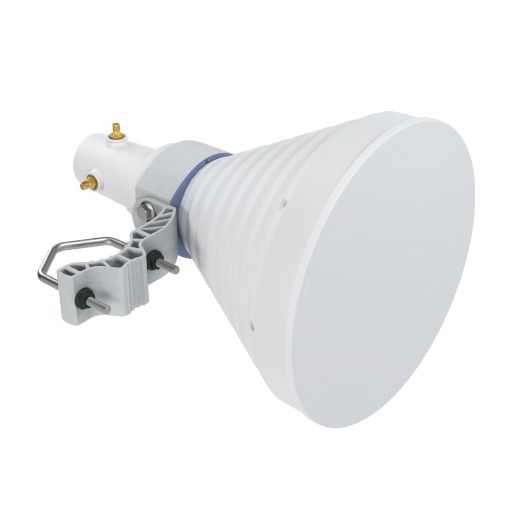

RF elements StarterHorn 30degree USMA Symmetrical Horn Antenna [STH-30-USMA]

Out of stock
SKU: STH-30-USMA
$158.00 CAD

Product details

  • Type Antennas
  • Vendor RF Elements
  • SKU STH-30-USMA

Share on Social Media:

Documentation

Description

Compatible Wireless Platforms:

  • Ubiquiti Networks: PrismStation 5AC, IsoStation 5AC
  • Other: Any radio with coaxial output
The RF elements StarterHorn antenna offers a RP-SMA female connector interface for H and V antenna polarizations for connectivity to any third party radio on the market. It also allows for use of Ubiquiti radios with a waveguide connector.


Product Features:

  • Antenna Connection: RP-SMA Port, Waveguide Port
  • Antenna Type: Symmetrical Horn
  • Materials: UV Resistant ABS Plastic, Polyethylene, Aluminum, Stainless Steel


Product Specifications:
  • Environmental: IP55
  • Flame Rating: UL 94 HB
  • Pole Mounting Diameter: 20-55 mm (recommend as close to 55 mm as possible)
  • Temperature: -30°C to +55°C (-22°F to +131°F)
  • Wind Survival: 160 km/hour
  • Wind Loading: 23 N at 160km/hour
  • Mechanical Tilt: ± 30°
  • Frequency Range: 5150 - 5950 MHz
  • Gain: 18 dBi
  • Azimuth Beam Width (-3 dB): H 20° / V 20°
  • Elevation Beam Width (-3 dB): H 20° / V 20°
  • Azimuth Beam Width (-6 dB): H 30° / V 30°
  • Elevation Beam Width (-6 dB): H 30° / V 30°
  • Beam Efficiency: 92%
  • Front-to-Back Ratio: 33 dB


Product Includes:


(1) RF elements 30° StarterHorn

(1) STA-SMA

(1) Pole Mount Bracket

(1) V-bolt

(2) M6 x 16mm Screw

(2) M6 Nut without Surface Treatment

(2) M6 Nut with Surface Treatment
