RF elements Symmetrical Horn Antenna w/ Twistport Connector [HG3-TP-S90]

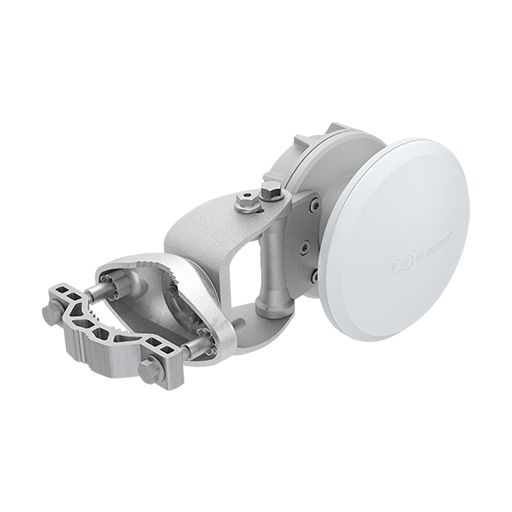

The RF elements 90 Degree 9.6 dBi Symmetrical Horn Antenna has a symmetrical beam pattern with no sidelobes. It offers excellent noise rejection and supreme scalability options. They are perfect for high-density AP clusters and dense radio co-location. The RF elements 90 Degree Symmetrical Horn TP Antennas Gen2 features their industry-changing TwistPort connector, a patent-pending quick-locking waveguide port. TwistPort is virtually lossless and revolutionary easy to use. The RF elements 90 Degree Symmetrical Horn TP Antenna Gen2 features multiple improvements on RF performance and industrial design, including optically lighter antenna body and significantly improved antenna bracket. Radome is made of more resistant material and the whole range of Gen2 antennas only uses two different radome sizes.

• Antenna Connection: TwistPort - Quick Locking Waveguide Port
• Antenna Type: Horn
• Materials: UV Resistant ABS Plastic, Polycarbonate, Polypropylene, Aluminum, Stainless Steel
• Environmental: IP55
• Pole Mounting Diameter: 30-80 mm (RF Elements recommends as close as possible to 80 mm)
• Temperature: -30°C to +55°C (-22°F to +131°F)
• Wind Survival: 160 km/hour
• Wind Loading: 22 N at 160 km/hour
• Mechanical Tilt: ± 25°

• Frequency Range: 5180 - 6400 MHz
• Gain: 9.6 dBi
• Azimuth Beam Width -3 dB: H 67° / V 67°
• Elevation Beam Width -3 dB: H 67° / V 67°
• Azimuth Beam Width -6 dB: H 90° / V 90°
• Elevation Beam Width -6 dB: H 90° / V 90°
• Beam Efficiency: 92%
• Front-to-Back Ratio: 28 dB

(1) Symmetrical Horn-TwistPort Body

(1) Symmetrical Horn-TwistPort Bracket

(2) M8 x 75mm Screw

(1) 2.9 x 16mm Lock Screw
