RF elements Twin Horn Bracket for Mimosa and Cambium [THB]

In stock
SKU: THB
$149.00 CAD

Product details

  • Type Accessories
  • Vendor RF Elements
  • SKU THB

Share on Social Media:

Documentation

Description

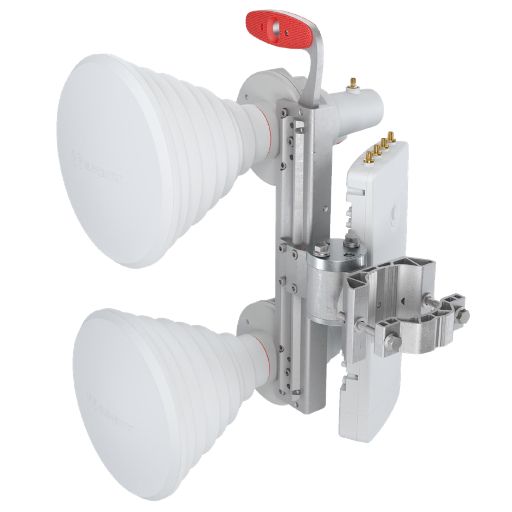

The RF elements Twin Horn Bracket allows you to install two Symmetrical Horn antennas with exactly the same alignment. The bracket also accommodates mainstream 4x4 radios, such as the Cambium Networks ePMP 3000 or Mimosa A5c. High density sectors or 4x4 deployments are now ingeniously simple.


Compatible Wireless Platforms:

  • RF elements: any Symmetrical Horn TP Antennas Gen2 with TPA-SMA, any Symmetrical Horn CC Antennas Gen2
  • Cambium Networks: ePMP 3000
  • Mimosa Networks: A5c


Product Features:

  • Materials: Aluminum and Zinc Alloy, Stainless Steel UV stabilized and weather resistant ABS plastic


Product Specifications:
  • Environmental: IP55
  • Pole Mounting Diameter: 40-80mm (recommend as close to 80mm as possible)
  • Temperature: 40°C to +60°C (-40°F to +140°F)
  • Wind Survival: 160 km/h (99.4 mp/h)
  • Mechanical Adjustment: ± 20° Elevation, ± 20° Azimuth


Product Includes:


(1) Twin Horn Bracket

(1) Pole Mounting Bracket

(1) Hex Key 5mm
