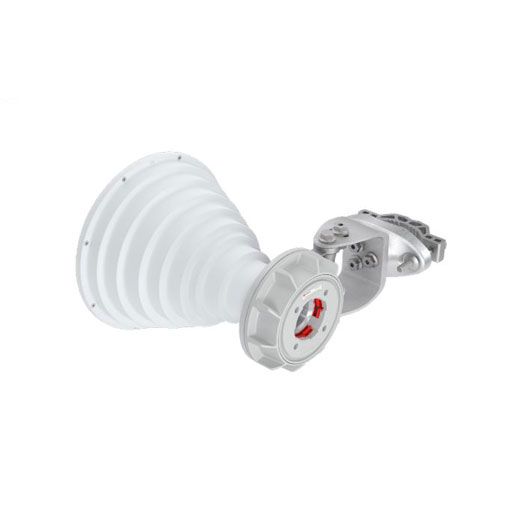

RF elements TwistPort Symmetrical Horn 5180 - 6400MHz 30 degree Antenna [HG3-TP-S30]

Out of stock
SKU: HG3-TP-S30
$239.00 CAD

Product details

  • Type Antennas
  • Vendor RF Elements
  • SKU HG3-TP-S30

Share on Social Media:

Documentation

Description

RF elements Symmetrical 30 Degree Horn TwistPort Antennas Gen2 feature our industry-changing TwistPort connector, a patent-pending quick-locking waveguide port. TwistPort is virtually lossless and revolutionary easy to use. Symmetrical Horn TwistPort Antennas Gen2 feature multiple improvements on RF performance and industrial design, incl. optically lighter antenna body and significantly improved antenna bracket. Radome is made of more resistant material and the whole range of Gen2 antennas only uses two different radome sizes.


Product Specifications:
  • Antenna Connection: TwistPort - Quick Locking Waveguide Port
  • Antenna Type: Horn
  • Materials: UV Resistant ABS Plastic, Polycarbonate, Polypropylene, Aluminum, Stainless Steel
  • Environmental: IP55
  • Pole Mounting Diameter: 30-90 mm
  • Temperature: -30°C to +55°C (-22°F to +131°F)
  • Wind Survival: 160 km/hour
  • Wind Loading: 44 N at 160 km/hour
  • Mechanical Tilt: ± 25°
  • Frequency Range: 5180 - 6400 MHz
  • Gain: 18.4 dBi
  • Azimuth Beam Width: -3 dB: H 21° / V 21°
  • Elevation Beam Width: -3 dB: H 21° / V 21°
  • Azimuth Beam Width: -6 dB: H 30° / V 30°
  • Elevation Beam Width: -6 dB: H 30° / V 30°
  • Front-to-Back Ratio: 37 dB


Product Includes:


(1) HG3-TP-S30 Symmetrical Horn

(1) Mounting Kit

(1) User Manual
