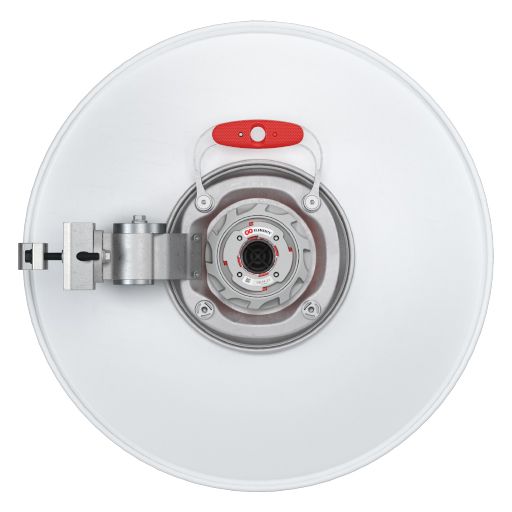

RF elements UltraDish Parabolic Dish TwistPort Antenna 2-Pack [UD-TP-27]

The RF elements UltraDish TwistPort 27 is designed for subscriber module applications. Minimized sidelobes, wide frequency bandwidth, and stable gain in both polarizations assure dependable performance. Antenna reflector is made of aluminum to ensure a low weight and uniform shape. RF elements' proprietary TwistPort waveguide connector enables intuitive radio connection and replacement.

Massive mount with improved grip and a wide range of applicable pole diameters makes the deployment easy and versatile. Stainless hardware comes with black coating to prevent from seizing at the installation.

Compatible Wireless Platforms:

• Any TwistPort Adaptor
• Any SIMPER Radio

• Antenna Connection: TwistPort- Quick Locking Waveguide Port
• Antenna Type: Parabolic Dish
• Materials: UV Resistant ABS Plastic, Polycarbonate, Aluminum, Stainless Steel
• Environmental: IP65
• Pole Mounting Diameter: 40 - 80mm (RF elements recommends as close to 80mm as possible)
• Temperature: -40°C to +60°C (-40°F to +140°)
• Wind Survival: 160 km/hour
• Wind Loading: 314 N at 160 km/hour

• Gain: 27.5 dBi
• Frequency Range: 5180 - 6400 MHz
• Azimuth Beam Width (-6 dB): H 10° / V 9°
• Elevation Beam Width (-6 dB): H 9° / V 10°
• Azimuth Beam Width (-3 dB): H 7° / V 6°
• Elevation Beam Width (-3 dB): H 6° / V 7°
• Beam Efficiency: 61%
• Front-to-Back Ratio (Min.): 37 dB

(2) UltraDish 27.5 dBi Antenna

(2) Bracket Base UBR

(2) UltraDish Sub reflector

(2) Bracket Ring UBR

(2) Pole Mount Bracket

(4) M8 x 80mm DIN 6921 Screw

(4) M6 x 20mm DIN 912 Screw

(2) 2.9 x 16mm Lock Screw

(12) M8 x 14mm DIN 7991 Screw

(2) UltraDish Base

(2) UltraDish Handle
