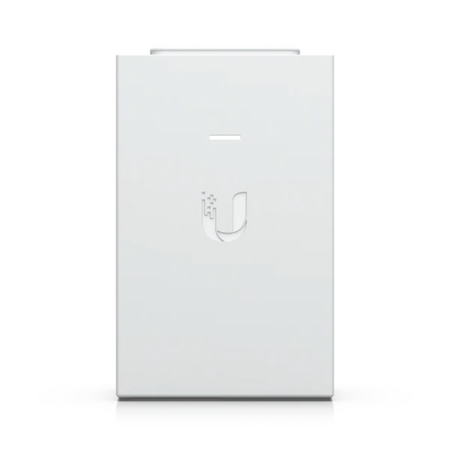

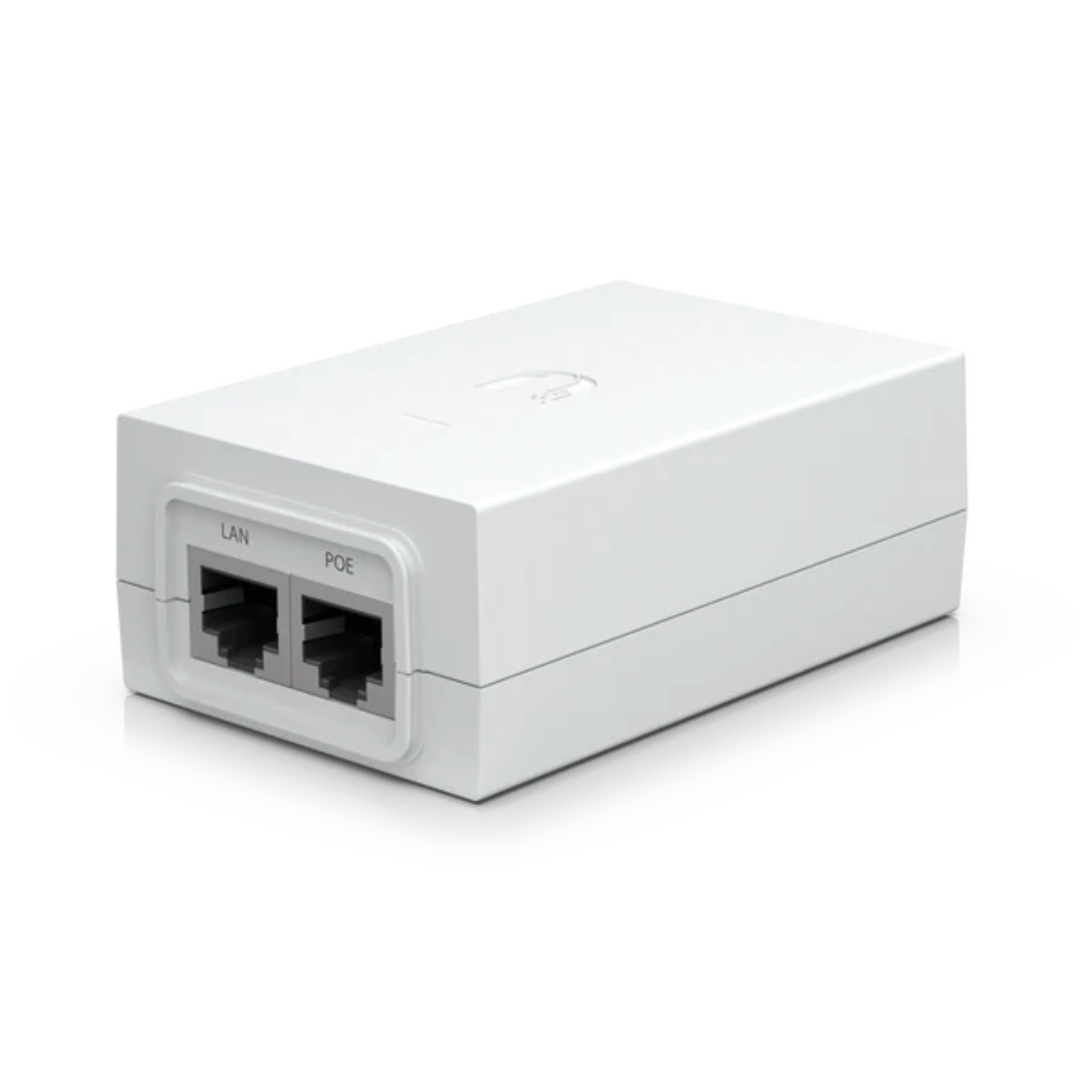

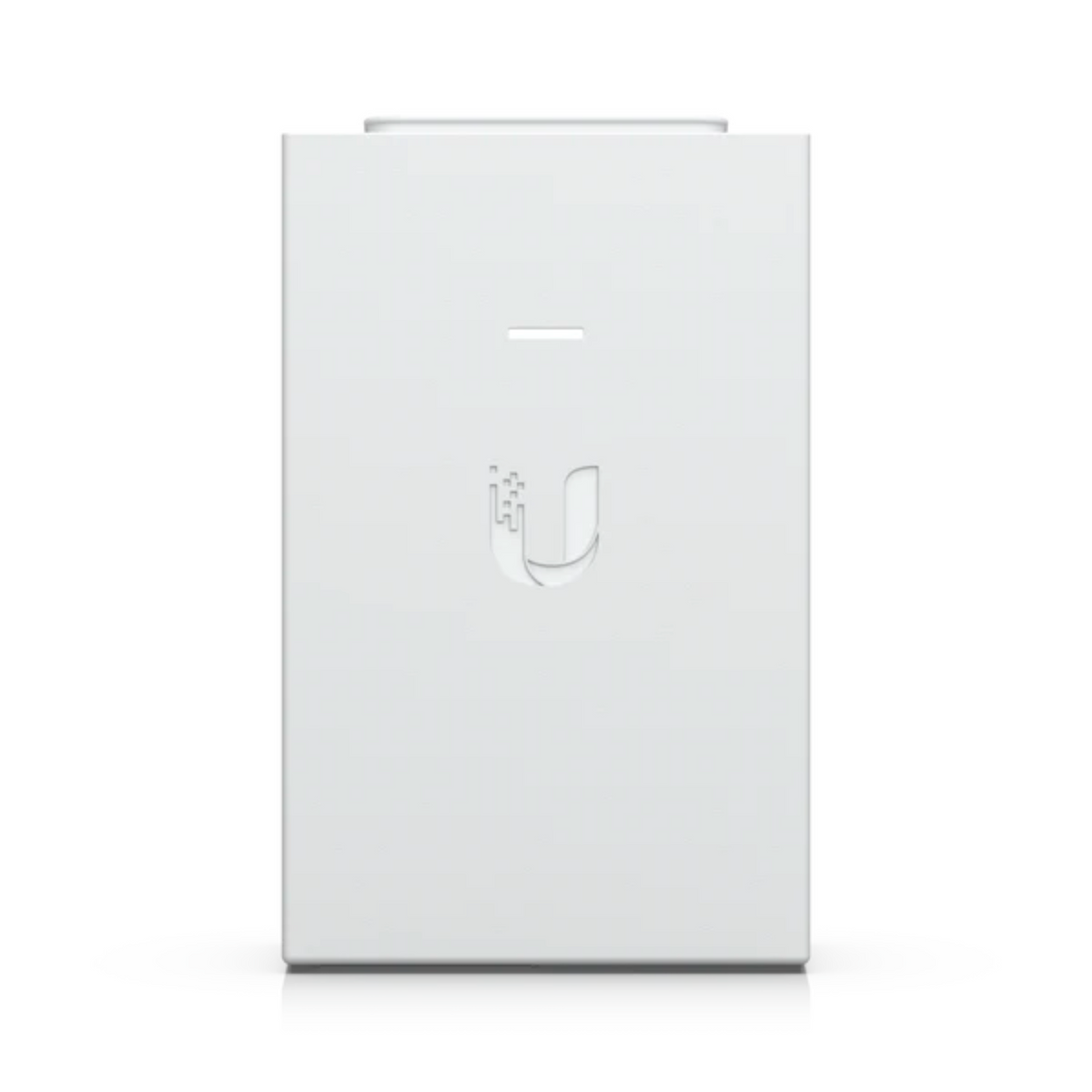

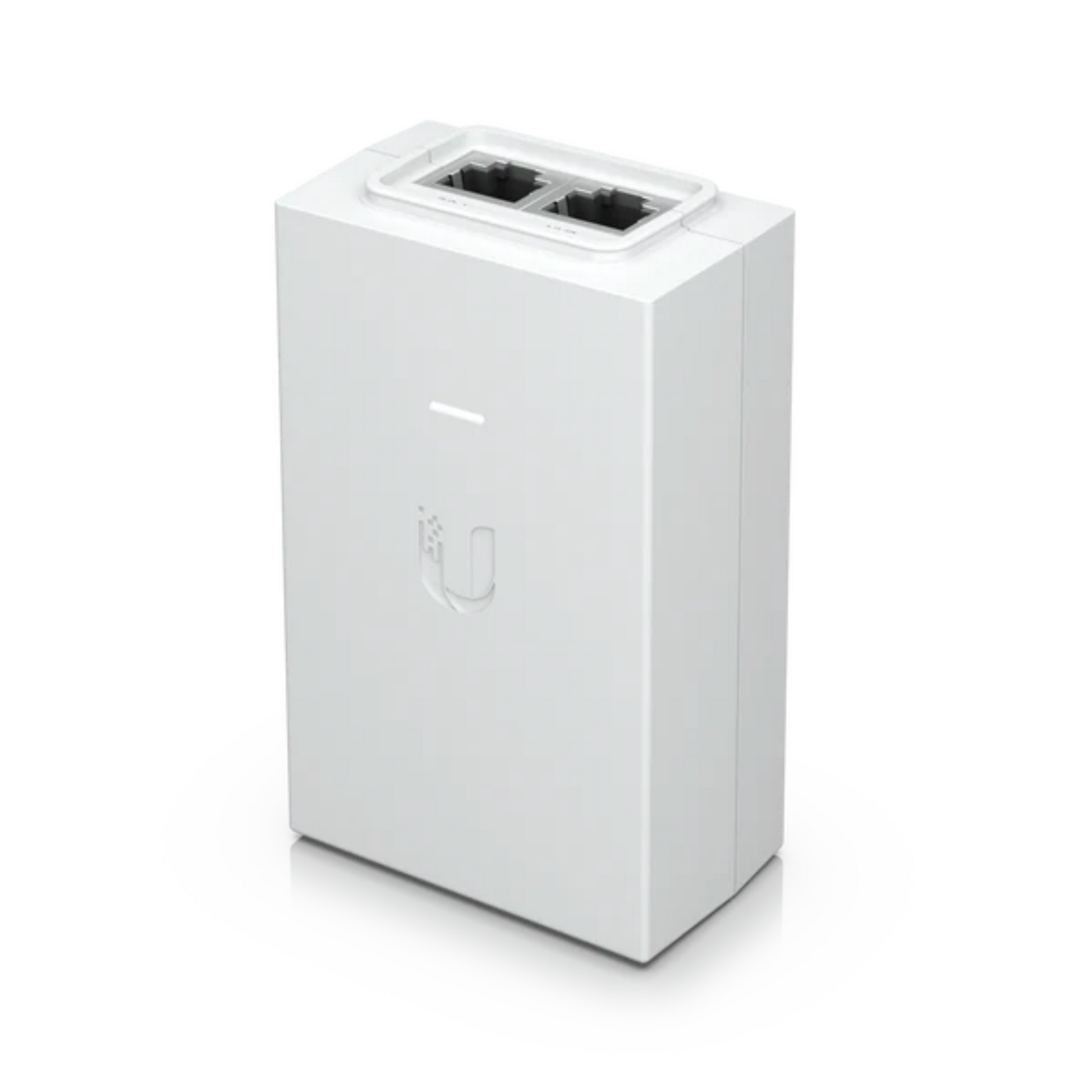

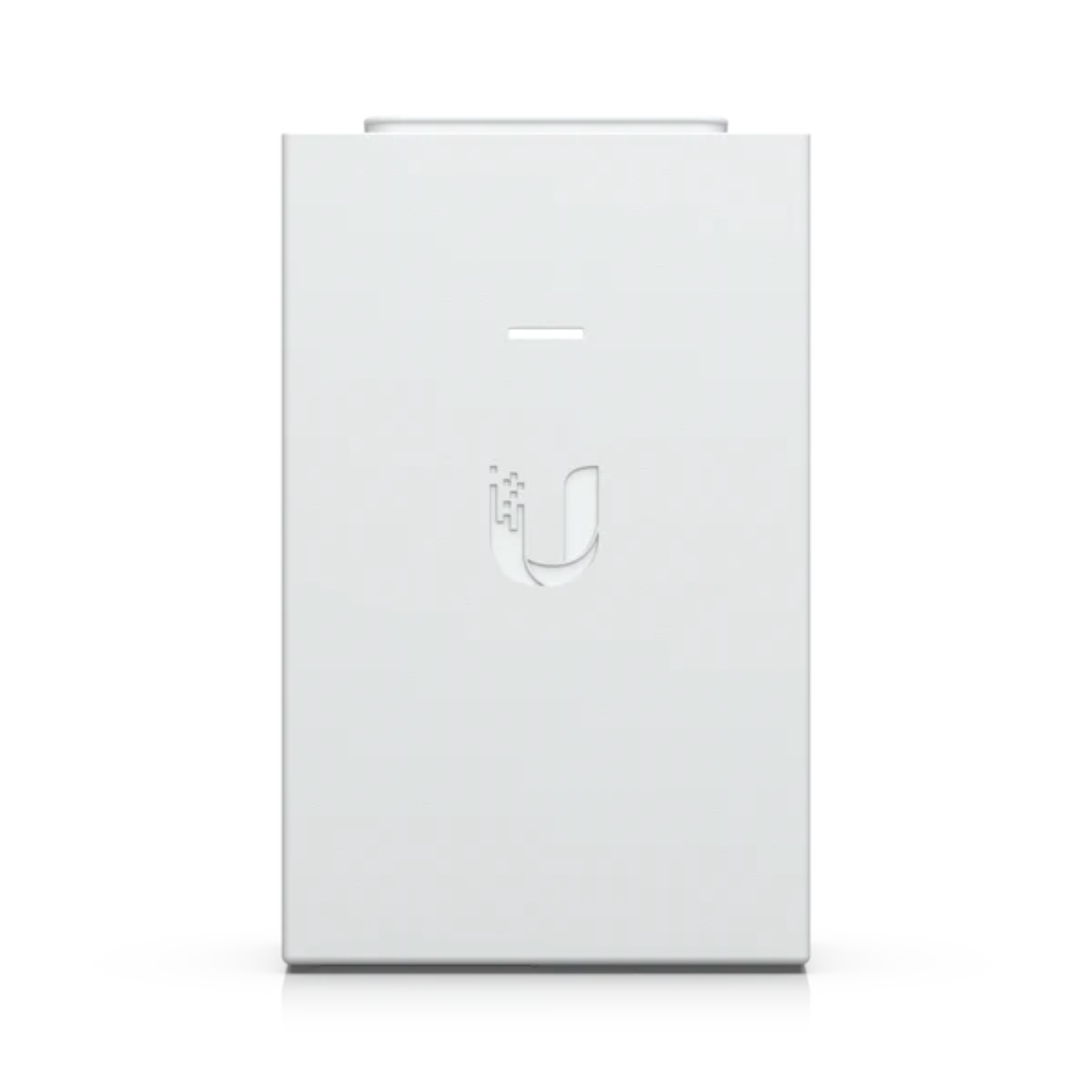

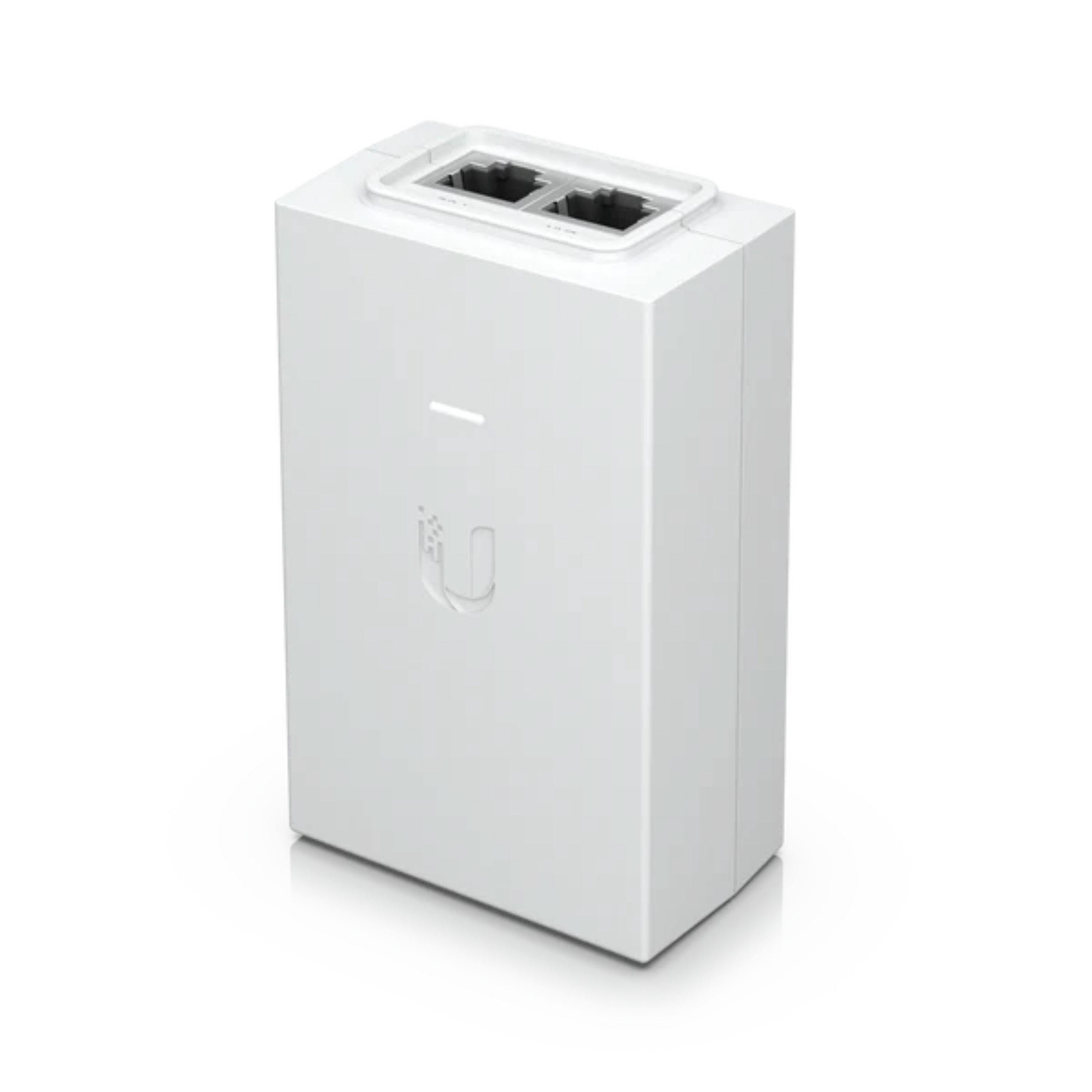

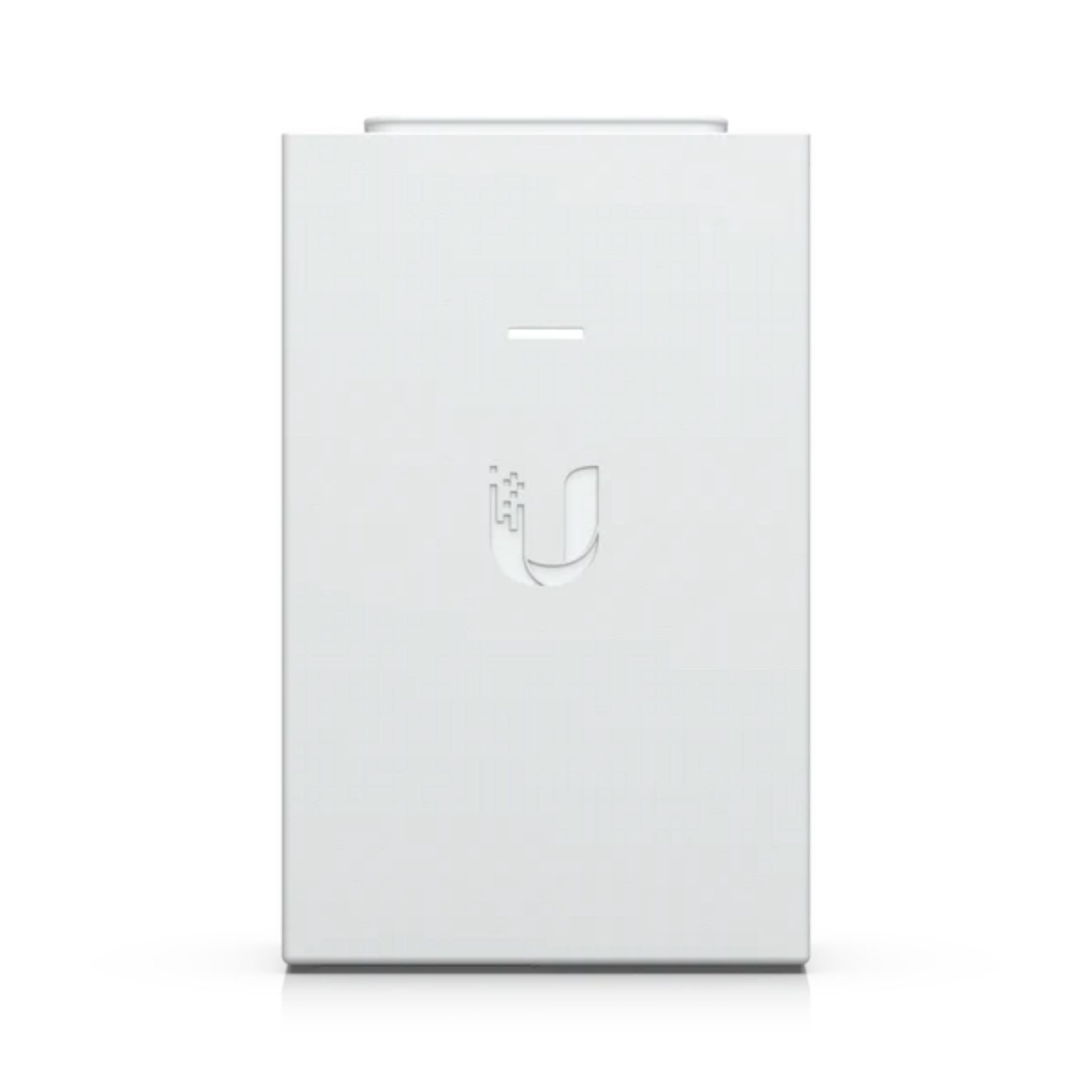

Ubiquiti 24V DC 1.25A 30W Gigabit Replacement PoE Adapter (White) [POE-24-30W-G-WH]
Regular price
$24.00 CAD
Couldn't load pickup availability
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
- Surge protection
- Clamping protection
- Maximum surge discharge
- Peak pulse current
- AC cable with earth ground
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.
Product Specifications:
- Model: POE-24-30W-G-WH
- Dimensions: 94 × 60 × 33mm (3.70 x 2.36 x 1.30")
- Weight: 156 g (5.5 oz)
- Output Voltage: 25VDC @ 1.25A
- LAN Activity Indicator: No
- Gigabit LAN Port: Yes
- Remote Reset Capability: No
- Reset Button: No
- Rated Voltage: 100-240VAC @ 50/60Hz
- Input Current: 0.6A @ 120VAC, 0.4A @ 240VAC
- Inrush Current: <60A Peak @ 120VAC, <120A Peak @ 230VAC
- Efficiency: 83+%
- Output Ripple: 1% Max.
- Switching Frequency: 65kHz
- Line Regulation: ≤ 3%
- Load Regulation: ≤ 5%
- 2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-)
- 4-Pair Powering: -
- Operating Temperature: 0 to 40° C (32 to 104° F)
- Storage Temperature: -30 to 70° C (-22 to 158° F)
- Operating Humidity: 35 to 95% Noncondensing
- AC Connector: IEC-320 C6

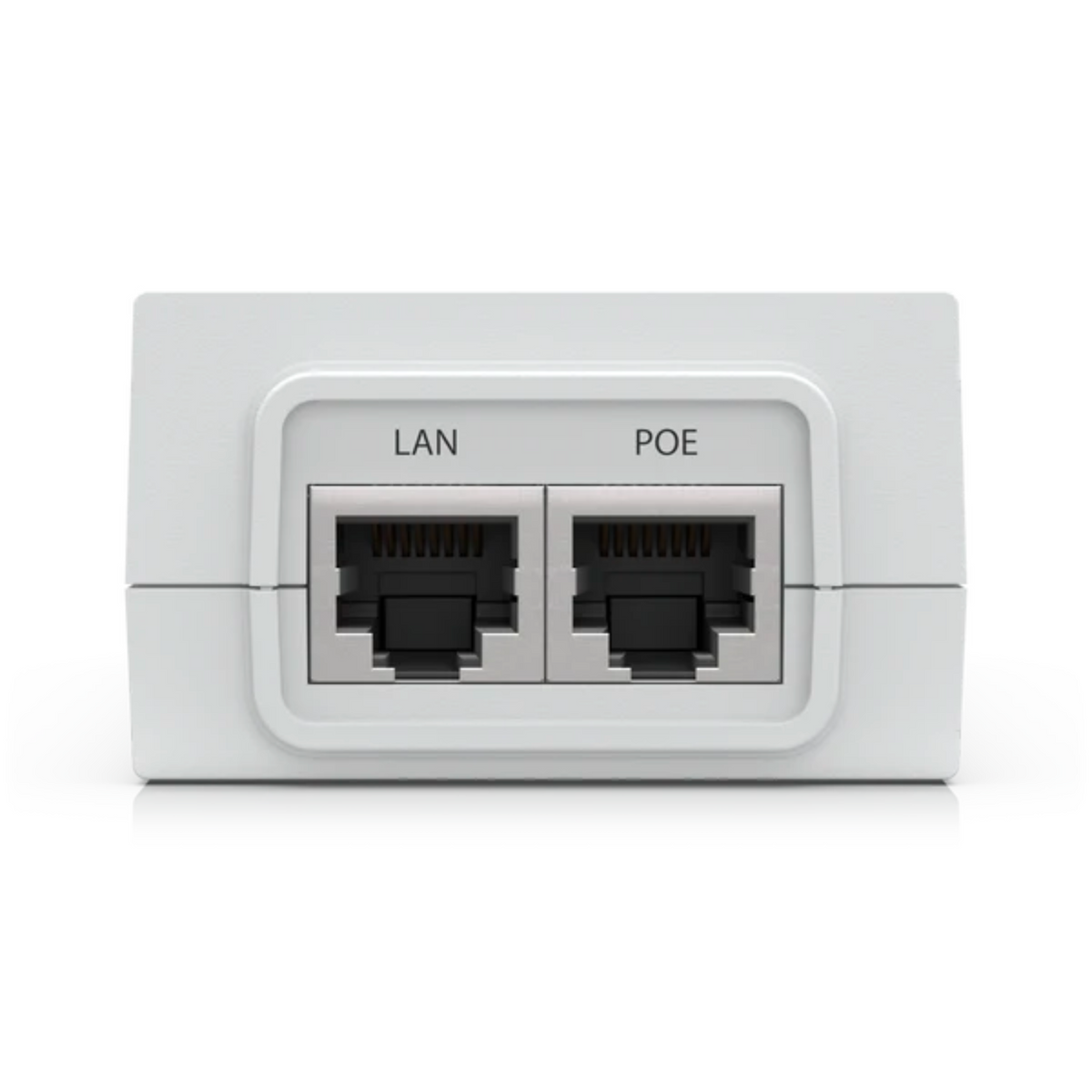

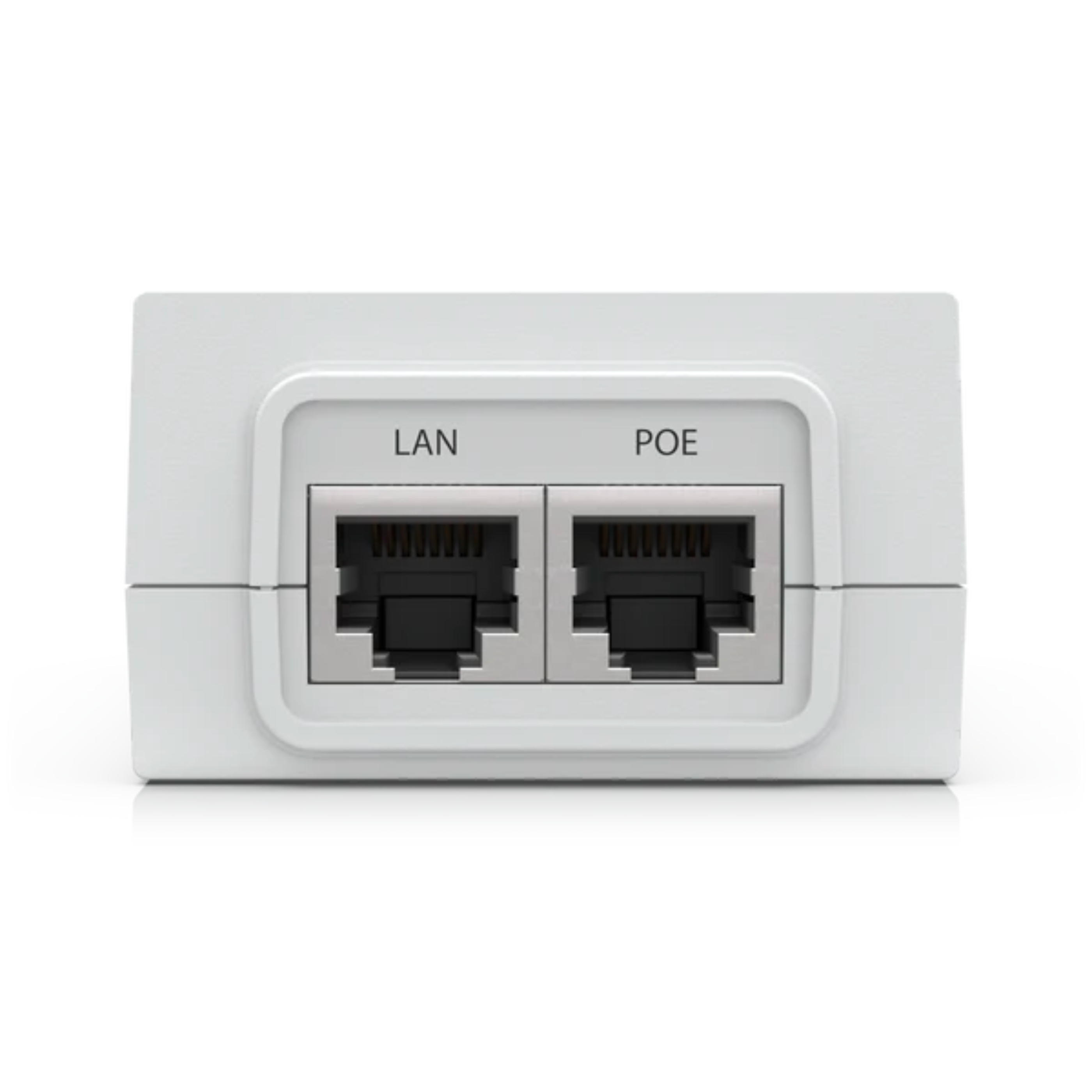

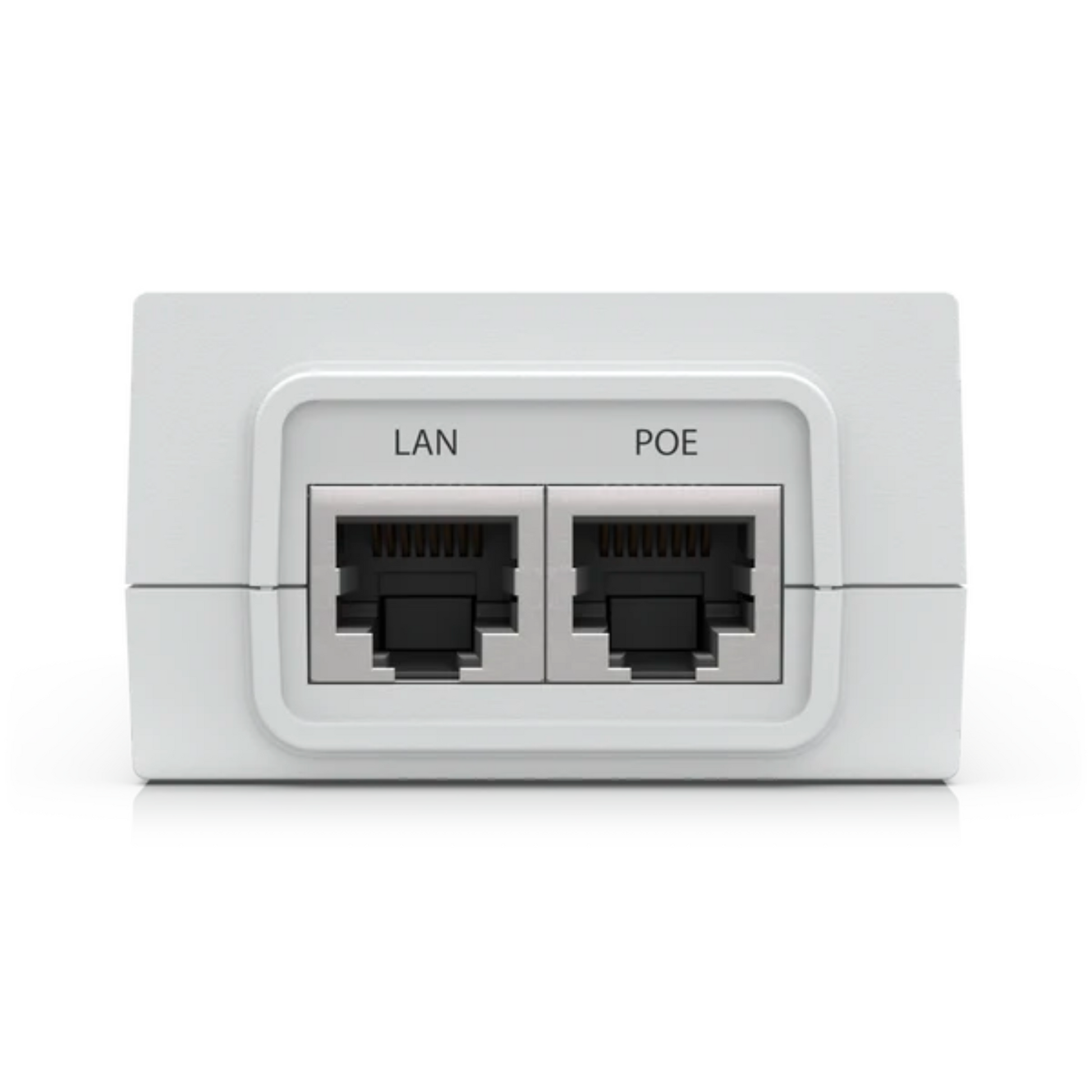

- Data IN / PoE: RJ45 Shielded Socket
- Surge Protection: Difference and Common Mode
- Clamping Protection: 11V Data, 60V Power
- Max. Surge Discharge: 1500A (8/20 μs) Power
- Peak Pulse Current: 36A (10/1000 μs) Data
- Shunt Capacitance: <5 pF data
- Response Time: <1 ns
- Certifications: CE, FCC, IC, UL
