Ubiquiti airFiber 60 XR [AF60-XR]

Out of stock
SKU: AF60-XR
$1,443.00 CAD

Product details

  • Type Outdoor Wireless
  • Vendor Ubiquiti
  • SKU AF60-XR

Share on Social Media:

Documentation

Description

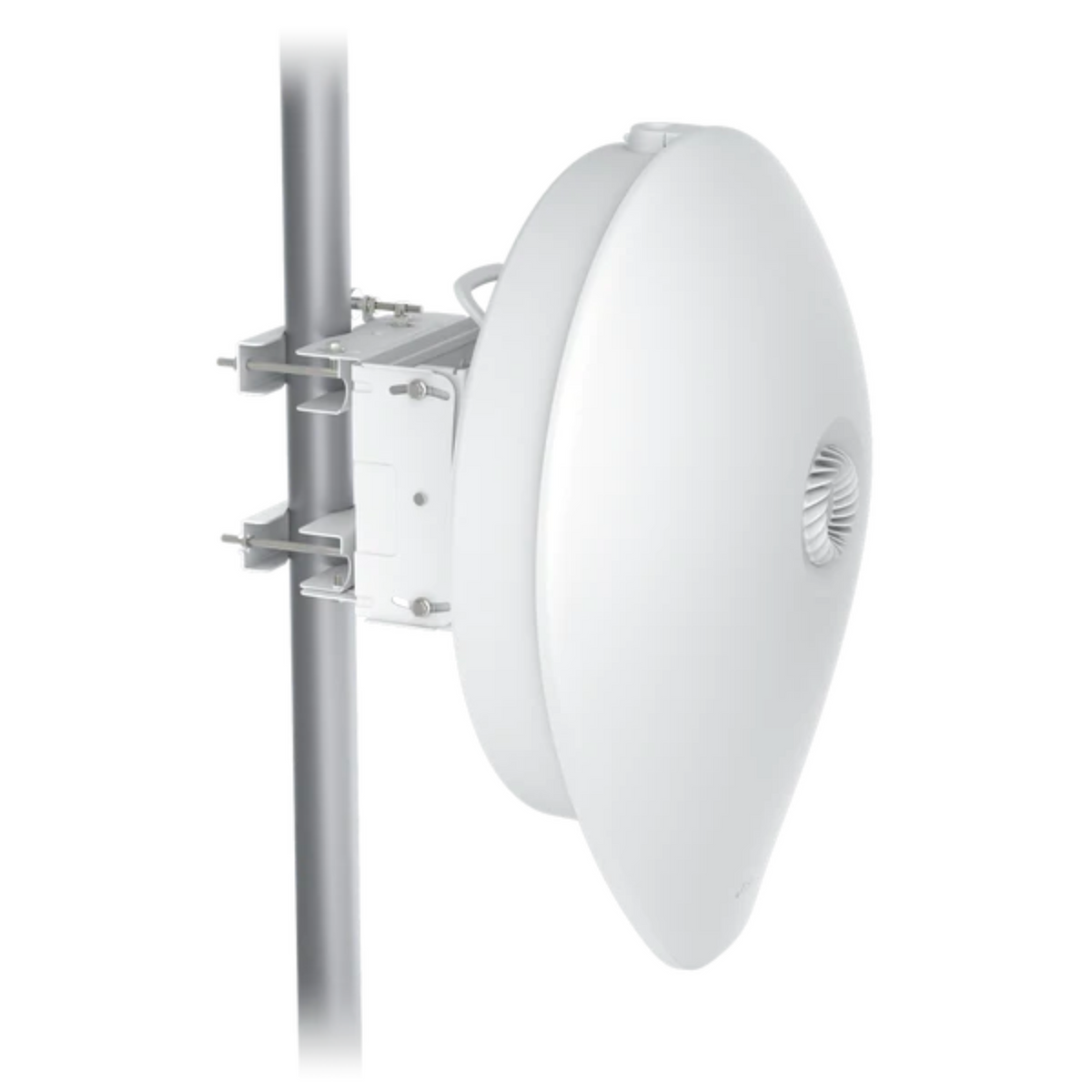

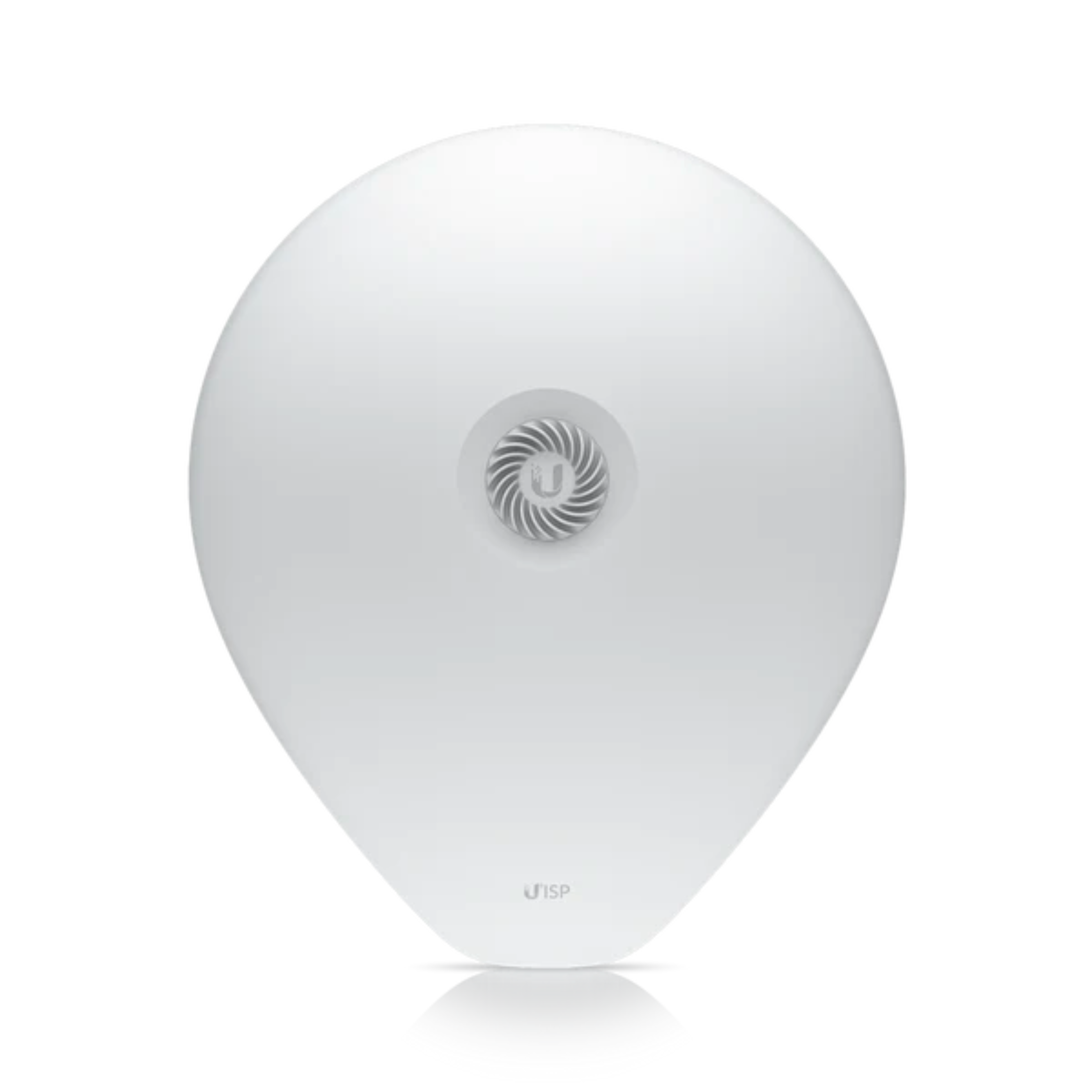

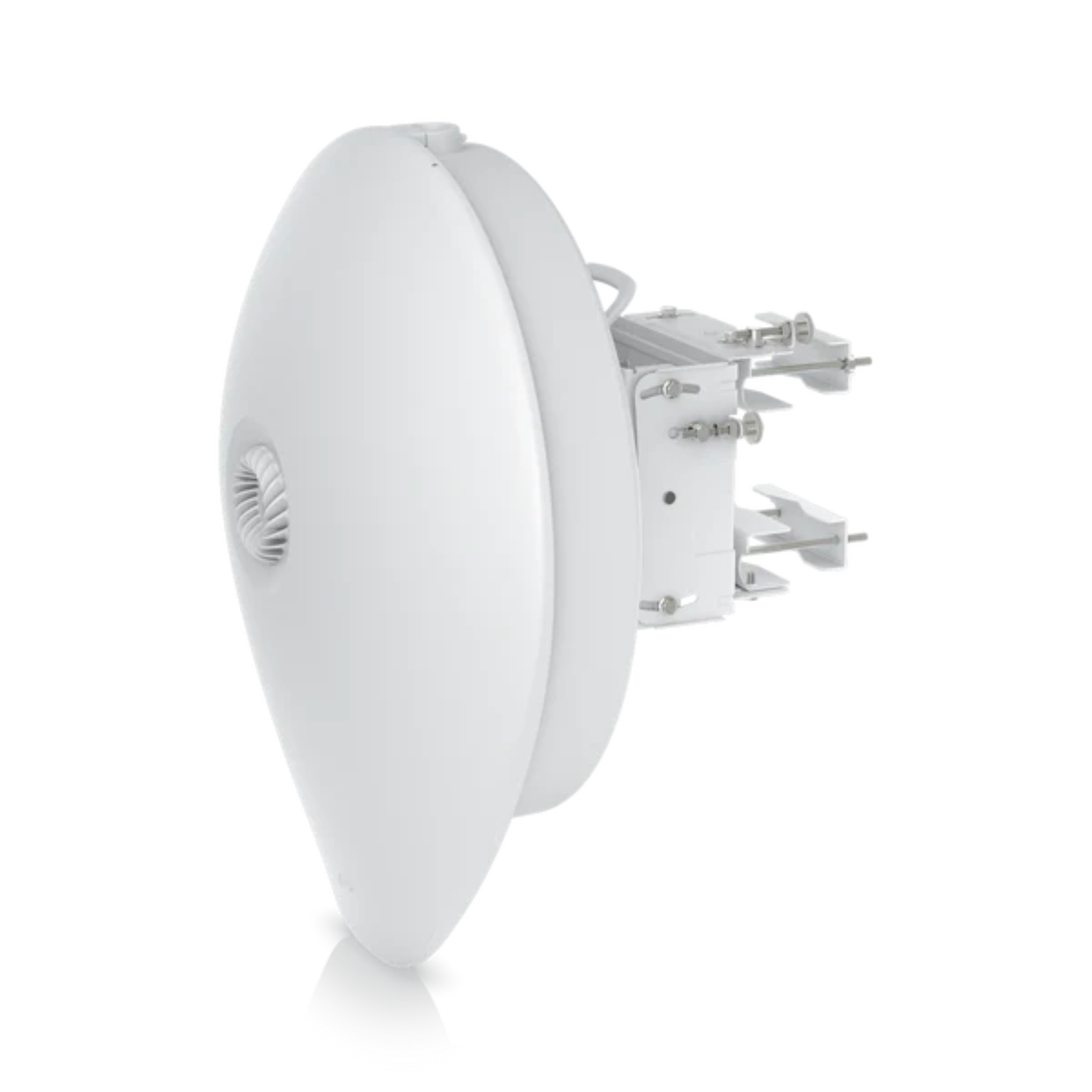

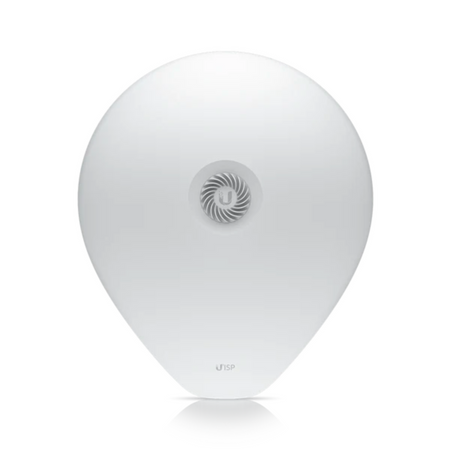

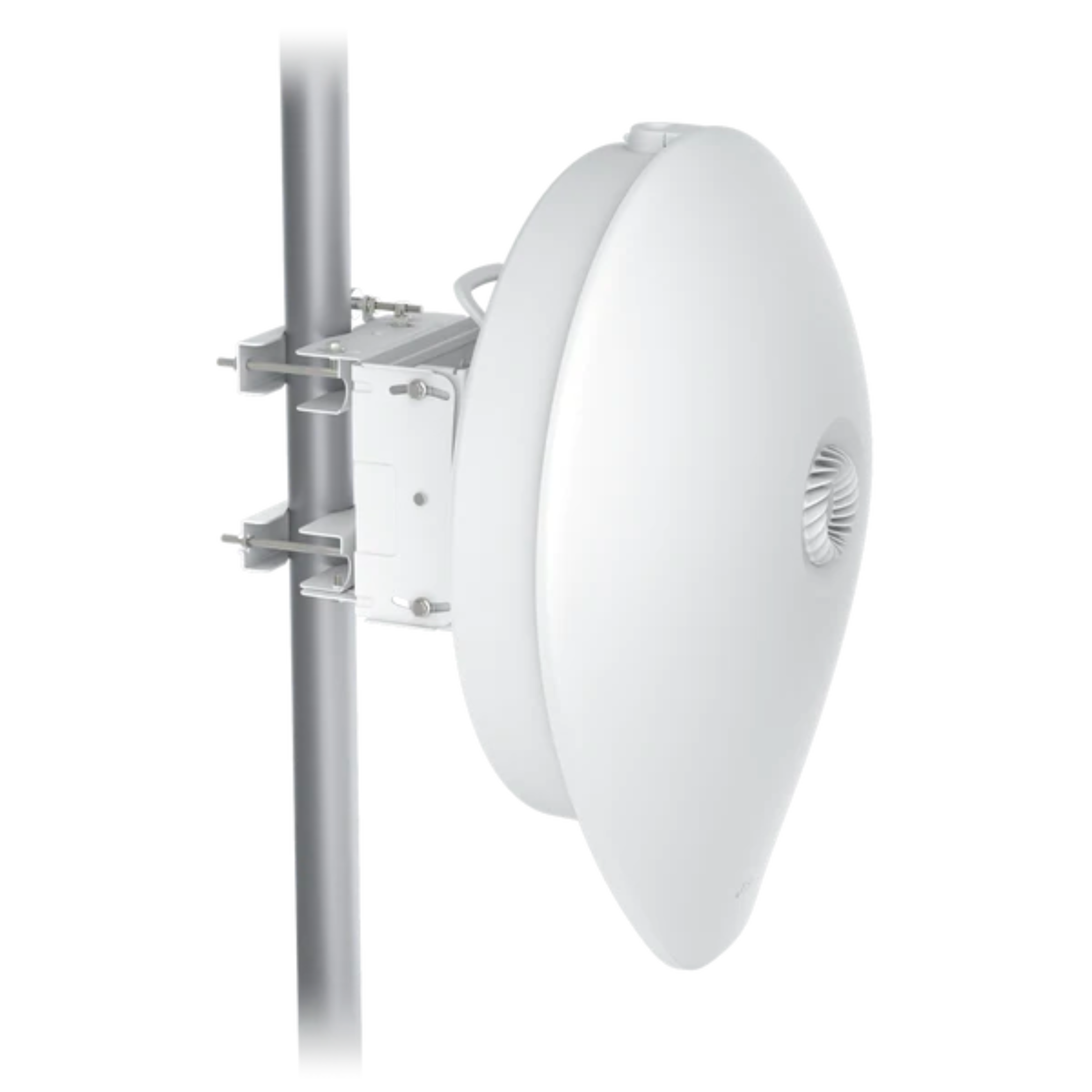

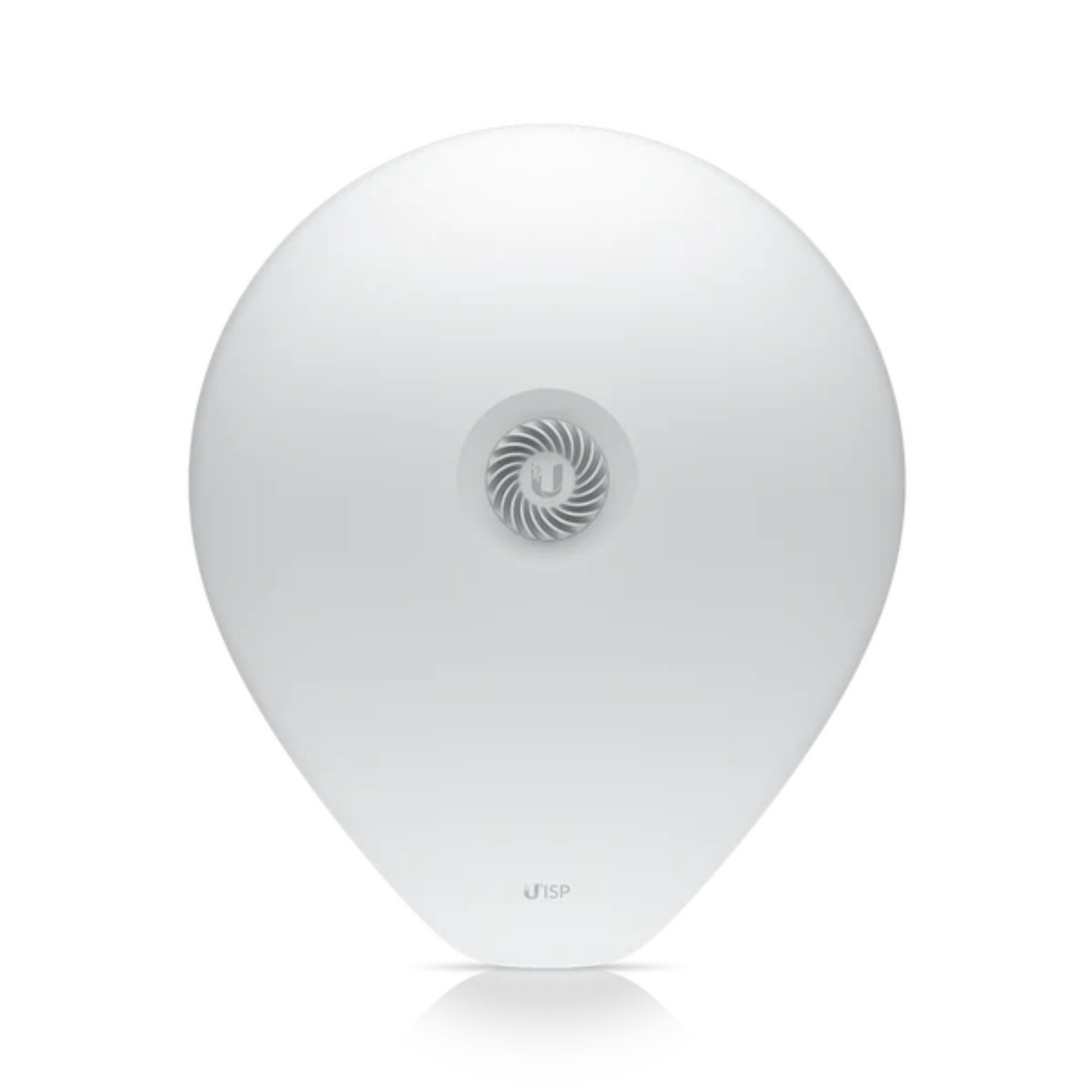

The Ubiquiti airFiber 60 XR [AF60-XR] is a multi-gigabit, 60 GHz bridge designed to create long-distance links and deliver 5.4 Gbps total throughput (2.7 Gbps duplex) over them.

It's also equipped with a 5 GHz backup radio for operational redundancy, as well as a Bluetooth radio to simplify setup via the UISP® Mobile app.

Note: Price shown is for a single unit. This product should be purchased in pairs in order to form links.

Features:
  • 5 GHz backup radio
  • Link range: 15+ km
  • (1) 10G SFP+ port
  • Integrated GPS
  • Link planning support via the ISP Design Center

Product Summary
Mechanical:
  • Dimensions: 779 x 664 x 383 mm (30.7 x 26.1 x 15.1")
  • Weight:
    • Without mount: 8.6 kg (19 lb)
    • With mount: 13 kg (28.7 lb)
  • Enclosure materials: UV stabilized polycarbonate, steel
  • Mount material: Galvanized steel

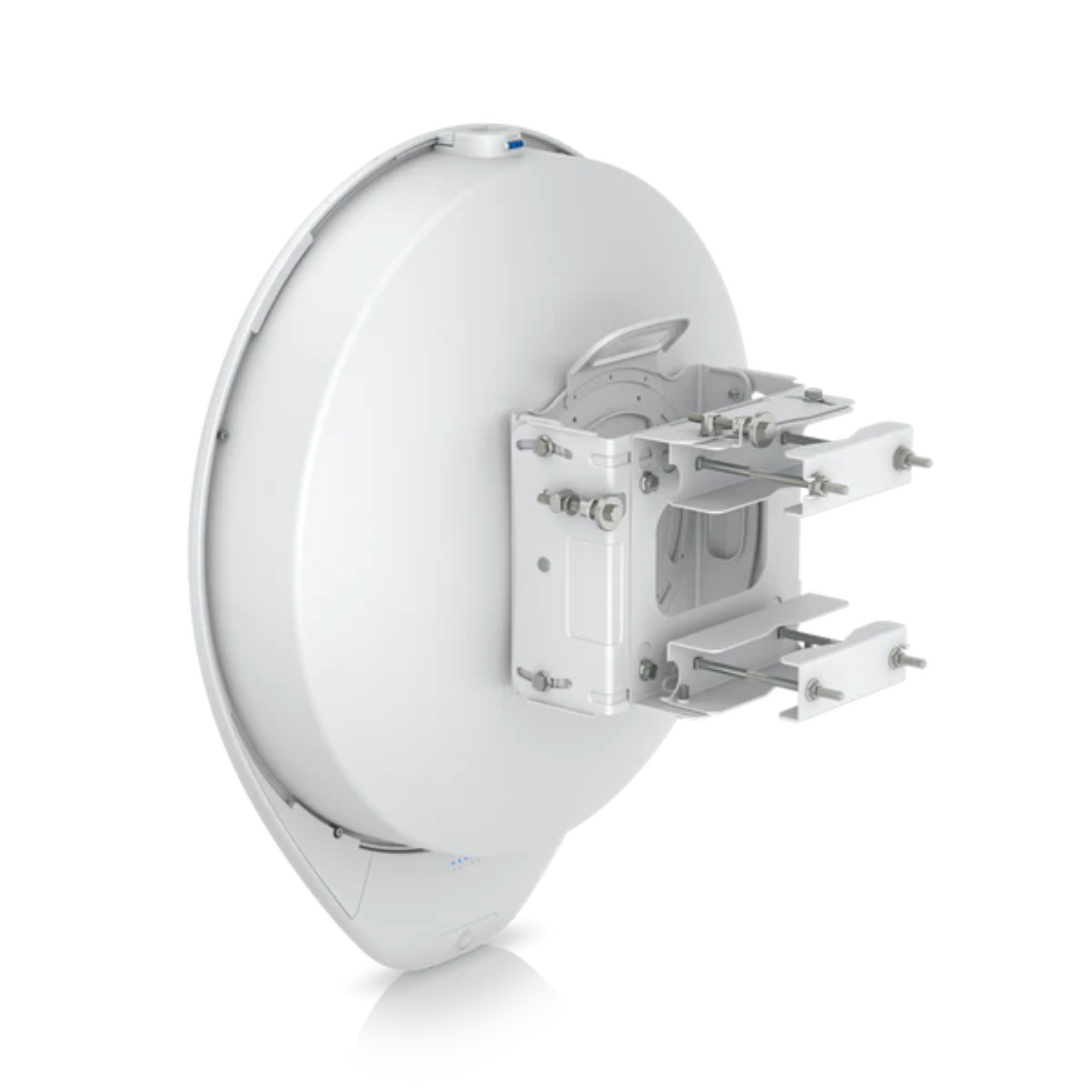

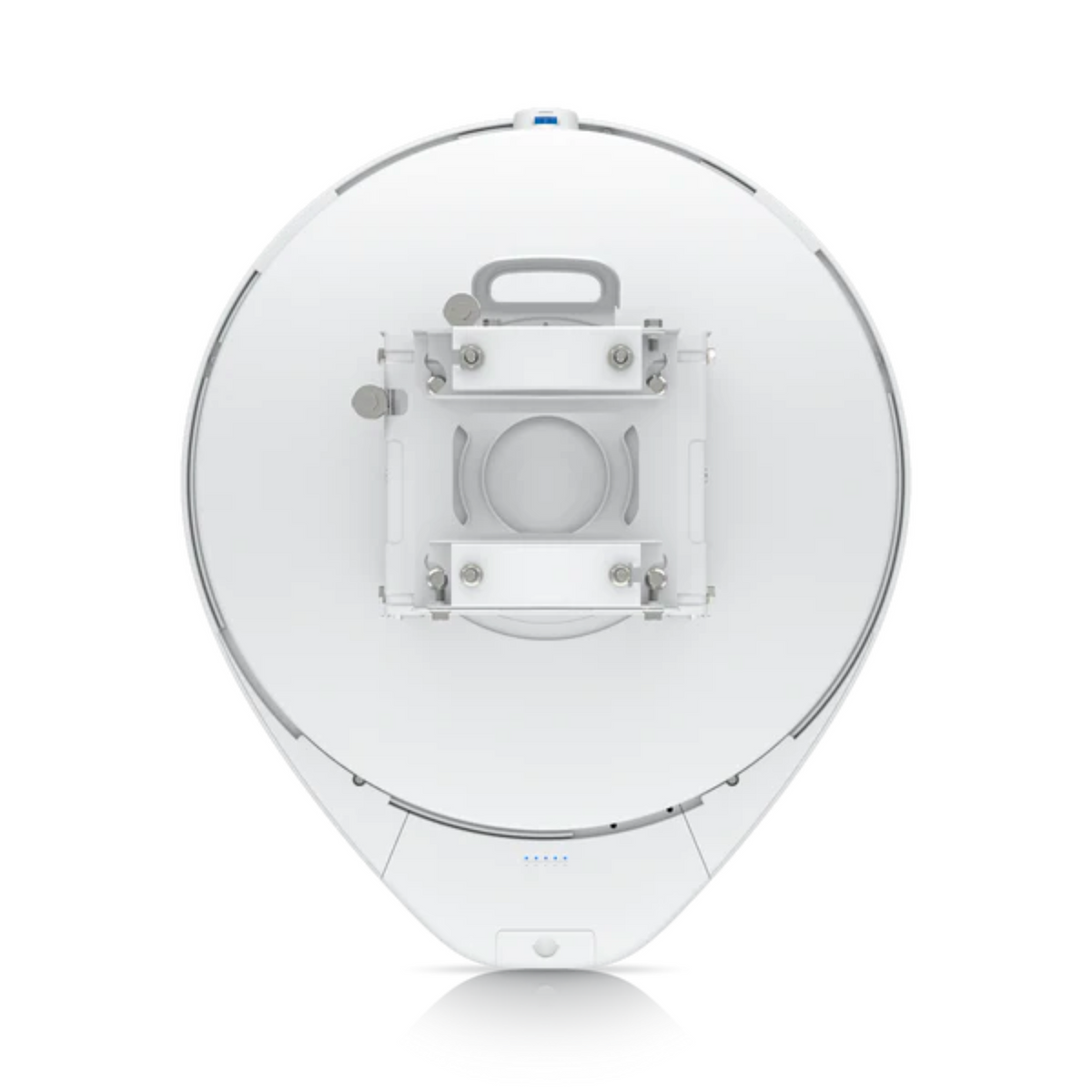

  • Mounting:
    • Precision alignment kit (included)

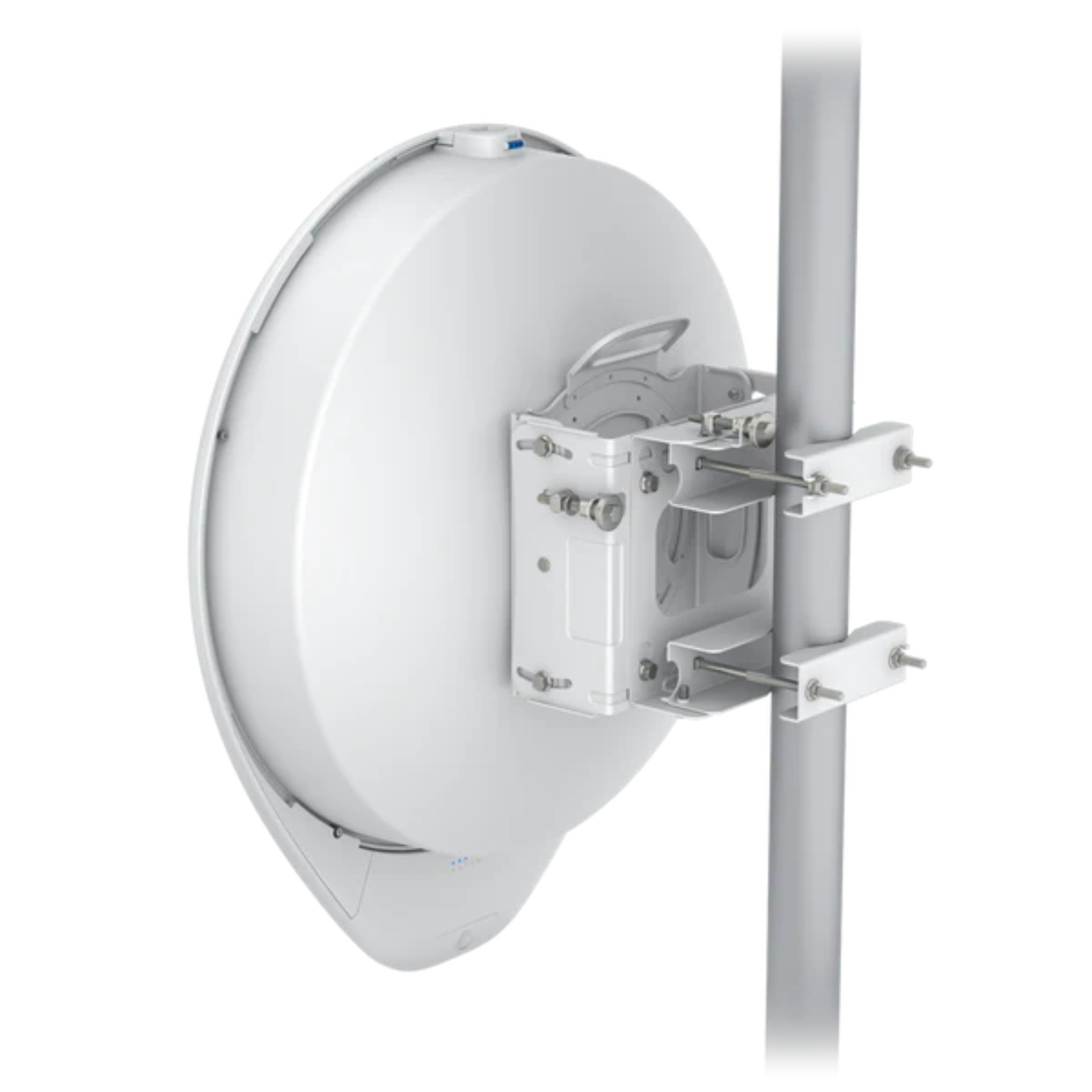

    • Pole compatibility: Ø40 to 80 mm (Ø1.5 to 3.15") on pipe outer diameter
  • Wind loading: 422 N at 200 km/h (94.86 lbf at 125 mph)
  • Weatherproofing: IPX6

Hardware:
  • Processor: Quad-core ARM® Cortex®-A53 at 1.4 GHz
  • Memory: DDR3L1 GB

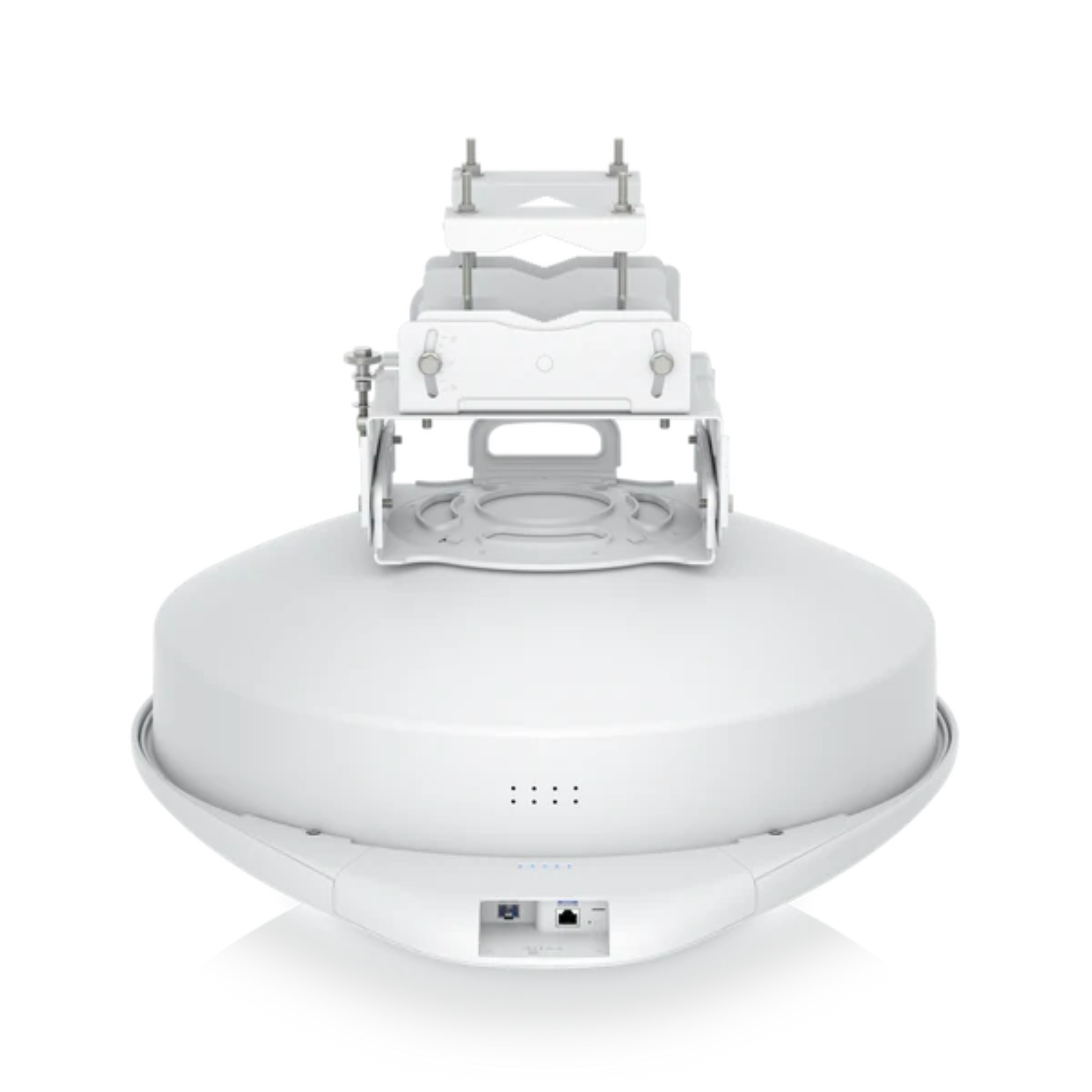

  • Networking interface:
    • (1) GbE RJ45 port
    • (1) 1/10G SFP+port
  • Max. power consumption: 24W
  • Power method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)
  • Power supply: 48VDC, 0.65A gigabit PoE adapter (included)
  • RF connections: Internal
  • Button: Factory reset

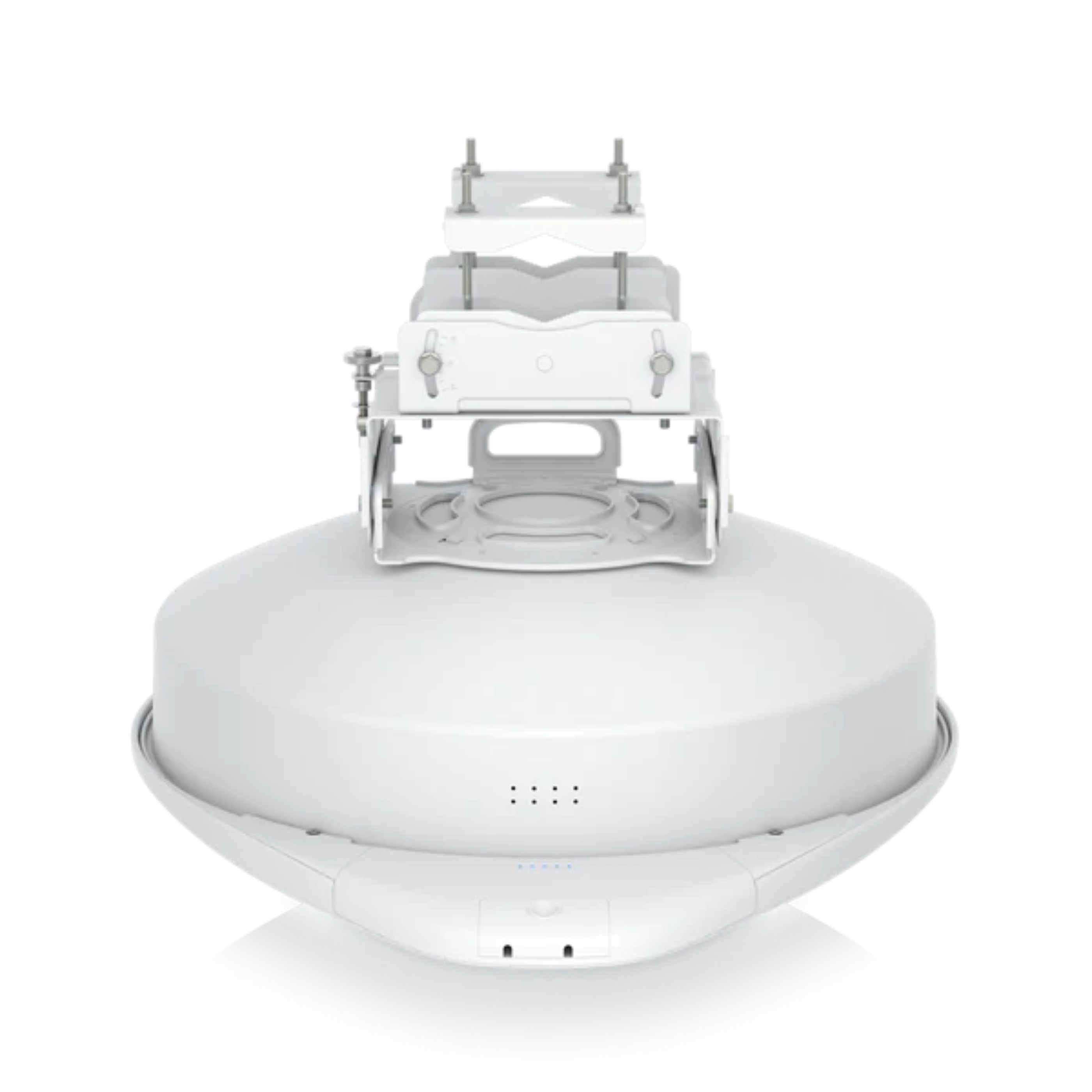

  • LEDs: Power, Ethernet, GPS, link
  • Operating temperature: -40 to 55° C (-40 to 131° F)
  • Operating humidity: 5 to 95% noncondensing
  • Certifications: FCC, IC, CE
Software:
  • OS: airOS®
  • Operating mode: PtP only
  • Ubiquiti specific features: Integrated 60 GHz radio, discovery protocol, Wave technology
  • Services: UISP, ping watchdog, NTP client, device discovery
  • Tools: Antenna alignment, discovery utility, ping, trace route, speed test
  • Network: Bridge mode
  • Software management:
    • Bluetooth management for easy setup over UISP app
    • WEB UI
  • Minimum software requirements: Any modern web browser/iOS™ or Android™ based smartphone
System:
  • Maximum throughput: 2.5+ Gbps
  • Maximum range: 15+ km
  • Encryption: WPA2-PSK (AES)
RF:
  • Operating frequency:*  57 to 71 GHz (* Depends on regulatory region.)
  • Channel bandwidth: 2160, 1080 MHz
  • Operating channels:*  58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120 MHz (* Depends on regulatory region.)
  • Modulation: 16QAM, BPSK, QPSK
  • Beamwidth:
    • Azimuth: ± 1°
    • Elevation: ± 1°
  • Management radio: 2400 - 2483.5 MHz
  • Electrical downtilt: 0°

Back-Up RF:
  • Operating frequency*
    • US/CA
      • U-NII-1 5150 - 5250 Mhz
      • U-NII-3 5725 - 5850 Mhz
    • Worldwide
      • 5150 - 5875 MHz (* Depends on regulatory region.
  • Channel bandwidth: 20, 40, 80 MHz
  • Modulation: BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (2⁄3), 64QAM (¾), 64QAM (5⁄6), 256QAM (¾), 256QAM (5⁄6)
  • Antenna gain: 26 dBi
  • Beamwidth:
    • Azimuth: ± 7°
    • Elevation: ± 7°
  • Cross-pol isolation: 14 dB
  • Electrical downtilt: 0°
