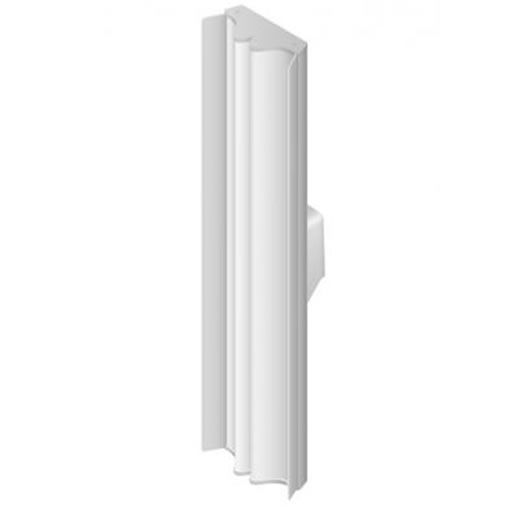

Ubiquiti airMAX 5GHz 21dBi 60deg 802.11AC Sector Antenna (2x2 MiMO) [AM-5AC21-60]

Ubiquiti Networks AM-5AC21-60 is an airMAX sector antenna designed for use with Rocket radios. This model has a 60° beamwidth, 21dBi gain, and supports 2x2 MIMO. The airMAX ac Sector Antennas are highly resistant to noise interference in co-location deployments and feature an innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area – potentially on the same tower. With improved Signal-to-Noise Ratio (S/N or SNR), the airMAX ac Sector Antennas allow a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate).

• Dimensions: 750 x 173 x 78mm (29.53 x 6.81 x 3.07")
• Weight: 4.8kg (10.58lbs)
• Frequency Range: 5.10 - 5.85GHz
• Gain: 21dBi
• HPOL Beamwidth: 60° (6dBi)
• VPOL Beamwidth: 60° (6dBi)
• Electrical Beamwidth: 5°
• Electrical Downtilt: 2°
• Max. VSWR: 1.5:1
• Wind Survivability: 200km/h (125mph)
• Wind Loading: 391N @ 200km/h (88lbf @ 125mph)
• Polarization: Dual-Linear
• Cross-Polarization Isolation: 25dB Min.
• ETSI Specification: EN 302 326 DN2
• Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included

(1) Antenna

(1) Protective Shroud

(2) U-Brackets

(2) Pole Brackets

(2) Pole Clamps

(4) M8x135 Carriage Bolts

(4) M8x20 Serrated Flange Bolts

(8) M8 Serrated Flange Nuts

(2) Weatherproof RF Cables

(1) Quick Start Guide
