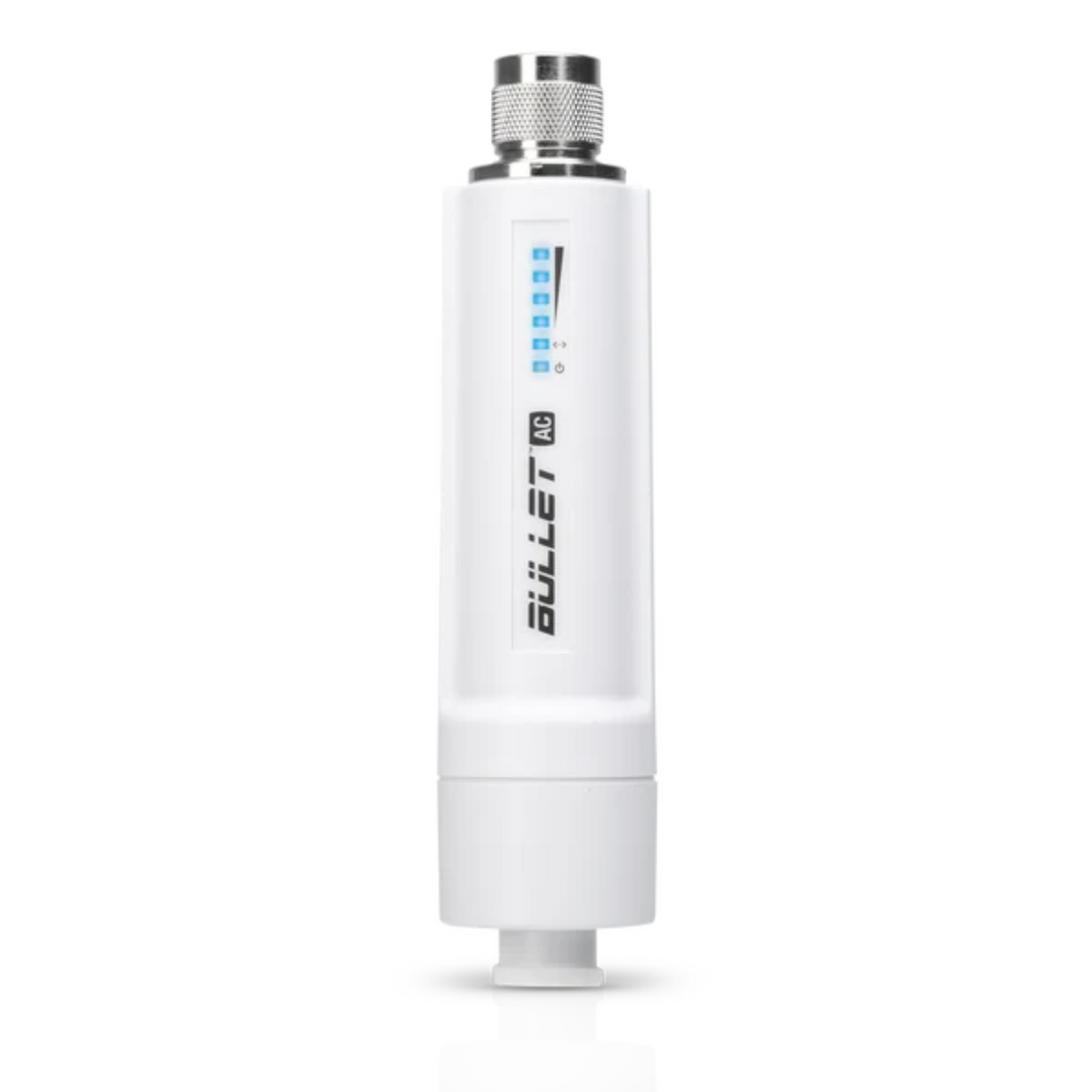

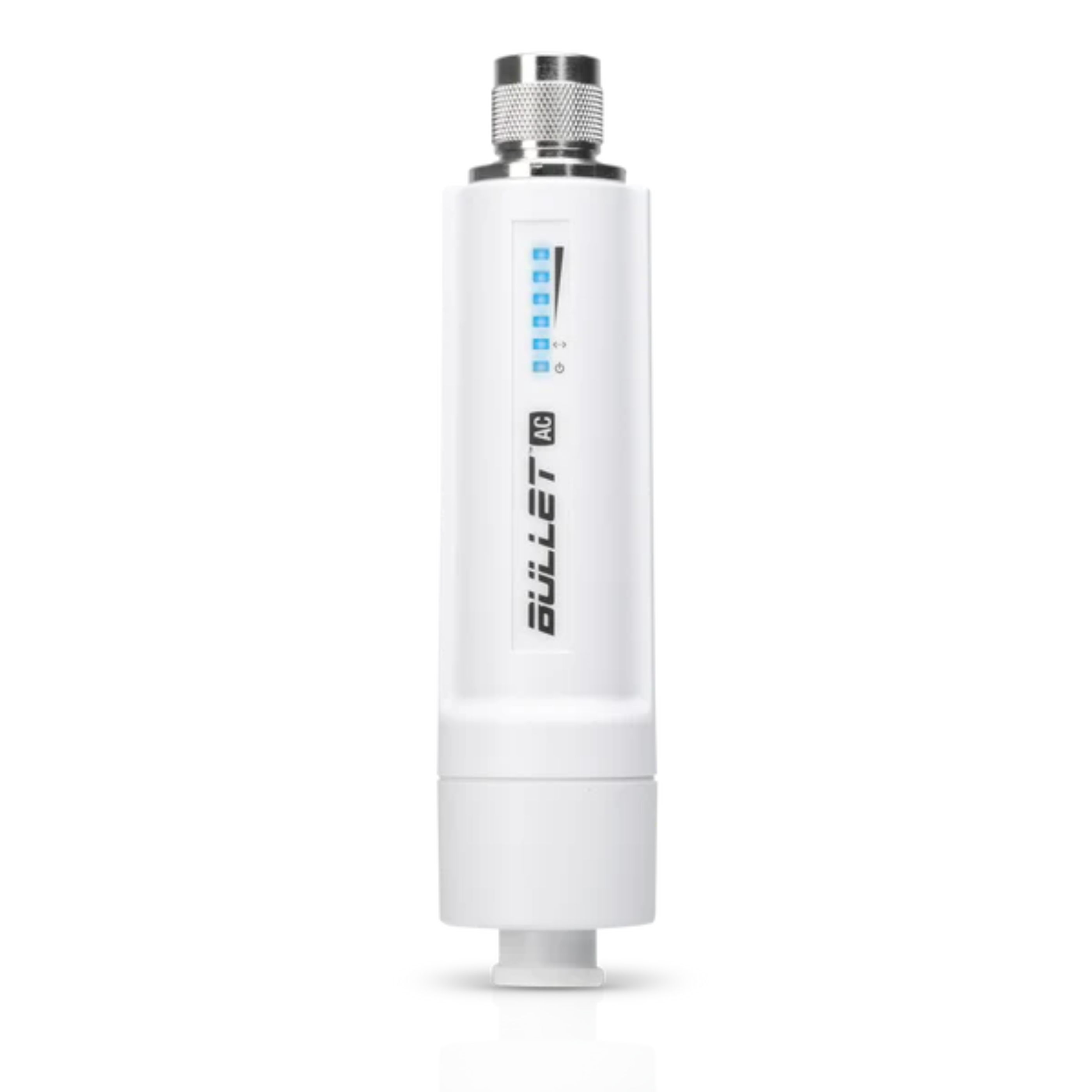

Ubiquiti airMAX Bullet AC Dual-Band Radio [B-DB-AC]

This product is a US version, intended for use in the US and Canada. This US version contains the following frequencies 2412 - 2462MHz & 5725 - 5850 MHz.

The Bullet AC eliminates the need to use RF cables and requires no special antenna or tools to install. No radio card / host board issues. No RF cable quality concerns. No mechanical stability concerns. No enclosure mounting requirements. With the Bullet AC, operators can just plug and go.

Product Features:

• The Bullet AC covers 5 GHz spectrum, covering a wide range of frequency bands that work well for both short and long-distance links.
• 24V Passive PoE functionality. Both power and data are carried over a single Ethernet cable to the Bullet AC.
• The Bullet AC offers up to 22 dBm of output power.
• The Bullet AC features a weatherproof design. Made from a high-grade, powder-coated aluminum, the casing can withstand nature’s harshest outdoor elements.

• Dimensions: 190 x 46 mm (7.48 x 1.81")
• Weight: 196 g (6.91 oz)
• Enclosure: Powder-Coated Aluminum

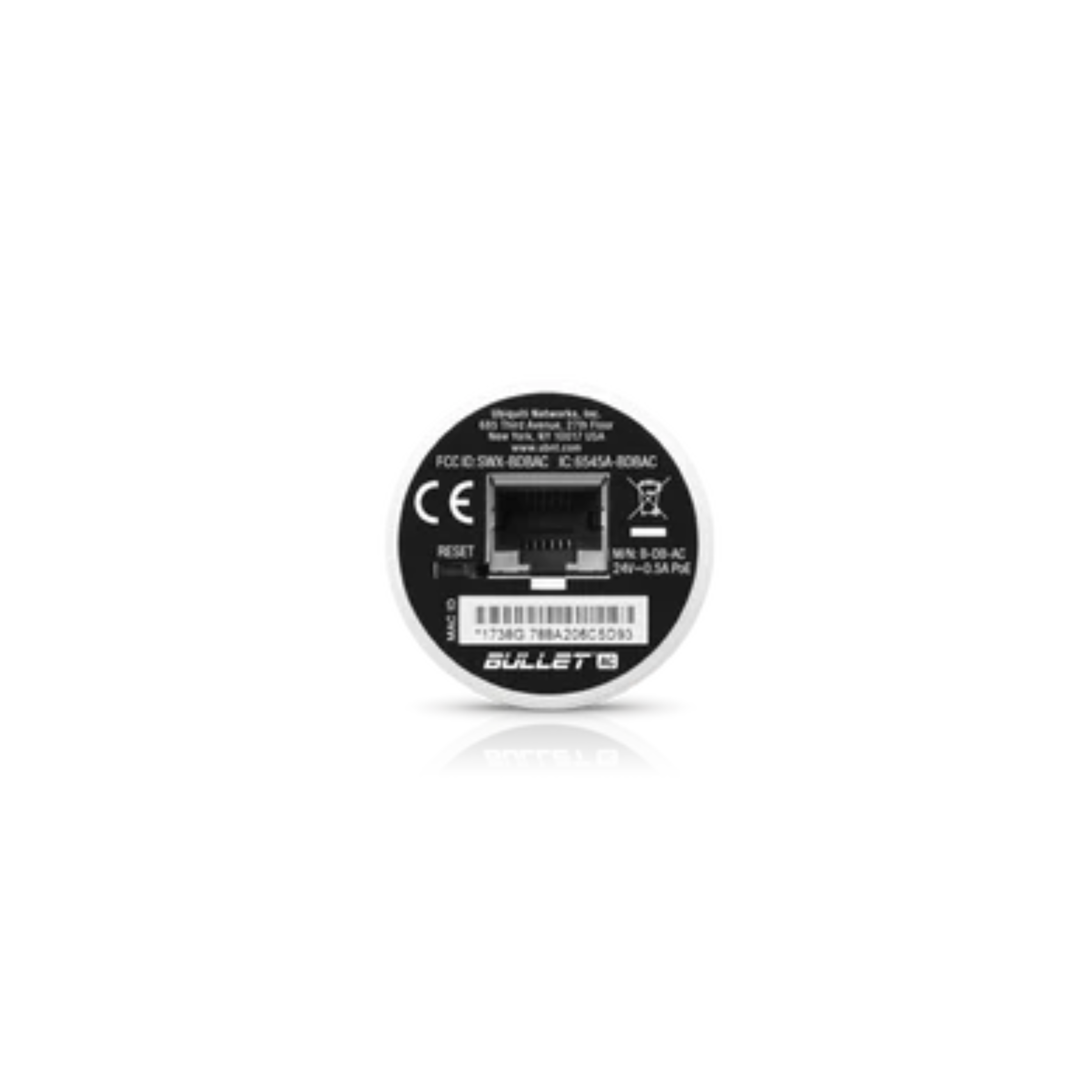

• Networking Interface: Gigabit Ethernet Port
• Antenna Connector: N-Type Connector
• LEDs: Power, Ethernet, (4) Signal Strength
• Management Radio: 2.4 GHz
• Throughput: 5 GHz - 300+ Mbps
• Max. Power Consumption: 8W
• Output Power: 22 dBm
• Power Method: 24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
• ESD/EMP Protection: ± 24 kV Contact / Air
• Operating Temperature: -40 to 70° C (-40 to 158° F)
• Operating Humidity: 5 to 95% Condensing
• Shock and Vibration: ETSI300-019-1.4
• Certifications: CE, FCC, IC
• Operating Frequency: 5725 - 5850 MHz
• Management Radio: 2412 - 2462 MHz

(1) Ubiquiti Dual-Band Radio

(1) User Guide
