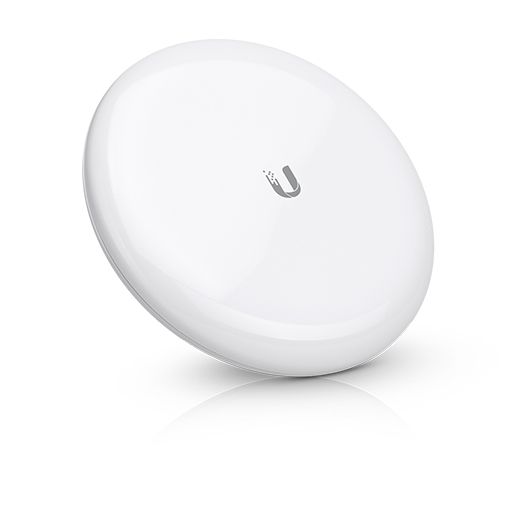

Ubiquiti airMAX GigaBeam 60GHz/ 5GHz Radio 1+Gbps Throughout [GBE]

The Ubiquiti Networks GigaBeam is an AirMAX 60 GHz radio designed for low-interference and high-throughput connectivity of up to 1+ Gbps. It includes a 5 GHz radio for failover. For the 60 GHz link, the GigaBeam supports full bandwidth use of 2.16 GHz. The dedicated management radio allows easy setup via Wi-Fi.

• 60 GHz radio with 5 GHz radio backup
• Low-interference 60 GHz spectrum
• Up to 1+ Gbps with low latency
• 2.4 GHz management radio
• Full bandwidth support: 2.16 GHz
• Processor: Quad-Core ARM Cortex A7
• Enclosure: UV-Resistant Polycarbonate
• Networking Interface: 10/100/1000 RJ45 Ethernet Port, Wi-Fi for Management
• Memory: 256 MB DDR3
• RF Connections: Internal
• LEDs: Power/ Ethernet/ 5G/ 60G
• Mounting:
• Pole-Mount Kit (Kit Included)
• Wall-Mount (Not Included)

• Software: airOS
• Security: WPA2 AES Only
• Gain: 5 GHz: 10 dBi, 60 GHz: 17.2 dBi
• Max. Power Consumption: 11W
• Power Method: Passive PoE (Pairs 4, 5+; 7, 8-)
• Power Supply: 24VDC, 0.5A Gigabit PoE Adapter (Included)
• ESD/ EMP Protection: ±24kV Contact/ Air
• Operating Temperature: -40 to 60°C (-40 to 140°F)
• Operating Humidity: 5 to 95% Non-condensing
• Certifications: CE, FCC, IC
• Radio:
• Max. Conducted TX Power: 5/ 60 GHz Combined: 25 dBm
• Operating Frequency
• U-NII-1: 5.180 - 5.250
• U-NII-2A: 5.250 - 5.350
• U-NII-2C: 5.470 - 5.725
• U-NII-3: 5.725 - 5.850
• Management Radio (MHz): US/CA: 2412-2462
