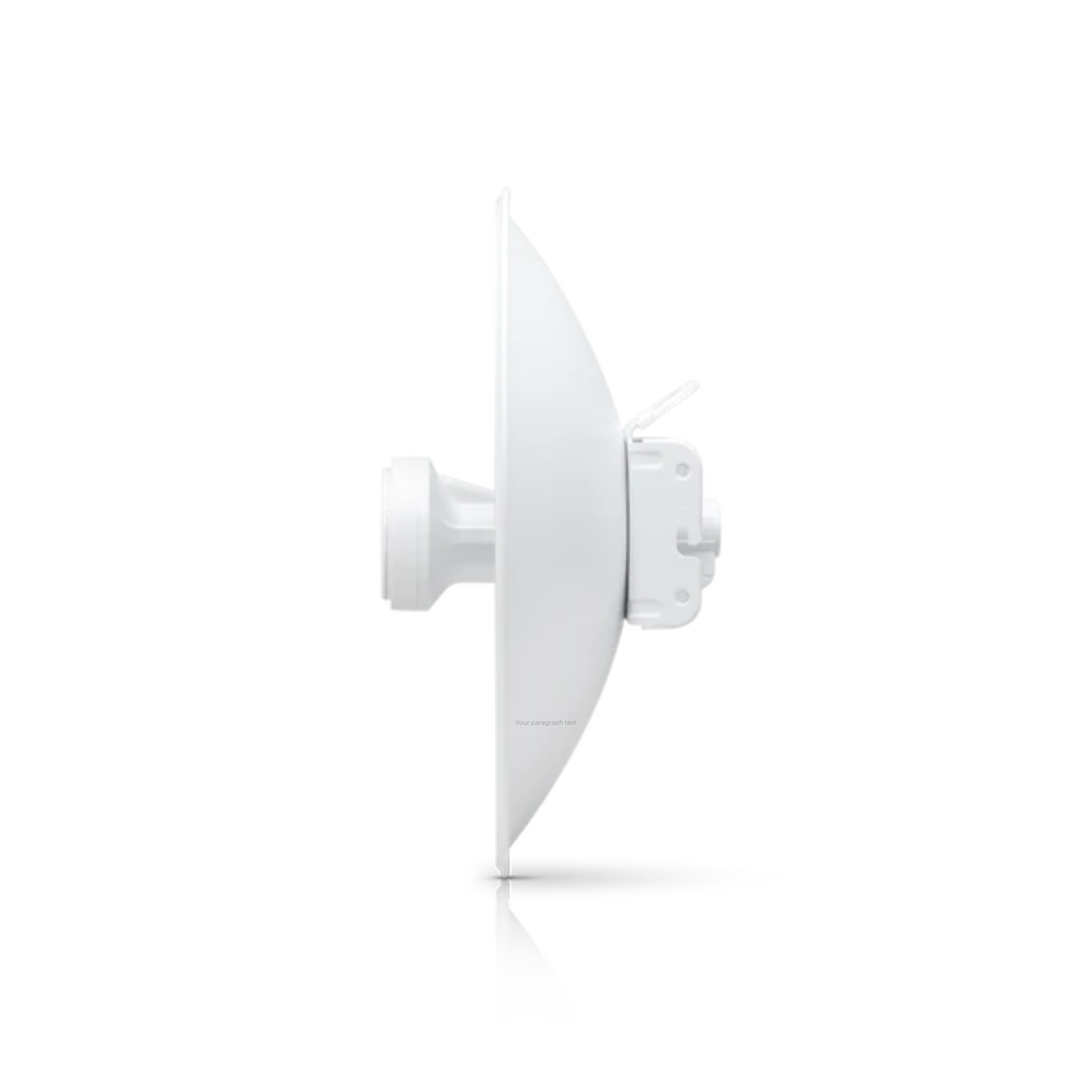

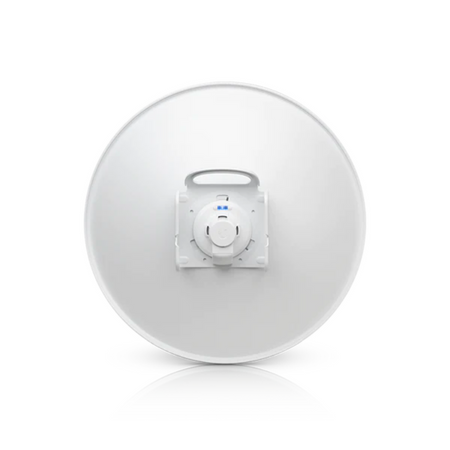

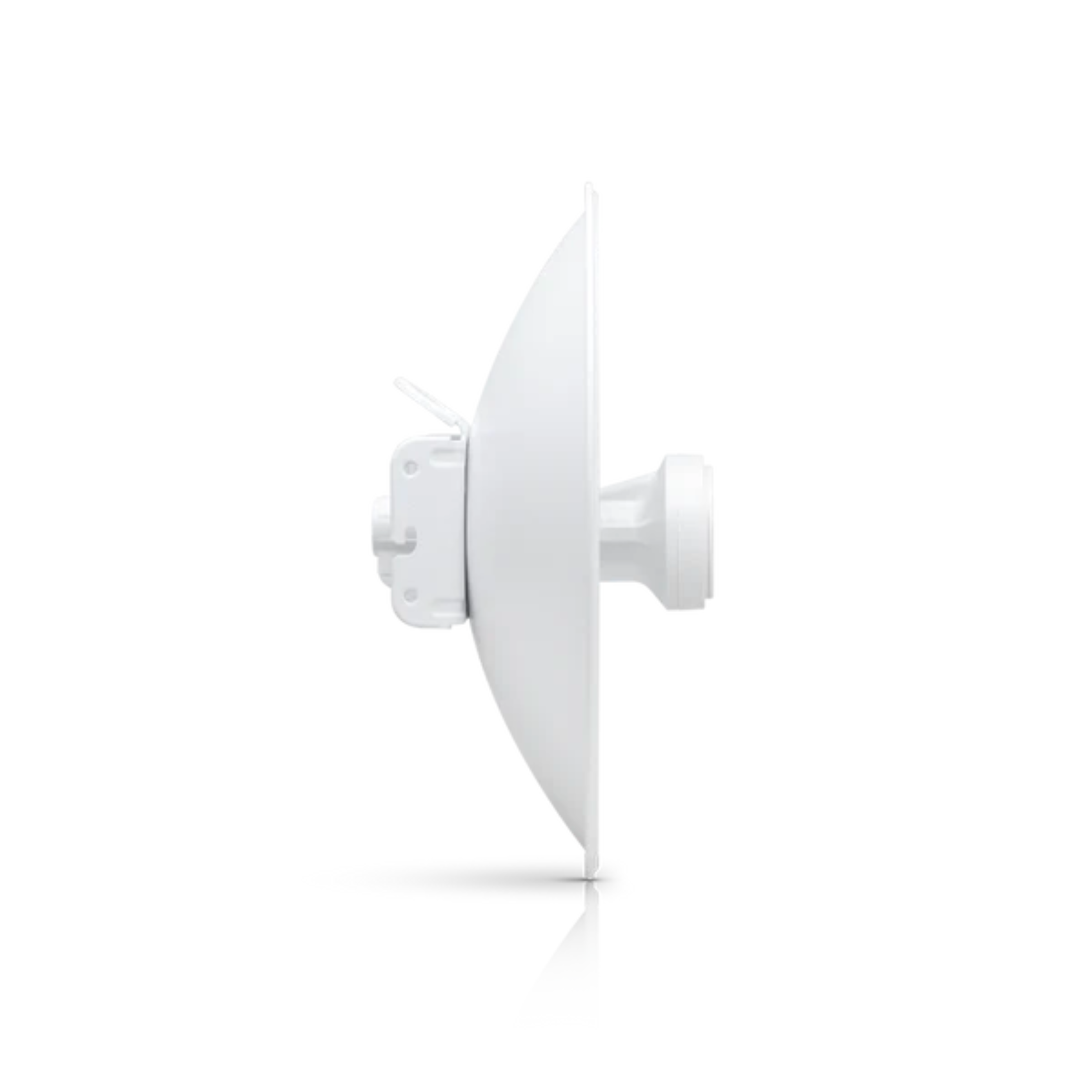

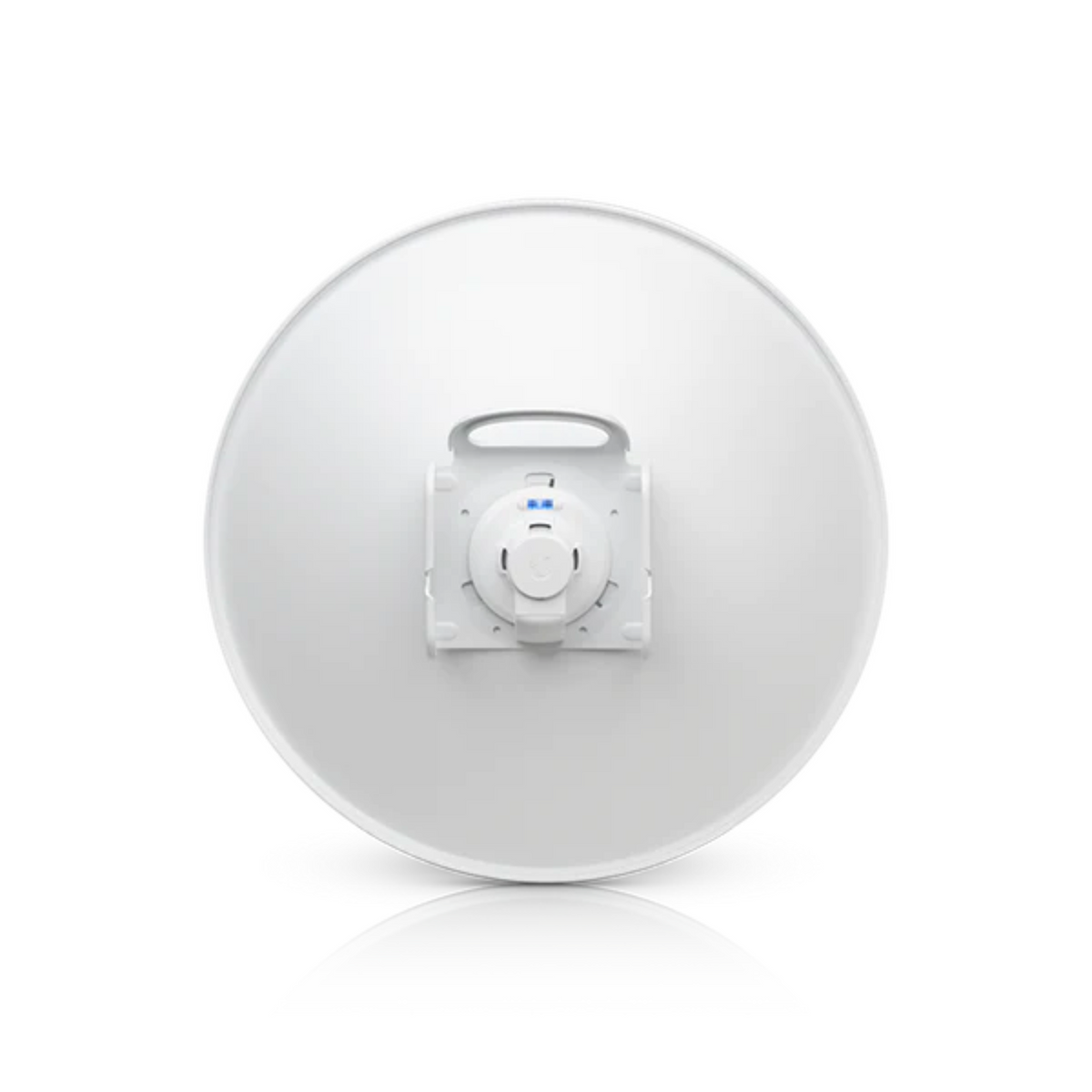

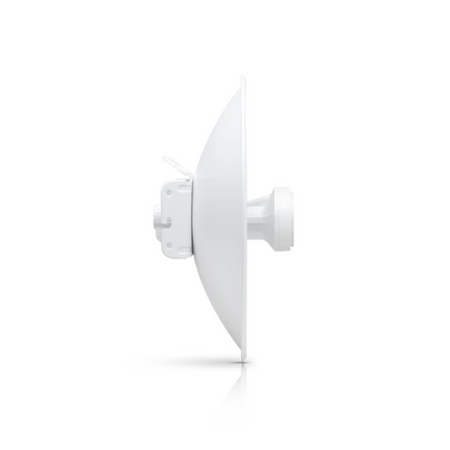

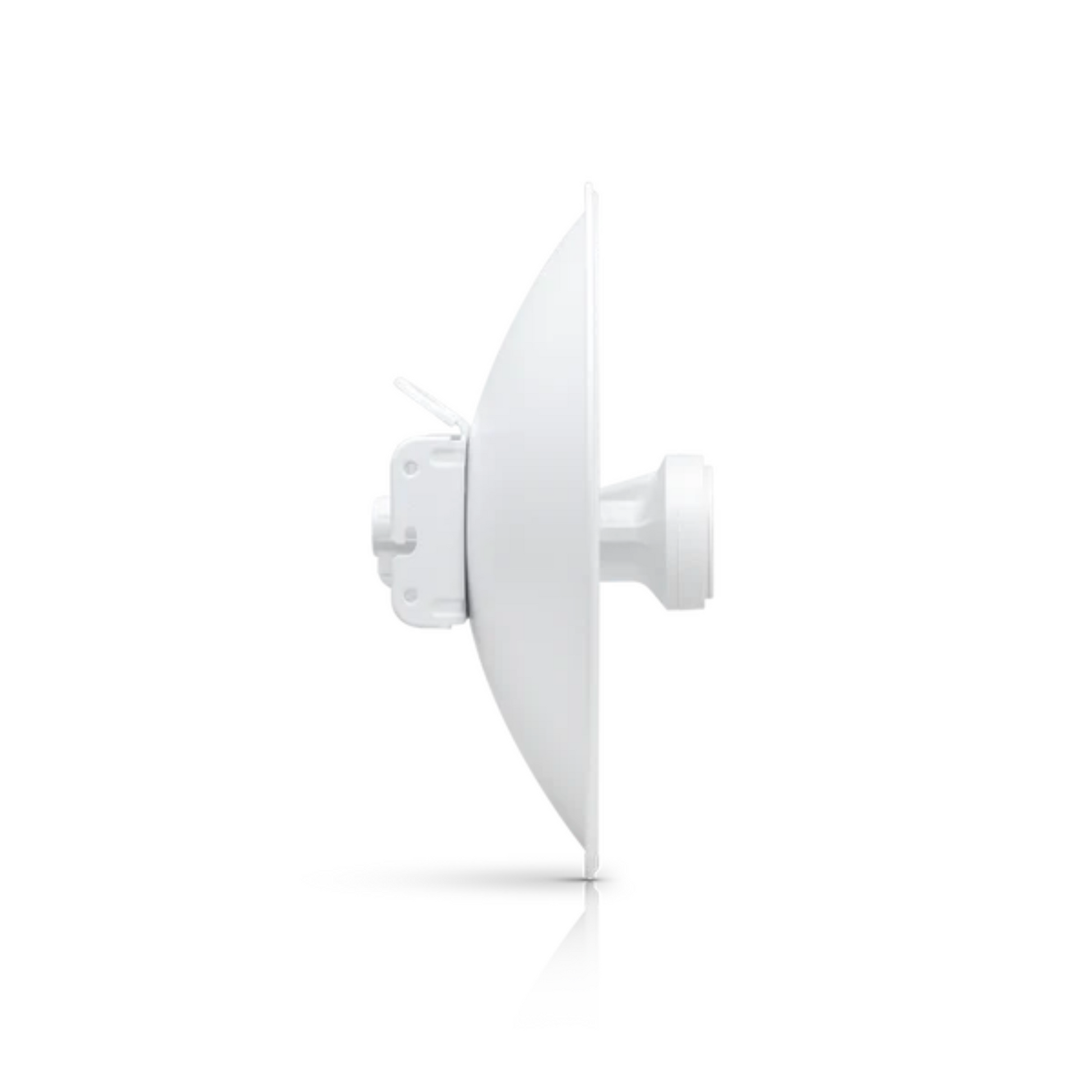

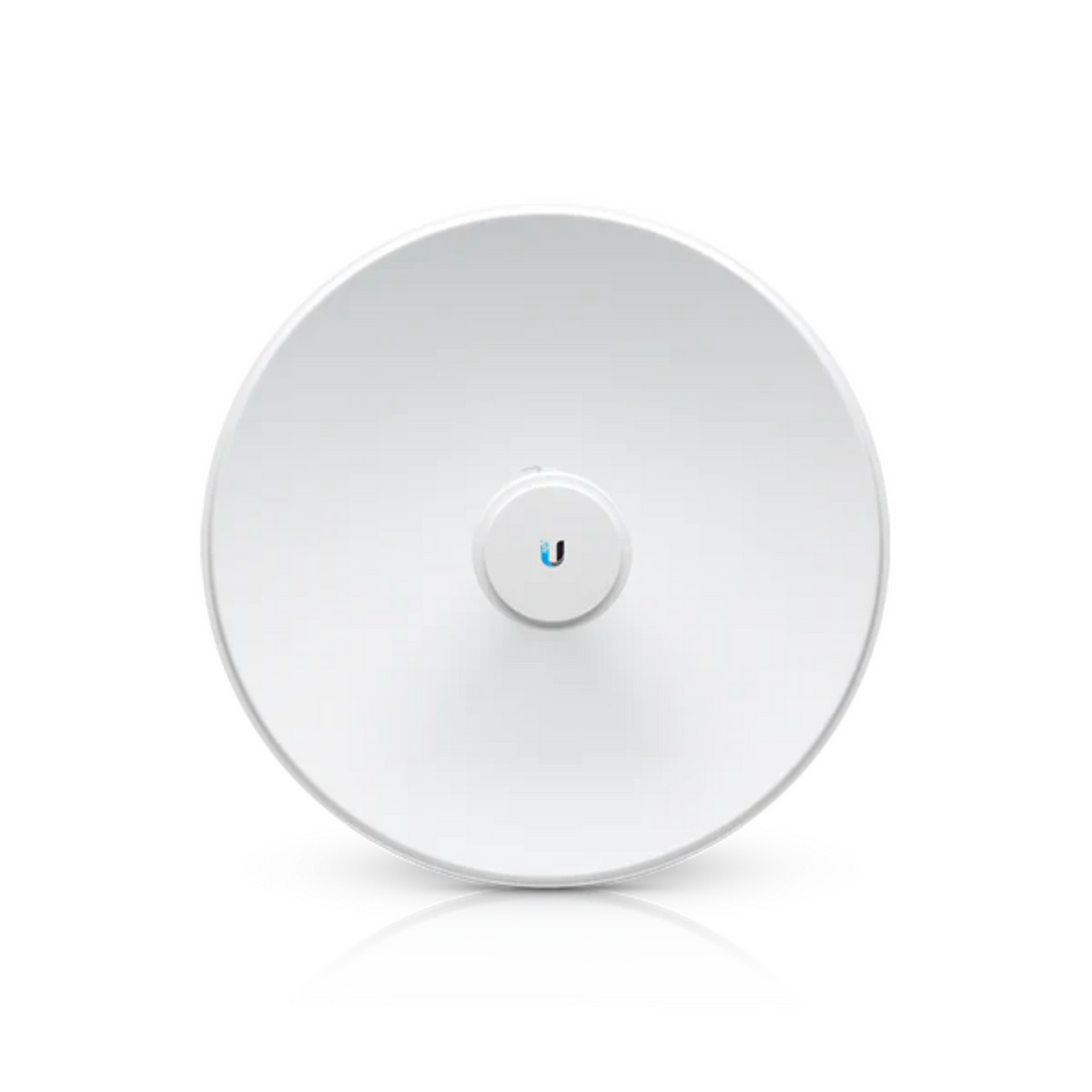

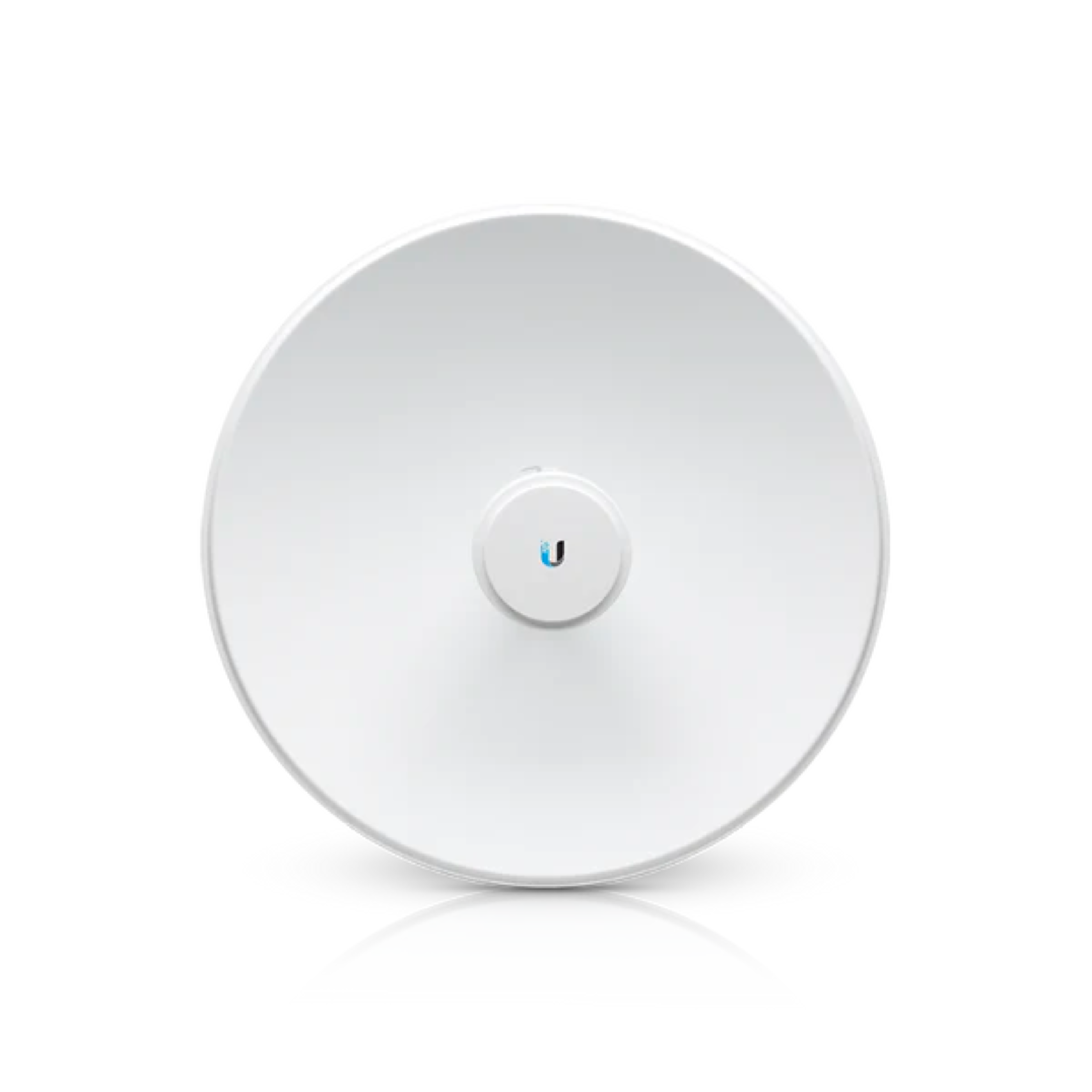

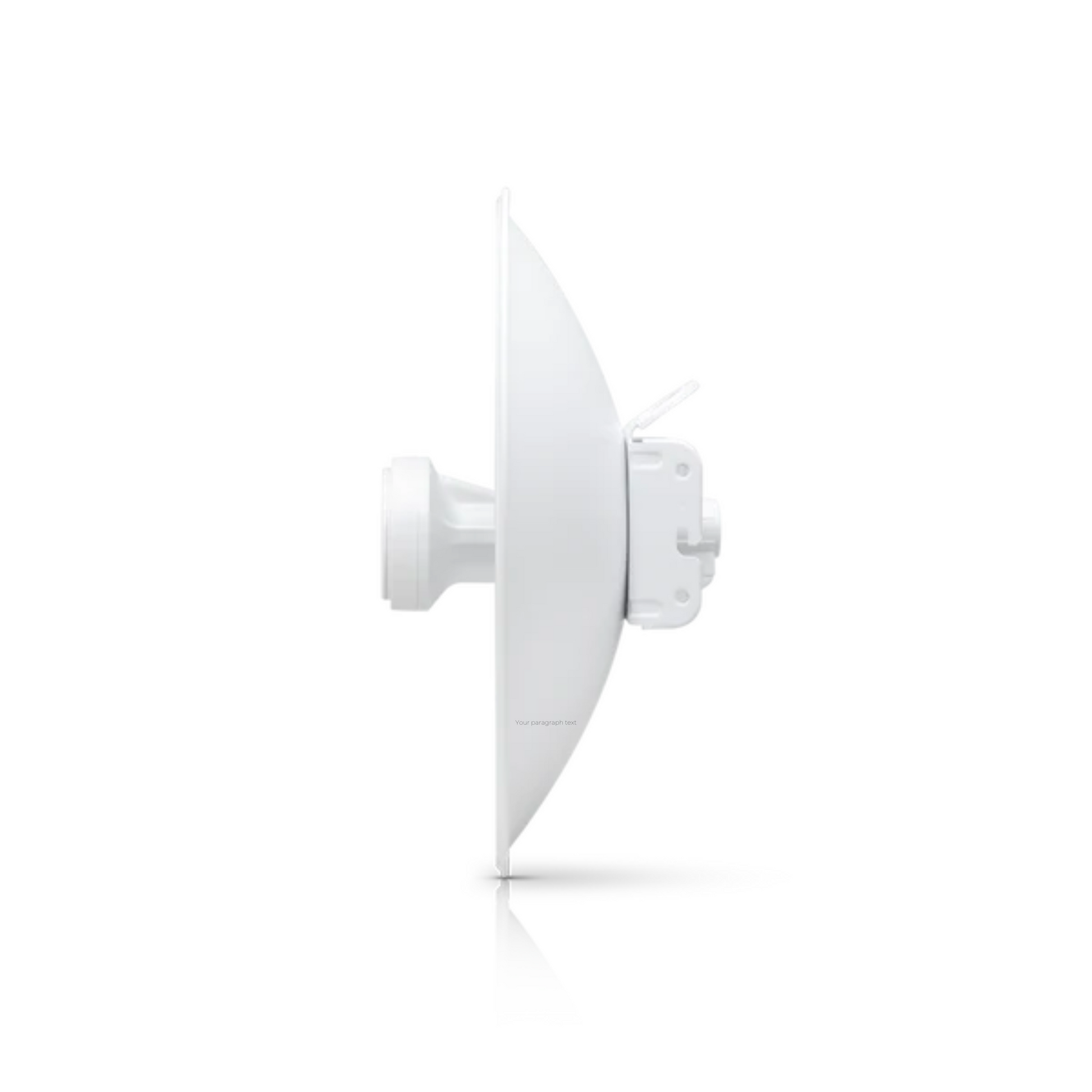

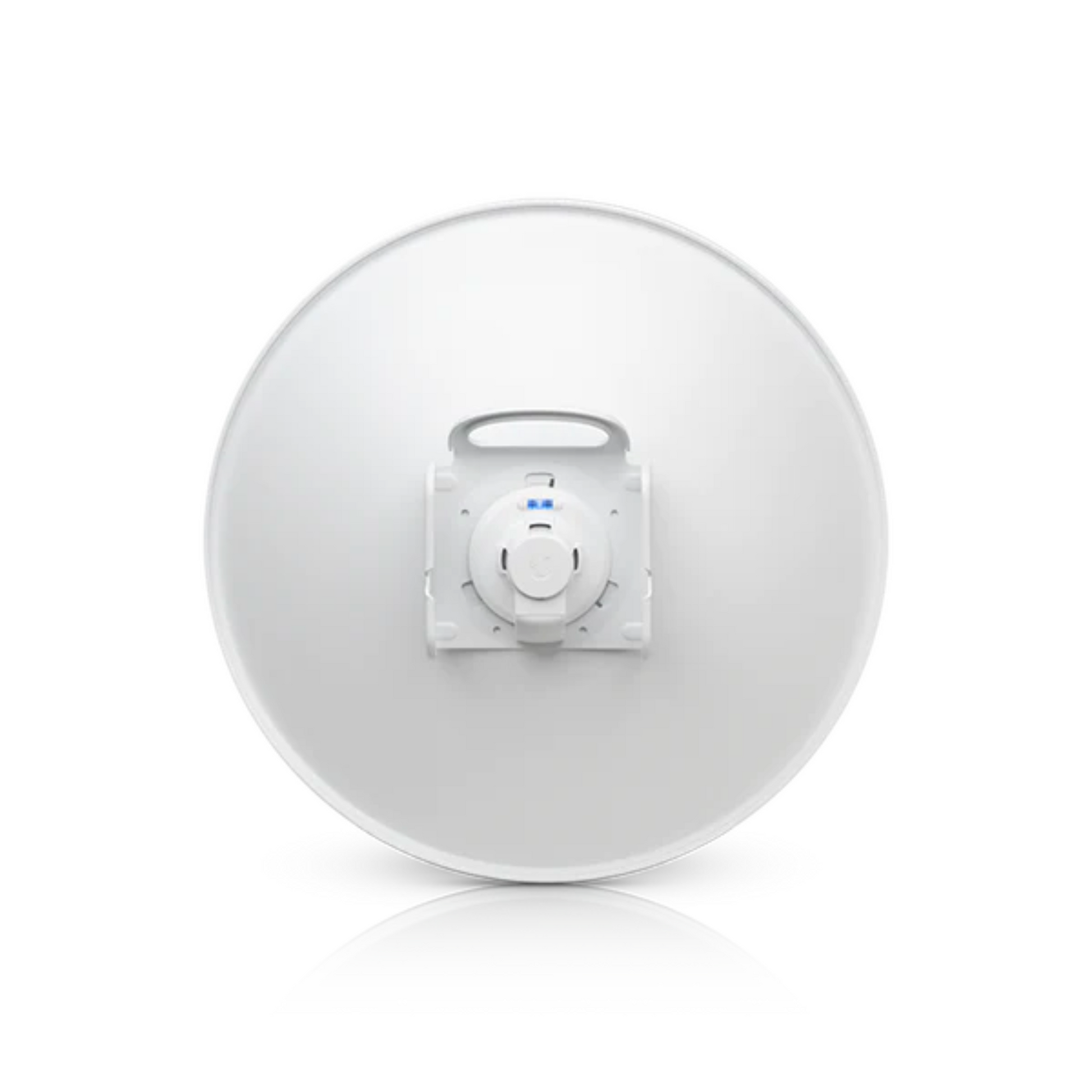

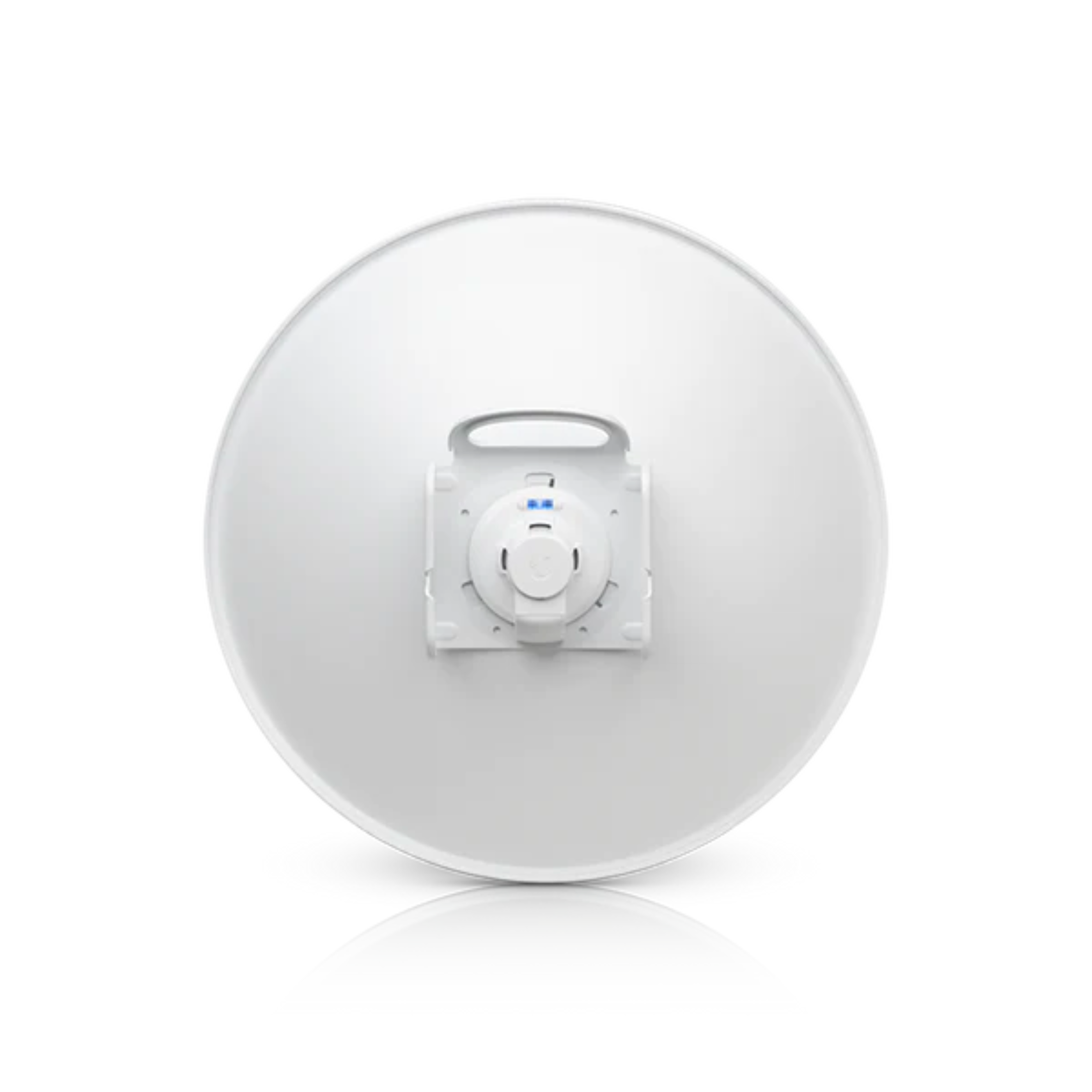

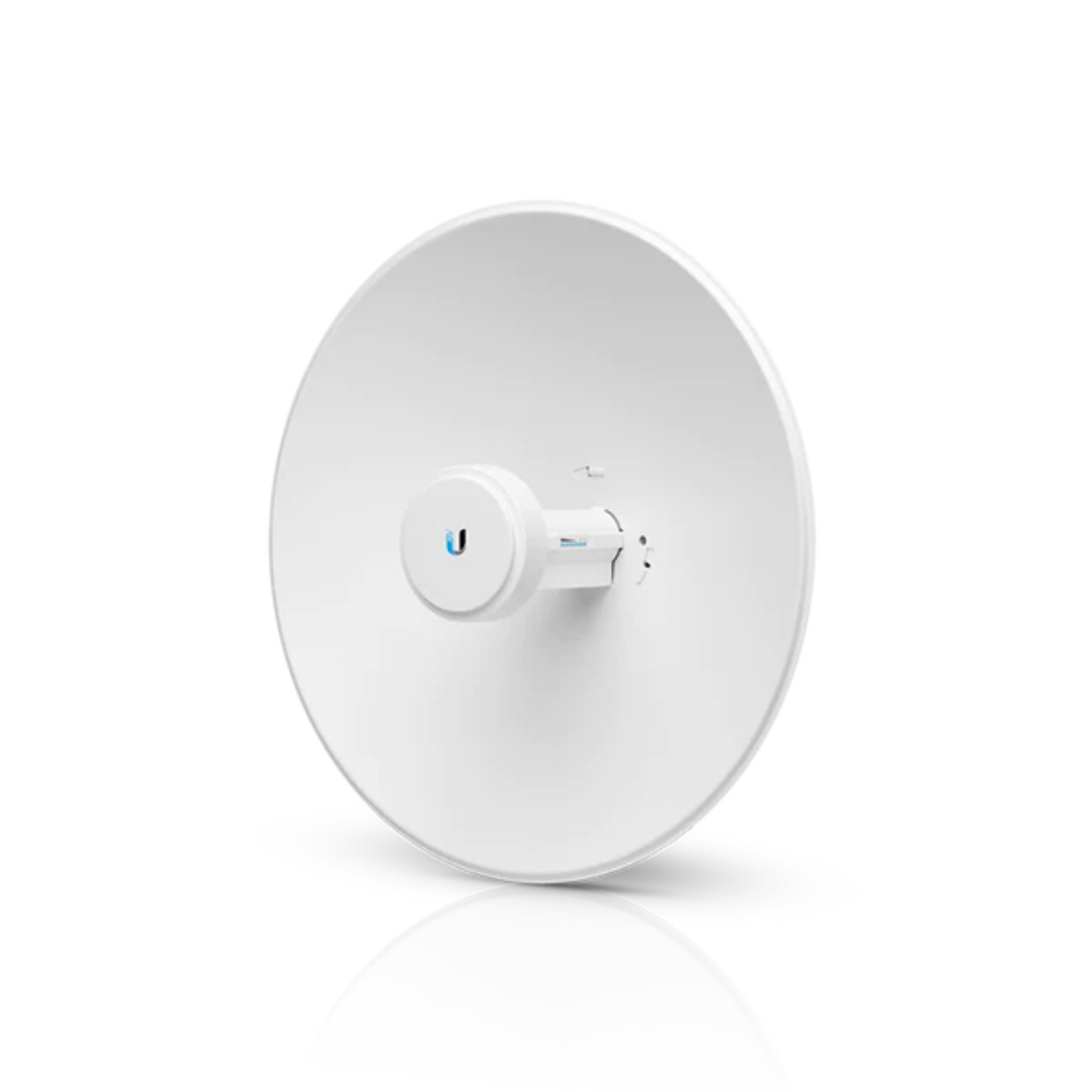

Ubiquiti airMAX PowerBeam 2AC 400 mm Bridge [PBE-2AC-400]

Out of stock
SKU: PBE-2AC-400
$172.00 CAD

Product details

  • Type Outdoor Wireless
  • Vendor Ubiquiti
  • SKU PBE-2AC-400

Share on Social Media:

Documentation

Description

Ubiquiti PowerBeam 2AC blocks or spatially filters out noise so noise immunity is improved. The PowerBeam is equipped with a long range Point-to-Point link mode. This PowerBeam airMAX ac products support up to 330+ Mbps real TCP/IP throughput - more than double the throughput of standard airMAX products. The PowerBeam AC requires no tools for assembly; only a single wrench is required for pole-mounting.


This product is a US version, intended for use in the US and Canada. This US version contains the following frequencies 2412-2462MHz.


Product Specifications:

  • Frequency: 2412-2462MHz
  • Management Radio: U-NII-3: 5725-5850MHz
  • Dimensions: 420 x 420 x 289mm (16.54 x 16.54 x 11.38")
  • Weight (mount included): 1.795 kg (4.809 lb)
  • Gain: 18 dBi
  • Networking Interface: (1) 10/100/1000 Ethernet Port
  • Enclosure: Outdoor UV Stabilized Plastic
  • Max. Power Consumption: 7.5W
  • Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
  • Power Method: Passive PoE (Pairs 4,5+;7,8 Return)
  • Processor Specs: MIPS 74Kc
  • Memory: 64MB
  • LEDs: Power, Ethernet, (4) Signal Strength
  • Channel Sizes: PtP Mode 10/20/40MHz - Antenna Feed (Outdoor UV stabilized Plastic enclosure characteristic), PtMP Mode 10/20/40MHz Dish Reflector - (Powder-Coated SPCC enclosure characteristic)
  • ESD/EMP Protection: Air: +/- 24 kV, Contact: +/-24kV
  • RoHS Compliance: Yes
  • Salt Fod Test: IEC 68-2-11 (ATSM B 117), Equivalent: MIL-STD-810 G Method 509.5
  • Supported Voltage Range: 22 to 26VDC
  • Wind Survivability: 200 km/h (125 mph)
  • Wind Loading: 342.5 N @ 200 km/h (77 lbf @125 mph)
  • Mounting: Pole Mounting Kit Included
  • Operating Temperature: -40 to 70 C (-40 to 158 F)
  • Operating Humidity: 5 to 95% Noncondensing
  • Temperature Shock Test: IEC 68-2-14
  • Vibration Test: IEC 68-2-6
  • UV Test IEC 68-2-5 at 40degC (104degF), Equivalent: ETS 300 019-1-4
  • Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
  • Certifications: CE, FCC, IC
Product Includes:
  • (1) Dish Reflector
  • (1) PBE-2AC-400 Antenna Feed
  • (1) Rear Housing
  • (1) Dish Bracket
  • (1) Pole Clamp
  • (1) U-Bolt
  • (1) Flange Nuts (m8, Qty. 2)
  • (1) Gigabit PoE (24V, 0.5A) with mounting Bracket
  • (1) Power Cord
  • (1) Quick Start Guide
