Ubiquiti airMAX Rocket 2AC Prism [R2AC-PRISM]

This product is a US version, intended for use in the US and Canada. This US version contains the following frequencies 2412 - 2462MHz.

Ubiquiti Networks R2AC-PRISM US features both airMAX ac and airPrism technologies for maximum wireless performance in high-density areas. The R2AC-PRISM US delivers complete coverage of the 2.4GHz spectrum with a single radio, allowing for flexibility in configuring channel bandwidths.

Product Specifications:

• Dimensions: 88 x 40 x 230mm (3.47 x 1.58 x 9.06")
• Weight: 440g (15.52oz)
• Power Supply: 24V, 0.5A Gigabit PoE
• Max. Power Consumption: 8.5W
• Power Method: Passive PoE (Pairs 4,5+; 7,8 Return)
• Supported Voltage Range: 18-26VDC
• Operating Frequency: 2412 - 2462MHz
• Networking Interface: (1) 10/100/1000 Ethernet Port

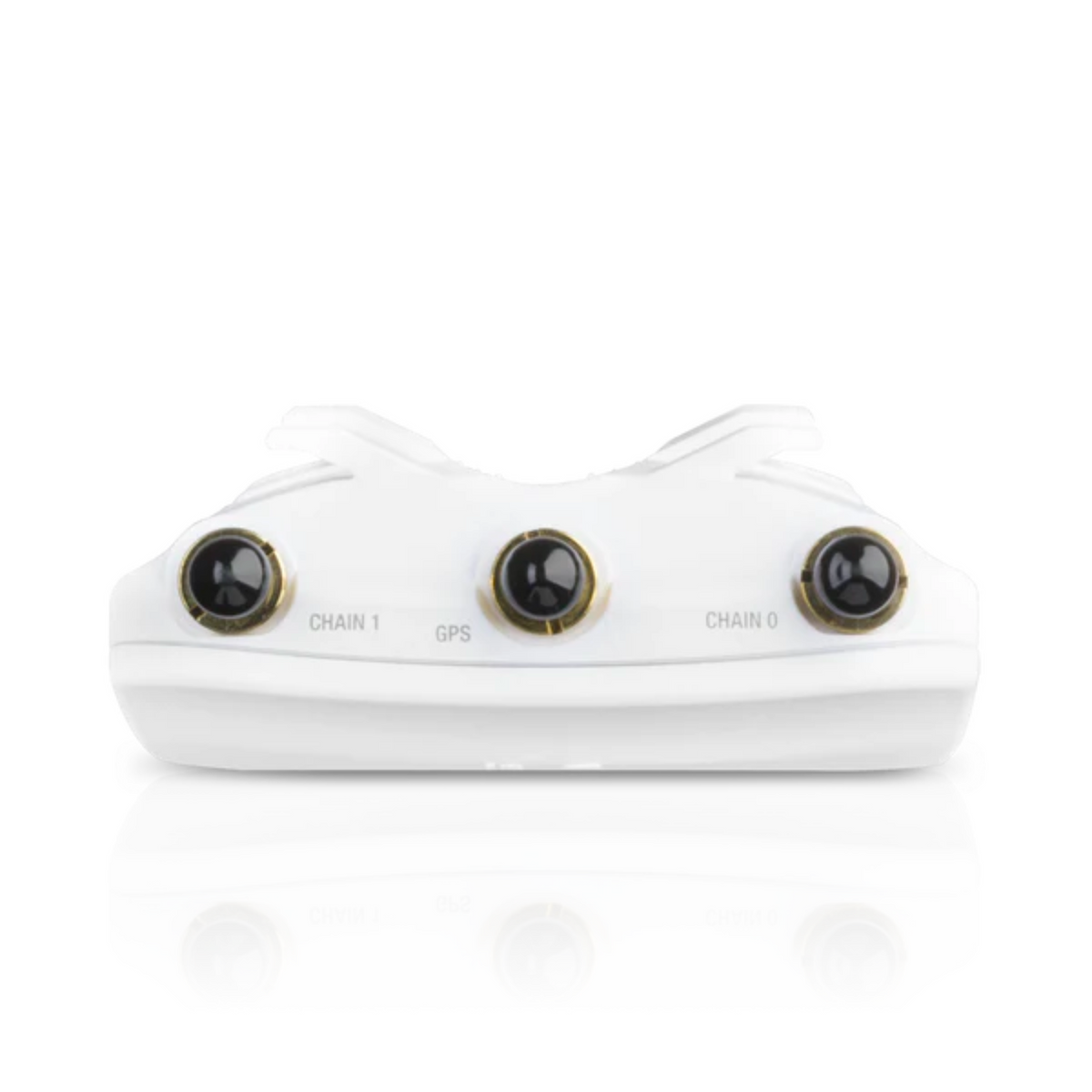

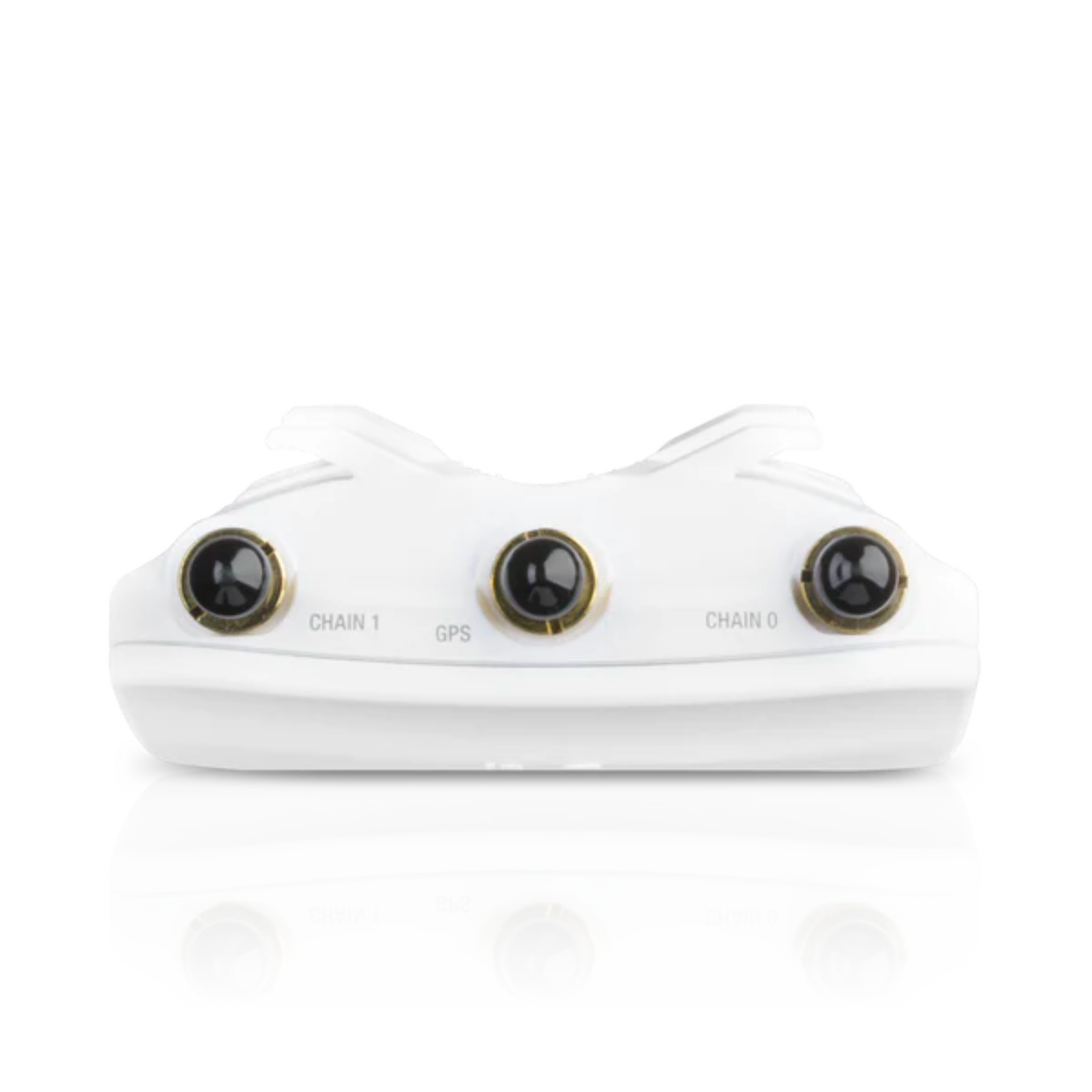

• RF Connectors: (2) RP-SMA (Waterproof); (1) GPS (Waterproof)
• Processor Specs: Atheros MIPS 74Kc, 720MHz
• Memory: 128MB DDR2 SDRAM, 16MB NOR Flash

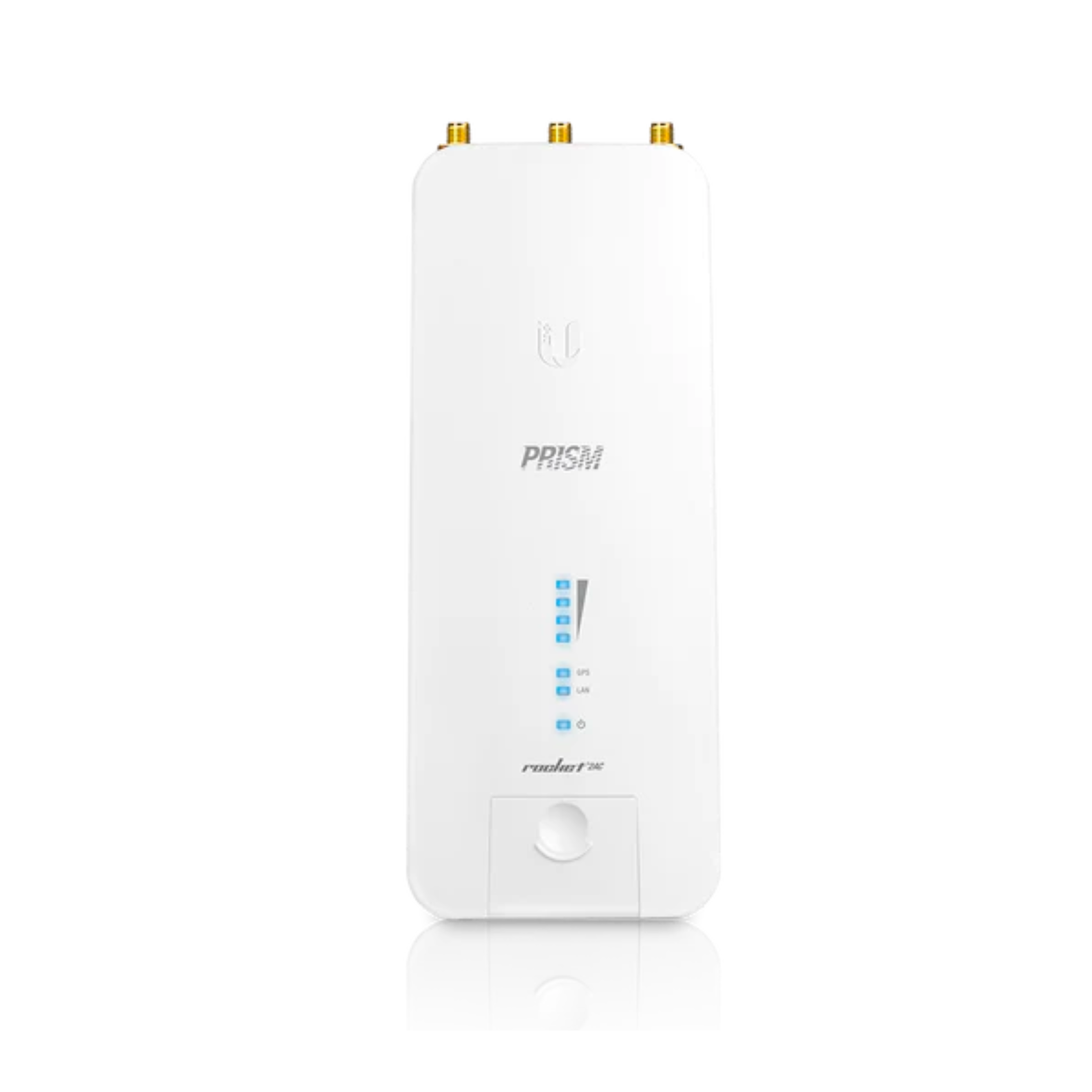

• LEDs: Power, LAN, (4) Signal Strength, GPS
• Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels
• Channel Width Support: 10/20/40MHz
• Enclosure Characteristics: Die-Cast Aluminum with White Powder Coating
• ESD/EMP Protection: Air:±24kV, Contact:±24kV
• Operating Temperature: -40 to 70°C (-40 to 158°F)
• Operating Humidity: 5 to 95% non-condensing
• Wireless Approvals: FCC, IC, CE
• RoHS Compliance: Yes
• Shock and Vibration: ETSI300-019-1.4
• Modes: Access Point, Station
• Services: Web Server, SNMP, SSH Server, Telnet, Ping Watchdog, DHCP, NAT, Bridging, Routing
• Utilities: airMagic, airView, Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
• Distance Adjustment: Dynamic Ack and Ackless Mode
• Power Adjustment: Software Adjustable UI
• Security: WPA2 AES Only
• QoS: Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low
• Statistical Reporting: Uptime, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate
• Other: Remote Reset Support Software Enabled/Disabled, VLAN Support, 256QAM, GPS, TX Filter
• Ubiquiti Specific Features: 10MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode
