Product details
- Type Outdoor Wireless
- Vendor Ubiquiti
- SKU R5AC-Lite
Share on Social Media:
Documentation
- Datasheet Link

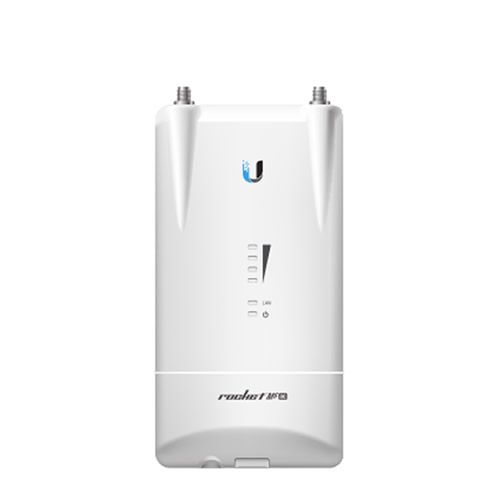

Ubiquiti Networks R5AC-Lite-US utilizes unlicensed 5GHz bands for long-distance links. This radio has 2x2 MIMO, and is a great cost-effective basestation for links experiencing low to moderate levels of interference. Featuring proprietary airMAX ac technology, the Rocket5ac Lite is ideal for deployment in Point-to-Point (PtP) bridging applications requiring maximum performance. Point-to-MultiPoint (PtMP) functionality requires firmware airOS v.7.1 or higher. The new ac technology offers improved latency, noise immunity, scalability and significantly increases throughput performance. The Rocket5ac Lite radio can be paired with a RocketDish antenna (SKU: RD-5G31) to create the endpoint of a high-performance, Point-to-Point (PtP) backhaul.
Product Specifications:
- Dimensions: 162 x 84 x 37mm (6.38 x 3.31 x 1.46")
- Weight: 250g (8.81oz)
- Power Supply: 24V, 0.5A Gigabit PoE Adapter
- Power Method: Passive PoE (Pairs 4,5+;7,8 Return)
- Max. Power Consumption: 8.5W
- USA U-NII-1: 5150 - 5250MHz
- USA U-NII-2A: 5250 - 5350MHz
- USA U-NII-2C: 5470 - 5725MHz
- USA U-NII-3: 5725 - 5850MHz
- Processor: Atheros MIPS 74Kc, 720MHz
- Memory: 128MB DDR2 SDRAM, 16MB NOR FLASH
- Networking Interface: (1) 10/100/1000 Mbps
- RF Connections: (2) RP-SMA (waterproof)
- LEDs: Power, LAN, (4) Signal Strength
- PtP Mode: 10/20/30/40/50/60/80MHz
- PtMP Mode: 10/20/30/40MHz
- Enclosure Characteristics: Outdoor UV Stabilized Plastic
- Supported Voltage Range: 20-26VDC
- ESD/EMP Protection: ±24kV Air / Contact
- Operating Temperature: -40 to 80°C (-40 to 176°F)
- Operating Humidity: 5 to 95% non-condensing
- Shock and Vibration: ETSI300-019-1.4
- Wireless Approvals: FCC, IC, CE
- RoHS Compliance: Yes
- Modes:Access Point, Station
- Services: Web Server, SNMP, SSH Server, Telnet, Ping Watchdog, DHCP, NAT, Bridging, Routing
- Utilities: Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Tracerouter, Speed Test
- Distance Adjustment: Dynamic Ack and Ackless Mode
- Power Adjustment: Software Adjustable UI or CL
- Security: WPA2 AES Only
- QoS: Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low
- Statistical Reporting: Up Time, Packer Errors, Data Rates, Wireless Distance, Ethernet Link Rate
- Other: Remote Reset Support, Software Enabled/Disabled, VLAN Support, 256QAM
- Ubiquiti Specific Features: 30/50/60MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode
(1) Rocket 5AC-Lite
(1) Gigabit PoE Adapter (24V, 0.5A)
(1) Power Cord
(1) Quick Start Guide
