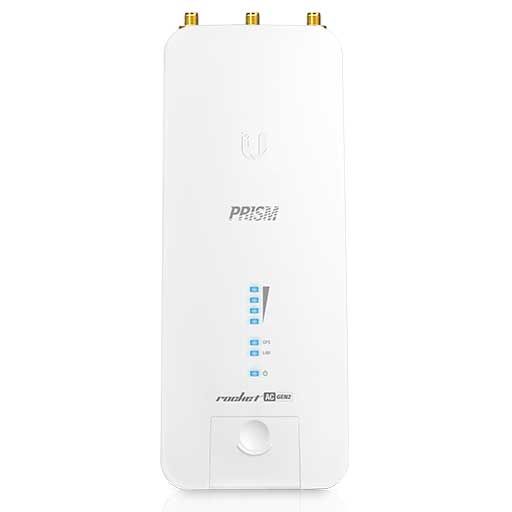

Ubiquiti airMAX Rocket Prism Gen 2 5AC 5GHz BaseStation [RP-5AC-Gen2]

Out of stock
SKU: RP-5AC-Gen2-
$360.00 CAD

Product details

  • Type Outdoor Wireless
  • Vendor Ubiquiti
  • SKU RP-5AC-Gen2-

Share on Social Media:

Documentation

Description

This product is a US version, intended for use in the US and Canada. This US version contains the following frequencies 5150-5250 MHz*, 5250-5350 MHz*, 5470-5725 MHz*, 5725-5850 MHz.


The Ubiquiti Networks RP-5AC-Gen2 US utilizes airPrism technology to provide breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments. Rocket Prism 5AC features EMI shielded metal housing, GPS, airPrism, circuitry, and the airView real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.


Product Features:

  • 5GHz Frequency Band: Rocket Prism 5AC Gen 2 features full-band 5GHz coverage and maximizes output power for the US market, meeting strict OOBE requirements
  • airView: Use the real-time spectrum analyzer so you can identify noise signatures and design your wireless links to maximize noise interference
  • High Performance: Deploy the Rocket Prism 5AC Gen 2 for PtP or PtMP links in high RF noise environments to take full advantage of its design and capabilities
  • airPrism Sector Antenna: You can mount three Rocket Prism 5AC Gen 2 radios on the airPrism 5GHz 3x30° HD Sector Antenna for PtMP links
  • Dedicated Management Radio: Access the airOS configuration interface instantly through the UMobile app to set up and manage your Rocket 5AC Prism Gen 2
  • Robust Die Cast Aluminum Casing: Helps protect the Rocket Prism 5AC Gen 2 against electromagnetic interference
  • GPS for Superior Co-Location Performance: Precise GPS frame synchronization enable co-located Rocket Prism 5AC Gen 2 radios to transmit and receive data without interfering with each other, allowing for better frequency reuse and increased network stability
  • Improved Surge Protection: Utilizes the latest ESD protection to help protect against power surges
  • Gigabit Ethernet: Delivers high throughput over its wired connection
  • Plug and Play: Every airMAX antenna has a built-in Rocket mount, so no tools are needed for installation


Product Specifications:
  • Dimensions: 88 x 40 x 230mm (3.47 x 1.58 x 9.06")
  • Weight: 400g (14.11oz)
  • Networking Interface: (1) 10/100/1000 Ethernet Port
  • RF Connector: (2) RP-SMA (waterproof), (1) GPS (waterproof)
  • LEDs: (4) Signal Strength, GPS, Power, LAN
  • Enclosure: Die-Cast Aluminum with White Powder Coating
  • Max. Power Consumption: 9.5W
  • Power Supply: 24V, 1A Gigabit PoE Adapter (included)
  • Power Method: Passive PoE (Pairs 4,5+;7,8 Return)
  • Processor Specs: Atheros MIPS 74Kc
  • Memory: 128 MB DDR2 SDRAM
  • Supported Voltage Range: 18-26VDC
  • Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels
  • Channel Sizes: PtP Mode: 10/20/30/40/50/60/80MHz, PtMP Mode: 10/20/30/40MHz
  • ESD/EMP Protection: ±24kV Contact / Air for Ethernet
  • Operating Temperature: -40 to 80°C (-40 to 176°F)
  • Operating Humidity: 5 to 95% non-condensing
  • RoHS Compliance: Yes
  • Shock and Vibration: ETSI300-019-1.4
  • Modes: Access Point, Station
  • Services: Web Server, SNMP, SSH Server, Telnet, Ping Watchdog, DHCP, NAT, Briding, Routing
  • Utilities: Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
  • Distance Adjustment: Dynamic Ack and Ackless Mode
  • Power Adjustment: Software Adjustable UI or CLI
  • Security: WPA2 AES Only
  • QoS: Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low
  • Statistical Reporting: Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate
  • Other: Remote Reset Support, Software Enabled/Disabled, VLAN Support, 256QAM, GPS, TX Filter
  • Ubiquiti Specific Features: 30/50/60MHz Channels, airMAX ax Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode
  • Certifications: CE, FCC, IC
  • Operating Frequency: 2412 - 2472MHz, USA U-NII-1: 5150 - 5250MHz, USA U-NII-2A: 5250 - 5350MHz, USA U-NII-2C: 5470 - 5725MHz, USA U-NII-3: 5725 - 5850MHz


Product Includes:


(1) Rocket Prism 5AC

(1) GPS Antenna

(1) Gigabit PoE (24V, 1A) with Mounting Bracket

(1) Power Cord

(1) Quick Start Guide
