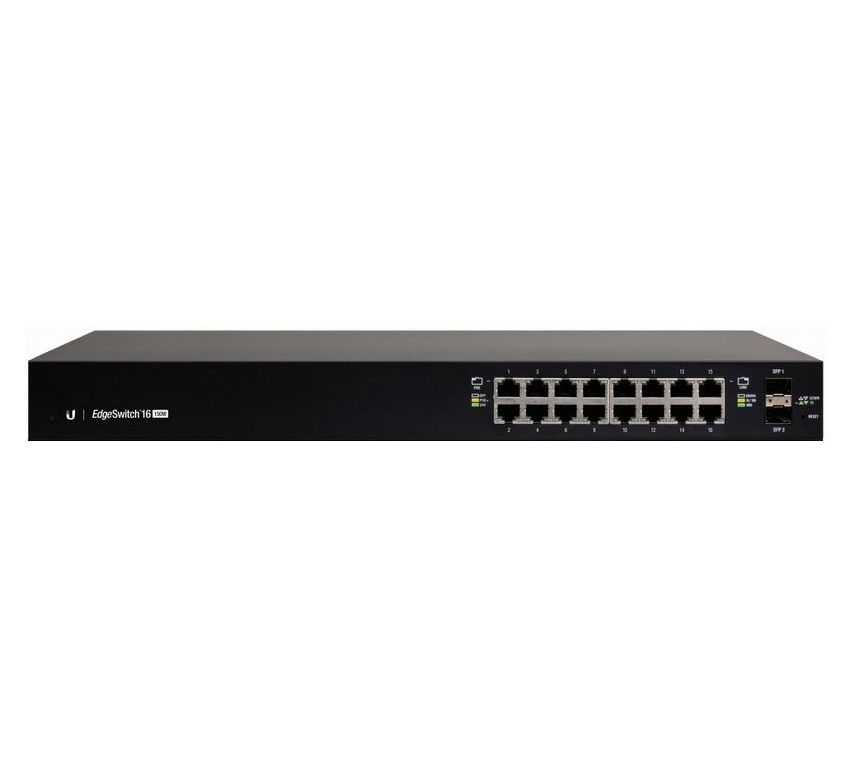

Ubiquiti EdgeSwitch 16-Port PoE Switch 150W [ES-16-150W]

Out of stock
SKU: ES-16-150W
$476.00 CAD

Product details

  • Type Switches
  • Vendor Ubiquiti
  • SKU ES-16-150W

Share on Social Media:

Documentation

Description

The EdgeSwitch ES-16-150W is 16-Port Gigabit switch. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides layer-3 routing capabilities.EdgeSwitch, 16 ports, Managed PoE+ Gigabit Switches, 150 W. Non-Blocking Throughput Switching performance, Gigabit Ethernet RJ45 and SFP+/SFP Ports and Auto-Sensing IEEE 802.3af/at PoE. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides layer-3 routing capability.


Product Features:
  • (16) Gigabit RJ45 Ports
  • (2) SFP Ports
  • (1) Serial Console Port
  • Non-Blocking Throughput: 18Gbps
  • Switching Capacity: 36Gbps
  • Forwarding Rate: 26.78Mpps
  • Maximum Power Consumption: 150W
  • Supports POE+ IEEE 802.3at/af and 24V Passive PoE
  • Rackmountable with Rack-Mount Brackets (Included)
Product Specifications:
  • Dimensions: 443 x 43 x 221mm (17.44 x 1.69 x 8.70")
    • Weight: Without Mount Brackets: 2.80kg (6.17lbs), With Mount Brackets: 2.89kg (6.37lbs)
  • Total Non-Blocking Throughput: 18Gbps
  • Switching Capacity: 36Gbps
  • Forwarding Rate: 26.78Mpps
  • Max. Power Consumption: Includes PoE Output: 150W Excludes PoE Output: 28W
  • Power Method: 100-240VAC / 50-60Hz, Universal Input
  • Power Supply: AC/DC, Internal, 150W DC
  • LEDs per Port: RJ45 Data Ports: PoE, Speed/Link/Activity SFP Data Ports: Speed/Link/Activity
  • Networking Interfaces: (16) 10/100/1000Mbps RJ45 Ethernet Ports + (2) 1Gbps SFP Ethernet Ports
  • Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
  • Certifications: CE, FCC, IC• Rackmount: Yes, 1U High
  • ESD/EMP Protection: Air: plusmn;24kV / Contact: Plusmn;24kV
  • Operating Temperature: -5 to 40°C (23 to 104°F)
  • Operating Humidity: 5 to 95% non-condensing
  • Shock and Vibration: ETSI300-019-1.4 Standard
  • PoE Interfaces: PoE+ IEEE 802.3af/at (Pins 1,2+;3,6-) / 24VDC Passive PoE (Pins 4,5+;7,8-)• Max. PoE+ Wattage
  • per Port by PSE: 34.2W
  • Voltage Range 802.3at Mode: 50-57V
  • Max. Passive PoE Wattage per Port: 17W
  • 24V Passive PoE Voltage Range: 20-27V
