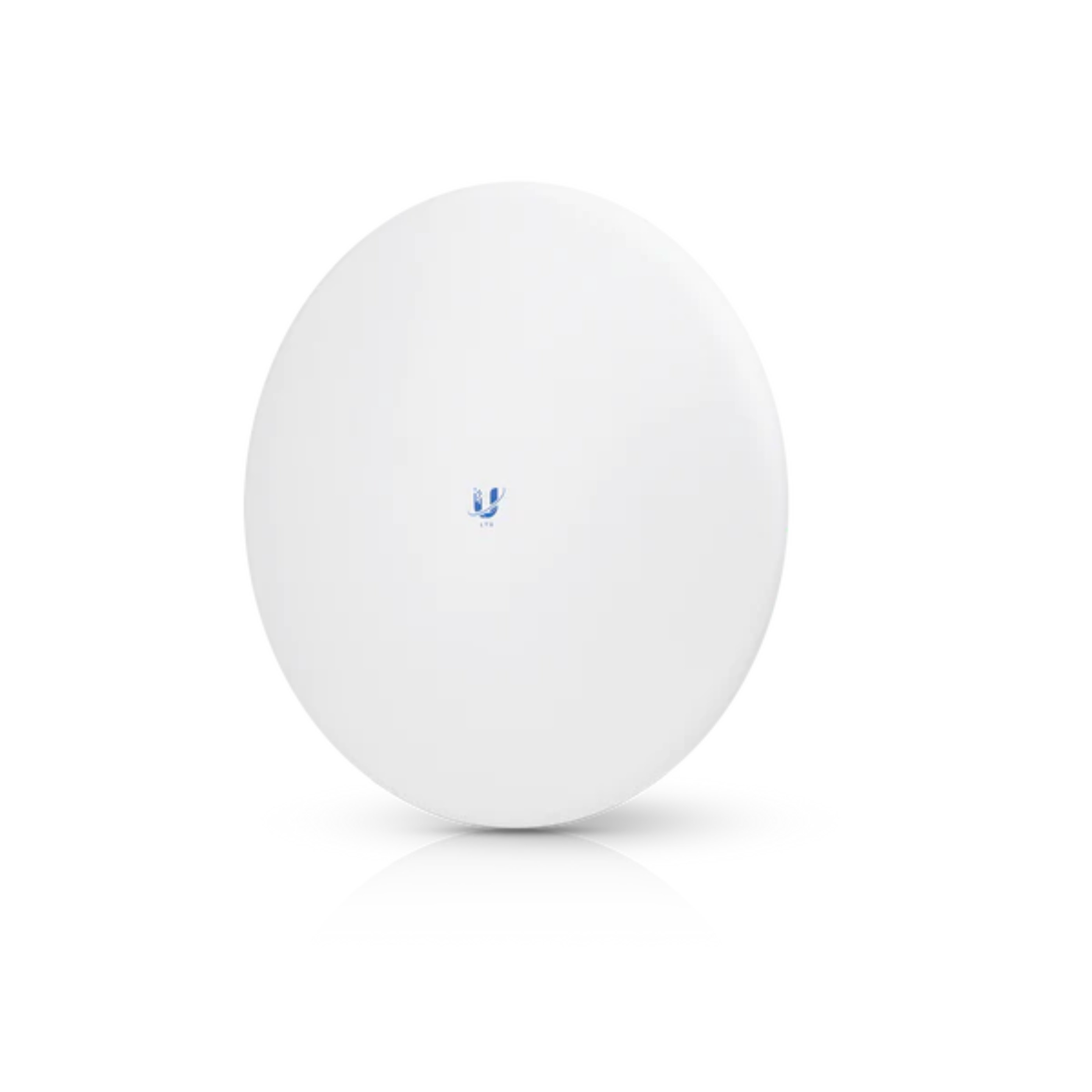

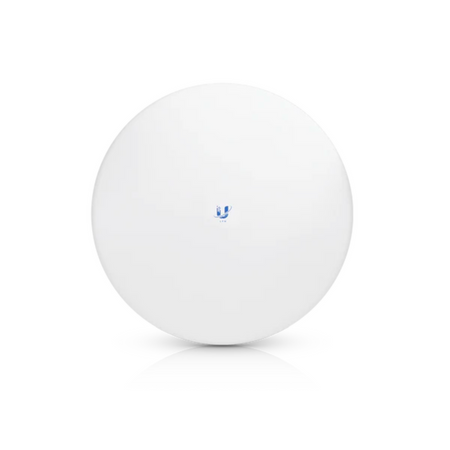

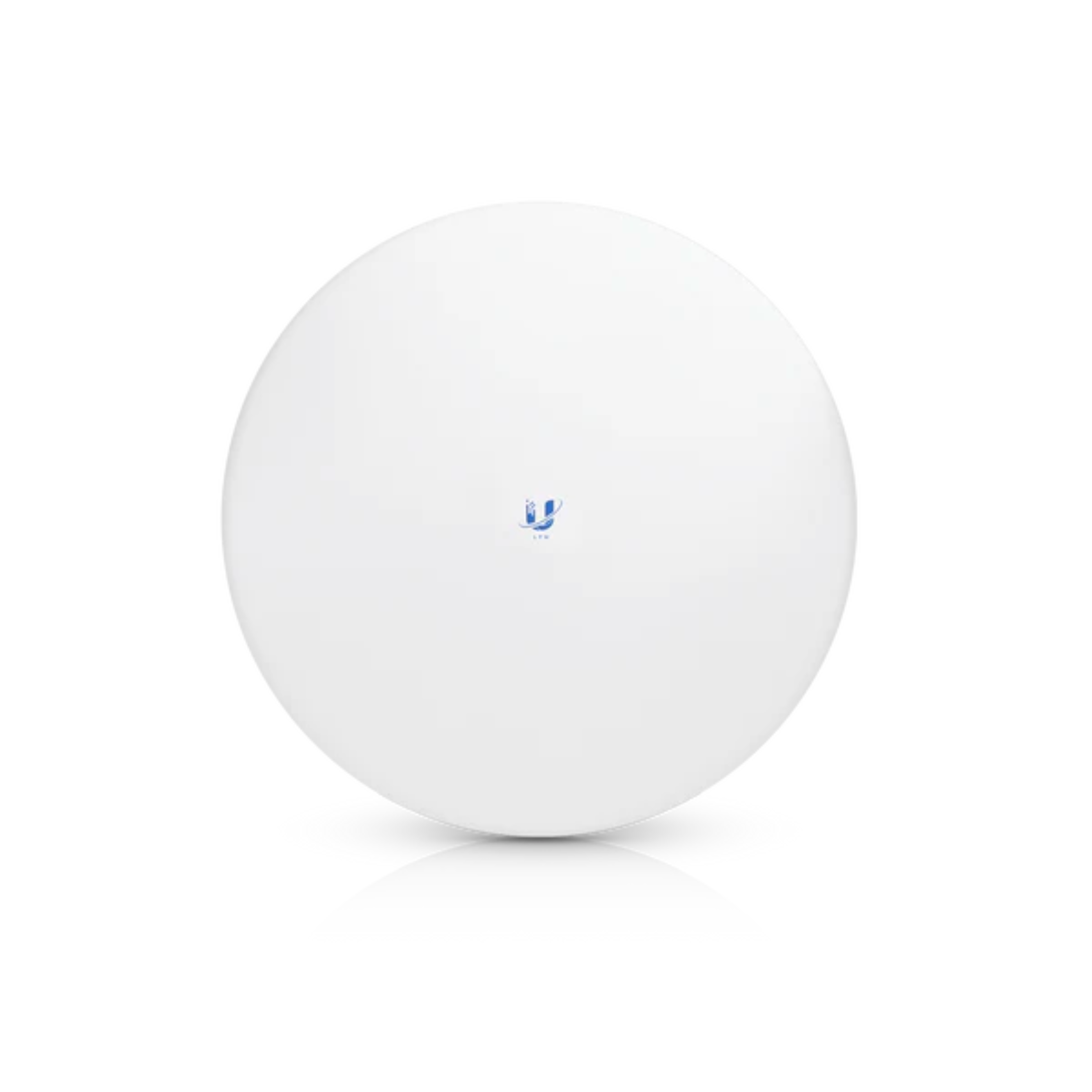

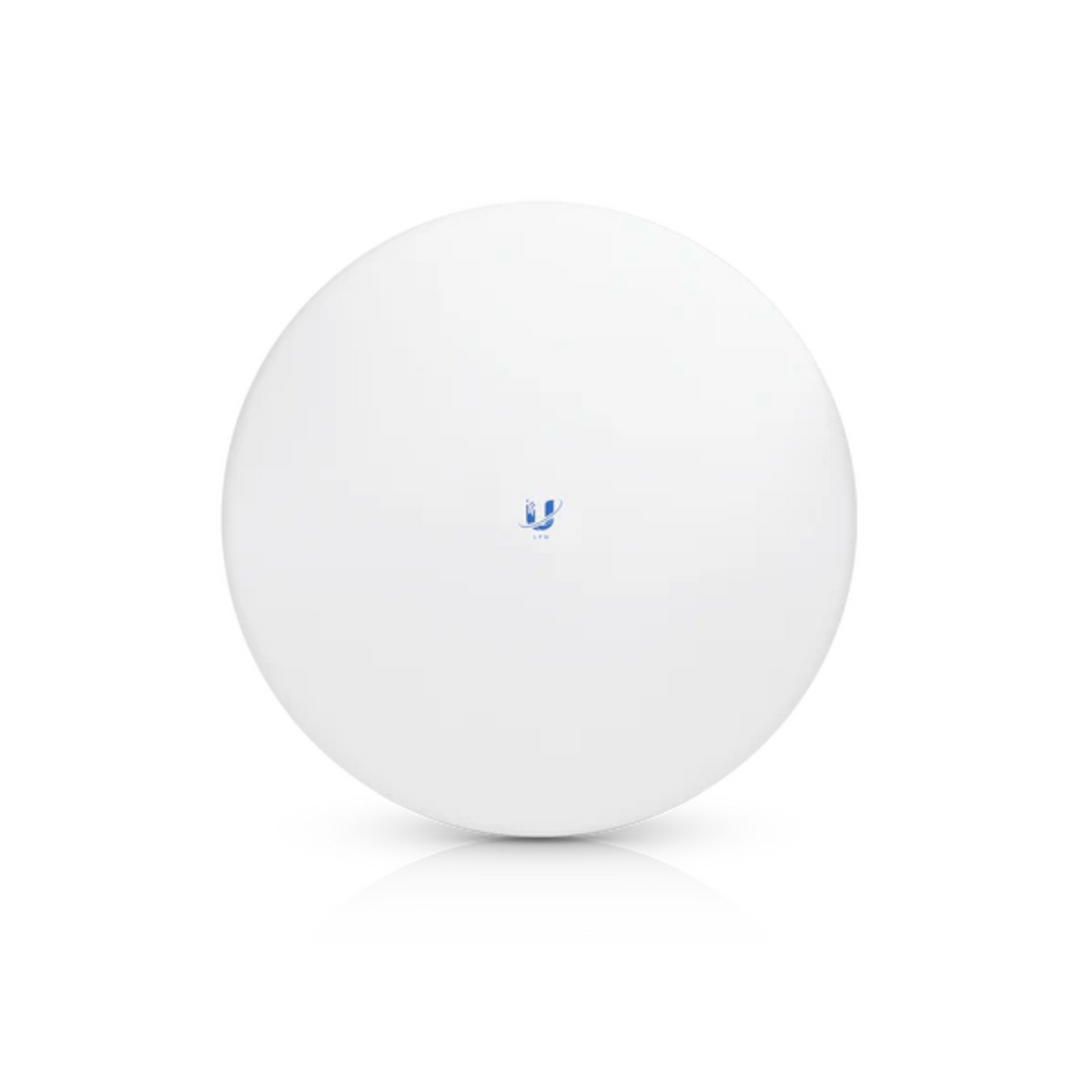

Ubiquiti LTU Pro 5GHz PtMP CPE Radio [LTU-PRO]

5 GHz PtMP LTU® Client with advanced RF performance, functions in a PtMP environment with the LTU Rocket as the BaseStation.

Incorporating innovative industrial design with advanced technology, the LTU Pro is a Point-to-MultiPoint (PtMP) 5 GHz high-performance subscriber station. Based on Ubiquiti’s proprietary LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 WiFi technology. It features an integrated high-gain dish for long range and high performance. Channel width flexibility allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.

Features:

• 10/20/30/40/50/60/80/100 MHz* channel bandwidth
• Central configuration management from AP side
• Frequency split
• Automatic power adjustments
• Router mode support 70°C
• IPsec hardware acceleration: Yes

Product Specifications:

• Networking Interface: (1) 10/100/1000 Ethernet Port
• Enclosure: Outdoor UV Stabilized Plastic
• Max. Power Consumption: 9W
• Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
• Power Method: 24V Passive PoE (Pairs 4, 5+; 7, 8-)
• Voltage Range: 22 - 26V
• Max. Conducted TX Power: 22 dBm (per Chain)
• Gain: 24 dBi
• Beamwidth: 14°
• Sidelobe Level: -10 dB
• Front-to-Back Ratio: 27 dB

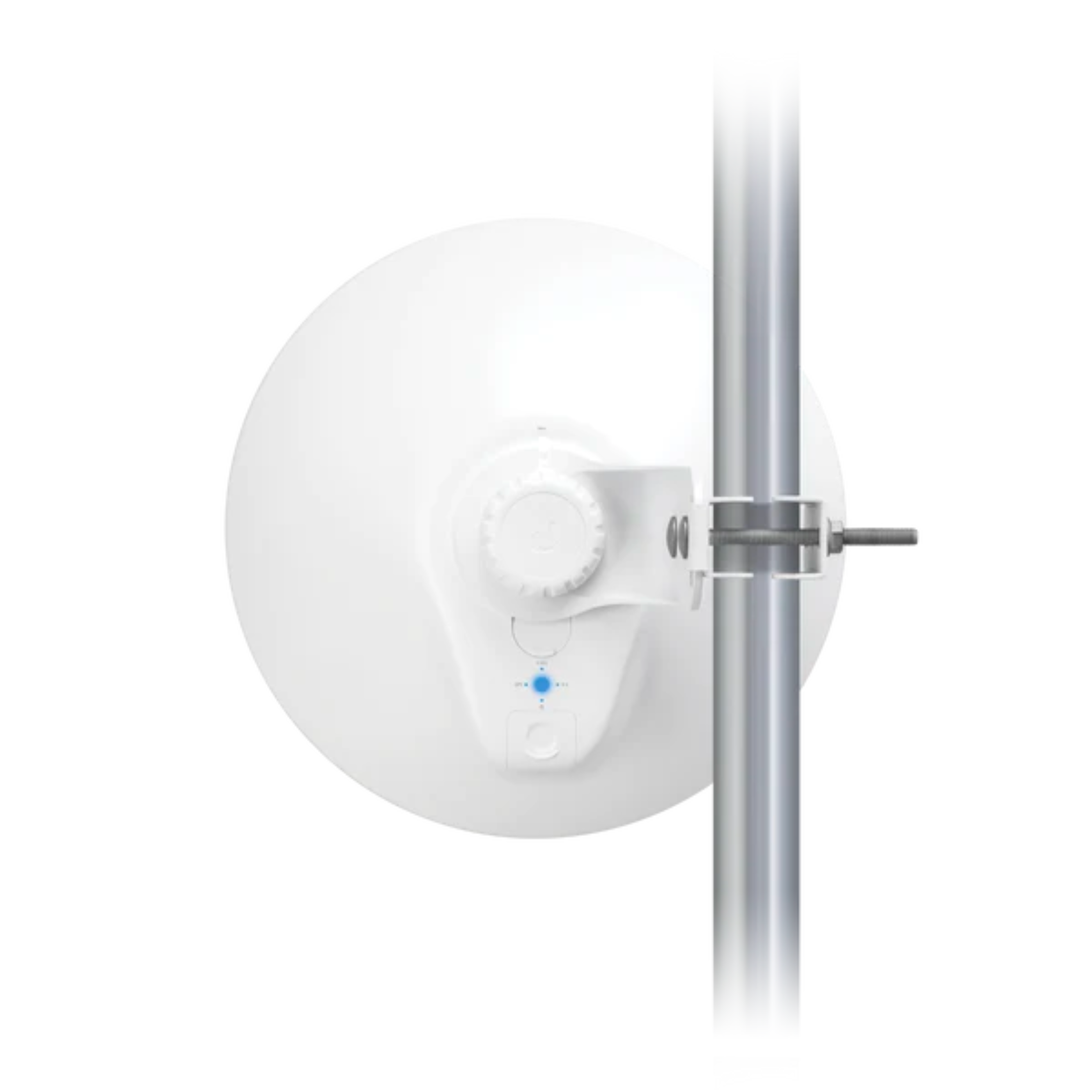

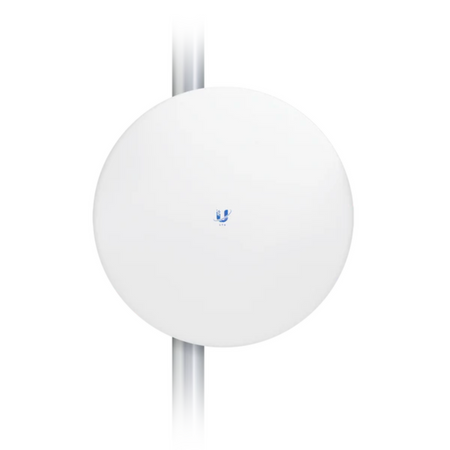

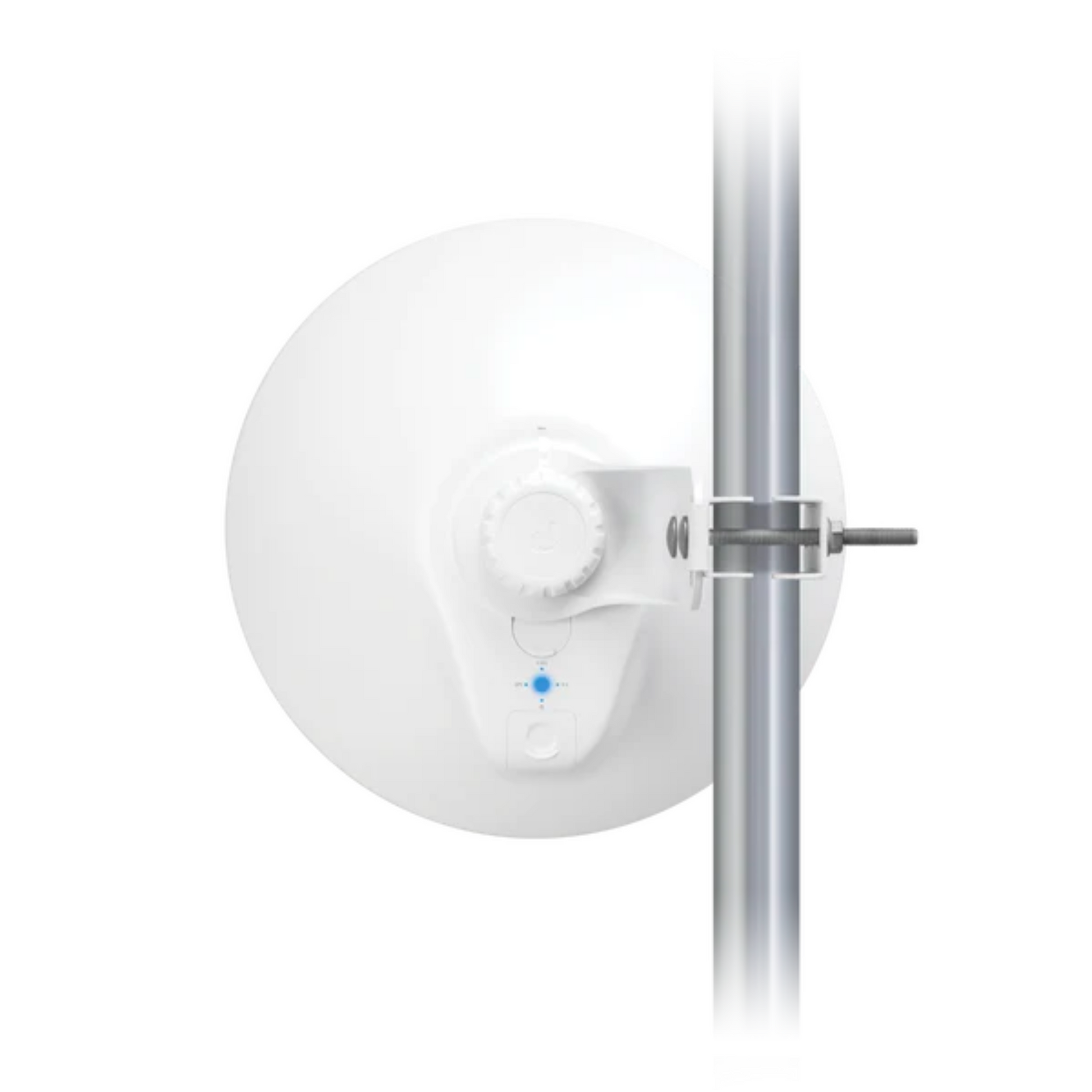

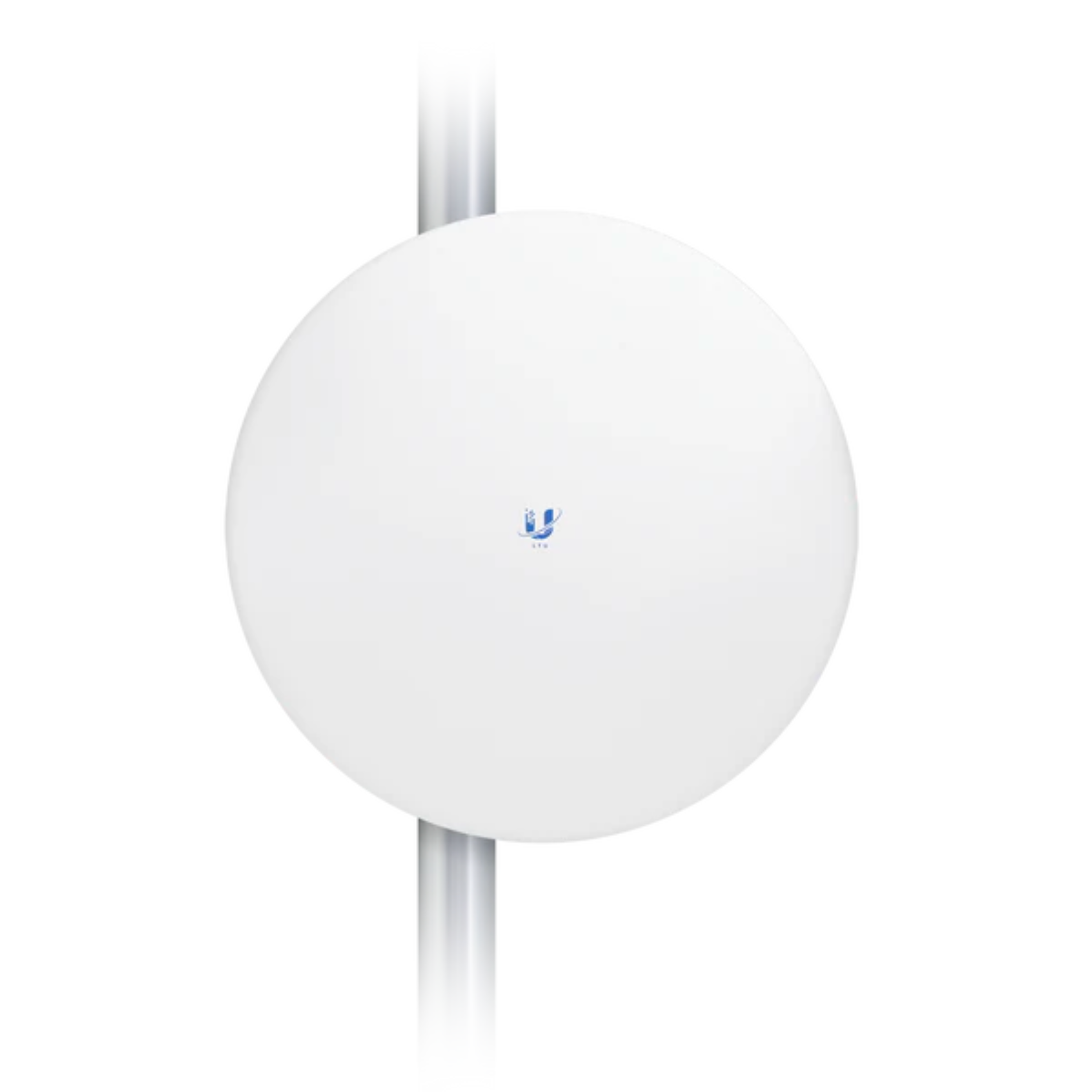

• Mounting: Pole-Mount (Kit Included)
• Wind Loading: 150 N @ 200 km/h (33.72 lbf @ 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• ESD/EMP Protection: ± 24kV Contact/Air
• Operating Temperature: -5 to 40° C (23 to 104° F)
• Operating Humidity: 10 - 90% Noncondensing

• (1) LTU-PRO-US
• (1) Mounting Bracket
• (1) Set of Bracket Clamps
• (2) Carriage Bolts
• (2) Flange Nuts
• (1) Gigabit PoE (24V, 0.5A) with mounting bracket
• (1) Power cord
