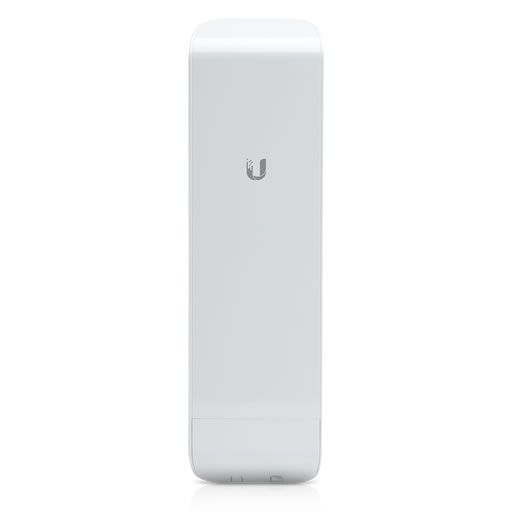

Ubiquiti Nanostation M5 airMAX US [NSM5]

Featuring a compact indoor/outdoor design and an interface, it is so intuitive even the most technically challenged can instantly become experts. But don't be fooled--it is as powerful as it is simple. NanoStation packs some phenomenal performance with a revolutionary design combining a high gain antenna system, advanced radio architecture and highly researched and developed firmware technology allowing throughput, stability and capacity performance rivaling even the highest-end WiMAX networks.

The NanoStation M5 makes a perfect CPE device when pared with the Ubiquiti Rocket M5 and airMAX Sector or a Dish Antenna. We also recommend to upgrade your airOS software to the latest version by visiting UBNT Software Downloads. This device can also be used for short LOS PTP links by placing one unit in Access Point WDS Mode and the other unit into Station WDS.

• Great Performance: 150+ Mbps real outdoor throughput and up to 15km+ range. Typical range is 2-4 miles from a LOS tower running airMAX sector antenna's and Rocket M5's.
• Next-Gen Antenna Design: 14.6-16.1dBi dual-polarity gain at 5GHz with optimized cross-polarity isolation in a compact form-factor.
• Dual Ethernet Connectivity: A secondary ethernet port with software enabled POE output for seamless IP Video integration.
• Intelligent POE: Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location.
• 802.3af 48V Compliant - Easily becomes 802.3af 48V compliant through use of Ubiquiti Instant 802.3af adapter. The adapter sold separately (SKU#I8023AF-OD or I8023AF-ID)
• Easy Installation - Easily mountable to a pole/mast with mounting straps provided. In addition, the NanoStation M5 can be mounted and adjusted in any direction in a 90-degree angle through the use the NanoBracket. The NanoBracket is sold separately (SKU#MT-NANO U)

• Operating Frequency: 5250MHz - 5850MHz
• Processor Specs: Atheros MIPS 74Kc, 560MHz
• Wireless: 5Ghz Atheros, 27dBm Adjustable down to 8dBm, AES Encryption
• Memory Information: 64MB DDR2, 8MB Flash
• Networking Interface: 2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface, PoE Passthrough
• Mount and mounting strap (NanoBracket is optional, sold separately)
• Operating Temperature: -22°F to 167°F (-30°C to +75°C)
• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 return)
• Power Consumption: 8 Watts
• Power Supply (included): Power Injector 110-240VAC 24VDC .5A North American-style plug
• Size: 29.4cm x 8cm x 3cm, Weight: .4kg
• Approvals: FCC Part 15.247, IC RS210, CE
• RoHS Compliance: Yes
