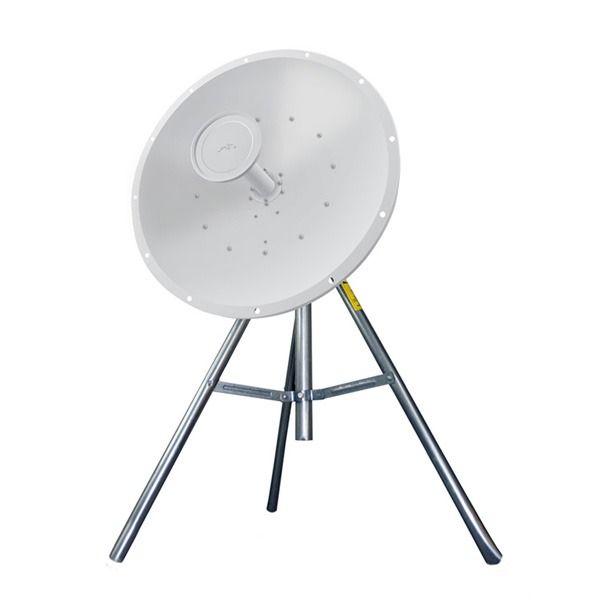

Ubiquiti RocketDish 2.4GHz 24dBi Dual-Pol Parabolic Antenna [RD-2G24]

Out of stock
SKU: RD-2G24
$241.00 CAD

Product details

  • Type Antennas
  • Vendor Ubiquiti
  • SKU RD-2G24

Share on Social Media:

Documentation

Description

Ubiquiti Networks RD-2G24 is a 24dBi parabolic dish antenna operating on 2.4GHz, designed to work with Rocket M2 radios to create powerful 2x2 MIMO PtP bridges. Full mating bracket and weatherproof RF jumpers included.


Product Specifications:
  • Frequency Range: 2.3-2.7 GHz
  • Gain: 24 dBi
  • Hpol Beamwidth: 3.8 deg. (Rx Dish) / 6.6 deg. (Tx Dish)
  • Vpol Beamwidth: 3.8 deg. (Rx Dish) / 6.6 deg. (Tx Dish)
  • F/B Ratio: -50 dB (Rx Dish) / -65 dB (Tx Dish)
  • Max VSWR: 1.6:1
  • Dimensions: 648 mm diameter
  • Weight: 9.8 kg
  • Wind Survivability: 120 mph
  • Wind Loading: 113 lb @ 100 mph
  • Polarization: Dual Linear
  • Cross-pol: Isolation 35 dB min
  • ETSI Specification: EN 302 326 DN2
  • Mounting: Universal pole mount, Rocket M bracket, and weatherproof RF jumpers included


Product Includes:


(1) Antenna Dish

(1) RP-SMA to RP-SMA weatherproof jumper cable

(1)  Set of Tower mounting hardware
