Ubiquiti U6 In-Wall Access Point [U6-IW]

Out of stock
SKU: U6-IW
Regular price $259.00 CAD

Product details

  • Type WiFi
  • Vendor Ubiquiti
  • SKU U6-IW

Documentation

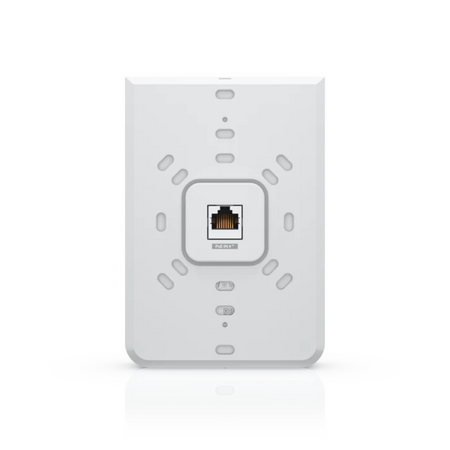

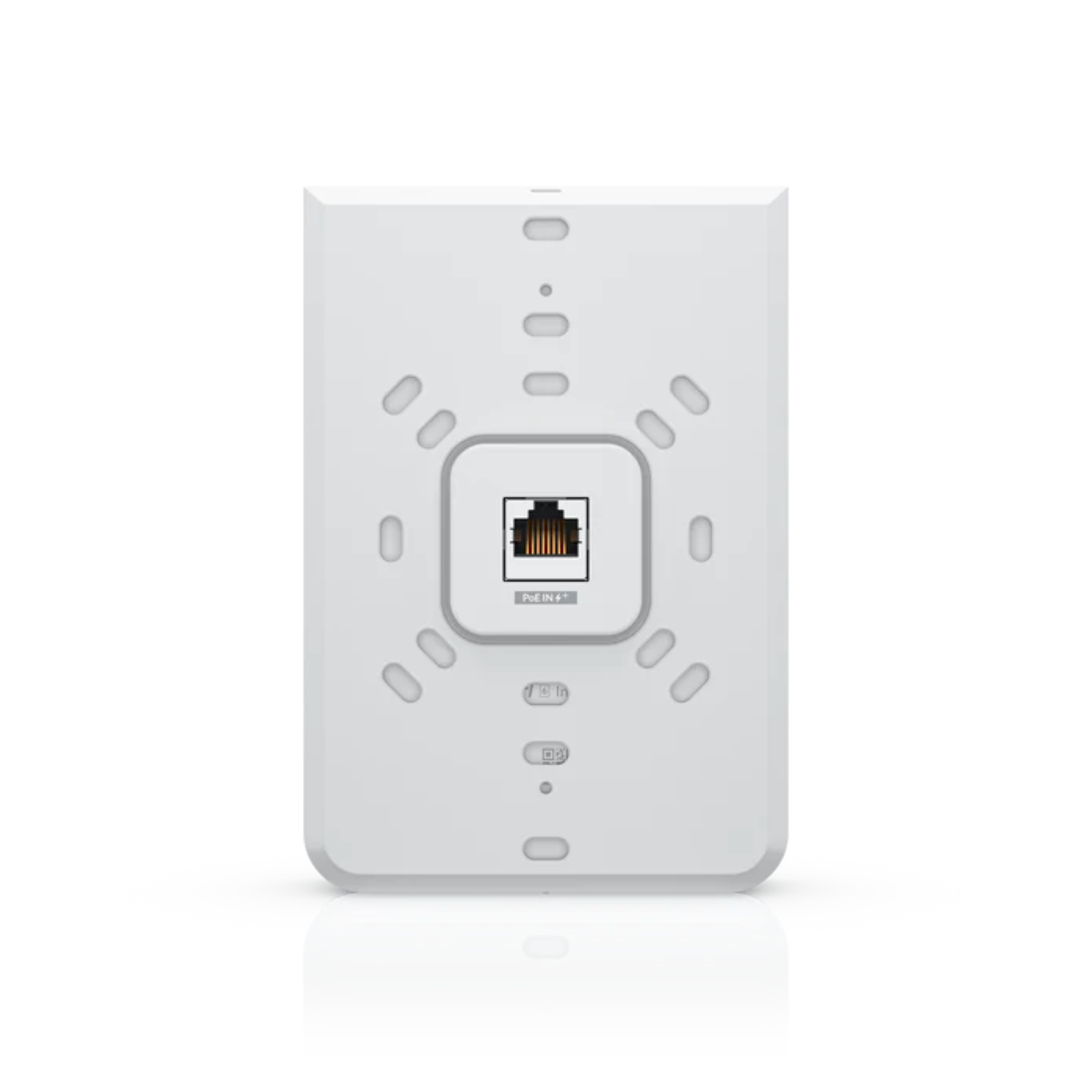

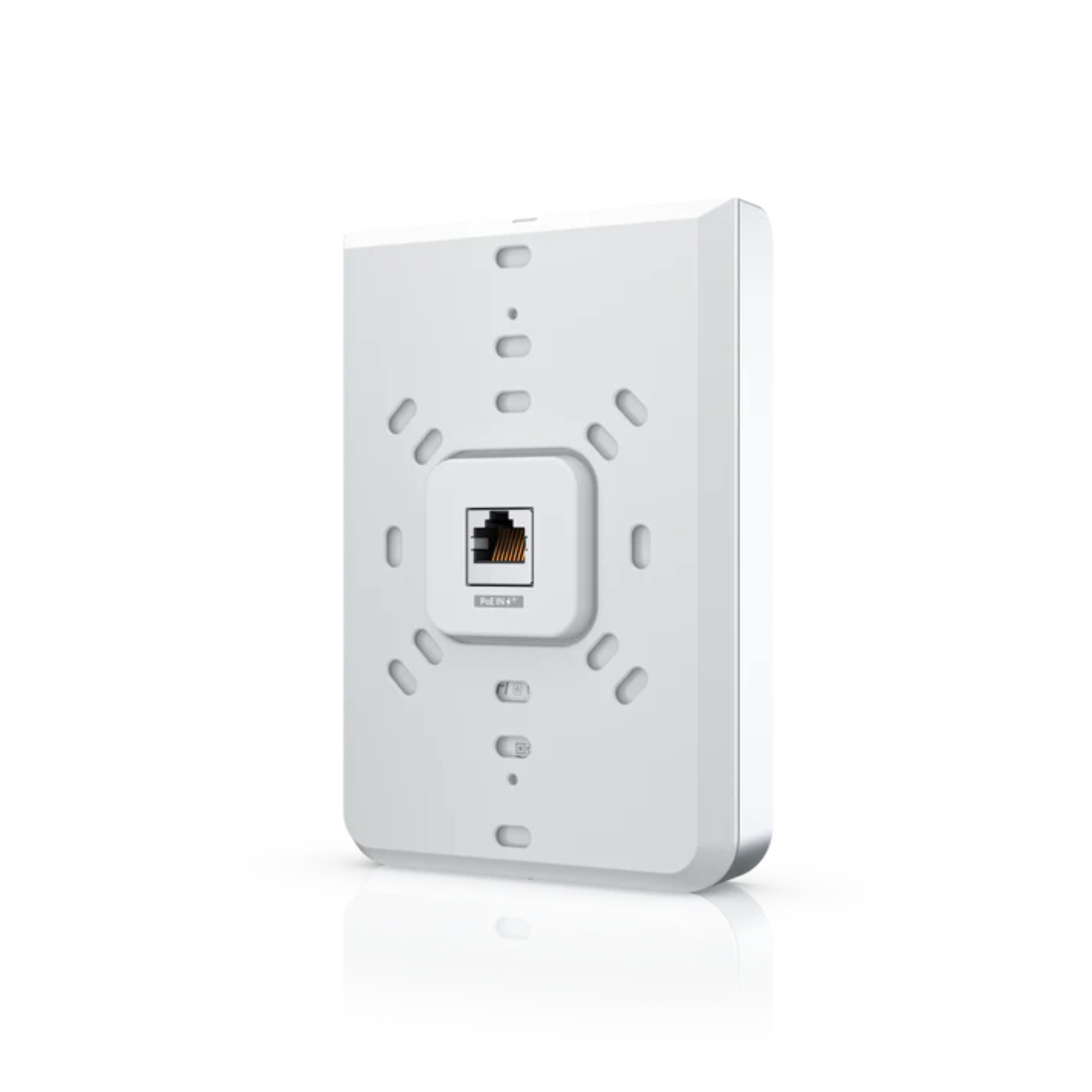

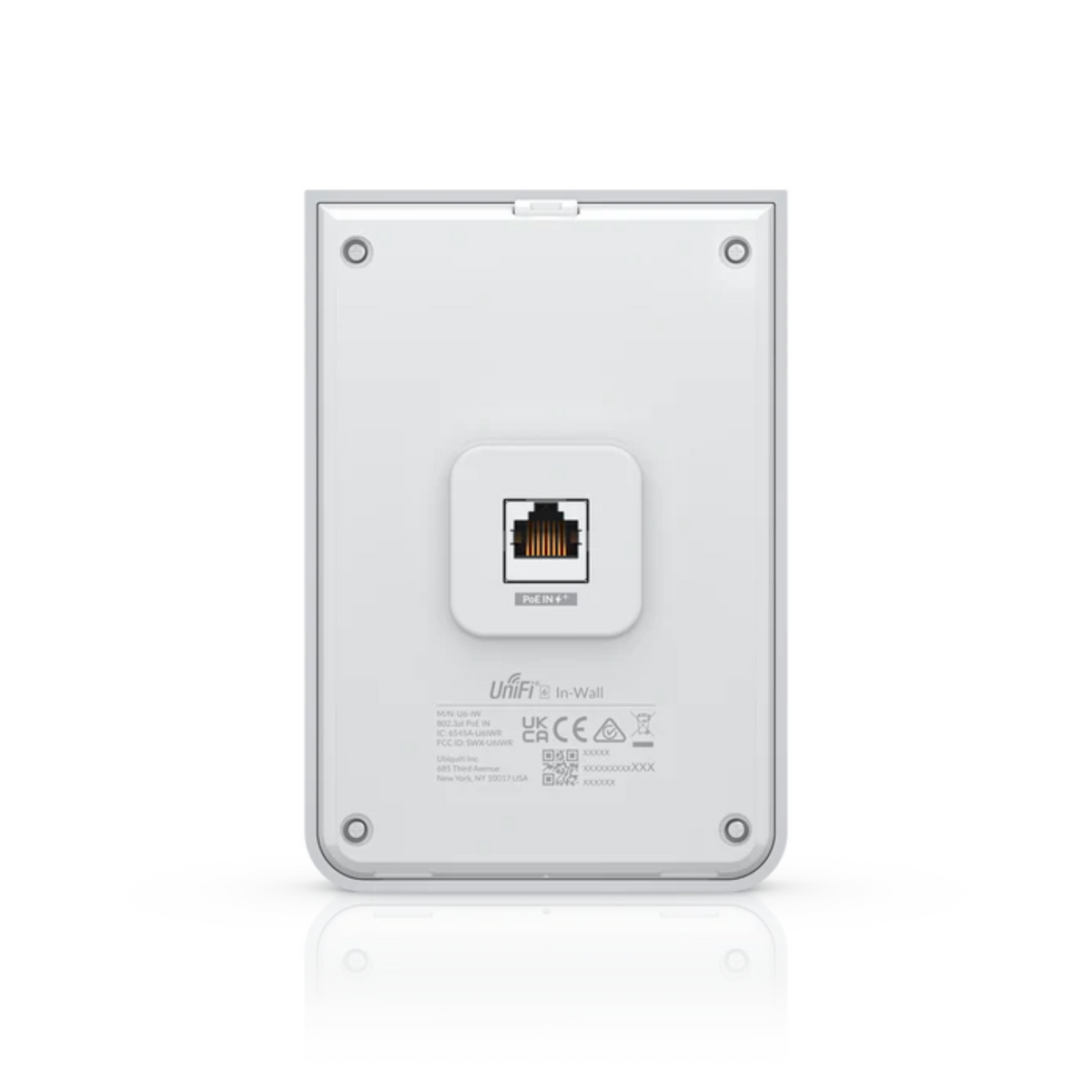

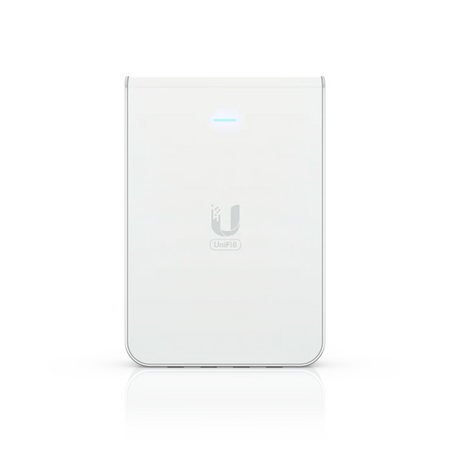

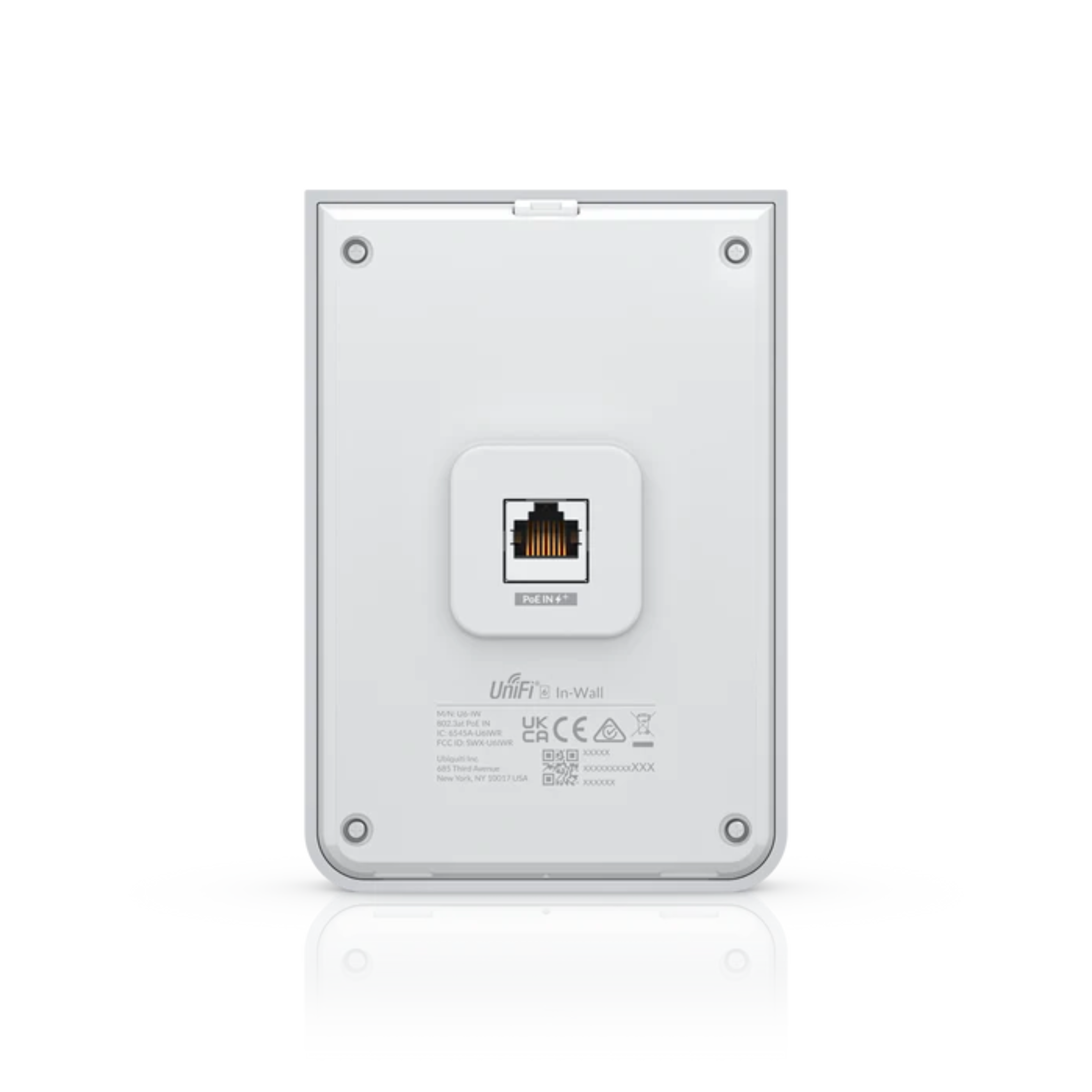

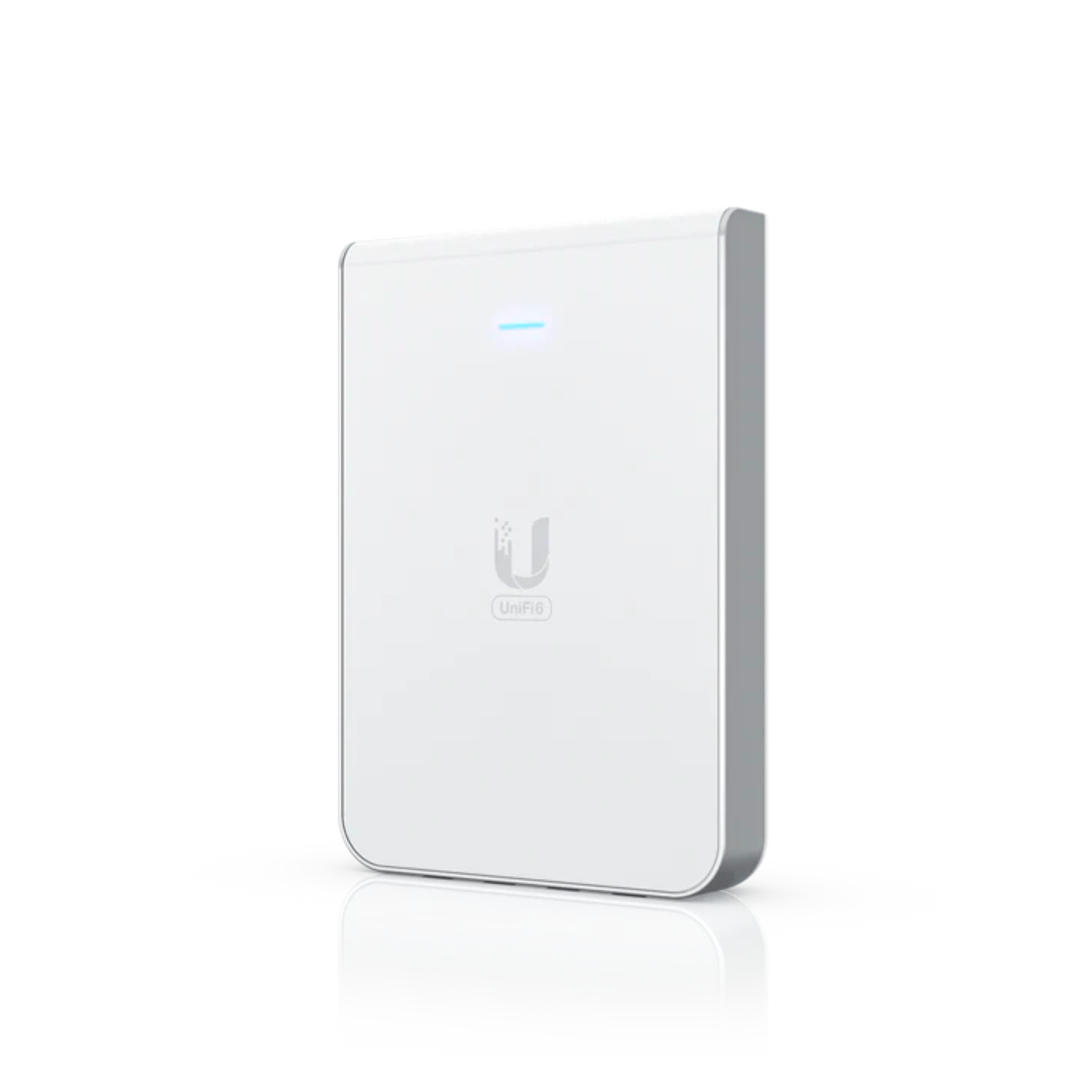

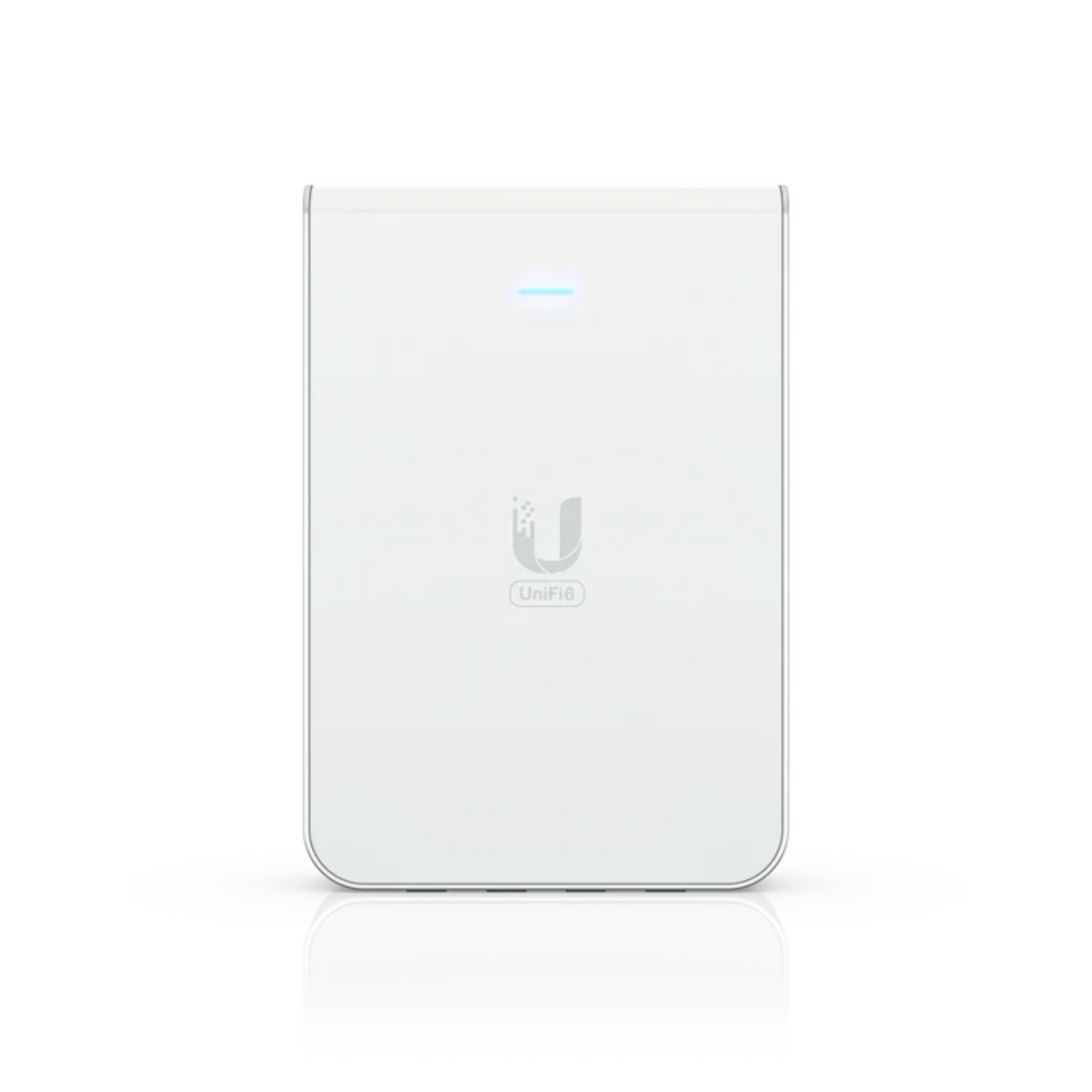

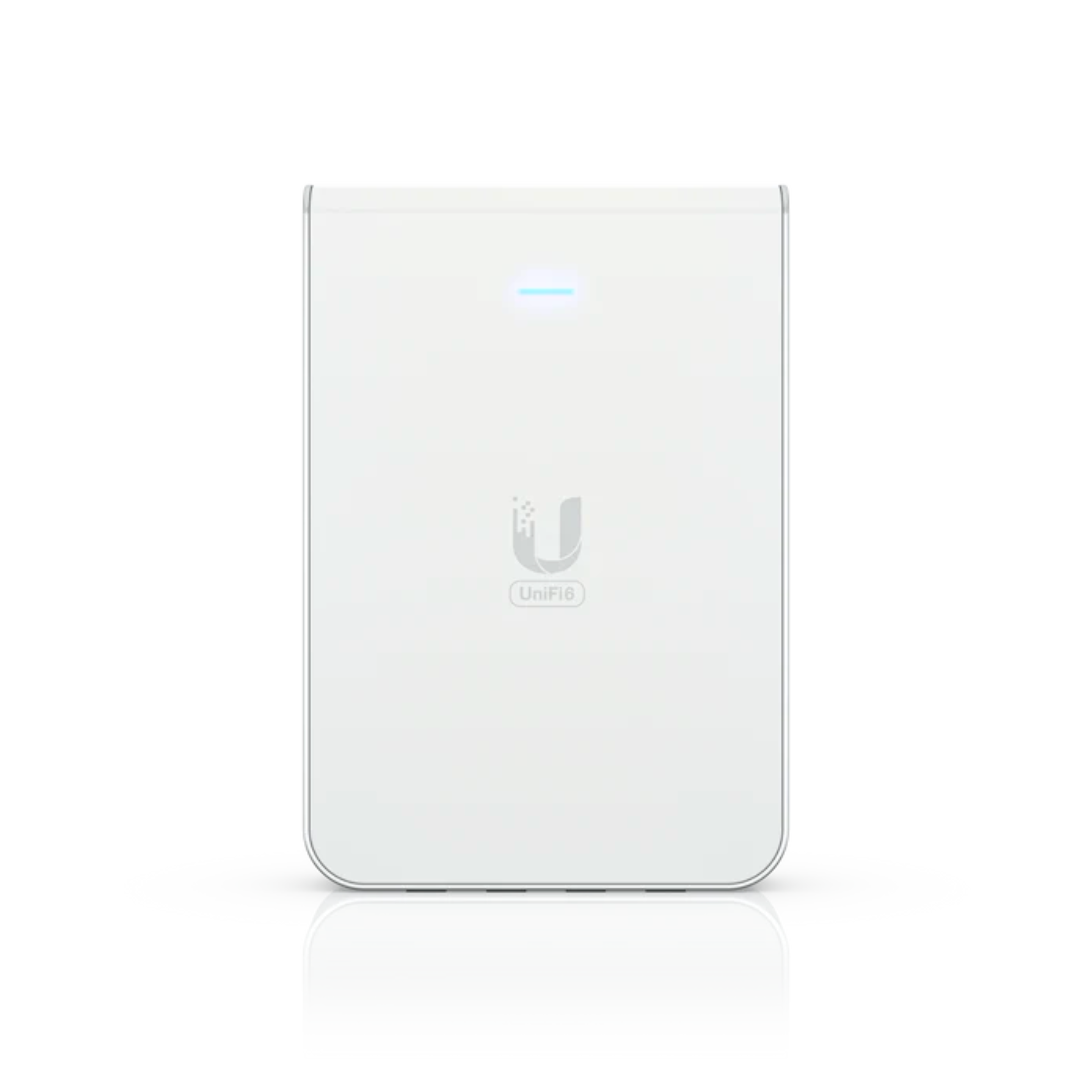

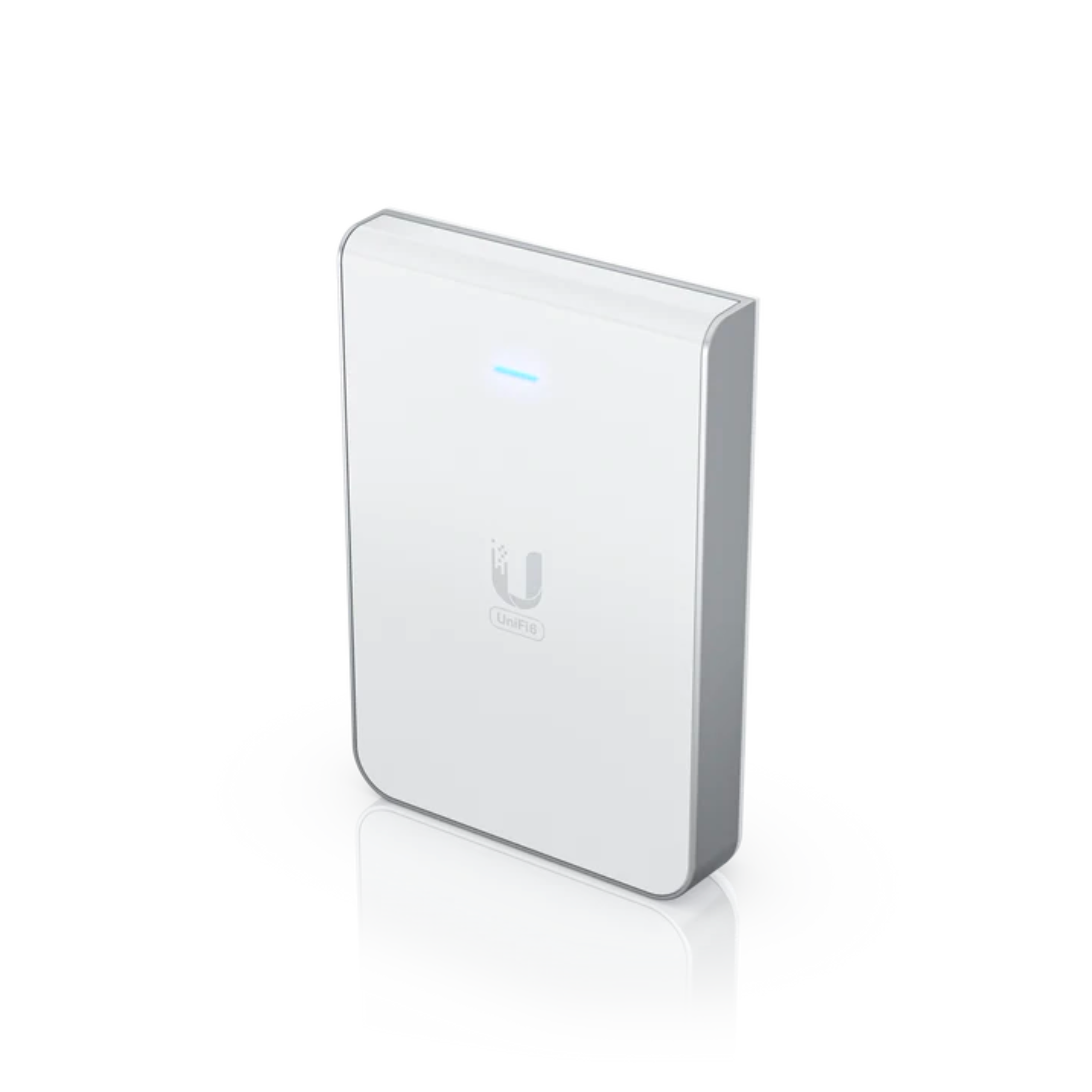

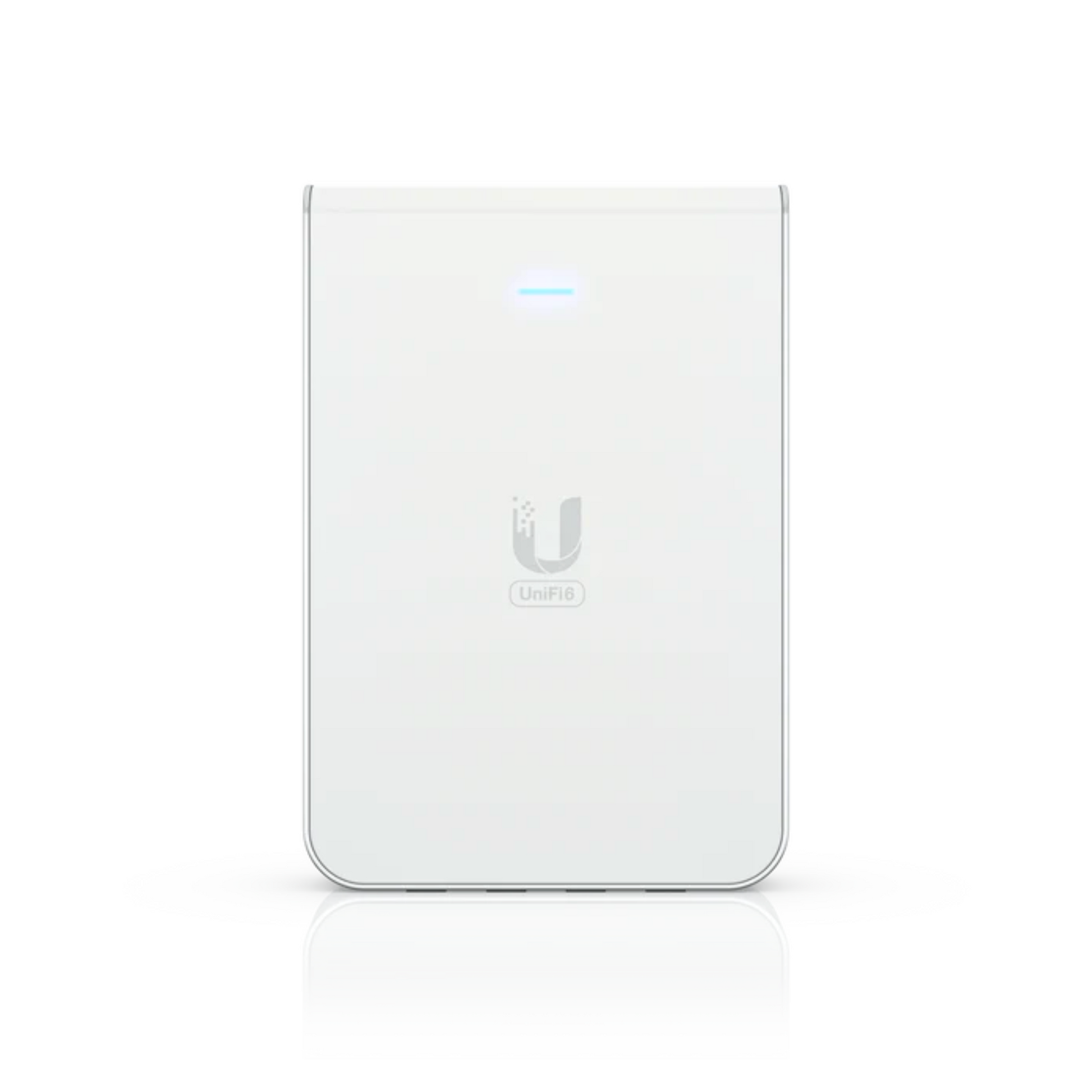

The Ubiquiti U6 In-Wall Access Point [U6-IW] is a wall-mounted WiFi 6 access point with a built-in PoE switch.

Features:
  • WiFi 6 support (2.4/5 GHz bands)
  • 5.3 Gbps aggregate throughput rate

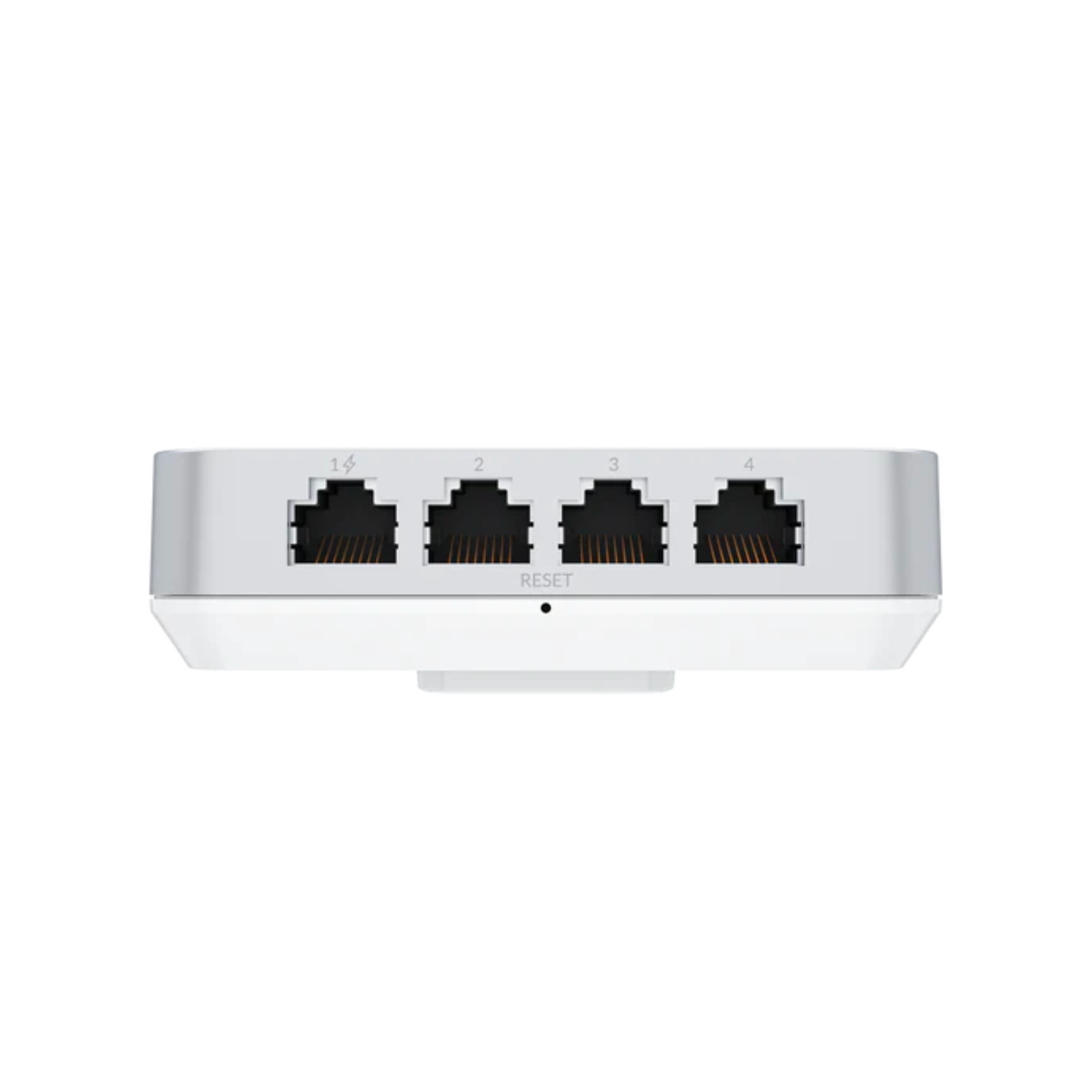

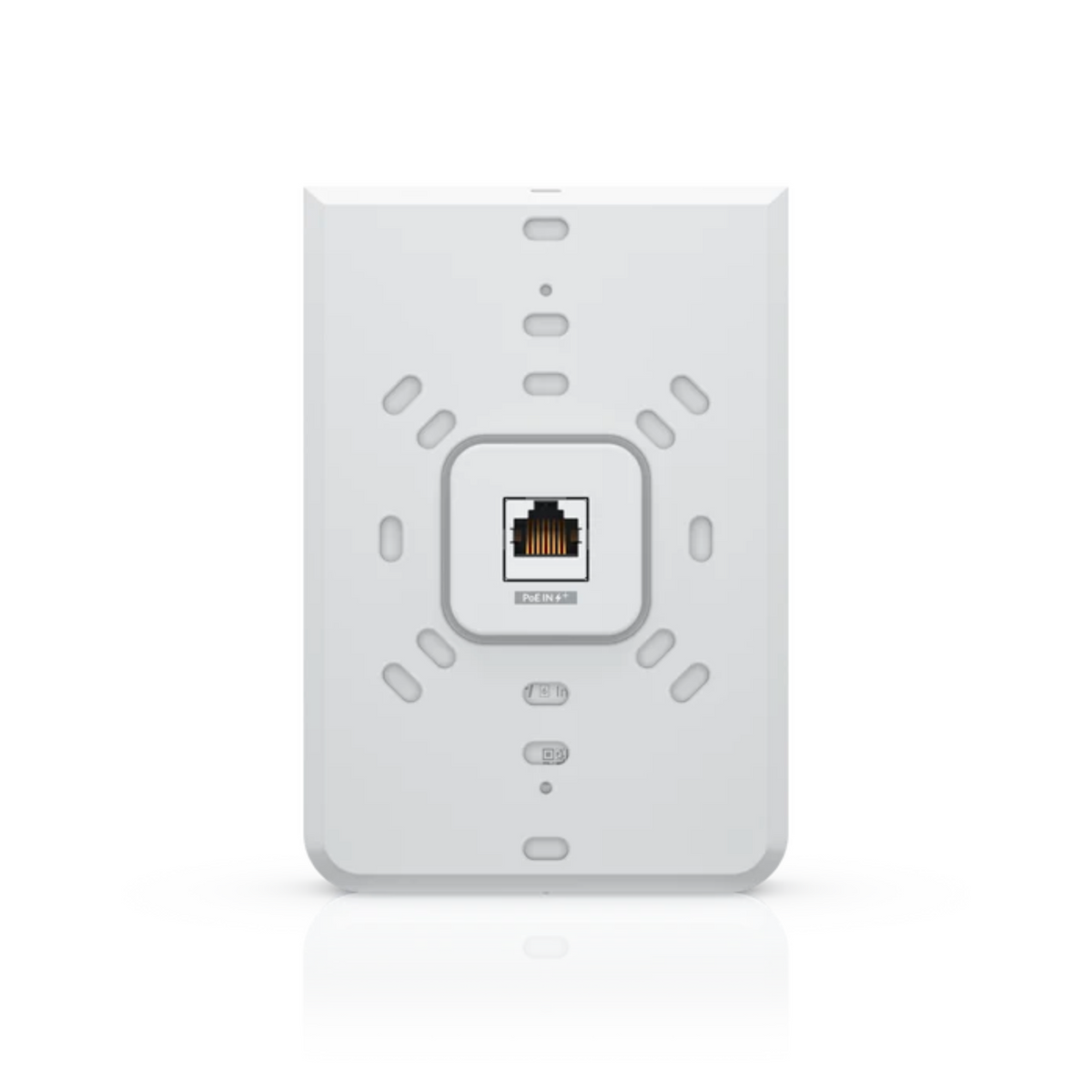

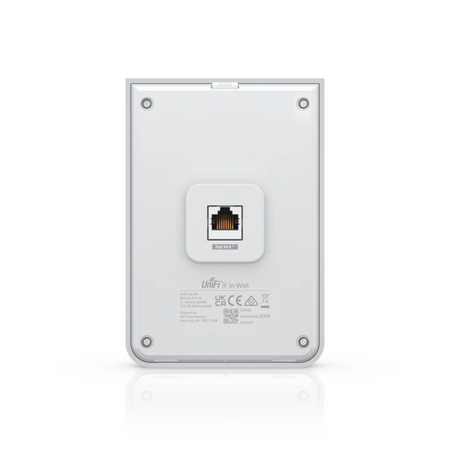

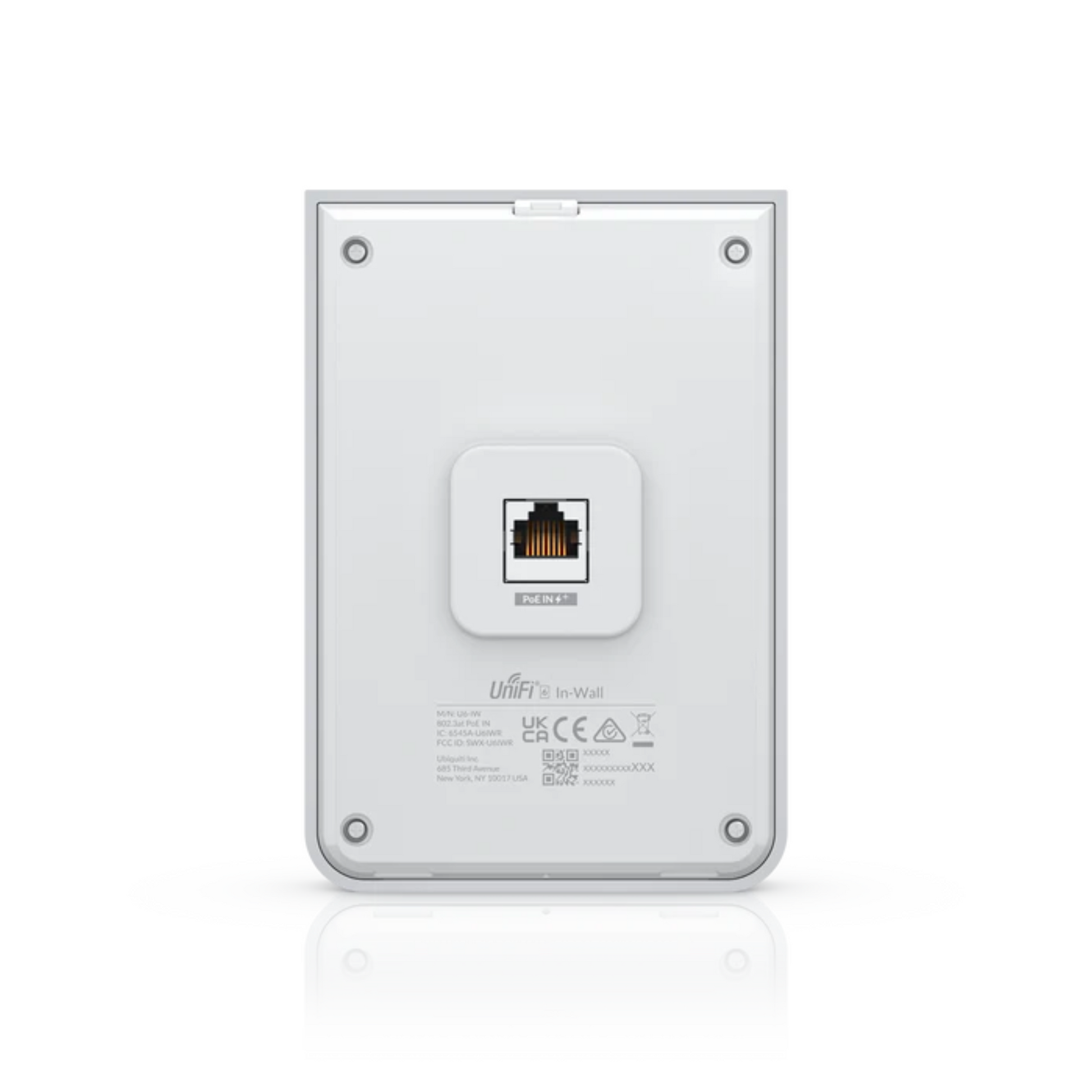

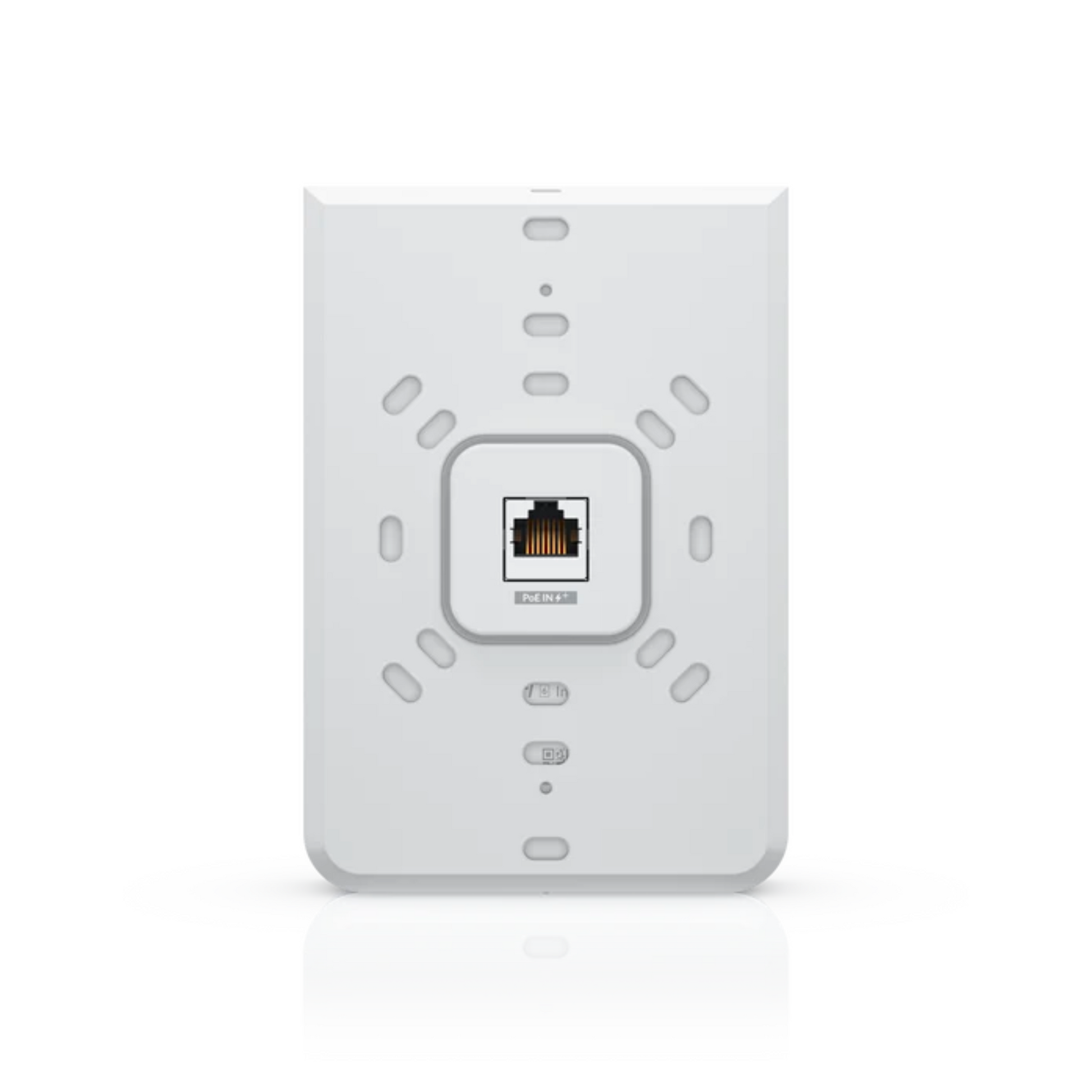

  • (1) GbE RJ45 port (PoE In)

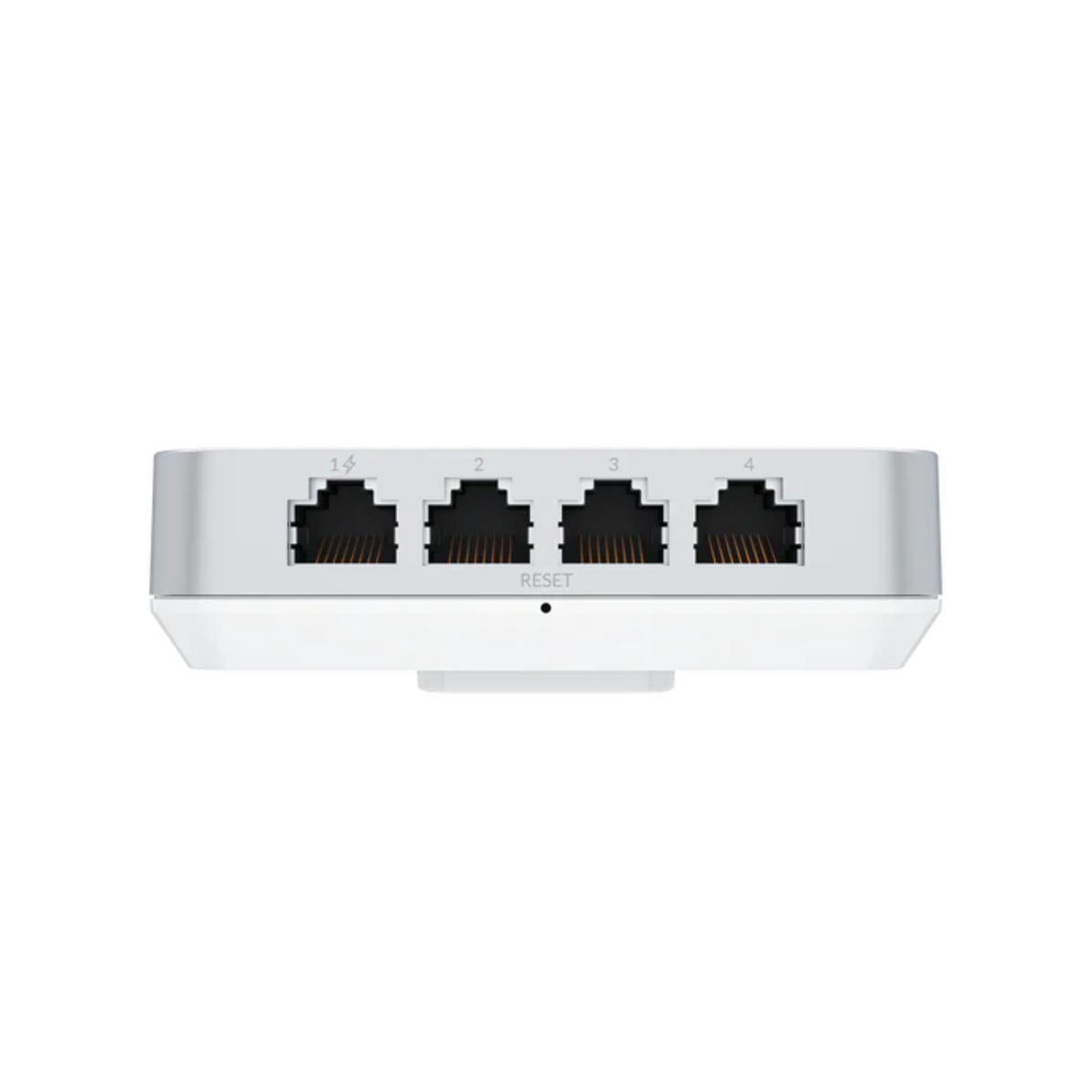

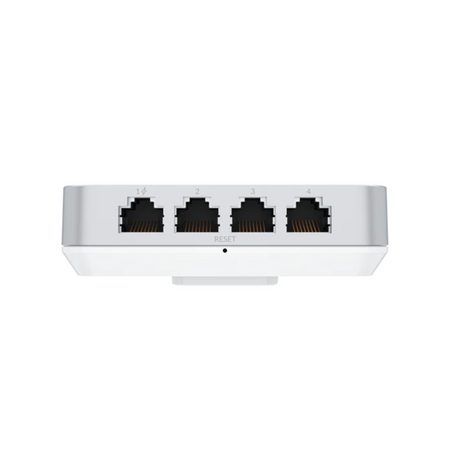

  • (4) GbE RJ45 ports, including one that supports PoE output*

Product Summary:

Mechanical:

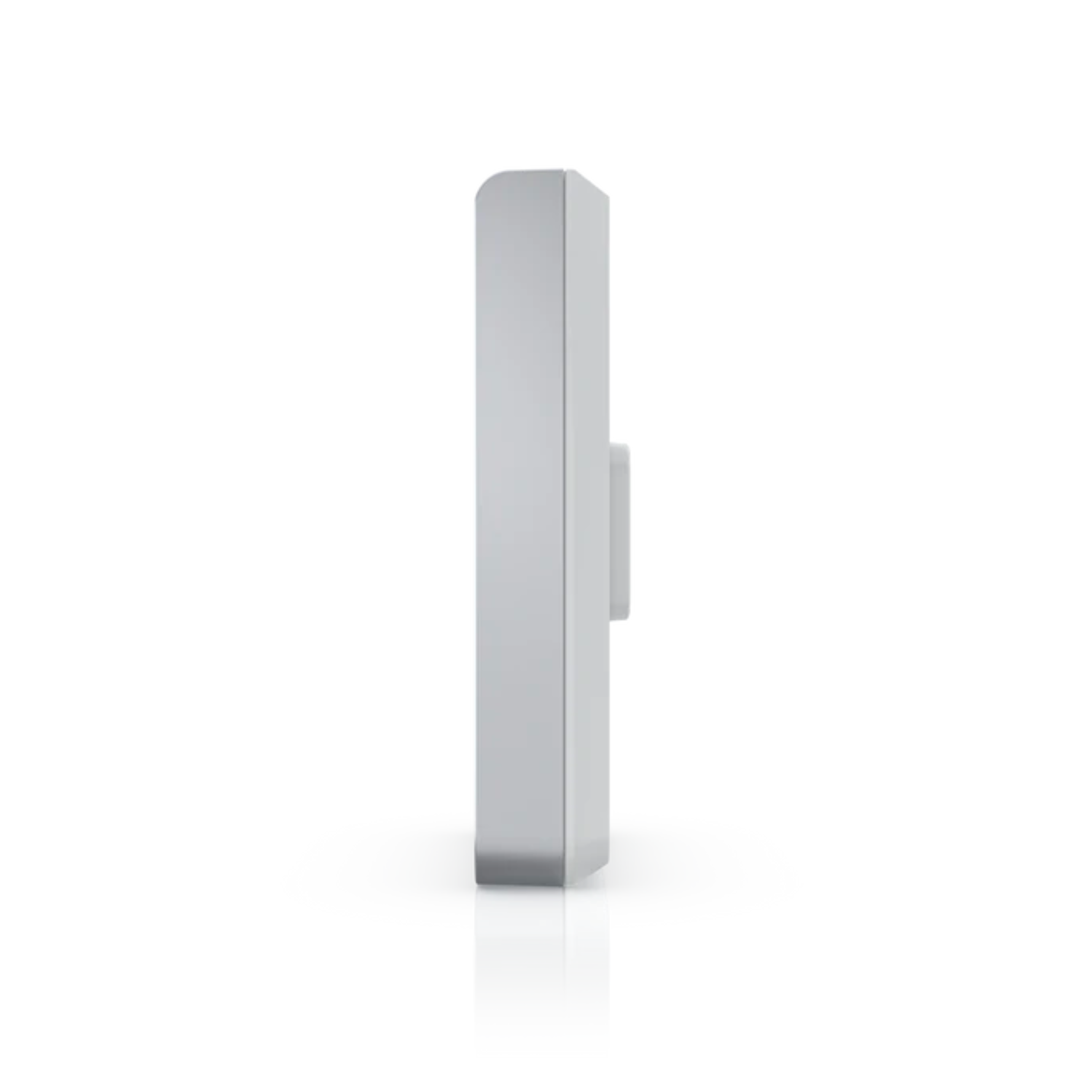

  • Dimensions: 139.66 x 96 x 31.19 mm (5.5 x 3.78 x 1.28")
  • Weight: 460 g (1.01 lb)
  • Enclosure materials: Plastic, aluminum
  • Mount material: Aluminum

Hardware:

  • Management interfaces:
    • Ethernet
    • Bluetooth
  • Networking interfaces:
    • (1) Data-in: 1GbE RJ45 port
    • (4) Data-out: 1GbE RJ45 ports
  • PoE interfaces:
    • (1) PoE in (PoE output not used)
    • (1) PoE out (requires a PoE+ switch)
  • Button: Factory reset
  • LED: White/blue
  • Power method: PoE
  • Power supply:
    • UniFi PoE switch
    • 48V, 0.5A PoE adapter (optional)
  • Max. power consumption: Excluding PoE output: 13.5W
  • Max PoE wattage per port by PSE: 15.4W* *Requires a PoE+ switch
  • Voltage range PoE mode: 4—57V DC
  • Max. TX power:
    • 2.4 GHz: 22 dBm
    • 5 GHz: 26 dBm
  • MIMO:
    • 2.4 GHz: 2 x 2 (UL MU-MIMO)
    • 5 GHz: 4 x 4 (DL/UL MU-MIMO)
  • Throughput rate:
    • 2.4 GHz: 573.5 Mbps
    • 5 GHz: 4.8 Gbps
  • Antenna gain:
    • 2.4 GHz: 5 dBi
    • 5 GHz: 5.9 dBi
  • Operating temperature: -30 to 60° C (-22 to 140° F)
  • Operating humidity: 5 to 95% noncondensing
  • Certifications: CE, FCC, IC

Software

  • WiFi standards:
    • 802.11a/b/g
    • WiFi 4/WiFi 5/WiFi 6
  • Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
  • BSSID: 8 per radio
  • VLAN: 802.1Q
  • Advanced QoS: Per-user rate limiting
  • Guest traffic isolation: Supported
  • Concurrent clients: 300+
  • Zero-wait DFS: Yes

Supported Data Rates

  • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11b: 1, 2, 5.5, 11 Mbps
  • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11n (WiFi 4): 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
  • 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
  • 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
