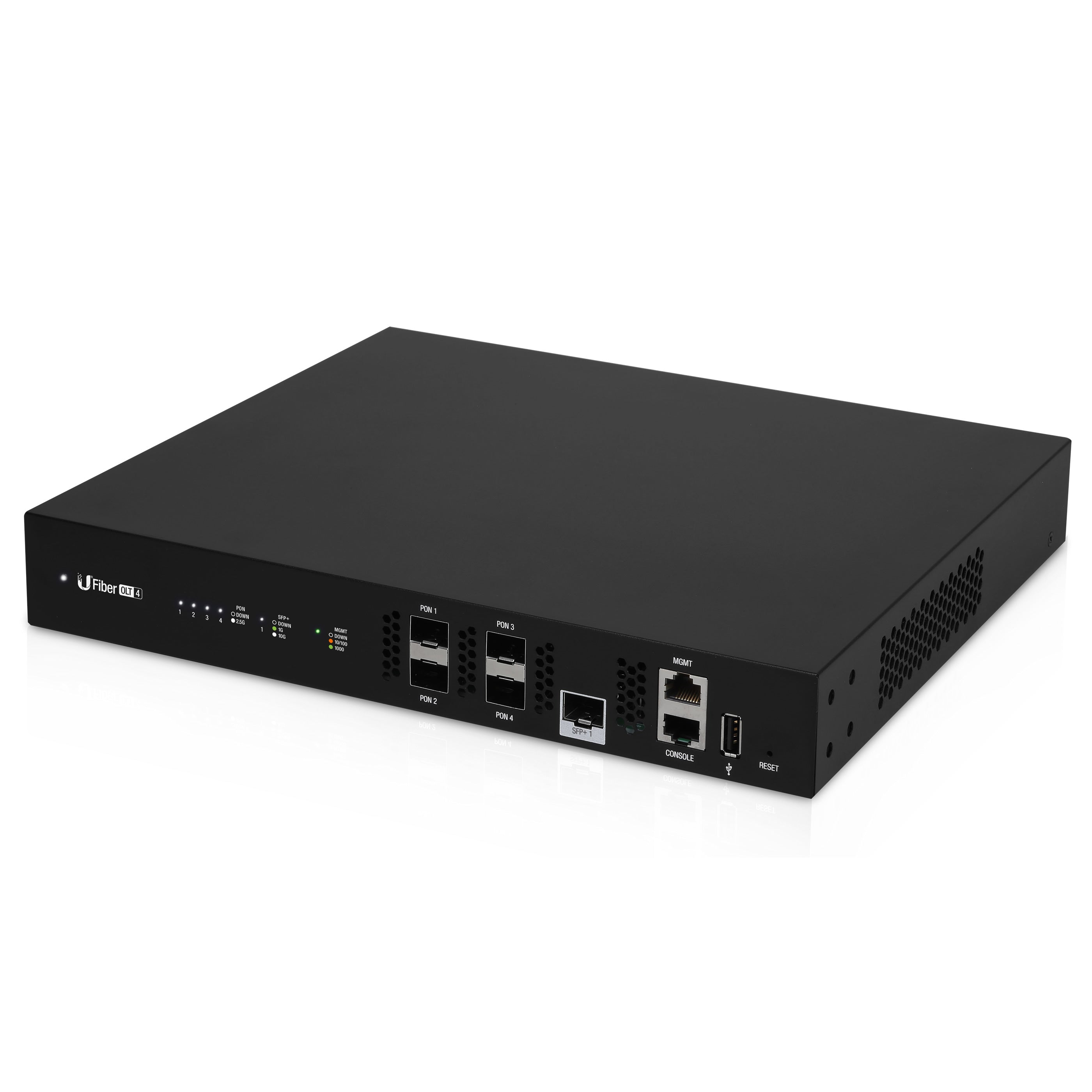

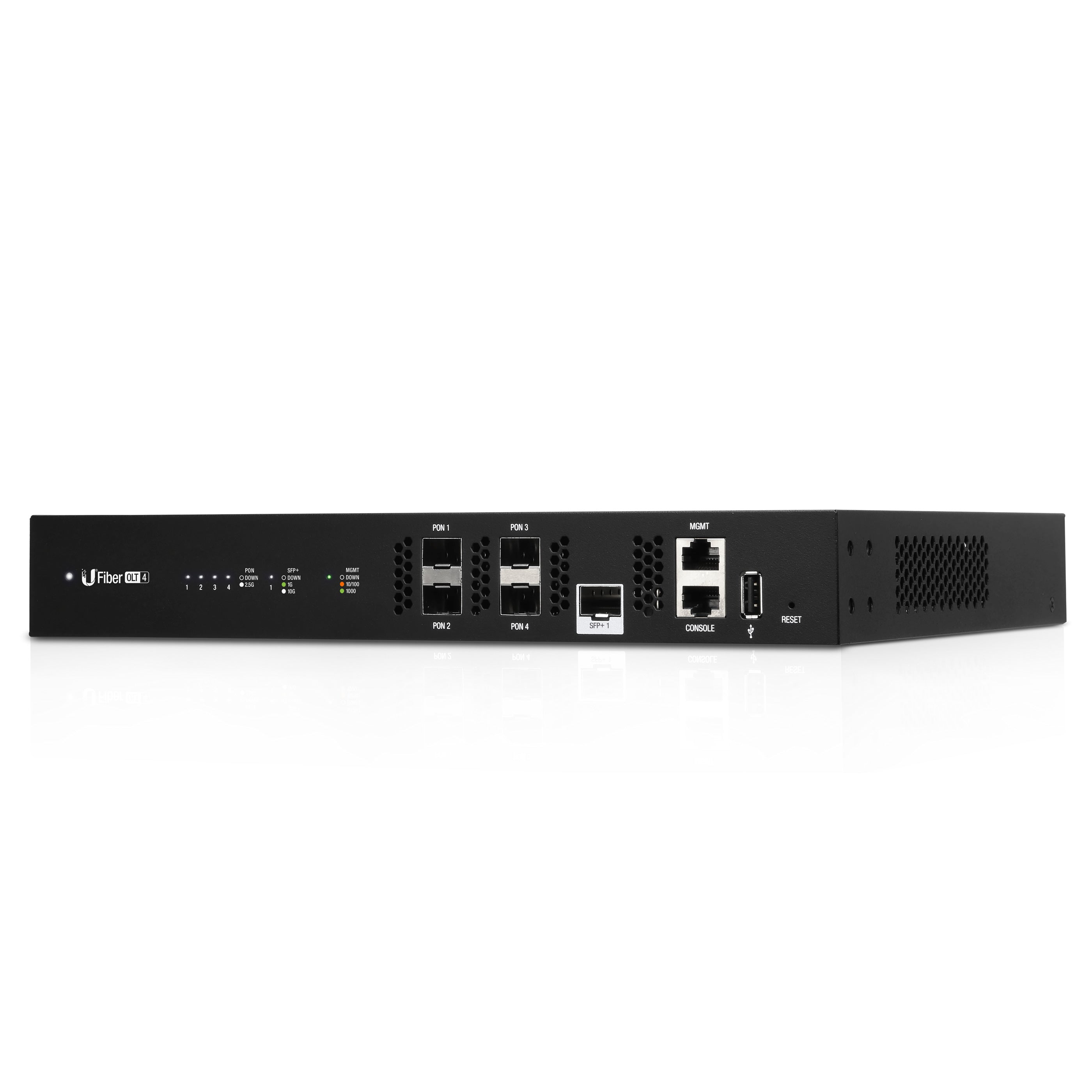

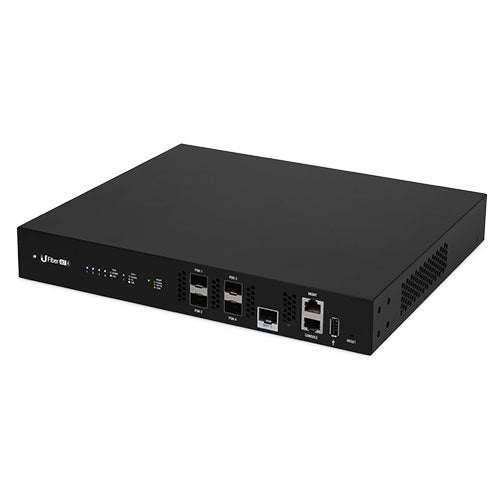

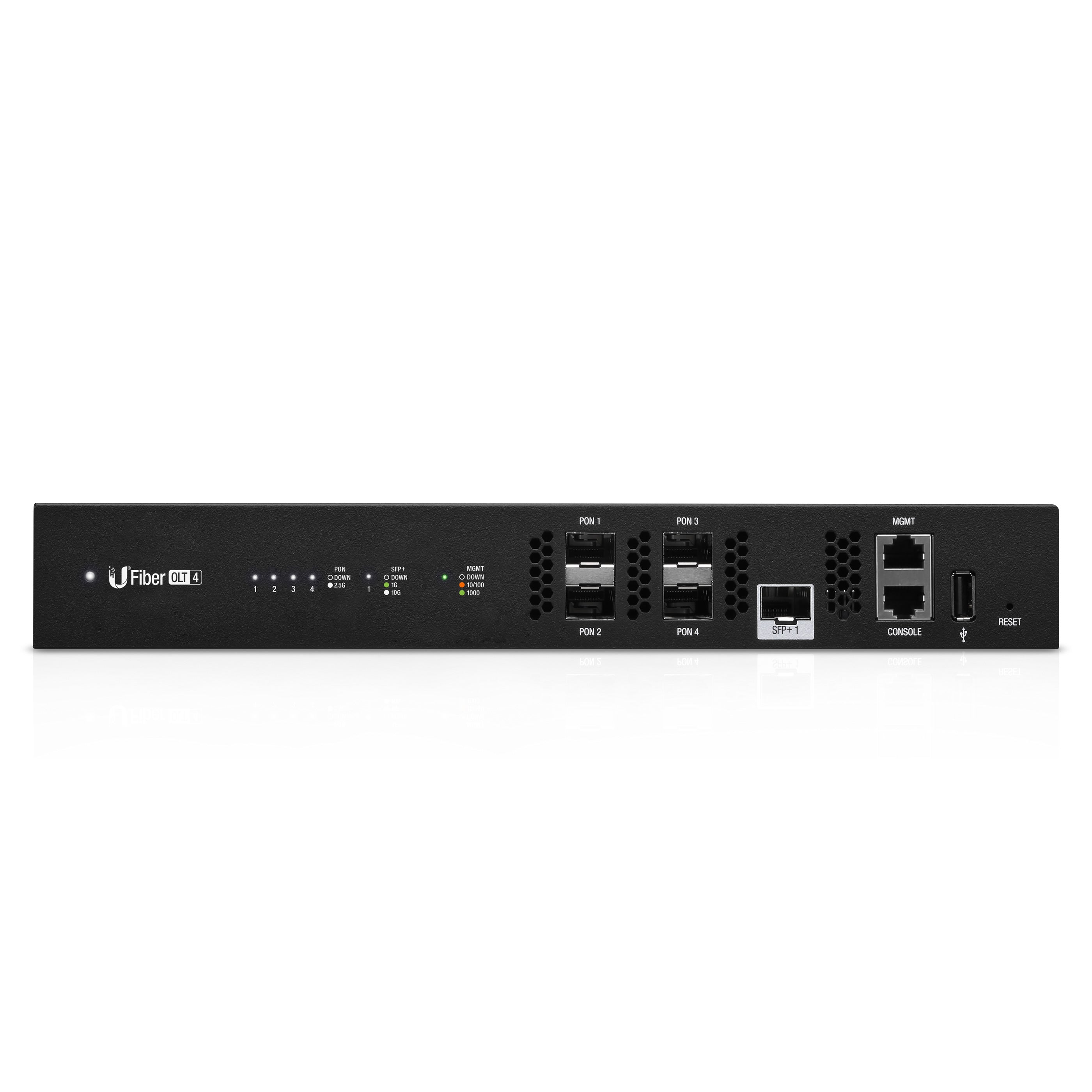

Ubiquiti UFiber 4-Port GPON Optical Line Terminal OLT [UF-OLT-4]

The Ubiquiti U-Fiber 4 Optical Line Terminal (OLT) offers internet and telecom service providers a cost‑effective fiber optic delivery system for Triple Play Services (data, voice, IPTV/VoD) with speeds of up to 2.488Gbps downstream and 1.244Gbps upstream. The Ubiquiti U-Fiber 4 OLT also boasts flexible layer 2/3 management features and one 1G/10G SFP+ Ethernet port.

The Ubiquiti UFiber network is intelligently managed using the included UISP application. Ubiquiti UFiber devices consist of either the UFiber OLT or OLT-4 (deployed at the provider premises) and the UFiber Nano G, loco, or UF-WiFi clients, which function as ONU CPEs (Customer Premises Equipment).

Product Features:

• 4-Port GPON Optical Line Terminal
• 4 Gigabit Passive Optical Network Ports
• Supports up to 512 Clients (128 per PON Port)
• Up to 2.488Gbps TX and 1.244Gbps RX
• One 1G/10G SFP+ Ethernet Ports
• Ethernet port for management
• Flexible Layer 2/3 Management Features
• Console serial port for management
• 24V DC Input Option (Redundant or Stand-Alone)

• Dimensions: 299.80mm x 258.95mm x 42.55mm (11.80" x 10.19" x 1.68")
• Weight: 1.93kg (4.25lb)

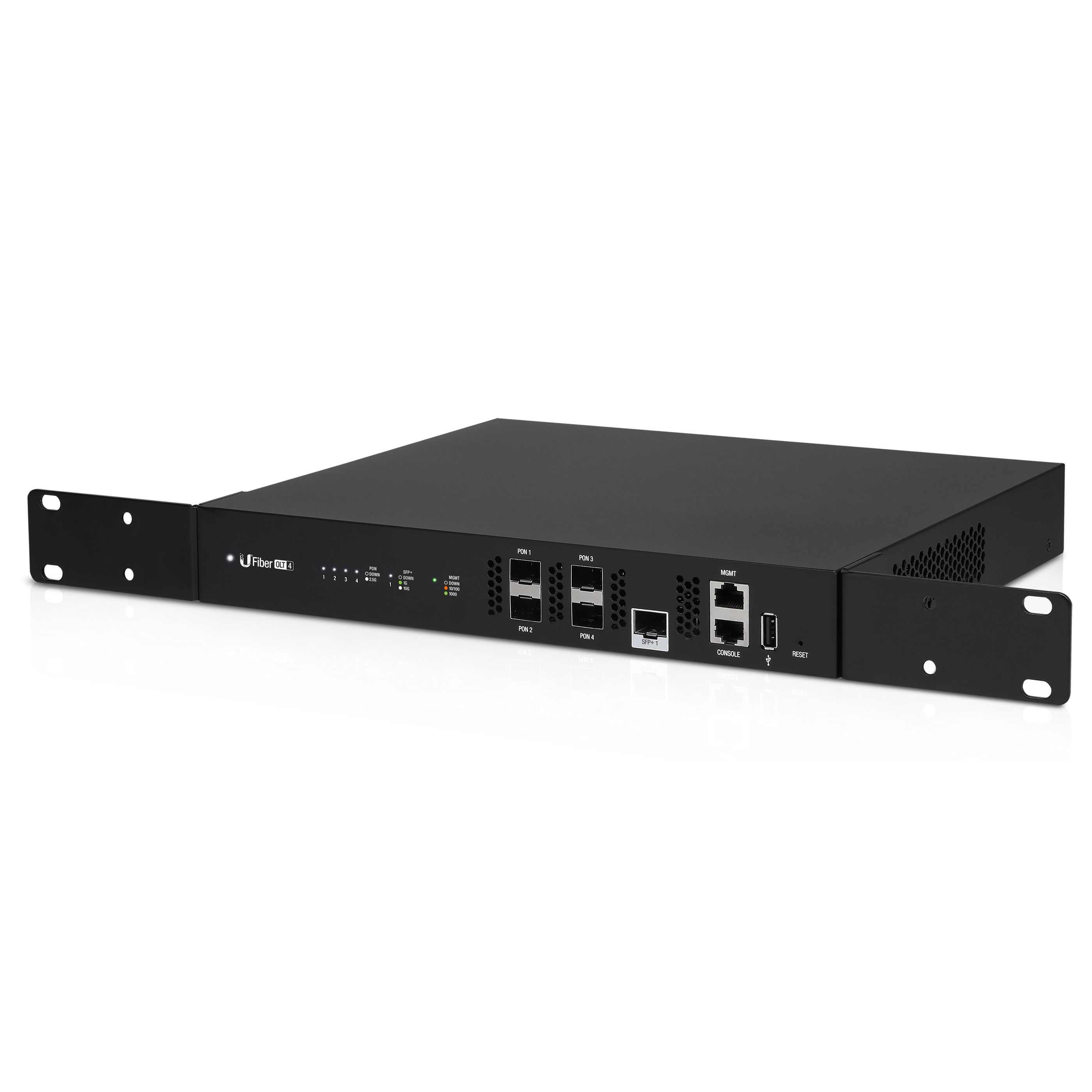

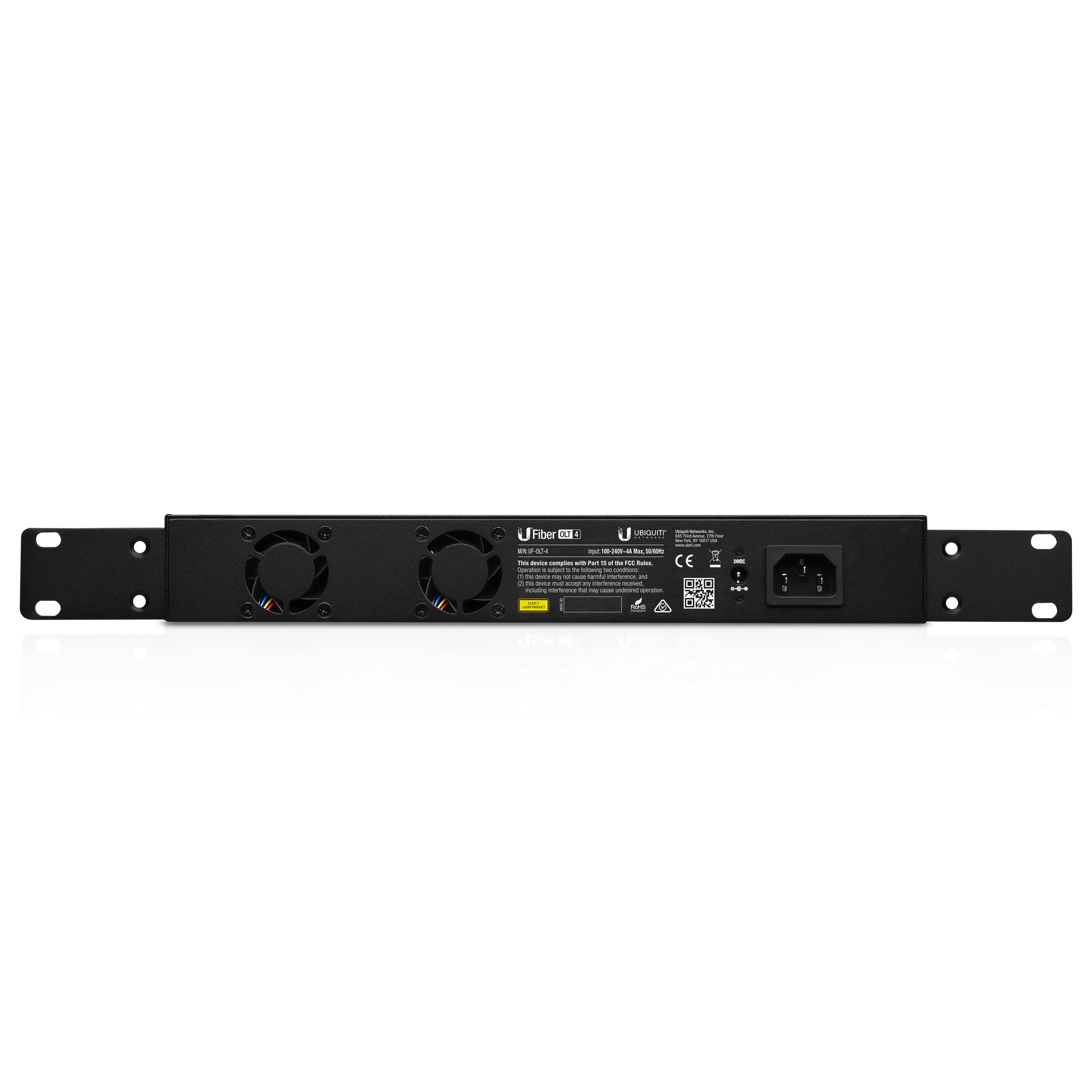

• Weight with Mount Bracket: 2.13kg (4.70lbs)

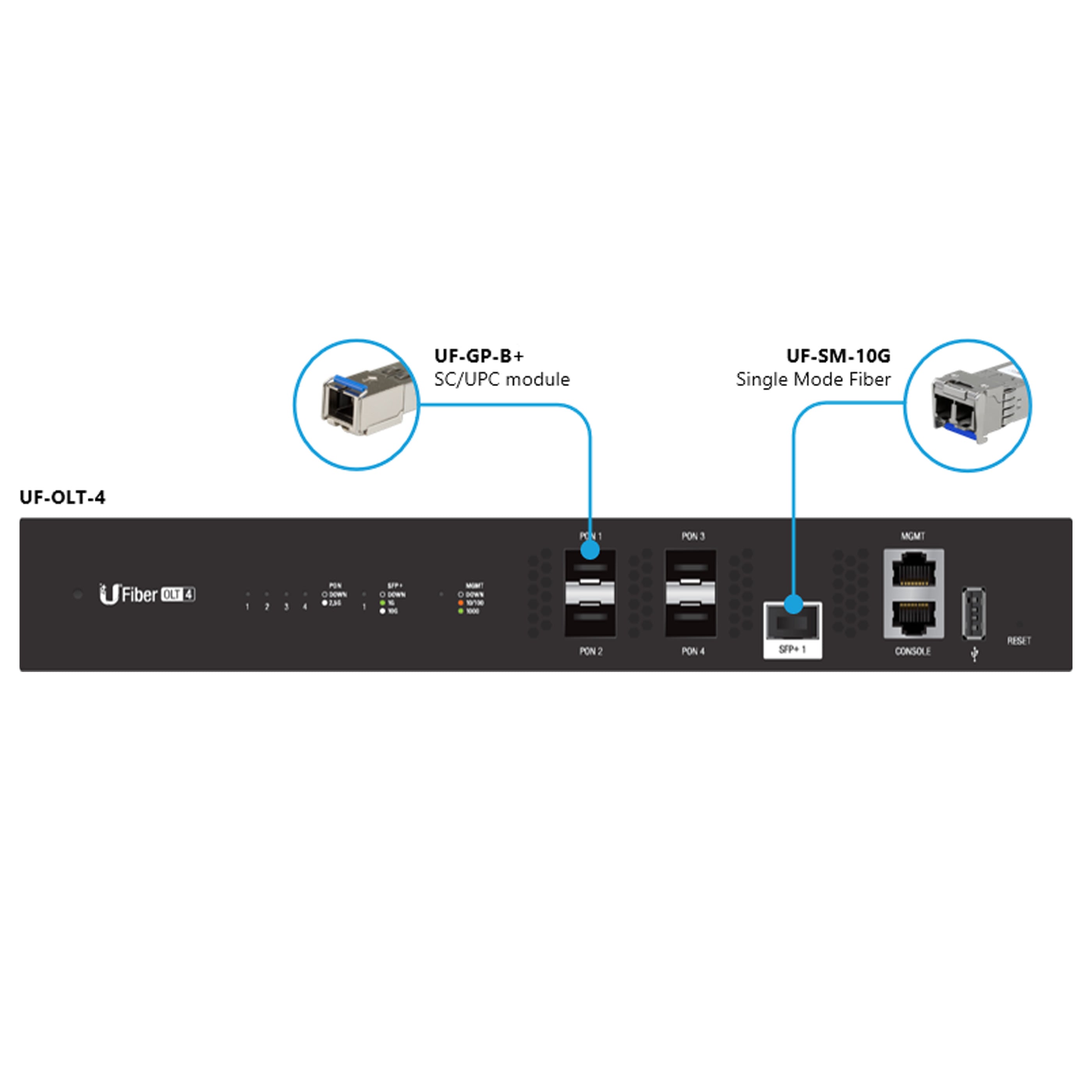

• Networking Interfaces:
    (4) GPON OLT SFP
    (1) 1G/10G SFP+
• Concurrent Clients: 512 Registered ONUs/ONTs (128 per GPON Port)
• Management Interfaces:
    (1) Ethernet for Out-of-Band Management
    (1) RJ45 Serial Console Port
• GPON Speeds:
    2.488Gbps Upstream (TX)
    1.244Gbps Downstream (RX)
• Operating Wavelengths:
    1490nm TX
    1310nm RX
• Normal Optical Power Range:
    TX (Class B+): 1.5dBm to 5dBm
    RX: -28dBm to -8dBm
• Range:
    Physical Reach: 20km
    Logical Reach: 60km
    Maximum Differential Fiber Distance: 20km (B+) /40 km (C+)
• Power Method: 100-240VAC/50-60 Hz, Universal Input
• Power Supply: AC/DC Internal 56W DC
• Maximum Power Consumption: 35W (Excluding SFP Modules)
• Operating Mode: OLT 2/3 Ethernet Switch and GPON Core
• Advanced QoS: Supports 8 Priority Queues per User Port and Traffic Classification
• Processor Specs: MIPS 1004kc, 880MHz Dual Core
• Memory Information: 512MB DDR3, 512MB NAND
• Operating Temperature: -10°C to 45°C (14°F to 113°F)
• Operating Humidity: 10% to 90% Noncondensing
• Certifications: CE, FCC, IC
