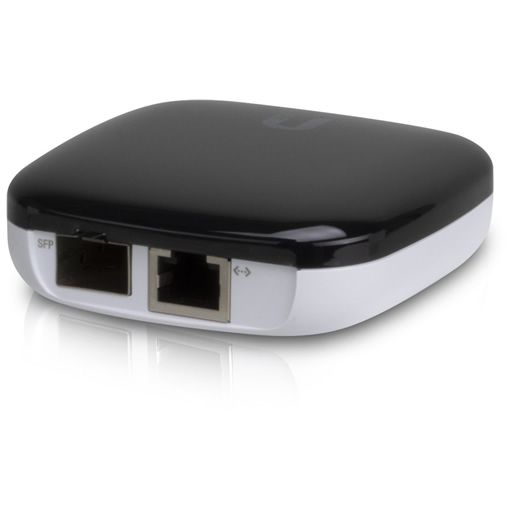

Ubiquiti UFiber Active Ethernet Media Converter [UF-AE]

Ubiquiti UFiber Active Ethernet Media Converter Fiber-to-Ethernet Media Converter The UF-AE allows for an easy media conversion from fiber to copper. The UF-AE supports 1Gbps fiber uplink speeds and 10/100/1000 Ethernet speeds. The UF-AE can be powered with 24V Passive PoE or 802.3af and all UFiber SFP Modules (power supply and SFP Modules not included).

• Module Compatibility
• PoE Convenience
• Supported Speeds
• Status LEDs
• Indoor Installation

• Dimensions: 76.5 x 76.5 x 26.8 mm (3.01 x 3.01 x 1.06")
• Weight: 70 g (2.47 oz)
• Networking Interface: 1 Gbps SFP Port, 10/100/1000 Mbps RJ45 Port
• Power Method: 802.3af PoE: (Pins 1, 2+; 3, 6-), 24V Passive PoE: (Pins 4, 5+; 7, 8-)
• Power Supply: 802.3af PoE or 24V Passive PoE Device*
• Max. Power Consumption: 1.5W
• Supported Voltage Range: 16 to 57V
• LEDs: Ethernet, Optical Signal, Power
• Operating Temperature: -40 to 60° C (-40 to 140° F)
• Operating Humidity: 10 to 90% Noncondensing
• ESD/EMP Protection: ± 12kV Contact/Air
• Certifications: CE, FCC, IC

(1) UFiber AE Converter

(1) User Manual
