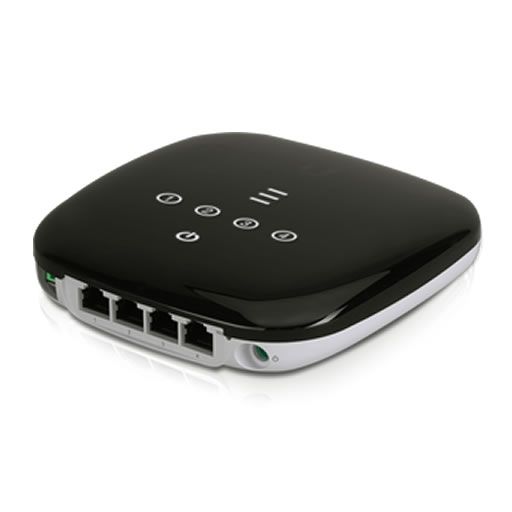

Ubiquiti UFiber Loco 4N WiFi Gigabit Passive Optical Network CPE [UF-WIFI]

Ubiquiti UFiber Loco 4N WiFi Gigabit Passive Optical Network CPE is a robust, high‑performance GPON CPE that offers routing, four LAN ports, and Wi-Fi. It is powered by 24V passive PoE or a 24V, 0.5A power adapter.

• High-Performance GPON CPE
• GPON WAN Port SC/APC Fiber Connector
• 4-Port RJ45 10/100/1000 VLAN-aware Switch
• 802.11n WiFi
• LED diodes for easy diagnostics
• Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream
• Powerful Layer 2/3 Management Features

• Dimensions 126.34 x 126.09 x 31.65 mm (4.97 x 4.96 x 1.25")
• Weight 190 g (6.70 oz)
• Networking Interfaces (1) SC/
APC, GPON WAN, (4) Gigabit RJ45, Ethernet LAN, (1) Wi-Fi, 802.11n
• Networking Interface Speeds GPON WAN, ITU G.984, 2.488 Gbps Downstream, 1.244 Gbps Upstream
• GbE LAN Wi-Fi: 10/100/1000 Mbps, 300 Mbps
• Management Interface In-Band Ethernet/PON
• Normal Optical Power Range TX (Class B+): 1.5 to 5 dBm, RX: -28 to -8dBm
• Power Method DC Jack, 24VDC, 24V Passive PoE (Pins 4, 5+; 7, 8-)
• Power Supply 100-240VAC / 50-60 Hz Universal AC/DC, Power Adapter: 24V / 0.5A
• Max. Power Consumption 7W
• Supported Voltage Range 20 to 28V
• Processor Specs MIPS, 900 MHz
• Memory Information 256 MB DDR
• Buttons (1) Reset
• Operating Temperature -10 to 45° C (14 to 113° F)
• Operating Humidity 10 to 90% Non-condensing
• Certifications CE, FCC, IC
