Ubiquiti

Ubiquiti UniFi Cloud Gateway Ultra [UCG-Ultra]

In stock
SKU: UCG-Ultra
$187.00 CAD

Product details

  • Type Gateways
  • Vendor Ubiquiti
  • SKU UCG-Ultra

Share on Social Media:

Description

The Ubiquiti UniFi Cloud Gateway Ultra [UCG-Ultra] is a powerful and compact multi-WAN UniFi Cloud Gateway with a full suite of advanced routing and security features.

  • Runs UniFi Network for full-stack network management
  • Manages 30+ UniFi Network devices and 300+ clients
  • 1 Gbps routing with IDS/IPS
  • Multi-WAN load balancing
  • 0.96" LCM status display

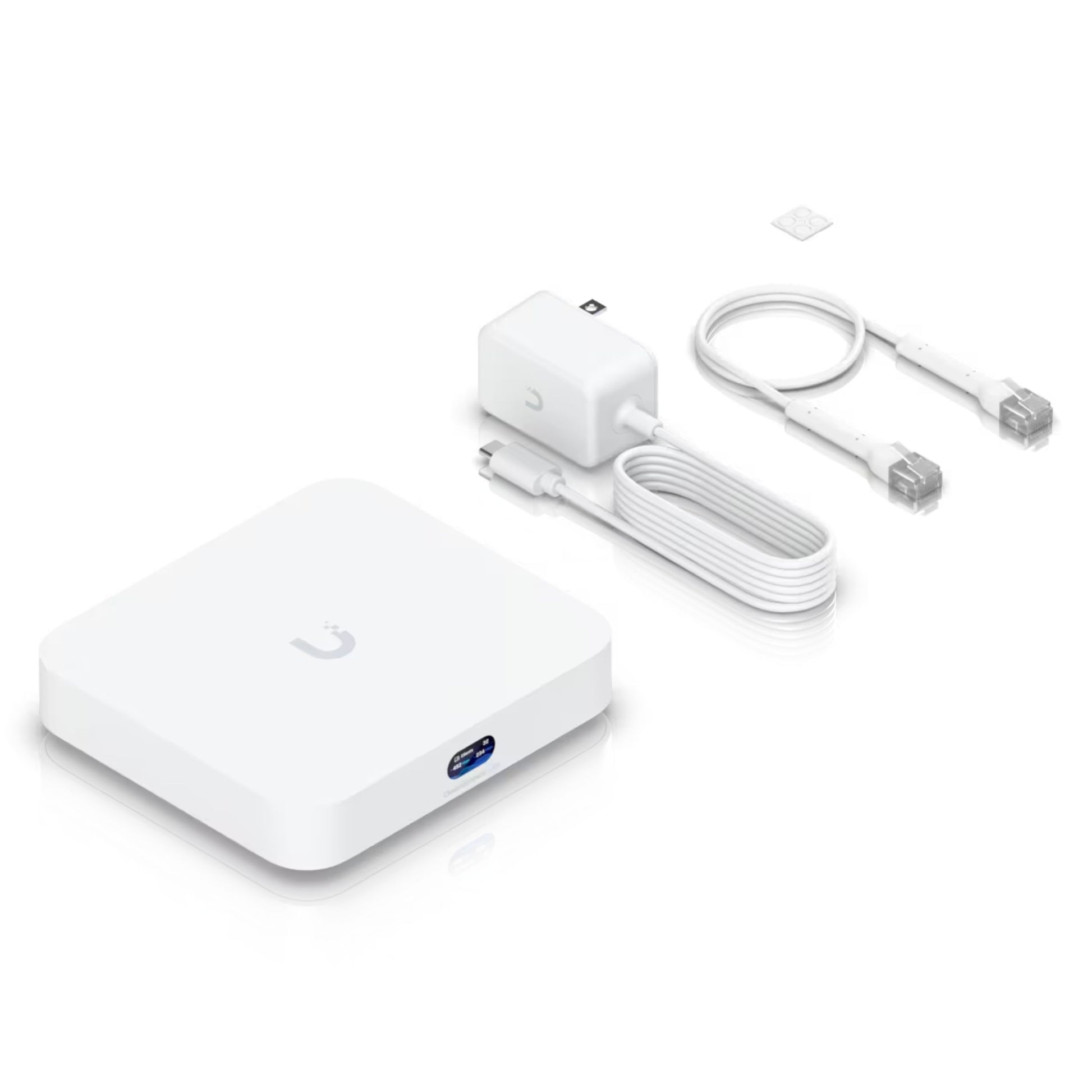

  • USB-C powered (adapter included)\

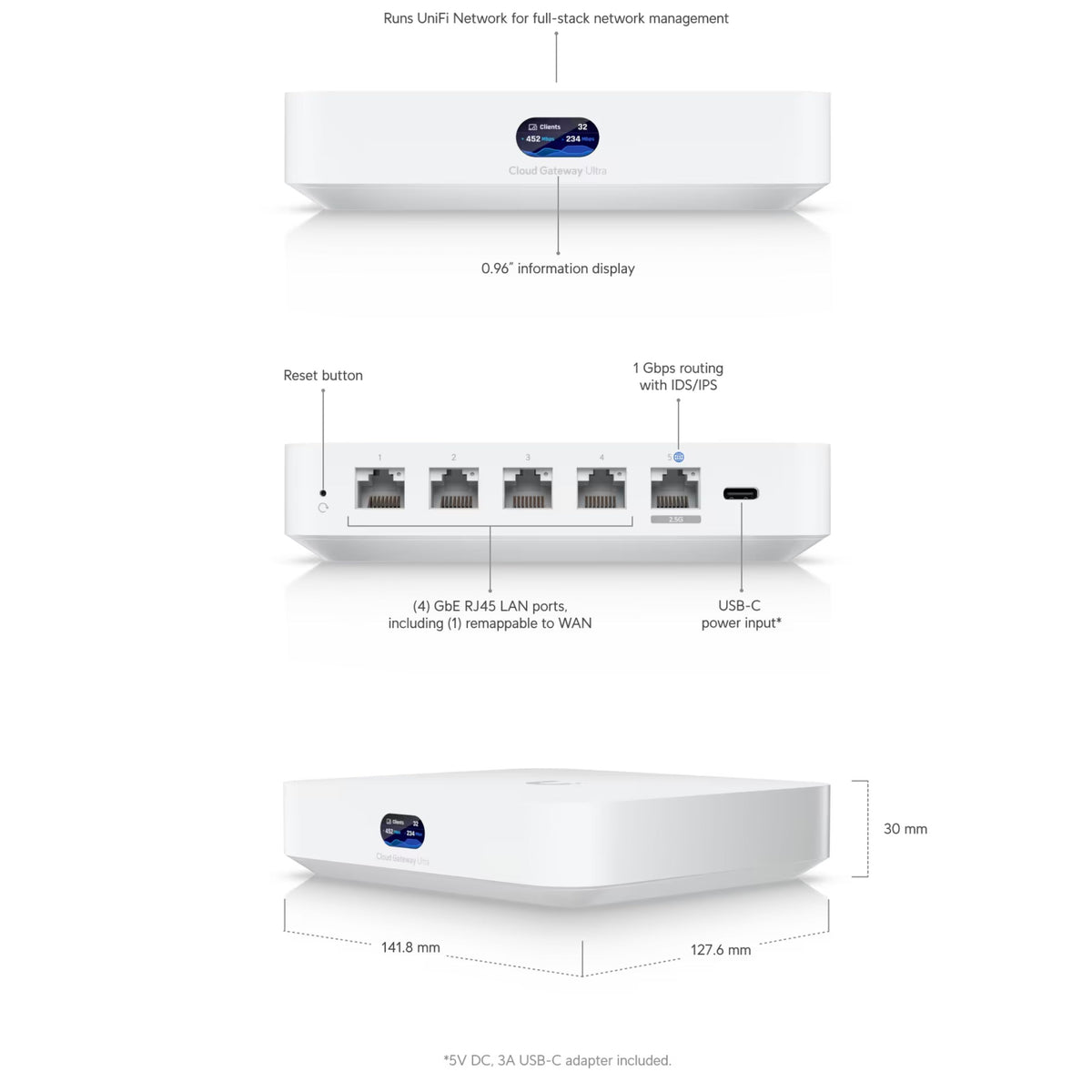

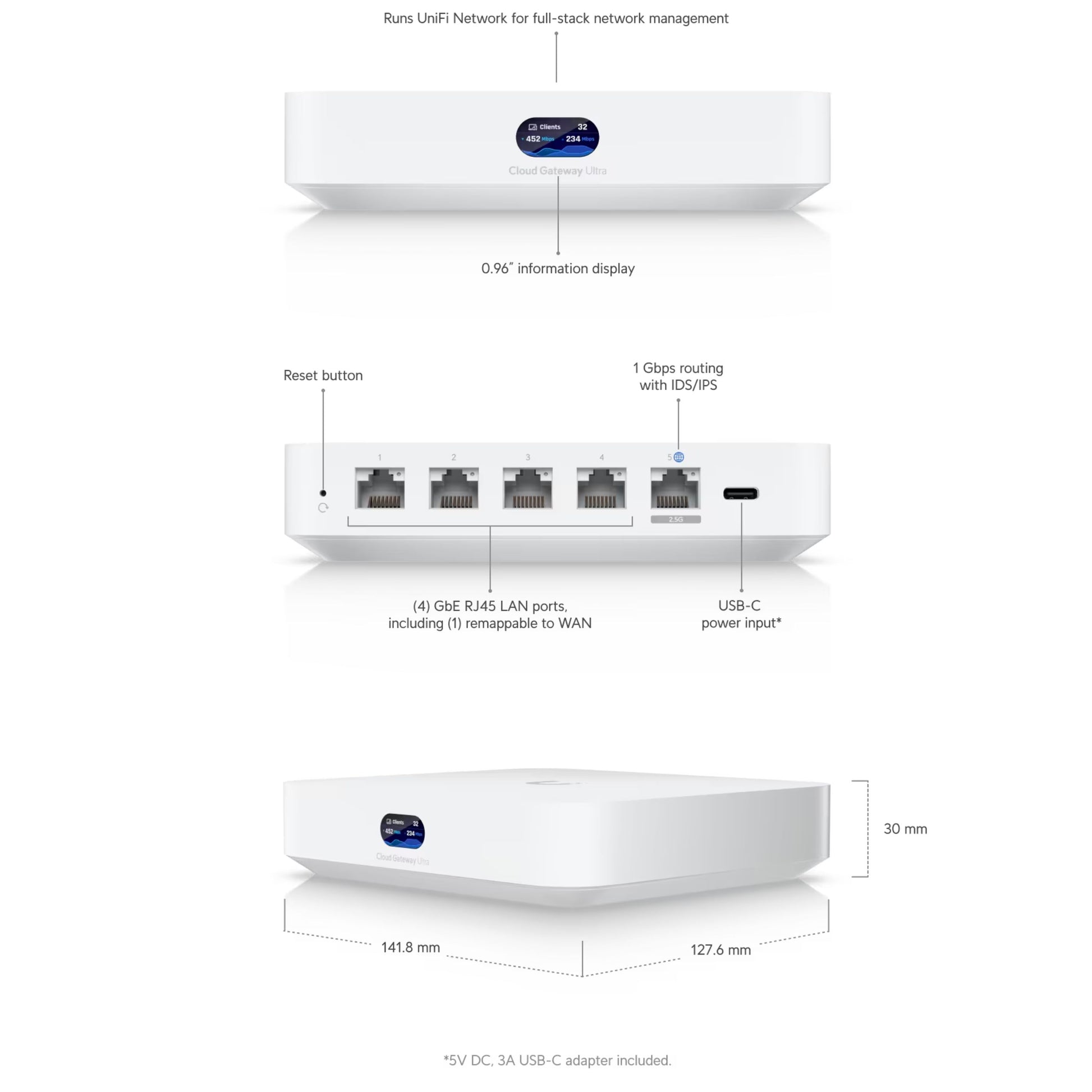

Technical Specifications:

Mechanical

  • Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
  • Weight: 520 g (1.1 lb)
  • Enclosure material: Polycarbonate

Hardware

  • Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
  • System memory: 3 GB DDR4
  • On-board storage: 16 GB eMMC
  • Management interface: Ethernet, Bluetooth
  • Networking interface:
    • LAN: (4) GbE RJ45 ports
    • WAN:(1) 1/2.5 GbE RJ45 port
  • IDS/IPS throughput: 1 Gbps
  • Power method: USB type C (5V DC/3A)
  • Supported voltage range: 100–240V AC
  • Max. power consumption: 6.2W
  • LCM display: 0.96" status display
  • Button: Factory reset
  • Ambient operating temperature:
  • -10 to 40° C (14 to 104° F)
  • Ambient operating humidity: 5 to 95% noncondensing
  • Certifications: CE, FCC, IC

Gateway Features

  • Performance:
    • Redundant WAN with failover and load balancing
    • WiFi QoS with UniFi APs
    • Application, domain, and country-based QoS
    • Application and device type identification
    • Additional internet failover with LTE Backup
    • Internet quality and outage reporting
  • Next-generation security:
    • Application-aware firewall rules
    • Signature-based IPS/IDS threat detection
    • Content, country, domain, and ad filtering
    • VLAN/subnet-based traffic segmentation
    • Full stateful firewall
  • Advanced networking:
    • License-free SD-WAN
    • WireGuard, L2TP and OpenVPN server
    • OpenVPN client
    • OpenVPN and IPsec site-to-site VPN
    • One-click Teleport and Identity VPN
    • Policy-based WAN and VPN routing
    • DHCP relay
    • Customizable DHCP server
    • IGMP proxy
    • IPv6 ISP support

LEDs

  • Ethernet: Green: link/activity

Application Requirements

  • Mobile app:
    • UniFi iOS™: Version 10.12.0 and later
    • UniFi Android™: Version 10.11.2 and later
