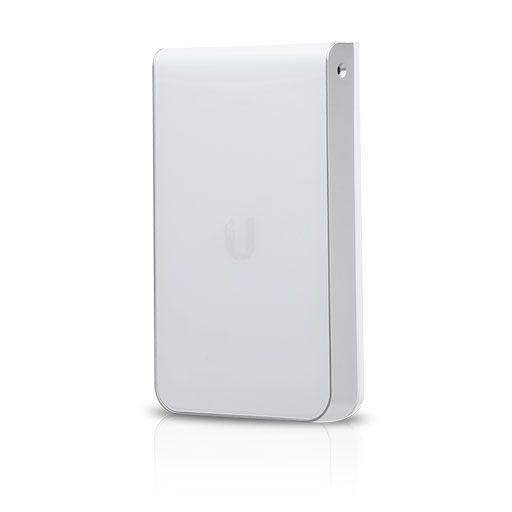

Ubiquiti UniFi In-Wall HD Access Point [UAP-IW-HD-US]

In stock
SKU: UAP-IW-HD-US
Regular price $259.00 CAD

Product details

  • Type WiFi
  • Vendor Ubiquiti
  • SKU UAP-IW-HD-US

Documentation

This product is a US version, intended for use in the US and Canada. This US version contains the following frequencies 2.4GHz & 5GHz.


Ubiquiti UniFi In-Wall HD 802.11ac Wave2 MIMO 5GHz enterprise access point transforms an ethernet wall connection into a simultaneous, dual-band 802.11ac Wi-Fi- access point with 4x4MIMO technology.


Product Features:
  • 4x4 MU-MIMO on 5GHz (1733Mbps max PHY rate), 2x2MIMO on 2.4GHz (300Mbps max PHY rate).
  • 802.3af for base functionality. 802.3at required if using PoE passthrough.
  • 1x4 (1 in, 4 out) switched Gigabit Ethernet ports with configurable PoE passthrough (port 1 only)
Product Specifications:
  • Dimensions: 5.5"x 3.41"x1.01" 139.7mmx 86.7mmx 25.75mm ()
  • Weight: 210 g (7.41 oz)
  • Networking Interface: (5) 10/100/1000 Ethernet Ports
  • Buttons: Reset
  • Power Method: 802.3af PoE or 802.3at PoE+
  • Supported Voltage Range: 44 to 57VDC
  • Power Supply: UniFi Switch (PoE)
  • PoE Out: 48V Pass-through (Pins +1, 2; -3, 6)
  • Power Save: Supported
  • Beam-forming: Supported
  • Maximum Power Consumption with PoE passthrough: 11W, 23W
  • TX Power: 2.4GHz: 23dBm, 5GHz: 26dBm
Antennas:
  • Dual Band: (2) Single-Port, Single-Polarity Dual-Band Antennas, 2.4GHz: 1.8dBi Each, 5GHz: 3.4dBi Each
  • Single Band: (2) Single-Port, Dual-Polarity, Single-Band Antennas, 5GHz: 6dBi Each
  • Wi-Fi Standards: 802.11 a/b/g/n/r/k/v/ac/ac-wave2
  • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) 802.11w/PMF
  • BSSID: Up to 8 per Radio
  • Mounting: 1-Gang Electrical Wall Box (Not Included)
  • Operating Humidity: 5 to 95% Noncondensing
  • Operating Temperature: -10 to 60° C (14 to 140° F)
  • VLAN: 802.1Q
  • Advanced QoS: Per-User Rate Limiting
  • Guess Traffic Isolation: Supported
  • WMM: Voice, Video, Best Effort, and Background
  • Concurrent Clients: 200+
Product Includes:
(1) Ubiquiti In-Wall Access Point
(1) User Manual
