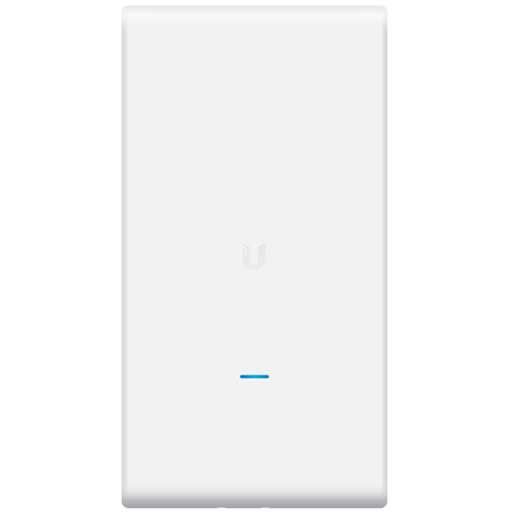

Ubiquiti UniFi Mesh Pro Outdoor Access Point (5-Pack) [UAP-AC-M-PRO-5]

Out of stock
SKU: UAP-AC-M-PRO-5
$1,365.00 CAD

Product details

  • Type WiFi
  • Vendor Ubiquiti
  • SKU UAP-AC-M-PRO-5

Share on Social Media:

Documentation

Description

Product Features:

  • Weather-Resistant Form Factor: The enclosure of the UniFi AC Mesh Pro AP is designed to withstand the elements, making it deal for outdoor deployment.
  • LED: Unique provisioning LED provides administrator location tracking and alerts for each device.
  • Powerful Coverage: Built-in dual-band omnidirectional antennas deliver expanded range coverage outdoors.
  • Mounting Flexibility: The UniFi AC Mesh Pro AP can be mounted on a wall or pole. (all accessories are included).
  • Dual Gigabit Ethernet Ports: The primary port is for data and PoE; the secondary port is for bridging.
  • Multiple Power Options: You can power the UniFi AC Mesh Pro AP with an 802.3af compatible switch, UniFi PoE Switch, or the included Gigabit PoE adapter. We recommend powering your UniFi devices with a UniFi PoE Switch.
Product Specifications:
  • Dimensions: 13.51"x7.13"x 2.37" (343.2mmx181.2mmx 60.2mm)
  • Weight: 633g (1.40 lbs)
  • Networking Interface: (2) 10/100/1000 Ethernet Ports
  • Buttons: Reset
  • Power Method: 802.3af PoE (Supported Voltage Range: 44VDC to 57VDC)
  • Power Supply: 48V, 0.5A PoE Gigabit Adapter
  • Maximum Power Consumption: 9W
  • Maximum TX Power: 2.4GHz: 22dBm, 5GHz: 22dBm
  • Antennas: (3) Internal Dual-Band Antennas, 8dBi
  • Wi-Fi Standards: 802.11a/b/g/n/ac
  • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
  • BSSID: Up to Four per Radio
  • Mounting: Wall/Pole (Pole Kit Included)
  • Operating Temperature: -40°F to 158°F (-40°C to 70°C)
  • Operating Humidity: 5% to 95% non-condensing
  • Certifications: CE, FCC, IC
Advanced Traffic Management
  • VLAN: 802.1Q
  • Advanced QoS: Per-User Rate Limiting
  • Guest Traffic Isolation: Supported
  • WMM: Voice, Video, Best Effort, and Background
  • Concurrent Clients: 200+
  • Supported Data Rates (Mbps): 802.11ac: 6.5 to 1300Mbps (MCS0 - MCS9 NSS1/2/3/, VHT 20/40/80), 802.11n: 6.5 to 450Mbps (MCS0 - MCS23, HT 20/40), 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps, 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps, 802.11b: 1, 2, 5.5, 11Mbps

Product Includes:


(5) UniFi AP Mesh Pro

(5) Mounting Bracket

(10) Pole Clamps

(20) Carriage Bolts

(20) Flange Nuts

(20) Screws

(20) Screw Anchors
