Ubiquiti

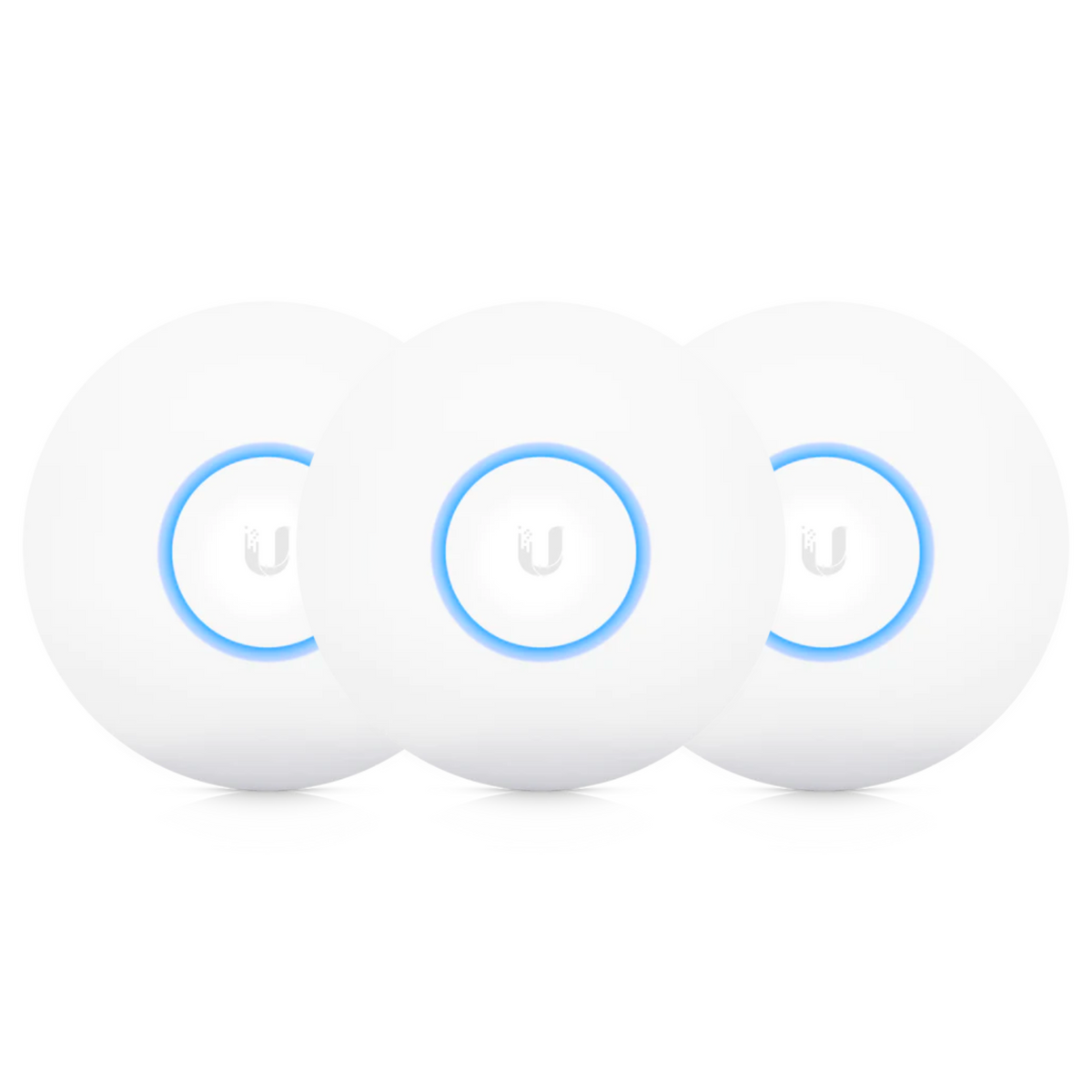

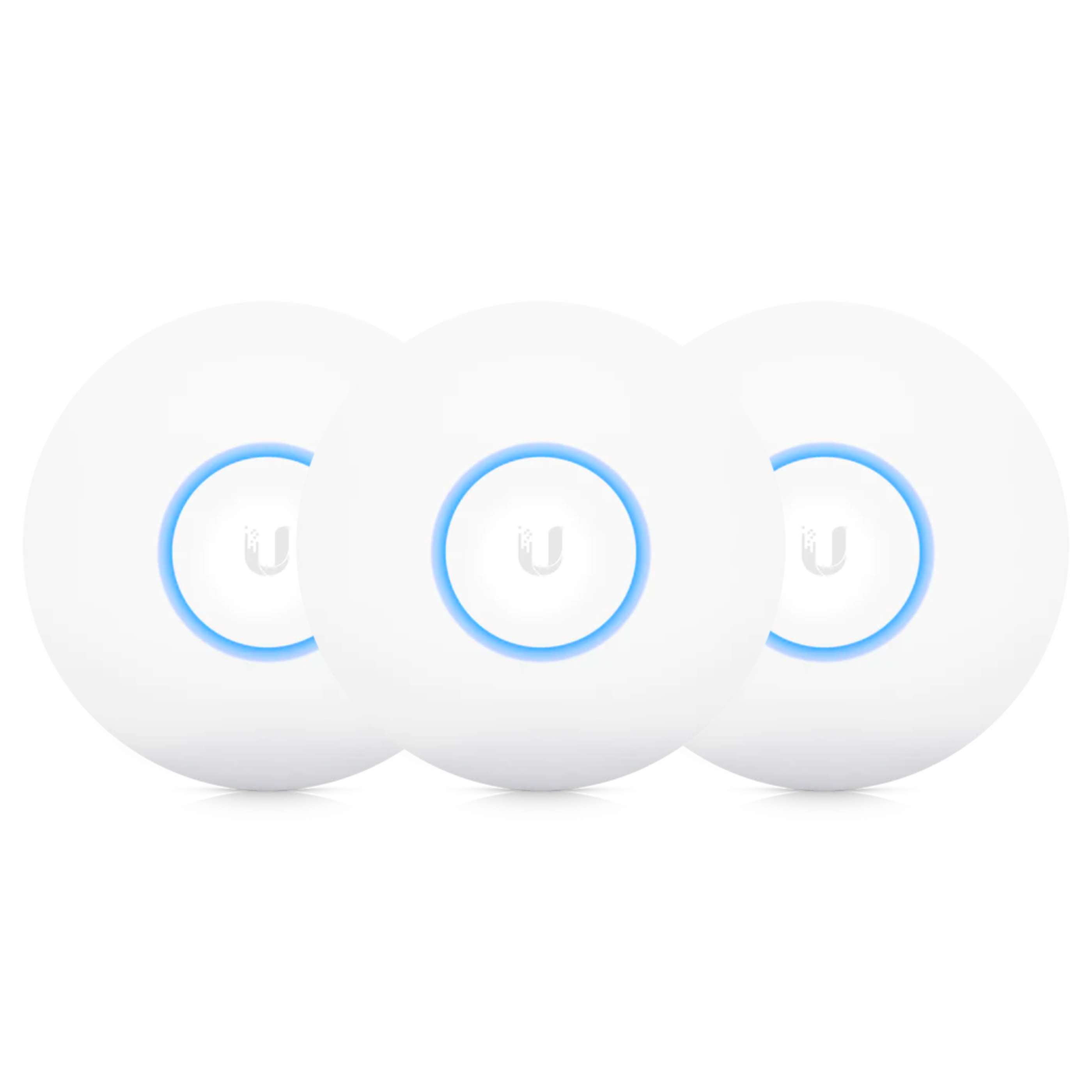

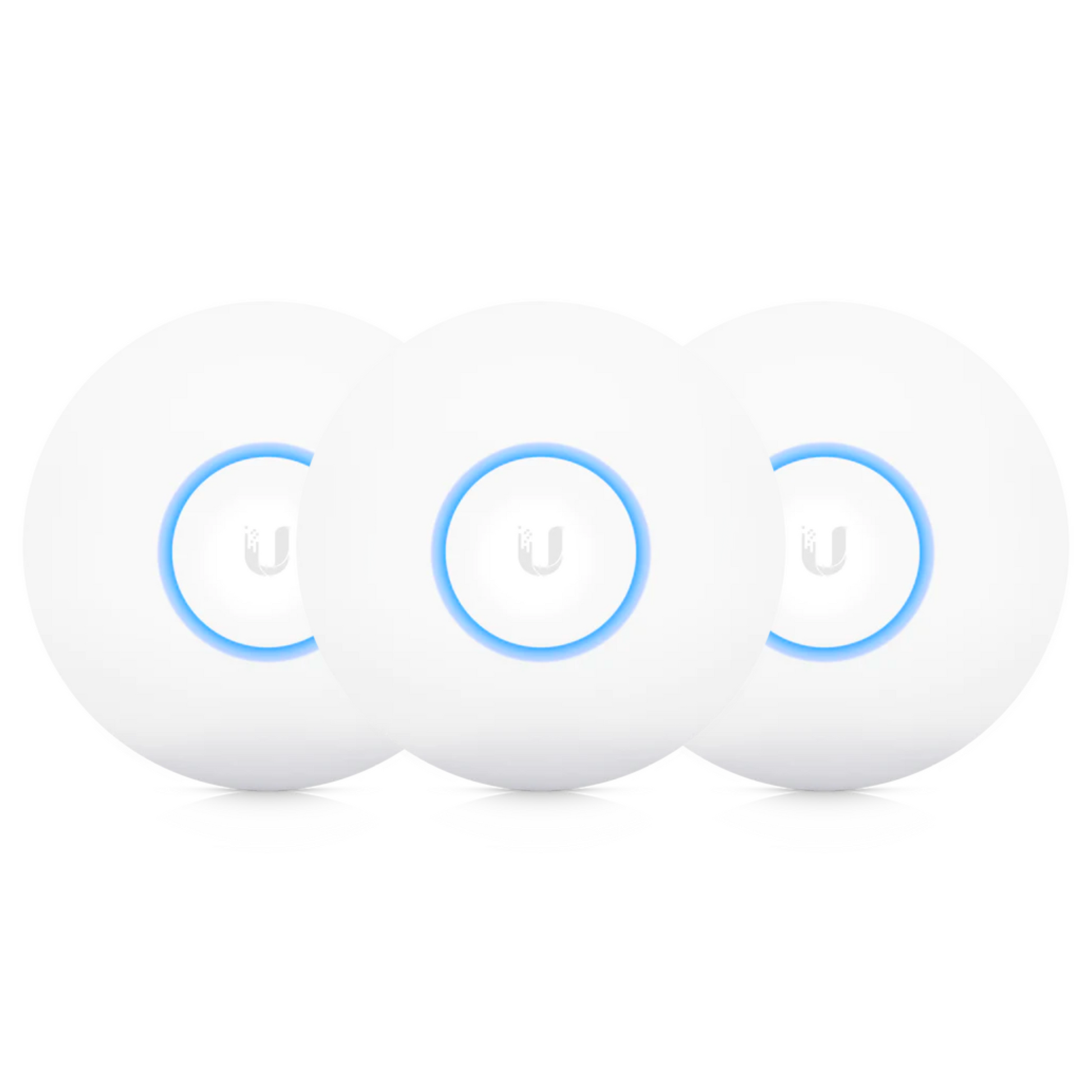

Ubiquiti UniFi nano HD 802.11ac Access Point 2.4GHz/5GHz Wave2 4x4MU-MIMO (PoE Not Included) 3-Pack

Out of stock
SKU: UAP-nanoHD-3
$737.00 CAD

Product details

  • Type WiFi
  • Vendor Ubiquiti
  • SKU UAP-nanoHD-3

Share on Social Media:

Documentation

Description
PoE Not Included in 3-Pack

Product Specifications:
  • Dimensions (LxWxH): 6.3"x 6.3"x1.29" (160mmx160mmx 32.65mm)
  • Weight: 300g (10.6oz)
  • Weight with Mounting kit: 315g (11.1oz)
  • Networking Interface: (1) 10/100/1000 Ethernet Port
  • Buttons: (1) Reset
  • Power Method: 802.3af PoE
  • Supported Voltage Range: 44VDC to 57VDC
  • Power Supply: UniFi Switch (PoE) (48V, 0.5A)
  • Max. Power Consumption: 10.5W
  • Operating Frequency: 2.4GHz, 5GHz
  • Max. TX Power: 2.4Ghz - 23dBm; 5GHz - 26dBm
  • Antenna Gain: 2.4GHz at 2.8dBi, 5GHz - 3dBi
  • MIMO: 2.4GHz - 2x2, 5GHz - 4x4
  • Radio Rates: 2.4GHz - 300Mbps; 5GHz - 1733Mbps
  • Wi-Fi Standards: 802.11 a/b/g/n/ac/ac-wave2
  • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
  • BSSID: 8 per Radio
  • Mounting: Wall / Ceiling (kit included)
  • Operating Temperature: 14° to 158°F (-10°C to 70°C)
  • Operating Humidity: 5 to 95% Noncondensing
  • Certfications: CE, FCC, IC
  • Advanced Traffic Management: VLAN: 802.1Q, Advanced QoS: Per-User Rate Limiting, Guest Traffic Isolation: Supported, WMM: Voice, Video, Best Effort, and Background, Concurrent Clients: 200+
Supported Data Rates:
  • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps
  • 802.11n: 6.5 Mbps to 300Mbps (MCS0 - MCS15, HT 20/40)
  • 802.11ac: 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
  • 802.11b: 1, 2, 5.5, 11Mbps
  • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
Product Includes:
(3) Ubiquiti Access Point nanoHD
(3) Mounting Bracket
(3) Ceiling Bracket Plate
(12) Screws
(12) Flat Head Screws
(12) Keps Nuts
(12) Screw Anchors
(3) Quick Start Guide
