Ubiquiti

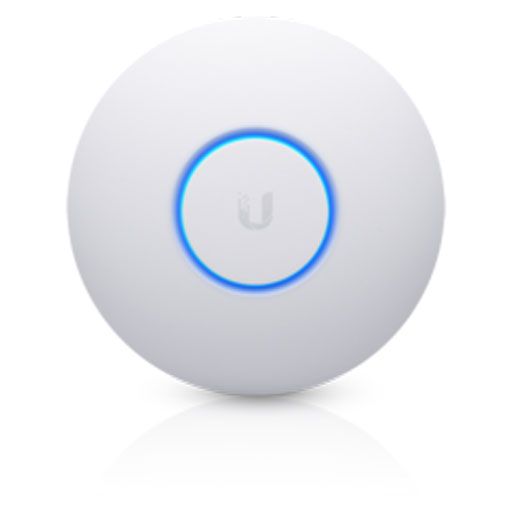

Ubiquiti UniFi nanoHD Access Point [UAP-NanoHD]

Out of stock
SKU: UAP-NanoHD
$259.00 CAD

Product details

  • Type WiFi
  • Vendor Ubiquiti
  • SKU UAP-NanoHD

Share on Social Media:

Documentation

Description

Ubiquiti UniFi nanoHD Access Point with 4x4 MU-MIMO 802.11ac Wave2 runs on 2.4 GHz (300Mbps max PHY rate), 4x4 MU-MIMO on 5GHz (1733Mbps max PHY rate). It also comes with the same mount as the UAP-AC-Lite. It combines the performance increase from MU-MIMO technology and the use of 4x4 spatial streams, the UniFi nano HD Access Point delivers up to 125x greater performance than a typical Wave 1 Access Point.


PoE and Power Cord are only included in single pack


Product Specifications:
  • Dimensions: 160mmx160mmx32.65mm (6.3"x6.3"x1.29")
  • Weight: 300g (10.6oz)
  • Weight with Mounting kit: 315g (11.1oz)
  • Networking Interface: (1) 10/100/1000 Ethernet Port
  • Buttons: (1) Reset
  • Power Method: 802.3af PoE
  • Supported Voltage Range: 44 to 57VDC
  • Power Supply: UniFi Switch (PoE) (48V, 0.5A)
  • Max. Power Consumption: 10.5W
  • Operating Frequency: 2.4GHz, 5GHz
  • Max. TX Power: 2.4Ghz - 23dBm; 5GHz - 26dBm
  • Antenna Gain: 2.4 GHz at 2.8dBi, 5GHz - 3dBi
  • MIMO: 2.4GHz - 2x2, 5GHz - 4x4
  • Radio Rates: 2.4GHz - 300Mbps; 5GHz - 1733Mbps
  • Wi-Fi Standards: 802.11 a/b/g/n/ac/ac-wave2
  • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
  • BSSID: 8 per Radio
  • Mounting: Wall / Ceiling (kit included)
  • Operating Temperature: 14°F to 158°F (-10°C to 70°C)
  • Operating Humidity: 5 to 95% Noncondensing
  • Certfications: CE, FCC, IC
Advanced Traffic Management:
  • VLAN: 802.1Q
  • Advanced QoS: Per-User Rate Limiting
  • Guest Traffic Isolation: Supported
  • WMM: Voice, Video, Best Effort, and Background
  • Concurrent Clients: 200+
Supported Data Rates:
  • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps
  • 802.11n: 6.5Mbps to 300Mbps (MCS0 - MCS15, HT 20/40)
  • 802.11ac: 6.5Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
  • 802.11b: 1, 2, 5.5, 11 Mbps
  • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
Product Includes:

(1) Ubiquiti Access Point nanoHD

(1) Mounting Bracket

(1) Ceiling Bracket Plate

(1) Set of Screws

(1)  Set of Flat Head Screws

(1)  Set of Keps Nuts

(1)  Set of Screw Anchors

(1) Gigabit PoE (48V, 0.5A) (Only included in single pack)

(1) Power Cord (only included in single pack)

(1) Quick Start Guide
