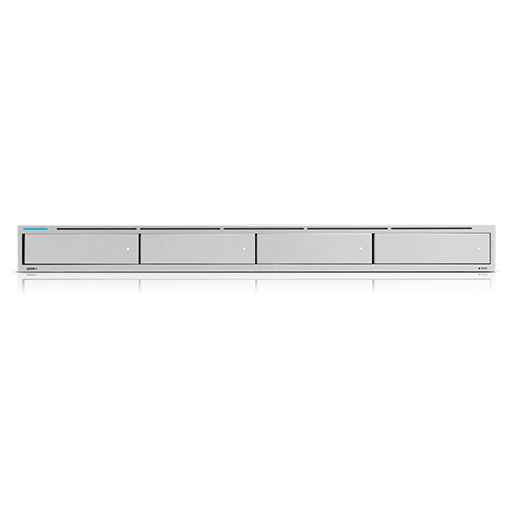

Ubiquiti UniFi Protect NVR 4-Drive 8TB Network Video Recorder [UNVR]

The Ubiquiti UniFi NVR is an enterprise network video recorder that integrates an NVR, the UniFi Protect software, and a 4-drive bay. The UNVR unifies enterprise-class data protection and scalable storage with simple Plug-and-Play integration using the intuitive UniFi Protect software. From a desktop computer or mobile device, you can access your surveillance recordings from virtually anywhere using the intuitive graphical user interface. The mobile app is available for iOS and Android-based devices. The drive bays are easily accessed from the front panel, so hard drive mounting and maintenance are simple. Using four 8 TB drives in a RAID 5 configuration, the UNVR can provide up to 30 days of 4k video storage for 15 cameras or Full HD video storage for 50 cameras.

• (4) 2.5"/ 3.5" Drive Bays
• (1) 10G SFP+ Port
• (1) Gigabit RJ45 Port
• 1U Rackmountable (Kit Included)
• Plug-and-Play UniFi Portect system with NVR
• Automated secure RAID 1 or RAID 5 configuration
• Supports USP-RPS for PSU failover
• Product Specifications:
• Enclosure Characteristics: SGCC Steel
• Processor: Quad-Core ARM Cortex-A57 at 1.7 GHz
• System Memory: 4 GB DDR4
• On-Board Flash Storage: SPI NOR 32 MB, USB Flash 8 GB
• Max. Power Consumption: 100W
• Max. Power Budget for Drives: 75W
• Power Method:
• (1) Universal AC Input
• (1) RPS DC Input
• Power Supply: 100-240VAC, 50/ 60 Hz, 2A
• Networking Interfaces:
• (1) 10/100/1000 Mbps RJ45 Ethernet
• (1) 1/10 Gbps SFP+ Ethernet
• Management Interface: Ethernet In-Band Management
• ESD/ EMP Protection: Air: ±12kV, Contact: ±8kV
• Operating Temperature: -5 to 40°C (23 to 104°F)
• Operating Humidity: 5-95% Non-condensing
• LEDs
• System: (1) Power, Blue/ White
• Flashing White: Bootup in Progress
• Flashing Blue: Firmware Upgrading
• Steady White: Factory Defaults, Awaiting Adoption
• Ethernet:
• Steady Blue: Device is Adopted
• SFP+ White:
• Green: 1000 Mbps
• Amber: 10/100 Mbps
• SFP+:
• White: 10 Gbps
• Green: 1 Gbps
• HDD:
• Amber: Disk Error
• White: Disk Detected
