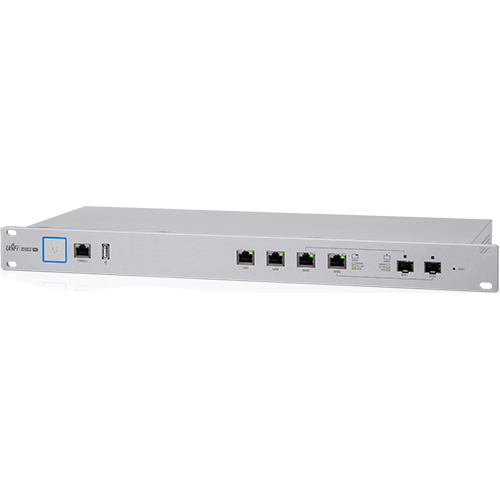

Ubiquiti UniFi Security Gateway Pro 4-port

The Ubiquiti Networks UniFi Security Gateway Pro extends the UniFi Enterprise System to encompass routing and security for your network. It combines advanced security features with high‑performance routing technology in a compact and cost‑effective unit. The USG-PRO-4 has a rack mount form factor with fiber connectivity options and a 1GHz dual core processor which is twice as fast as the original USG.

Capable of routing up to 1 million packets per second, the UniFi Security Gateway Pro can be easily configured through the intuitive UniFi Controller software, which also manages the UniFi Access Points for wireless networking.

• 2 x Gigabit Ethernet ports
• 2 x Gigabit Ethernet / SFP combination ports
• Rack mounted
• 1 x RJ45 Console port
• Secure off‑site management and monitoring
• CLI management for advanced users
• Silent, fanless operation

• Dimensions: 484 x 44 x 164mm (19.06 x 1.73 x 6.46")
• Weight: 2.3kg (5.07lbs)
• Max. Power Consumption: 40W
• Power Supply: Internal AC/DC Power Adapter, 60W (24V, 2.5A)
• Power Input: 110-240VAC
• Networking Interfaces:
• Serial Console Port: (1) RJ45 Serial Port
• (2) 10/100/1000 RJ45 Ports / (2) 10/100/1000 RJ45/SFP Combination Ports
• Layer 3 Forwarding Performance:
• Packet Size (64 Bytes): 1,000,000 pps
• Packet Size (512 Bytes or Larger): 1 Gbps per Port Line Rate
• Processor: Dual-Core 1GHz, MIPS64 with Hardware Acceleration for Packet Processing
• System Memory: 2 GB DDR3 RAM
• On-Board Flash Storage: 4 GB
• Certifications: CE, FCC, IC
• Rackmount: Yes
• Operating Temperature: -10 to 45°C (14 to 113°F)
• Operating Humidity: 10 to 90% non-condensing
