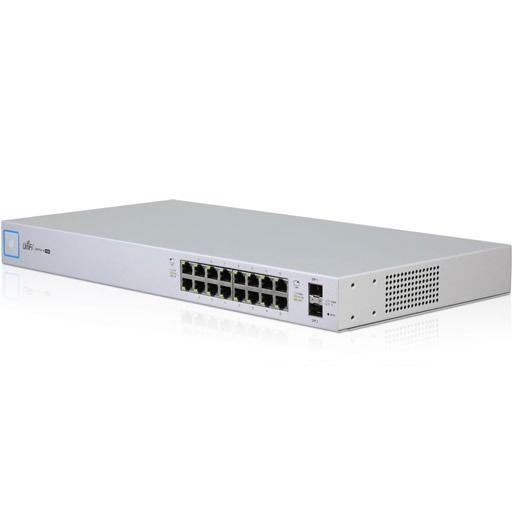

Ubiquiti UniFi Switch 16-Port PoE Switch 150W

The Ubiquiti Networks US-16-150W UniFi Switch features 16 Gigabit RJ45 ports which offer convenient different power output options: auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE, and two SFP ports provide optical fiber connectivity options to support uplinks of up to 1Gbps.

• (16) Gigabit RJ45 ports
• (2) 1 Gbps SFP ports
• Total, non-blocking throughput: 18Gbps
• Switching capacity: 36Gbps
• Maximum power consumption: 150W (excluding PoE Output: 28W)
• Supports POE+ IEEE 802.3at/af and 24V Passive PoE
• Desktop mountable
• Max Deliverable PoE: 150W
• Forwarding rate: 26.78Mpps

• Dimensions: 443 x 43 x 221mm (17.44 x 1.69 x 8.70")
• Weight: Without Mounting Brackets: 2.80kg (6.17lbs), With Mounting Brackets: 2.89kg (6.37lbs)
• Total Non-Blocking Throughput: 18Gbps
• Switching Capacity: 36Gbps
• Forwarding Rate: 26.78Mpps
• Max. Power Consumption: Including PoE Output: 150W, Excluding PoE Output: 28W
• Networking Interfaces: (16) 10/100/1000 Mbps RJ45 Ethernet Ports / (2) 1 Gbps SFP Ethernet Ports
• Management Interface: (1) RJ45 Serial Port Out-of-Band (Reserved for Future Use), Ethernet In-Band
• Certifications: CE, FCC, IC
• Rack Mount: Yes, 1U High
• ESD/EMP Protection: Air: ±24kV / Contact: ±25kV
• Operating Temperature: -5 to 40°C (23 to 104°F)
• Operating Humidity: 5 to 95% non-condensing
• Shock and Vibration: ETSI300-019-1.4 Standard
• PoE Interfaces: PoE+ IEEE 802.3af/at (Pins 1,2+;3,6-), 24VDC Passive PoE (Pins 4,5+;7,8-)
• Max. PoE+ Wattage per Port by PSE: 34.2W
• Voltage Range 802.3at Mode: 50-57V
• Max. Passive PoE Wattage per Port: 17W
• 24V Passive PoE Voltage Range: 20-27V
