60 GHz PtMP station powered by Wave Technology.
Can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Nano is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.
Product Features:
-
5 GHz backup radio
- Link range: up to 5 km
- Router mode support
- Integrated GPS antenna
- Link planning support via ISP Design Center
Managed with UISP application: Version 1.4.5 and later
Product Specifications:
Mechanical
- Dimensions: Ø256.5 x 113.5 mm (Ø10.1 x 4.5")
- Weight:
- Without mount: 932 g (2.1 lb)
- With mount: 1.2 kg (2.6 lb)
- Enclosure materials: Aluminum alloy, UV stabilized plastic
- Mount materials: Aluminum alloy, UV stabilized plastic
- Pole mount diameter: 25 to 63.5 mm (1 to 2.5") on pipe outer diameter
- Wind loading: 127 N at 200 km/h (28.6 lbf at 125 mph)
- Weatherproofing: IPX6
Hardware
- Processor: Dual ARM® Cortex®-A53 cores at 1 GHz
- Memory: DDR3L 512 MB

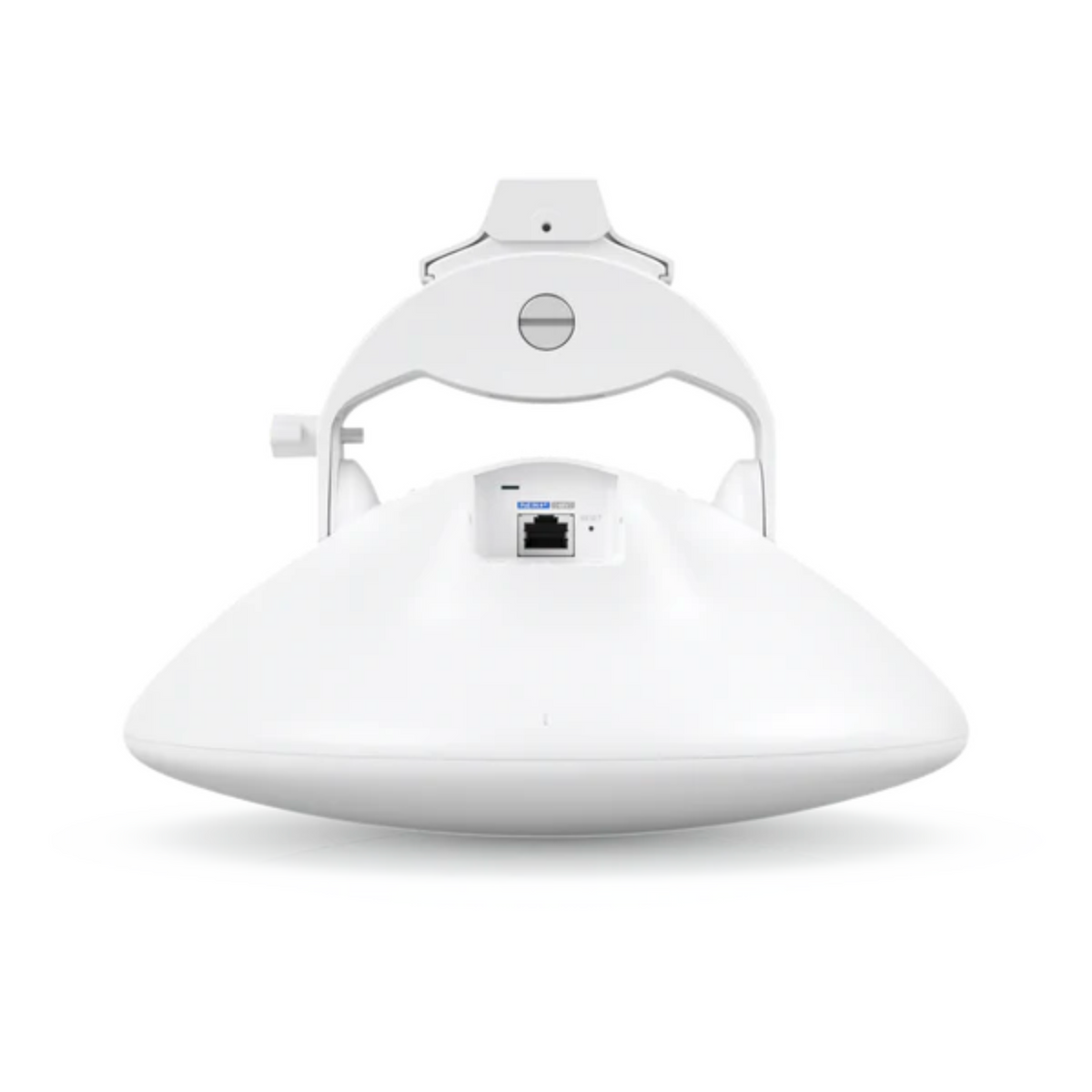

- Networking interface: (1) GbE RJ45 port
- Max. power consumption: 18W
- Power method
- 48V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4,5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)
- 24V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
- Power supply:
- 48V DC, 0.65A gigabit PoE adapter (included)
- Can be powered by a UISP Router or UISP Switch
- GPS: Yes
- Button: Factory reset
- LEDs: Power, Ethernet, GPS, link
- Operating temperature: -40 to 60° C (-40 to 140° F)
- Operating humidity: 5 to 95% noncondensing
- Certifications: FCC, IC, CE
Software
- OS: airOS®
- Operating mode: PtMP station
- Ubiquiti specific features: Wave AI, discovery protocol
- Services: UISP, ping watchdog, NTP client, SNMP
- Tools: Antenna alignment, discovery utility, ping, trace route, speed test
- Network: Bridge/Router mode
- Software management: Bluetooth management for easy setup over UISP app WEB UI
- Minimum software requirements: Any modern web browser/iOS™ or Android™ based smartphone
System
- Total throughput: 2 Gbps (1 Gbps duplex)
- Maximum range: 5+ km
- Encryption: WPA2-PSK (AES)
